GDOT TESTING

gdot_plan-649084f395824aaebf1f5ed48132696f · Bridge

Models

Step 1 sends drawing crops, so it needs a model that can see them. Steps 2 and 3 send step 1’s readings as text — a text-only model with a large context is a fair answer there.

1Read the crops282 crops · 269 read · 1146 objects · 2583 measurementsconfigured openai/gpt-5.6-terra-pro · about 7¢ for 13 crops · default

Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.

269 of 282 crops read · 13 failed. Analysing again retries only those.

282crops269read1146objects found2583measurements912,569tokens in478,800tokens out
Page 414 crops · 14 read
crop · 3171 × 3803

p04_r01 title block

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r01_title_block
Original

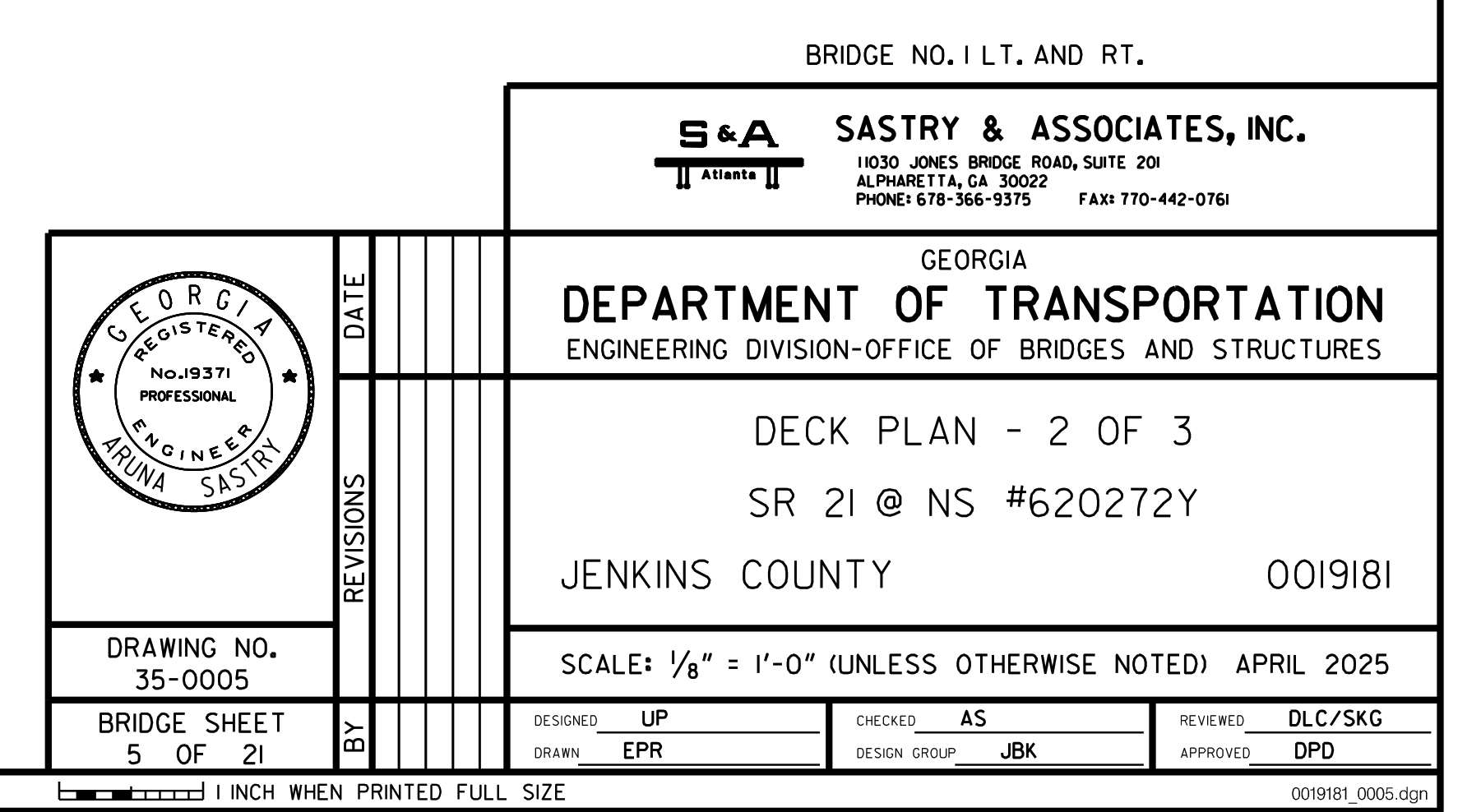

p04_r01 title block
{
  "view": "Plan",
  "objects": [
    {
      "name": "Beam",
      "tag": "BEAM 1-6 (Westbound span)",
      "shape": "linear/I-shaped (beam line)",
      "material": "precast concrete (implied by 400A callout)",
      "count": 6,
      "note": "Centerlines shown as dash-dot lines, beams 1 through 6 for westbound deck"
    },
    {
      "name": "Beam",
      "tag": "BEAM 7-12 (Eastbound span)",
      "shape": "linear/I-shaped (beam line)",
      "material": "precast concrete (implied by 400A callout)",
      "count": 6,
      "note": "Centerlines shown as dash-dot lines, beams 7 through 12 for eastbound deck"
    },
    {
      "name": "Diaphragm",
      "tag": "400A",
      "shape": "rectangular strip, perpendicular to beams",
      "material": "reinforced concrete",
      "count": 3,
      "note": "Labeled '10\" CONCRETE DIAPHRAGM, TYP.', shown crossing beams at intervals, callout '400A' repeated twice (once per span)"
    },
    {
      "name": "Edgebeam",
      "tag": "",
      "shape": "linear strip along deck edge",
      "material": "concrete",
      "count": 2,
      "note": "1'-0\" EDGEBEAM, TYP., one along each side of each span"
    },
    {
      "name": "Fillet",
      "tag": "",
      "shape": "linear strip",
      "material": "concrete",
      "count": 4,
      "note": "8\" FILLET, TYP., shown along beam edges"
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "linear/rectangular",
      "material": "concrete",
      "count": 4,
      "note": "Two types called out: '3'-0\" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.' and '1'-6\" ENDWALL'"
    },
    {
      "name": "Paving rest",
      "tag": "",
      "shape": "ledge/rectangular",
      "material": "concrete",
      "count": 2,
      "note": "12\" PAVING REST, TYP., one per span at bent location"
    },
    {
      "name": "Bent",
      "tag": "BENT 1 (B.F.P.R. BENT 1)",
      "shape": "not fully shown, referenced at edge of plan",
      "material": "concrete",
      "count": 2,
      "note": "Labeled 'B.F.P.R. BENT 1' appears at both spans, likely 'Back Face Paving Rest' or bent reference; only tag visible, structure not detailed in this crop"
    },
    {
      "name": "Fence post",
      "tag": "12-502A / 12-502B / 12-502C",
      "shape": "circular (post markers shown as small circles)",
      "material": "not stated",
      "count": 9,
      "note": "Fence post spacing marks along top and bottom edges of both spans, tagged 502A, 502B, 502C with quantity prefix '12-'"
    },
    {
      "name": "Deck slab",
      "tag": "",
      "shape": "rectangular/trapezoidal (skewed)",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Two deck panels shown, Westbound and Eastbound, both skewed at 81°-20'-05.0\""
    }
  ],
  "measurements": [
    {
      "label": "Overall deck width (top span)",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge"
    },
    {
      "label": "Segment width",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge (3 segments)"
    },
    {
      "label": "Beam spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge beam spacing (5 instances)"
    },
    {
      "label": "End segment",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge end segment"
    },
    {
      "label": "Edge offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge start offset"
    },
    {
      "label": "Gutter to gutter width",
      "value": "40'-0\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width, both spans"
    },
    {
      "label": "Out to out width",
      "value": "43'-7\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width, both spans"
    },
    {
      "label": "Offset from gutter to out",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "Deck edge, both spans (4 instances)"
    },
    {
      "label": "Fence post spacing width",
      "value": "5'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence posts near edgebeam ends, both spans (4 instances)"
    },
    {
      "label": "Skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "degrees-min-sec",
      "appliesTo": "Beam skew / construction centerline skew, multiple callouts"
    },
    {
      "label": "Bearing",
      "value": "N 83°-43'-21.7\" E",
      "unit": "bearing",
      "appliesTo": "Construction reference line between spans"
    },
    {
      "label": "Fillet thickness",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "Fillet, typ."
    },
    {
      "label": "Diaphragm thickness",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "Concrete diaphragm, typ."
    },
    {
      "label": "Edgebeam width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Edgebeam, typ."
    },
    {
      "label": "Endwall thickness (exterior)",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "Endwall outside exterior beam, typ."
    },
    {
      "label": "Endwall thickness (interior)",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "Endwall"
    },
    {
      "label": "Paving rest width",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "Paving rest"
    },
    {
      "label": "Bottom span width dimension set",
      "value": "22'-0\"",
      "unit": "ft-in",
      "appliesTo": "Vertical dimension between spans (2 instances)"
    },
    {
      "label": "Lower fence post spacing overall (bottom of westbound)",
      "value": "52'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck bottom edge overall"
    },
    {
      "label": "Segment dimension",
      "value": "17'-4 5/16\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck bottom edge segment"
    },
    {
      "label": "Segment dimension",
      "value": "17'-5 1/4\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck bottom edge segment (2 instances)"
    },
    {
      "label": "End post dimension",
      "value": "4'-3\"",
      "unit": "ft-in",
      "appliesTo": "End post, westbound bottom edge"
    },
    {
      "label": "Fence post spacing segments (bottom westbound)",
      "value": "8'-9\", 8'-9\", 8'-0\", 9'-6\", 9'-6\", 6'-8 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Westbound bottom edge fence post spacing"
    },
    {
      "label": "Offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound bottom edge start offset"
    },
    {
      "label": "Eastbound top edge overall",
      "value": "51'-8 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck top edge overall"
    },
    {
      "label": "Segment dimension",
      "value": "17'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck top edge segment (2 instances)"
    },
    {
      "label": "Segment dimension",
      "value": "17'-2 3/4\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck top edge segment"
    },
    {
      "label": "End post dimension",
      "value": "4'-6\"",
      "unit": "ft-in",
      "appliesTo": "End post, eastbound top edge"
    },
    {
      "label": "Fence post spacing segments (top eastbound)",
      "value": "8'-9\", 8'-9\", 8'-0\", 9'-6\", 9'-6\", 6'-2 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound top edge fence post spacing"
    },
    {
      "label": "Offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound top edge start offset"
    },
    {
      "label": "Overall deck width (bottom span)",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge"
    },
    {
      "label": "Segment width",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge (3 segments)"
    },
    {
      "label": "Beam spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge beam spacing (5 instances)"
    },
    {
      "label": "End segment",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge end segment"
    },
    {
      "label": "Offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge start offset"
    }
  ],
  "notes": [
    "3'-0\" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.",
    "8\" FILLET, TYP.",
    "B.F.P.R. BENT 1",
    "12\" PAVING REST",
    "1'-6\" ENDWALL",
    "1'-0\" EDGEBEAM, TYP.",
    "10\" CONCRETE DIAPHRAGM, TYP.",
    "81°-20'-05.0\", TYP.",
    "CONSTRUCTION CL SR 21",
    "81°-20'-05.0\"",
    "FENCE POST SPACING",
    "END POST"
  ],
  "labels": [
    "DECK PLAN",
    "SPAN 1",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "12-502A",
    "12-502B",
    "12-502C",
    "400A",
    "N 83°-43'-21.7\" E",
    "aruna sastry",
    "5/31/2025",
    "11:05:27 AM"
  ],
  "description": "This crop is a Deck Plan (Span 1) for a two-span bridge structure, showing separate westbound and eastbound decks in plan view, each skewed at 81°-20'-05.0\". It details beam centerlines (Beam 1-12), fence post spacing and tags (502A/B/C), edgebeams, fillets, endwalls, paving rests, concrete diaphragms (400A), and overall/segment dimensions for deck width, gutter-to-gutter and out-to-out widths, plus a construction centerline (SR 21) and bearing reference between the two spans."
}

p04_r01 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r01_title_block

Plan10 objects · 35 measurements · 12 notes · 12 labels

This crop is a Deck Plan (Span 1) for a two-span bridge structure, showing separate westbound and eastbound decks in plan view, each skewed at 81°-20'-05.0". It details beam centerlines (Beam 1-12), fence post spacing and tags (502A/B/C), edgebeams, fillets, endwalls, paving rests, concrete diaphragms (400A), and overall/segment dimensions for deck width, gutter-to-gutter and out-to-out widths, plus a construction centerline (SR 21) and bearing reference between the two spans.

Objects · 10

MarkObjectNo.ShapeMaterialNote
BEAM 1-6 (Westbound span)Beam6linear/I-shaped (beam line)precast concrete (implied by 400A callout)Centerlines shown as dash-dot lines, beams 1 through 6 for westbound deck
BEAM 7-12 (Eastbound span)Beam6linear/I-shaped (beam line)precast concrete (implied by 400A callout)Centerlines shown as dash-dot lines, beams 7 through 12 for eastbound deck
400ADiaphragm3rectangular strip, perpendicular to beamsreinforced concreteLabeled '10" CONCRETE DIAPHRAGM, TYP.', shown crossing beams at intervals, callout '400A' repeated twice (once per span)
Edgebeam2linear strip along deck edgeconcrete1'-0" EDGEBEAM, TYP., one along each side of each span
Fillet4linear stripconcrete8" FILLET, TYP., shown along beam edges
Endwall4linear/rectangularconcreteTwo types called out: '3'-0" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.' and '1'-6" ENDWALL'
Paving rest2ledge/rectangularconcrete12" PAVING REST, TYP., one per span at bent location
BENT 1 (B.F.P.R. BENT 1)Bent2not fully shown, referenced at edge of planconcreteLabeled 'B.F.P.R. BENT 1' appears at both spans, likely 'Back Face Paving Rest' or bent reference; only tag visible, structure not detailed in this crop
12-502A / 12-502B / 12-502CFence post9circular (post markers shown as small circles)not statedFence post spacing marks along top and bottom edges of both spans, tagged 502A, 502B, 502C with quantity prefix '12-'
Deck slab2rectangular/trapezoidal (skewed)reinforced concreteTwo deck panels shown, Westbound and Eastbound, both skewed at 81°-20'-05.0"

Measurements · 35

MeasurementValueUnitApplies to
Overall deck width (top span)55'-0"ft-inWestbound deck top edge
Segment width18'-4"ft-inWestbound deck top edge (3 segments)
Beam spacing9'-6"ft-inWestbound deck top edge beam spacing (5 instances)
End segment6'-6"ft-inWestbound deck top edge end segment
Edge offset1'-0"ft-inWestbound deck top edge start offset
Gutter to gutter width40'-0"ft-inDeck cross width, both spans
Out to out width43'-7"ft-inDeck cross width, both spans
Offset from gutter to out1'-9 1/2"ft-inDeck edge, both spans (4 instances)
Fence post spacing width5'-0"ft-inFence posts near edgebeam ends, both spans (4 instances)
Skew angle81°-20'-05.0"degrees-min-secBeam skew / construction centerline skew, multiple callouts
BearingN 83°-43'-21.7" EbearingConstruction reference line between spans
Fillet thickness8"inFillet, typ.
Diaphragm thickness10"inConcrete diaphragm, typ.
Edgebeam width1'-0"ft-inEdgebeam, typ.
Endwall thickness (exterior)3'-0"ft-inEndwall outside exterior beam, typ.
Endwall thickness (interior)1'-6"ft-inEndwall
Paving rest width12"inPaving rest
Bottom span width dimension set22'-0"ft-inVertical dimension between spans (2 instances)
Lower fence post spacing overall (bottom of westbound)52'-2 13/16"ft-inWestbound deck bottom edge overall
Segment dimension17'-4 5/16"ft-inWestbound deck bottom edge segment
Segment dimension17'-5 1/4"ft-inWestbound deck bottom edge segment (2 instances)
End post dimension4'-3"ft-inEnd post, westbound bottom edge
Fence post spacing segments (bottom westbound)8'-9", 8'-9", 8'-0", 9'-6", 9'-6", 6'-8 13/16"ft-inWestbound bottom edge fence post spacing
Offset1'-0"ft-inWestbound bottom edge start offset
Eastbound top edge overall51'-8 3/8"ft-inEastbound deck top edge overall
Segment dimension17'-2 13/16"ft-inEastbound deck top edge segment (2 instances)
Segment dimension17'-2 3/4"ft-inEastbound deck top edge segment
End post dimension4'-6"ft-inEnd post, eastbound top edge
Fence post spacing segments (top eastbound)8'-9", 8'-9", 8'-0", 9'-6", 9'-6", 6'-2 3/8"ft-inEastbound top edge fence post spacing
Offset1'-0"ft-inEastbound top edge start offset
Overall deck width (bottom span)55'-0"ft-inEastbound deck bottom edge
Segment width18'-4"ft-inEastbound deck bottom edge (3 segments)
Beam spacing9'-6"ft-inEastbound deck bottom edge beam spacing (5 instances)
End segment6'-6"ft-inEastbound deck bottom edge end segment
Offset1'-0"ft-inEastbound deck bottom edge start offset

Labels

DECK PLANSPAN 1PGL WESTBOUNDPGL EASTBOUND12-502A12-502B12-502C400AN 83°-43'-21.7" Earuna sastry5/31/202511:05:27 AM

Notes

  • 3'-0" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.
  • 8" FILLET, TYP.
  • B.F.P.R. BENT 1
  • 12" PAVING REST
  • 1'-6" ENDWALL
  • 1'-0" EDGEBEAM, TYP.
  • 10" CONCRETE DIAPHRAGM, TYP.
  • 81°-20'-05.0", TYP.
  • CONSTRUCTION CL SR 21
  • 81°-20'-05.0"
  • FENCE POST SPACING
  • END POST

anthropic/claude-sonnet-5 · 10111 tokens · 41.2s

crop · 1184 × 614

p04_r02 barrier transition detail

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r02_barrier_transition_detail
Original
p04_r02 barrier transition detail
{
  "view": "Detail",
  "objects": [
    {
      "name": "End post",
      "tag": "",
      "shape": "rectangular",
      "material": "concrete",
      "count": 1,
      "note": "Located at left end of barrier transition, shown with dashed lines indicating hidden edge"
    },
    {
      "name": "Barrier (parapet) transition",
      "tag": "",
      "shape": "tapered",
      "material": "concrete",
      "count": 1,
      "note": "Top edge tapers upward from 2\" at end post to 1'-9 1/2\" at far end over a 12'-0\" length, with slope callout 1:18"
    },
    {
      "name": "Paving rest",
      "tag": "",
      "shape": "rectangular, angled",
      "material": "concrete",
      "count": 1,
      "note": "Labeled 12\" PAVING REST, shown as a diagonal element abutting the end post"
    }
  ],
  "measurements": [
    {
      "label": "Paving rest width",
      "value": "12",
      "unit": "in",
      "appliesTo": "Paving rest"
    },
    {
      "label": "Height at end post",
      "value": "2",
      "unit": "in",
      "appliesTo": "End post/barrier transition start"
    },
    {
      "label": "Horizontal length of transition",
      "value": "12'-0\"",
      "unit": "ft-in",
      "appliesTo": "Barrier transition"
    },
    {
      "label": "Height at far end of transition",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "Barrier transition end"
    },
    {
      "label": "Slope ratio rise",
      "value": "1",
      "unit": "",
      "appliesTo": "Barrier transition slope diagram"
    },
    {
      "label": "Slope ratio run",
      "value": "18",
      "unit": "",
      "appliesTo": "Barrier transition slope diagram"
    },
    {
      "label": "Drawing scale",
      "value": "1/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Barrier Transition Detail"
    }
  ],
  "notes": [
    "12\" PAVING REST",
    "END POST",
    "BARRIER TRANSITION",
    "BARRIER TRANSITION DETAIL",
    "SCALE: 1/4\" = 1'-0\""
  ],
  "labels": [
    "BARRIER TRANSITION DETAIL",
    "BARRIER TRANSITION",
    "END POST",
    "12\" PAVING REST"
  ],
  "description": "This crop is a detail drawing showing the transition geometry of a concrete barrier/parapet from an end post to a taller section over a 12'-0\" length, with height increasing from 2\" to 1'-9 1/2\". A slope diagram labeled 'BARRIER TRANSITION' indicates a 1:18 taper ratio, and a 12\" paving rest is shown adjoining the end post. The detail is drawn at 1/4\"=1'-0\" scale, likely part of a bridge parapet/barrier standard detail sheet."
}

p04_r02 barrier transition detail

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r02_barrier_transition_detail

Detail3 objects · 7 measurements · 5 notes · 4 labels

This crop is a detail drawing showing the transition geometry of a concrete barrier/parapet from an end post to a taller section over a 12'-0" length, with height increasing from 2" to 1'-9 1/2". A slope diagram labeled 'BARRIER TRANSITION' indicates a 1:18 taper ratio, and a 12" paving rest is shown adjoining the end post. The detail is drawn at 1/4"=1'-0" scale, likely part of a bridge parapet/barrier standard detail sheet.

Objects · 3

ObjectNo.ShapeMaterialNote
End post1rectangularconcreteLocated at left end of barrier transition, shown with dashed lines indicating hidden edge
Barrier (parapet) transition1taperedconcreteTop edge tapers upward from 2" at end post to 1'-9 1/2" at far end over a 12'-0" length, with slope callout 1:18
Paving rest1rectangular, angledconcreteLabeled 12" PAVING REST, shown as a diagonal element abutting the end post

Measurements · 7

MeasurementValueUnitApplies to
Paving rest width12inPaving rest
Height at end post2inEnd post/barrier transition start
Horizontal length of transition12'-0"ft-inBarrier transition
Height at far end of transition1'-9 1/2"ft-inBarrier transition end
Slope ratio rise1Barrier transition slope diagram
Slope ratio run18Barrier transition slope diagram
Drawing scale1/4" = 1'-0"Barrier Transition Detail

Labels

BARRIER TRANSITION DETAILBARRIER TRANSITIONEND POST12" PAVING REST

Notes

  • 12" PAVING REST
  • END POST
  • BARRIER TRANSITION
  • BARRIER TRANSITION DETAIL
  • SCALE: 1/4" = 1'-0"

anthropic/claude-sonnet-5 · 3196 tokens · 13.6s

crop · 916 × 821

p04_r03 expansion joint details

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r03_expansion_joint_details
Original
p04_r03 expansion joint details
{
  "view": "Detail",
  "objects": [
    {
      "name": "Expansion joint seal assembly",
      "tag": "",
      "shape": "rectangular groove with tapered/pinched sealant profile",
      "material": "preformed silicone joint seal / silicone adhesive",
      "count": 1,
      "note": "Shown in cross-section between two concrete edges"
    },
    {
      "name": "Filler material",
      "tag": "",
      "shape": "rectangular strip (hatched)",
      "material": "filler material per Georgia DOT sub-section 833.2.01",
      "count": 1,
      "note": "Located below the silicone seal, held with 10d galvanized nails"
    },
    {
      "name": "Concrete edge/nosing",
      "tag": "",
      "shape": "rounded edge (1/4\" R)",
      "material": "concrete (implied)",
      "count": 2,
      "note": "Two facing edges forming the joint gap"
    }
  ],
  "measurements": [
    {
      "label": "Joint opening width",
      "value": "1 3/8",
      "unit": "in",
      "appliesTo": "Expansion joint seal"
    },
    {
      "label": "Seal depth/height",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "Expansion joint seal"
    },
    {
      "label": "Edge fillet radius",
      "value": "1/4",
      "unit": "in R",
      "appliesTo": "Concrete edge"
    }
  ],
  "notes": [
    "PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449",
    "FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS"
  ],
  "labels": [
    "1/4\" R",
    "SILICONE ADHESIVE",
    "EXPANSION JOINT DETAILS",
    "END BENTS 1 AND 4"
  ],
  "description": "This crop is a detail drawing showing a cross-section of an expansion joint seal assembly, likely at a bridge end bent. It illustrates the preformed silicone joint seal geometry, dimensions of the joint opening and seal depth, the silicone adhesive bond, and the filler material below, with associated specification references. The title at the bottom indicates this detail applies to End Bents 1 and 4 (text partially cut off)."
}

p04_r03 expansion joint details

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r03_expansion_joint_details

Detail3 objects · 3 measurements · 2 notes · 4 labels

This crop is a detail drawing showing a cross-section of an expansion joint seal assembly, likely at a bridge end bent. It illustrates the preformed silicone joint seal geometry, dimensions of the joint opening and seal depth, the silicone adhesive bond, and the filler material below, with associated specification references. The title at the bottom indicates this detail applies to End Bents 1 and 4 (text partially cut off).

Objects · 3

ObjectNo.ShapeMaterialNote
Expansion joint seal assembly1rectangular groove with tapered/pinched sealant profilepreformed silicone joint seal / silicone adhesiveShown in cross-section between two concrete edges
Filler material1rectangular strip (hatched)filler material per Georgia DOT sub-section 833.2.01Located below the silicone seal, held with 10d galvanized nails
Concrete edge/nosing2rounded edge (1/4" R)concrete (implied)Two facing edges forming the joint gap

Measurements · 3

MeasurementValueUnitApplies to
Joint opening width1 3/8inExpansion joint seal
Seal depth/height1/2inExpansion joint seal
Edge fillet radius1/4in RConcrete edge

Labels

1/4" RSILICONE ADHESIVEEXPANSION JOINT DETAILSEND BENTS 1 AND 4

Notes

  • PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449
  • FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS

anthropic/claude-sonnet-5 · 3085 tokens · 13.9s

crop · 1031 × 264

p04_r04 notes

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r04_notes
Original
p04_r04 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [

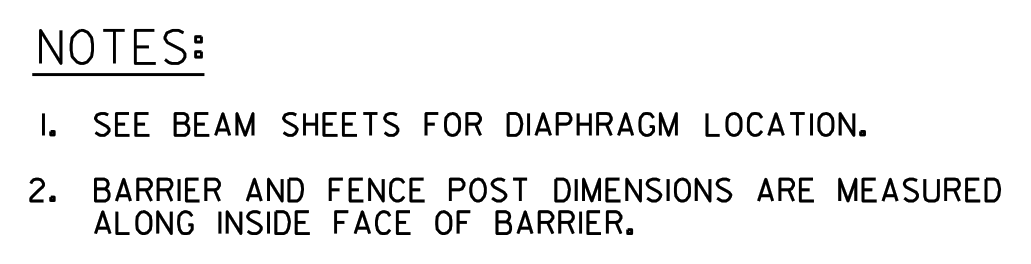

    "1. SEE BEAM SHEETS FOR DIAPHRAGM LOCATION.",
    "2. BARRIER AND FENCE POST DIMENSIONS ARE MEASURED ALONG INSIDE FACE OF BARRIER."
  ],
  "labels": [
    "NOTES:"
  ],
  "description": "This crop shows a notes block containing two general construction notes: one referencing beam sheets for diaphragm location, and another clarifying that barrier and fence post dimensions are measured along the inside face of the barrier. No drawn objects, dimensions, or graphical elements are present in this crop."
}

p04_r04 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r04_notes

Notes2 notes · 1 label

This crop shows a notes block containing two general construction notes: one referencing beam sheets for diaphragm location, and another clarifying that barrier and fence post dimensions are measured along the inside face of the barrier. No drawn objects, dimensions, or graphical elements are present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

NOTES:

Notes

  • 1. SEE BEAM SHEETS FOR DIAPHRAGM LOCATION.
  • 2. BARRIER AND FENCE POST DIMENSIONS ARE MEASURED ALONG INSIDE FACE OF BARRIER.

anthropic/claude-sonnet-5 · 1912 tokens · 7.2s

crop · 2684 × 478

p04_r05 table

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r05_table
Original
p04_r05 table
{
  "view": "Table",
  "objects": [],
  "measurements": [
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Left Bridge Span 1",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Span 1"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Left Bridge Span 2",
      "value": "99.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Span 2"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Left Bridge Span 3",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Span 3"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Left Bridge Total",
      "value": "249.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Total"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Right Bridge Span 1",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Span 1"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Right Bridge Span 2",
      "value": "99.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Span 2"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Right Bridge Span 3",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Span 3"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\" - Right Bridge Total",
      "value": "249.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Total"
    },
    {
      "label": "SUPERSTR REINF STEEL - Left Bridge Span 1",
      "value": "20639",
      "unit": "LB",
      "appliesTo": "Left Bridge Span 1"
    },
    {
      "label": "SUPERSTR REINF STEEL - Left Bridge Span 2",
      "value": "28494",
      "unit": "LB",
      "appliesTo": "Left Bridge Span 2"
    },
    {
      "label": "SUPERSTR REINF STEEL - Left Bridge Span 3",
      "value": "20629",
      "unit": "LB",
      "appliesTo": "Left Bridge Span 3"
    },
    {
      "label": "SUPERSTR REINF STEEL - Left Bridge Total",
      "value": "69762",
      "unit": "LB",
      "appliesTo": "Left Bridge Total"
    },
    {
      "label": "SUPERSTR REINF STEEL - Right Bridge Span 1",
      "value": "20629",
      "unit": "LB",
      "appliesTo": "Right Bridge Span 1"
    },
    {
      "label": "SUPERSTR REINF STEEL - Right Bridge Span 2",
      "value": "28494",
      "unit": "LB",
      "appliesTo": "Right Bridge Span 2"
    },
    {
      "label": "SUPERSTR REINF STEEL - Right Bridge Span 3",
      "value": "20639",
      "unit": "LB",
      "appliesTo": "Right Bridge Span 3"
    },
    {
      "label": "SUPERSTR REINF STEEL - Right Bridge Total",
      "value": "69762",
      "unit": "LB",
      "appliesTo": "Right Bridge Total"
    }
  ],
  "notes": [],
  "labels": [
    "SUPERSTRUCTURE QUANTITIES",
    "ITEM",
    "LEFT BRIDGE",
    "RIGHT BRIDGE",
    "SPAN 1",
    "SPAN 2",
    "SPAN 3",
    "TOTAL",
    "LUMP - CY SUPERSTR CONCRETE, CLASS \"D\"",
    "LUMP - LB SUPERSTR REINF STEEL"
  ],

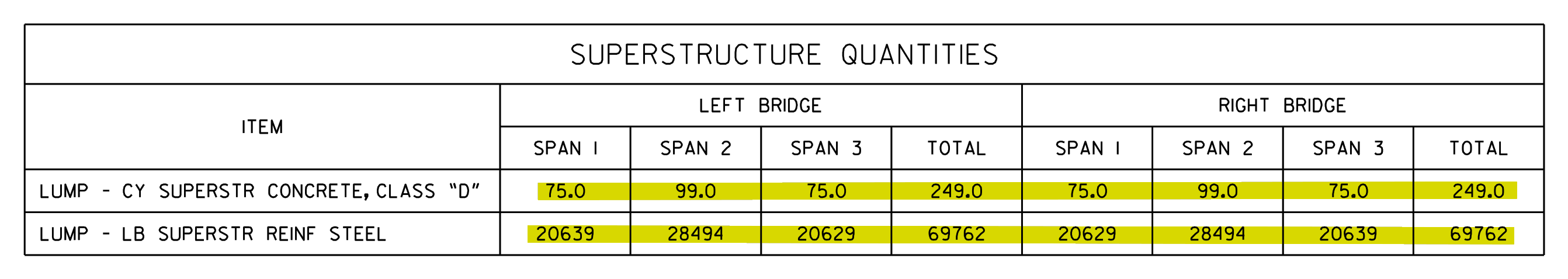

  "description": "This crop is a quantities table titled 'SUPERSTRUCTURE QUANTITIES' listing lump-sum superstructure concrete (Class D, in CY) and reinforcing steel (in LB) quantities broken down by span (1, 2, 3) and totals for both the Left Bridge and Right Bridge. It is a bill-of-quantities style schedule with no drawn structural elements, only tabulated numeric data for takeoff purposes."
}

p04_r05 table

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r05_table

Table16 measurements · 10 labels

This crop is a quantities table titled 'SUPERSTRUCTURE QUANTITIES' listing lump-sum superstructure concrete (Class D, in CY) and reinforcing steel (in LB) quantities broken down by span (1, 2, 3) and totals for both the Left Bridge and Right Bridge. It is a bill-of-quantities style schedule with no drawn structural elements, only tabulated numeric data for takeoff purposes.

Objects · 0

No objects read. Edit to add one.

Measurements · 16

MeasurementValueUnitApplies to
SUPERSTR CONCRETE, CLASS "D" - Left Bridge Span 175.0CYLeft Bridge Span 1
SUPERSTR CONCRETE, CLASS "D" - Left Bridge Span 299.0CYLeft Bridge Span 2
SUPERSTR CONCRETE, CLASS "D" - Left Bridge Span 375.0CYLeft Bridge Span 3
SUPERSTR CONCRETE, CLASS "D" - Left Bridge Total249.0CYLeft Bridge Total
SUPERSTR CONCRETE, CLASS "D" - Right Bridge Span 175.0CYRight Bridge Span 1
SUPERSTR CONCRETE, CLASS "D" - Right Bridge Span 299.0CYRight Bridge Span 2
SUPERSTR CONCRETE, CLASS "D" - Right Bridge Span 375.0CYRight Bridge Span 3
SUPERSTR CONCRETE, CLASS "D" - Right Bridge Total249.0CYRight Bridge Total
SUPERSTR REINF STEEL - Left Bridge Span 120639LBLeft Bridge Span 1
SUPERSTR REINF STEEL - Left Bridge Span 228494LBLeft Bridge Span 2
SUPERSTR REINF STEEL - Left Bridge Span 320629LBLeft Bridge Span 3
SUPERSTR REINF STEEL - Left Bridge Total69762LBLeft Bridge Total
SUPERSTR REINF STEEL - Right Bridge Span 120629LBRight Bridge Span 1
SUPERSTR REINF STEEL - Right Bridge Span 228494LBRight Bridge Span 2
SUPERSTR REINF STEEL - Right Bridge Span 320639LBRight Bridge Span 3
SUPERSTR REINF STEEL - Right Bridge Total69762LBRight Bridge Total

Labels

SUPERSTRUCTURE QUANTITIESITEMLEFT BRIDGERIGHT BRIDGESPAN 1SPAN 2SPAN 3TOTALLUMP - CY SUPERSTR CONCRETE, CLASS "D"LUMP - LB SUPERSTR REINF STEEL

anthropic/claude-sonnet-5 · 3775 tokens · 14.4s

crop · 1516 × 122

p04_r06 notes

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r06_notes
Original
p04_r06 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [

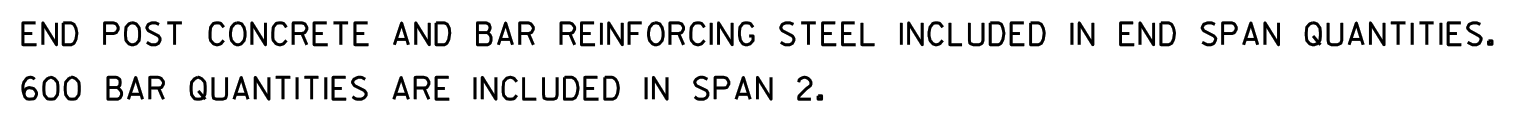

    "END POST CONCRETE AND BAR REINFORCING STEEL INCLUDED IN END SPAN QUANTITIES.",
    "600 BAR QUANTITIES ARE INCLUDED IN SPAN 2."
  ],
  "labels": [],
  "description": "This crop contains two typed general notes referring to end post concrete, bar reinforcing steel, and 600 series bar quantities, and how they are allocated among span quantities (end span vs. Span 2). No drawing elements, dimensions, or graphical content are visible in this crop."
}

p04_r06 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r06_notes

Notes2 notes

This crop contains two typed general notes referring to end post concrete, bar reinforcing steel, and 600 series bar quantities, and how they are allocated among span quantities (end span vs. Span 2). No drawing elements, dimensions, or graphical content are visible in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • END POST CONCRETE AND BAR REINFORCING STEEL INCLUDED IN END SPAN QUANTITIES.
  • 600 BAR QUANTITIES ARE INCLUDED IN SPAN 2.

anthropic/claude-sonnet-5 · 1799 tokens · 6.5s

crop · 1801 × 988

p04_r07 title block

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r07_title_block
Original
p04_r07 title block
{
  "view": "Title Block",
  "objects": [],
  "measurements": [
    {
      "label": "Scale",
      "value": "1/8\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Deck Plan drawing (unless otherwise noted)"
    }
  ],
  "notes": [
    "SCALE: 1/8\" = 1'-0\" (UNLESS OTHERWISE NOTED) APRIL 2025",
    "I INCH WHEN PRINTED FULL SIZE"
  ],
  "labels": [
    "BRIDGE NO. I LT. AND RT.",
    "S&A SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375  FAX: 770-442-0761",
    "GEORGIA",
    "DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "DECK PLAN - 1 OF 3",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "0019181",
    "DRAWING NO. 35-0004",
    "BRIDGE SHEET 4 OF 21",
    "DATE",
    "REVISIONS",
    "BY",
    "DESIGNED UP",
    "DRAWN EPR",
    "CHECKED AS",
    "DESIGN GROUP JBK",
    "REVIEWED DLC/SKG",
    "APPROVED DPD",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY",
    "0019181_0004.dgn"
  ],
  "description": "This crop is the title block for Bridge Sheet 4 of 21, part of a set titled 'Deck Plan - 1 of 3' for Bridge No. 1 LT. and RT. over SR 21 @ NS #620272Y in Jenkins County, Georgia. It identifies the design firm Sastry & Associates, Inc., the Georgia Department of Transportation Office of Bridges and Structures, drawing number 35-0004, scale, date (April 2025), and personnel initials for design, drawing, checking, and approval, along with a professional engineer's seal for Aruna Sastry."
}

p04_r07 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r07_title_block

Title Block1 measurement · 2 notes · 25 labels

This crop is the title block for Bridge Sheet 4 of 21, part of a set titled 'Deck Plan - 1 of 3' for Bridge No. 1 LT. and RT. over SR 21 @ NS #620272Y in Jenkins County, Georgia. It identifies the design firm Sastry & Associates, Inc., the Georgia Department of Transportation Office of Bridges and Structures, drawing number 35-0004, scale, date (April 2025), and personnel initials for design, drawing, checking, and approval, along with a professional engineer's seal for Aruna Sastry.

Objects · 0

No objects read. Edit to add one.

Measurements · 1

MeasurementValueApplies to
Scale1/8" = 1'-0"Deck Plan drawing (unless otherwise noted)

Labels

BRIDGE NO. I LT. AND RT.S&A SASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375 FAX: 770-442-0761GEORGIADEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESDECK PLAN - 1 OF 3SR 21 @ NS #620272YJENKINS COUNTY0019181DRAWING NO. 35-0004BRIDGE SHEET 4 OF 21DATEREVISIONSBYDESIGNED UPDRAWN EPRCHECKED ASDESIGN GROUP JBKREVIEWED DLC/SKGAPPROVED DPDGEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY0019181_0004.dgn

Notes

  • SCALE: 1/8" = 1'-0" (UNLESS OTHERWISE NOTED) APRIL 2025
  • I INCH WHEN PRINTED FULL SIZE

anthropic/claude-sonnet-5 · 4485 tokens · 14.5s

item · 3195 × 3818

Other P04 R01

page 4 · other_p04_r01
Original
Other P04 R01
{
  "view": "Plan",
  "objects": [
    {
      "name": "Deck slab",
      "tag": "SPAN 1",
      "shape": "trapezoidal (skewed)",
      "material": "reinforced concrete",
      "count": 2,
      "note": "One deck plan shown for each bridge (westbound and eastbound), both labeled Span 1"
    },
    {
      "name": "Beam",
      "tag": "BEAM 1–BEAM 12",
      "shape": "longitudinal, parallel",
      "material": "precast/prestressed concrete (implied by beam callouts, not stated)",
      "count": 12,
      "note": "Six beams shown per bridge, centerlines labeled CL BEAM 1 through CL BEAM 12"
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "linear, at ends of span",
      "material": "concrete",
      "count": 4,
      "note": "Two sizes noted: 3'-0\" endwall outside exterior beam (typ.) and 1'-6\" endwall"
    },
    {
      "name": "Edgebeam",
      "tag": "",
      "shape": "linear, along deck edge",
      "material": "concrete",
      "count": 2,
      "note": "1'-0\" edgebeam, typ., one per bridge"
    },
    {
      "name": "Diaphragm",
      "tag": "",
      "shape": "transverse, rectangular",
      "material": "concrete",
      "count": 6,
      "note": "10\" concrete diaphragm, typ.; three transverse lines shown per bridge deck"
    },
    {
      "name": "Paving rest",
      "tag": "",
      "shape": "linear ledge",
      "material": "concrete",
      "count": 2,
      "note": "12\" paving rest, one per bridge at bent end"
    },
    {
      "name": "Bent",
      "tag": "B.F.P.R. BENT 1",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Referenced as back face of bent (B.F.P.R.), one per bridge deck plan"
    },
    {
      "name": "End post",
      "tag": "END POST",
      "shape": "",
      "material": "concrete",
      "count": 2,
      "note": "Located at the skewed end of each span, dimensioned 4'-3\" and 4'-6\""
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502A",
      "shape": "bar, transverse",
      "material": "reinforcing steel",
      "count": 6,
      "note": "Shown at top and bottom edges of both bridge decks"
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502B",
      "shape": "bar, transverse",
      "material": "reinforcing steel",
      "count": 3,
      "note": "Shown along lower edge of upper (westbound) deck"
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502C",
      "shape": "bar, transverse",
      "material": "reinforcing steel",
      "count": 3,
      "note": "Shown along upper edge of lower (eastbound) deck"
    },
    {
      "name": "Reinforcement bar",
      "tag": "400A",
      "shape": "bar, longitudinal",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Labeled once per deck, appears to run along beam lines"
    }
  ],
  "measurements": [
    {
      "label": "Overall deck width",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Span 1 deck (both bridges)"
    },
    {
      "label": "Panel spacing",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Deck panel spacing, repeated 3x per deck"
    },
    {
      "label": "Bar spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "12-502A/B/C bar spacing, repeated multiple times"
    },
    {
      "label": "End spacing",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing at deck end"
    },
    {
      "label": "Edge offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Deck edge dimension, multiple locations"
    },
    {
      "label": "Bearing pad spacing",
      "value": "5'-0\"",
      "unit": "ft-in",
      "appliesTo": "Bearing marks (*) near beam ends, x2"
    },
    {
      "label": "Fillet thickness",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "Fillet, typ."
    },
    {
      "label": "Diaphragm thickness",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "Concrete diaphragm, typ."
    },
    {
      "label": "Paving rest width",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "Paving rest"
    },
    {
      "label": "Endwall thickness",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "Endwall outside exterior beam, typ."
    },
    {
      "label": "Endwall thickness",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "Endwall"
    },
    {
      "label": "Edgebeam width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Edgebeam, typ."
    },
    {
      "label": "Gutter to gutter width",
      "value": "40'-0\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width"
    },
    {
      "label": "Out to out width",
      "value": "43'-7\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width"
    },
    {
      "label": "Overhang dimension",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "Deck overhang, repeated top and bottom"
    },
    {
      "label": "Distance",
      "value": "22'-0\"",
      "unit": "ft-in",
      "appliesTo": "Between gutter lines, both bridges"
    },
    {
      "label": "Skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "deg-min-sec",
      "appliesTo": "Beam/skew angle, typ., repeated multiple times"
    },
    {
      "label": "Bearing",
      "value": "N 83°-43'-21.7\" E",
      "unit": "",
      "appliesTo": "Construction bearing line"
    },
    {
      "label": "End post dimension",
      "value": "4'-3\"",
      "unit": "ft-in",
      "appliesTo": "End post, upper deck"
    },
    {
      "label": "End post dimension",
      "value": "4'-6\"",
      "unit": "ft-in",
      "appliesTo": "End post, lower deck"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-4 5/16\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-5 1/4\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment, x2"
    },
    {
      "label": "Total diagonal dimension",
      "value": "52'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge total, upper deck"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment, lower deck, x2"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-2 3/4\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment, lower deck"
    },
    {
      "label": "Total diagonal dimension",
      "value": "51'-8 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge total, lower deck"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-9\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, repeated multiple times"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, x2"
    },
    {
      "label": "Fence post spacing",
      "value": "6'-8 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, upper deck end"
    },
    {
      "label": "Fence post spacing",
      "value": "6'-2 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, lower deck end"
    }
  ],
  "notes": [],
  "labels": [
    "DECK PLAN",
    "SPAN 1",
    "CONSTRUCTION CL SR 21",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "FENCE POST SPACING",
    "END POST",
    "B.F.P.R. BENT 1",
    "CL BEAM 1",
    "CL BEAM 2",
    "CL BEAM 3",
    "CL BEAM 4",
    "CL BEAM 5",
    "CL BEAM 6",
    "CL BEAM 7",
    "CL BEAM 8",
    "CL BEAM 9",
    "CL BEAM 10",
    "CL BEAM 11",
    "CL BEAM 12"
  ],
  "description": "This crop shows the Deck Plan for Span 1 of a twin-bridge structure, depicting the westbound and eastbound decks side by side with beam centerlines (Beams 1–12), endwalls, edgebeams, diaphragms, paving rests, and end posts. It is heavily dimensioned with panel widths, skew angles (81°-20'-05.0\"), fence post spacing, and gutter-to-gutter/out-to-out widths, and references reinforcing bar marks 12-502A/B/C and 400A along with a construction centerline (SR 21) and bearing call-out."
}

Other P04 R01

done

other_p04_r01

Plan12 objects · 30 measurements · 20 labels

This crop shows the Deck Plan for Span 1 of a twin-bridge structure, depicting the westbound and eastbound decks side by side with beam centerlines (Beams 1–12), endwalls, edgebeams, diaphragms, paving rests, and end posts. It is heavily dimensioned with panel widths, skew angles (81°-20'-05.0"), fence post spacing, and gutter-to-gutter/out-to-out widths, and references reinforcing bar marks 12-502A/B/C and 400A along with a construction centerline (SR 21) and bearing call-out.

Objects · 12

MarkObjectNo.ShapeMaterialNote
SPAN 1Deck slab2trapezoidal (skewed)reinforced concreteOne deck plan shown for each bridge (westbound and eastbound), both labeled Span 1
BEAM 1–BEAM 12Beam12longitudinal, parallelprecast/prestressed concrete (implied by beam callouts, not stated)Six beams shown per bridge, centerlines labeled CL BEAM 1 through CL BEAM 12
Endwall4linear, at ends of spanconcreteTwo sizes noted: 3'-0" endwall outside exterior beam (typ.) and 1'-6" endwall
Edgebeam2linear, along deck edgeconcrete1'-0" edgebeam, typ., one per bridge
Diaphragm6transverse, rectangularconcrete10" concrete diaphragm, typ.; three transverse lines shown per bridge deck
Paving rest2linear ledgeconcrete12" paving rest, one per bridge at bent end
B.F.P.R. BENT 1Bent2Referenced as back face of bent (B.F.P.R.), one per bridge deck plan
END POSTEnd post2concreteLocated at the skewed end of each span, dimensioned 4'-3" and 4'-6"
12-502AReinforcement bar6bar, transversereinforcing steelShown at top and bottom edges of both bridge decks
12-502BReinforcement bar3bar, transversereinforcing steelShown along lower edge of upper (westbound) deck
12-502CReinforcement bar3bar, transversereinforcing steelShown along upper edge of lower (eastbound) deck
400AReinforcement bar2bar, longitudinalreinforcing steelLabeled once per deck, appears to run along beam lines

Measurements · 30

MeasurementValueUnitApplies to
Overall deck width55'-0"ft-inSpan 1 deck (both bridges)
Panel spacing18'-4"ft-inDeck panel spacing, repeated 3x per deck
Bar spacing9'-6"ft-in12-502A/B/C bar spacing, repeated multiple times
End spacing6'-6"ft-inFence post spacing at deck end
Edge offset1'-0"ft-inDeck edge dimension, multiple locations
Bearing pad spacing5'-0"ft-inBearing marks (*) near beam ends, x2
Fillet thickness8"inFillet, typ.
Diaphragm thickness10"inConcrete diaphragm, typ.
Paving rest width12"inPaving rest
Endwall thickness3'-0"ft-inEndwall outside exterior beam, typ.
Endwall thickness1'-6"ft-inEndwall
Edgebeam width1'-0"ft-inEdgebeam, typ.
Gutter to gutter width40'-0"ft-inDeck cross width
Out to out width43'-7"ft-inDeck cross width
Overhang dimension1'-9 1/2"ft-inDeck overhang, repeated top and bottom
Distance22'-0"ft-inBetween gutter lines, both bridges
Skew angle81°-20'-05.0"deg-min-secBeam/skew angle, typ., repeated multiple times
BearingN 83°-43'-21.7" EConstruction bearing line
End post dimension4'-3"ft-inEnd post, upper deck
End post dimension4'-6"ft-inEnd post, lower deck
Diagonal dimension17'-4 5/16"ft-inSkewed deck edge segment
Diagonal dimension17'-5 1/4"ft-inSkewed deck edge segment, x2
Total diagonal dimension52'-2 13/16"ft-inSkewed deck edge total, upper deck
Diagonal dimension17'-2 13/16"ft-inSkewed deck edge segment, lower deck, x2
Diagonal dimension17'-2 3/4"ft-inSkewed deck edge segment, lower deck
Total diagonal dimension51'-8 3/8"ft-inSkewed deck edge total, lower deck
Fence post spacing8'-9"ft-inFence post spacing, repeated multiple times
Fence post spacing8'-0"ft-inFence post spacing, x2
Fence post spacing6'-8 13/16"ft-inFence post spacing, upper deck end
Fence post spacing6'-2 3/8"ft-inFence post spacing, lower deck end

Labels

DECK PLANSPAN 1CONSTRUCTION CL SR 21PGL WESTBOUNDPGL EASTBOUNDFENCE POST SPACINGEND POSTB.F.P.R. BENT 1CL BEAM 1CL BEAM 2CL BEAM 3CL BEAM 4CL BEAM 5CL BEAM 6CL BEAM 7CL BEAM 8CL BEAM 9CL BEAM 10CL BEAM 11CL BEAM 12

anthropic/claude-sonnet-5 · 10647 tokens · 42.0s

item · 1230 × 646

Other P04 R02

page 4 · other_p04_r02
Original
Other P04 R02
{
  "view": "Detail",
  "objects": [
    {
      "name": "End Post",
      "tag": "",
      "shape": "rectangular",
      "material": "concrete",
      "count": 1,
      "note": "Shown at left edge of detail, tapering into barrier transition"
    },
    {
      "name": "Barrier (transition segment)",
      "tag": "",
      "shape": "tapered, rectangular in elevation",
      "material": "concrete",
      "count": 1,
      "note": "Elevation view of barrier tapering in height from end post to full section over 12'-0\" length"
    },
    {
      "name": "Paving Rest",
      "tag": "",
      "shape": "rectangular, angled",
      "material": "concrete",
      "count": 1,
      "note": "Small angled ledge/notch at top of end post, 12\" dimension noted"
    }
  ],
  "measurements": [
    {
      "label": "Paving rest width",
      "value": "12",
      "unit": "in",
      "appliesTo": "Paving Rest"
    },
    {
      "label": "Transition length",
      "value": "12'-0\"",
      "unit": "ft-in",
      "appliesTo": "Barrier Transition"
    },
    {
      "label": "Step/offset height",
      "value": "2",
      "unit": "in",
      "appliesTo": "End Post / Paving Rest joint"
    },
    {
      "label": "Barrier height at end of transition",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "Barrier Transition"
    },
    {
      "label": "Taper slope ratio (rise)",
      "value": "1",
      "unit": "",
      "appliesTo": "Barrier Transition"
    },
    {
      "label": "Taper slope ratio (run)",
      "value": "18",
      "unit": "",
      "appliesTo": "Barrier Transition"
    },
    {
      "label": "Drawing scale",
      "value": "1/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Barrier Transition Detail"
    }
  ],
  "notes": [],
  "labels": [
    "12\" PAVING REST",
    "END POST",
    "BARRIER TRANSITION",
    "BARRIER TRANSITION DETAIL",
    "SCALE: 1/4\" = 1'-0\""
  ],
  "description": "This crop is an elevation detail titled 'BARRIER TRANSITION DETAIL' showing the tapered profile of a bridge barrier as it transitions from the end post to its full height over a 12'-0\" length, with a slope callout of 1:18 and a final height of 1'-9 1/2\". A paving rest notch (12\" wide, 2\" step) is shown at the end post connection. It documents the geometry of the barrier taper at the end span, relevant to concrete and reinforcing quantities noted elsewhere as included in end span totals."
}

Other P04 R02

done

other_p04_r02

Detail3 objects · 7 measurements · 5 labels

This crop is an elevation detail titled 'BARRIER TRANSITION DETAIL' showing the tapered profile of a bridge barrier as it transitions from the end post to its full height over a 12'-0" length, with a slope callout of 1:18 and a final height of 1'-9 1/2". A paving rest notch (12" wide, 2" step) is shown at the end post connection. It documents the geometry of the barrier taper at the end span, relevant to concrete and reinforcing quantities noted elsewhere as included in end span totals.

Objects · 3

ObjectNo.ShapeMaterialNote
End Post1rectangularconcreteShown at left edge of detail, tapering into barrier transition
Barrier (transition segment)1tapered, rectangular in elevationconcreteElevation view of barrier tapering in height from end post to full section over 12'-0" length
Paving Rest1rectangular, angledconcreteSmall angled ledge/notch at top of end post, 12" dimension noted

Measurements · 7

MeasurementValueUnitApplies to
Paving rest width12inPaving Rest
Transition length12'-0"ft-inBarrier Transition
Step/offset height2inEnd Post / Paving Rest joint
Barrier height at end of transition1'-9 1/2"ft-inBarrier Transition
Taper slope ratio (rise)1Barrier Transition
Taper slope ratio (run)18Barrier Transition
Drawing scale1/4" = 1'-0"Barrier Transition Detail

Labels

12" PAVING RESTEND POSTBARRIER TRANSITIONBARRIER TRANSITION DETAILSCALE: 1/4" = 1'-0"

anthropic/claude-sonnet-5 · 3824 tokens · 13.1s

item · 964 × 851

Other P04 R03

page 4 · other_p04_r03
Original
Other P04 R03
{
  "view": "Detail",
  "objects": [
    {
      "name": "Expansion joint seal",
      "tag": "",
      "shape": "tapered/V-shaped preformed seal",
      "material": "silicone",
      "count": 1,
      "note": "Preformed silicone joint seal set into joint gap, per Special Provision Section 449"
    },
    {
      "name": "Silicone adhesive",
      "tag": "",
      "shape": "linear bead along joint faces",
      "material": "silicone",
      "count": 1,
      "note": "Applied along both vertical faces of joint opening"
    },
    {
      "name": "Filler material",
      "tag": "",
      "shape": "rectangular strip, hatched",
      "material": "per Georgia DOT Sub-Section 833.2.01",
      "count": 1,
      "note": "Held in place with 10d galvanized nails"
    },
    {
      "name": "Joint recess/nosing",
      "tag": "",
      "shape": "rounded edge, 1/4\" radius, with rounded top corners",
      "material": "concrete (implied by break lines)",
      "count": 2,
      "note": "Shown as broken/cut concrete edges on either side of joint, representing deck or end bent concrete adjacent to joint"
    }
  ],
  "measurements": [
    {
      "label": "Joint opening width",
      "value": "1 3/8",
      "unit": "in",
      "appliesTo": "expansion joint seal"
    },
    {
      "label": "Depth to silicone adhesive/seal top",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "expansion joint seal"
    },
    {
      "label": "Edge radius",
      "value": "1/4",
      "unit": "in",
      "appliesTo": "joint edge (concrete corner)"
    }
  ],
  "notes": [
    "PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449",
    "FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS"
  ],
  "labels": [
    "EXPANSION JOINT DETAILS",
    "END BENTS 1 AND 4",
    "SILICONE ADHESIVE",
    "1/4\" R"
  ],
  "description": "This crop is a detail drawing titled 'EXPANSION JOINT DETAILS' for END BENTS 1 AND 4, showing a cross-section of a preformed silicone joint seal installed at a deck expansion joint. It calls out the seal per Special Provision Section 449, silicone adhesive bonding it to the concrete faces, a filler material below meeting Georgia DOT Sub-Section 833.2.01 held with 10d galvanized nails, and key dimensions (1 3/8\" opening, 1/2\" depth, 1/4\" edge radius). No quantities or schedule data are shown in this particular crop; the linked schedule panel on the same sheet is a separate superstructure quantities table not depicted here."
}

Other P04 R03

done

other_p04_r03

Detail4 objects · 3 measurements · 2 notes · 4 labels

This crop is a detail drawing titled 'EXPANSION JOINT DETAILS' for END BENTS 1 AND 4, showing a cross-section of a preformed silicone joint seal installed at a deck expansion joint. It calls out the seal per Special Provision Section 449, silicone adhesive bonding it to the concrete faces, a filler material below meeting Georgia DOT Sub-Section 833.2.01 held with 10d galvanized nails, and key dimensions (1 3/8" opening, 1/2" depth, 1/4" edge radius). No quantities or schedule data are shown in this particular crop; the linked schedule panel on the same sheet is a separate superstructure quantities table not depicted here.

Objects · 4

ObjectNo.ShapeMaterialNote
Expansion joint seal1tapered/V-shaped preformed sealsiliconePreformed silicone joint seal set into joint gap, per Special Provision Section 449
Silicone adhesive1linear bead along joint facessiliconeApplied along both vertical faces of joint opening
Filler material1rectangular strip, hatchedper Georgia DOT Sub-Section 833.2.01Held in place with 10d galvanized nails
Joint recess/nosing2rounded edge, 1/4" radius, with rounded top cornersconcrete (implied by break lines)Shown as broken/cut concrete edges on either side of joint, representing deck or end bent concrete adjacent to joint

Measurements · 3

MeasurementValueUnitApplies to
Joint opening width1 3/8inexpansion joint seal
Depth to silicone adhesive/seal top1/2inexpansion joint seal
Edge radius1/4injoint edge (concrete corner)

Labels

EXPANSION JOINT DETAILSEND BENTS 1 AND 4SILICONE ADHESIVE1/4" R

Notes

  • PREFORMED SILICONE JOINT SEAL AS PER SPECIAL PROVISION SECTION 449
  • FILLER MATERIAL IN ACCORDANCE WITH SUB-SECTION 833.2.01 OF THE GEORGIA DOT SPECIFICATIONS, HOLD IN PLACE WITH 10d GALV. NAILS

anthropic/claude-sonnet-5 · 4048 tokens · 17.5s

item · 1077 × 294

Other P04 R04

page 4 · other_p04_r04
Original
Other P04 R04
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "SEE BEAM SHEETS FOR DIAPHRAGM LOCATION.",
    "BARRIER AND FENCE POST DIMENSIONS ARE MEASURED ALONG INSIDE FACE OF BARRIER."
  ],
  "labels": [
    "NOTES:"
  ],
  "description": "This crop shows a portion of a general notes block from a bridge drawing sheet, listing numbered construction notes. Note 1 references beam sheets for diaphragm location, and note 2 clarifies how barrier and fence post dimensions are to be measured. A third note begins at the bottom edge but is cut off and only partially legible."
}

Other P04 R04

done

other_p04_r04

Notes2 notes · 1 label

This crop shows a portion of a general notes block from a bridge drawing sheet, listing numbered construction notes. Note 1 references beam sheets for diaphragm location, and note 2 clarifies how barrier and fence post dimensions are to be measured. A third note begins at the bottom edge but is cut off and only partially legible.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

NOTES:

Notes

  • SEE BEAM SHEETS FOR DIAPHRAGM LOCATION.
  • BARRIER AND FENCE POST DIMENSIONS ARE MEASURED ALONG INSIDE FACE OF BARRIER.

anthropic/claude-sonnet-5 · 2546 tokens · 8.0s

item · 2732 × 509

Other P04 R05

page 4 · other_p04_r05
Original
Other P04 R05
{
  "view": "Table",
  "objects": [],
  "measurements": [
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Span 1"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "99.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Span 2"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Span 3"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "249.0",
      "unit": "CY",
      "appliesTo": "Left Bridge Total"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Span 1"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "99.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Span 2"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "75.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Span 3"
    },
    {
      "label": "SUPERSTR CONCRETE, CLASS \"D\"",
      "value": "249.0",
      "unit": "CY",
      "appliesTo": "Right Bridge Total"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "20639",
      "unit": "LB",
      "appliesTo": "Left Bridge Span 1"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "28494",
      "unit": "LB",
      "appliesTo": "Left Bridge Span 2"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "20629",
      "unit": "LB",
      "appliesTo": "Left Bridge Span 3"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "69762",
      "unit": "LB",
      "appliesTo": "Left Bridge Total"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "20629",
      "unit": "LB",
      "appliesTo": "Right Bridge Span 1"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "28494",
      "unit": "LB",
      "appliesTo": "Right Bridge Span 2"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "20639",
      "unit": "LB",
      "appliesTo": "Right Bridge Span 3"
    },
    {
      "label": "SUPERSTR REINF STEEL",
      "value": "69762",
      "unit": "LB",
      "appliesTo": "Right Bridge Total"
    }
  ],
  "notes": [],
  "labels": [
    "SUPERSTRUCTURE QUANTITIES",
    "ITEM",
    "LEFT BRIDGE",
    "RIGHT BRIDGE",
    "SPAN I",
    "SPAN 2",
    "SPAN 3",
    "TOTAL",
    "LUMP - CY SUPERSTR CONCRETE, CLASS \"D\"",
    "LUMP - LB SUPERSTR REINF STEEL"
  ],
  "description": "This crop shows a quantities table titled 'SUPERSTRUCTURE QUANTITIES', breaking down superstructure concrete (Class D) in cubic yards and reinforcing steel in pounds, separately for a Left Bridge and Right Bridge, each split by Span 1, Span 2, Span 3, and Total. It is a bill-of-quantities style schedule rather than a plan or detail, with all listed values highlighted in yellow, and a partially visible note at the bottom edge that is cut off."
}

Other P04 R05

done

other_p04_r05

Table16 measurements · 10 labels

This crop shows a quantities table titled 'SUPERSTRUCTURE QUANTITIES', breaking down superstructure concrete (Class D) in cubic yards and reinforcing steel in pounds, separately for a Left Bridge and Right Bridge, each split by Span 1, Span 2, Span 3, and Total. It is a bill-of-quantities style schedule rather than a plan or detail, with all listed values highlighted in yellow, and a partially visible note at the bottom edge that is cut off.

Objects · 0

No objects read. Edit to add one.

Measurements · 16

MeasurementValueUnitApplies to
SUPERSTR CONCRETE, CLASS "D"75.0CYLeft Bridge Span 1
SUPERSTR CONCRETE, CLASS "D"99.0CYLeft Bridge Span 2
SUPERSTR CONCRETE, CLASS "D"75.0CYLeft Bridge Span 3
SUPERSTR CONCRETE, CLASS "D"249.0CYLeft Bridge Total
SUPERSTR CONCRETE, CLASS "D"75.0CYRight Bridge Span 1
SUPERSTR CONCRETE, CLASS "D"99.0CYRight Bridge Span 2
SUPERSTR CONCRETE, CLASS "D"75.0CYRight Bridge Span 3
SUPERSTR CONCRETE, CLASS "D"249.0CYRight Bridge Total
SUPERSTR REINF STEEL20639LBLeft Bridge Span 1
SUPERSTR REINF STEEL28494LBLeft Bridge Span 2
SUPERSTR REINF STEEL20629LBLeft Bridge Span 3
SUPERSTR REINF STEEL69762LBLeft Bridge Total
SUPERSTR REINF STEEL20629LBRight Bridge Span 1
SUPERSTR REINF STEEL28494LBRight Bridge Span 2
SUPERSTR REINF STEEL20639LBRight Bridge Span 3
SUPERSTR REINF STEEL69762LBRight Bridge Total

Labels

SUPERSTRUCTURE QUANTITIESITEMLEFT BRIDGERIGHT BRIDGESPAN ISPAN 2SPAN 3TOTALLUMP - CY SUPERSTR CONCRETE, CLASS "D"LUMP - LB SUPERSTR REINF STEEL

anthropic/claude-sonnet-5 · 3737 tokens · 15.0s

item · 1563 × 154

Other P04 R06

page 4 · other_p04_r06
Original
Other P04 R06
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "END POST CONCRETE AND BAR REINFORCING STEEL INCLUDED IN END SPAN QUANTITIES.",
    "600 BAR QUANTITIES ARE INCLUDED IN SPAN 2."
  ],
  "labels": [],
  "description": "This crop contains a short block of two general notes referring to end post concrete, bar reinforcing steel, and '600 bar' quantities being included within end span and Span 2 quantities respectively. No drawing views, dimensions, or discrete constructional elements are depicted in this crop."
}

Other P04 R06

done

other_p04_r06

Notes2 notes

This crop contains a short block of two general notes referring to end post concrete, bar reinforcing steel, and '600 bar' quantities being included within end span and Span 2 quantities respectively. No drawing views, dimensions, or discrete constructional elements are depicted in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • END POST CONCRETE AND BAR REINFORCING STEEL INCLUDED IN END SPAN QUANTITIES.
  • 600 BAR QUANTITIES ARE INCLUDED IN SPAN 2.

anthropic/claude-sonnet-5 · 1897 tokens · 8.6s

item · 1848 × 1020

Other P04 R07

page 4 · other_p04_r07
Original
Other P04 R07
{
  "view": "Title Block",
  "objects": [],
  "measurements": [
    {
      "label": "Scale",
      "value": "1/8\" = 1'-0\"",
      "unit": "",
      "appliesTo": "drawing scale, unless otherwise noted"
    },
    {
      "label": "Bridge Sheet",
      "value": "4 OF 21",
      "unit": "",
      "appliesTo": "sheet numbering"
    },
    {
      "label": "Drawing No.",
      "value": "35-0004",
      "unit": "",
      "appliesTo": "drawing"
    },
    {
      "label": "Bar scale",
      "value": "1",
      "unit": "INCH",
      "appliesTo": "printed full size reference"
    }
  ],
  "notes": [],
  "labels": [
    "BRIDGE NO. 1 LT. AND RT.",
    "S&A SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375  FAX: 770-442-0761",
    "GEORGIA DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "DECK PLAN - 1 OF 3",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "0019181",
    "DRAWING NO. 35-0004",
    "BRIDGE SHEET 4 OF 21",
    "SCALE: 1/8\" = 1'-0\" (UNLESS OTHERWISE NOTED) APRIL 2025",
    "DESIGNED UP",
    "DRAWN EPR",
    "CHECKED AS",
    "DESIGN GROUP JBK",
    "REVIEWED DLC/SKG",
    "APPROVED DPD",
    "1 INCH WHEN PRINTED FULL SIZE",
    "0019181_0004.dgn",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY"
  ],
  "description": "This crop is the title block of a Georgia DOT bridge sheet for SR 21 @ NS #620272Y in Jenkins County, prepared by Sastry & Associates, Inc. It identifies the sheet as 'Deck Plan - 1 of 3', drawing number 35-0004, bridge sheet 4 of 21, dated April 2025, with designer, drafter, checker, and approval initials, plus a professional engineer's seal. No structural elements or dimensioned drawings are shown, only administrative and identification text."
}

Other P04 R07

done

other_p04_r07

Title Block4 measurements · 23 labels

This crop is the title block of a Georgia DOT bridge sheet for SR 21 @ NS #620272Y in Jenkins County, prepared by Sastry & Associates, Inc. It identifies the sheet as 'Deck Plan - 1 of 3', drawing number 35-0004, bridge sheet 4 of 21, dated April 2025, with designer, drafter, checker, and approval initials, plus a professional engineer's seal. No structural elements or dimensioned drawings are shown, only administrative and identification text.

Objects · 0

No objects read. Edit to add one.

Measurements · 4

MeasurementValueUnitApplies to
Scale1/8" = 1'-0"drawing scale, unless otherwise noted
Bridge Sheet4 OF 21sheet numbering
Drawing No.35-0004drawing
Bar scale1INCHprinted full size reference

Labels

BRIDGE NO. 1 LT. AND RT.S&A SASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375 FAX: 770-442-0761GEORGIA DEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESDECK PLAN - 1 OF 3SR 21 @ NS #620272YJENKINS COUNTY0019181DRAWING NO. 35-0004BRIDGE SHEET 4 OF 21SCALE: 1/8" = 1'-0" (UNLESS OTHERWISE NOTED) APRIL 2025DESIGNED UPDRAWN EPRCHECKED ASDESIGN GROUP JBKREVIEWED DLC/SKGAPPROVED DPD1 INCH WHEN PRINTED FULL SIZE0019181_0004.dgnGEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY

anthropic/claude-sonnet-5 · 5230 tokens · 14.0s

Page 510 crops · 10 read
crop · 3493 × 3560

p05_r01 out to out

page 5 · gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r01_out_to_out
Original
p05_r01 out to out
{
  "view": "Plan",
  "objects": [
    {
      "name": "Bridge deck (beam bay)",
      "tag": "",
      "shape": "trapezoidal/skewed rectangular",
      "material": "concrete deck slab",
      "count": 2,
      "note": "Two adjacent skewed deck plan panels shown, upper (westbound) and lower (eastbound), each 82'-0\" long with 12 beams total, 6 per panel"
    },
    {
      "name": "Beam",
      "tag": "BEAM 1",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": "Centerline of beam shown as dashed line, upper panel"
    },
    {
      "name": "Beam",
      "tag": "BEAM 2",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 3",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 4",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 5",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 6",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 7",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": "Lower panel, eastbound"
    },
    {
      "name": "Beam",
      "tag": "BEAM 8",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 9",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 10",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 11",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Beam",
      "tag": "BEAM 12",
      "shape": "straight, parallel line",
      "material": "",
      "count": 1,
      "note": ""
    },
    {
      "name": "Concrete diaphragm",
      "tag": "",
      "shape": "transverse strip, rectangular in plan",
      "material": "concrete",
      "count": 2,
      "note": "Shown as \"10\" CONCRETE DIAPHRAGM, TYP.\" crossing beams in both deck panels"
    },
    {
      "name": "Edgebeam",
      "tag": "",
      "shape": "linear strip along deck edge",
      "material": "concrete (implied)",
      "count": 4,
      "note": "1'-0\" EDGEBEAM, TYP., along outer edges of both deck panels"
    },
    {
      "name": "Fillet",
      "tag": "",
      "shape": "linear strip",
      "material": "concrete (implied)",
      "count": 4,
      "note": "8\" FILLET, TYP., shown at beam-deck edge transitions"
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502D",
      "shape": "bent bar, hooked end shown in plan",
      "material": "reinforcing steel",
      "count": 8,
      "note": "Repeated transverse bars along both top and bottom deck edges of each panel"
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502E",
      "shape": "bent bar, hooked end shown in plan",
      "material": "reinforcing steel",
      "count": 4,
      "note": "End bar at edge of fence post spacing zone, both panels"
    },
    {
      "name": "Reinforcement bar",
      "tag": "400B",
      "shape": "straight longitudinal bar",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Longitudinal bar shown within deck panel, one callout per panel"
    },
    {
      "name": "Reinforcement bar",
      "tag": "400C",
      "shape": "straight longitudinal bar with lap splice",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Shown with 2'-0\" MIN. LAP callout, one per panel"
    },
    {
      "name": "Fence post spacing (fence line)",
      "tag": "",
      "shape": "linear spacing marks",
      "material": "",
      "count": null,
      "note": "Marked along both outer edges of both deck panels with 3'-0\"/9'-6\" spacing pattern"
    }
  ],
  "measurements": [
    {
      "label": "Overall deck length",
      "value": "82'-0\"",
      "unit": "ft-in",
      "appliesTo": "upper panel (westbound)"
    },
    {
      "label": "Overall deck length",
      "value": "82'-0\"",
      "unit": "ft-in",
      "appliesTo": "lower panel (eastbound)"
    },
    {
      "label": "Bay spacing",
      "value": "16'-4 1/2\"",
      "unit": "ft-in",
      "appliesTo": "upper and lower panels, repeated 4 times"
    },
    {
      "label": "End bay spacing",
      "value": "16'-6\"",
      "unit": "ft-in",
      "appliesTo": "end bay, both panels"
    },
    {
      "label": "Sub-spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "top and bottom edge dimension lines, both panels"
    },
    {
      "label": "Sub-spacing",
      "value": "9'-10 1/2\"",
      "unit": "ft-in",
      "appliesTo": "inner dimension lines near beams, both panels"
    },
    {
      "label": "Edge offset",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "fence post spacing start/end, outer edges"
    },
    {
      "label": "Edge offset",
      "value": "2'-0\"",
      "unit": "ft-in",
      "appliesTo": "fence post spacing inner edge, both panels"
    },
    {
      "label": "Edge offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "fence post spacing inner edge, both panels"
    },
    {
      "label": "Fence post spacing gap",
      "value": "5'-0\"",
      "unit": "ft-in",
      "appliesTo": "paired spacing marks at both ends of upper and lower panels"
    },
    {
      "label": "Skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "",
      "appliesTo": "construction centerline SR 21 / beam skew, typical"
    },
    {
      "label": "Bearing",
      "value": "N 83°-43'-21.7\" E",
      "unit": "",
      "appliesTo": "centerline reference between panels"
    },
    {
      "label": "Diaphragm thickness",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "concrete diaphragm, typical"
    },
    {
      "label": "Fillet dimension",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "fillet, typical"
    },
    {
      "label": "Edgebeam width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "edgebeam, typical"
    },
    {
      "label": "Lap length",
      "value": "2'-0\"",
      "unit": "ft-in",
      "appliesTo": "400C bar minimum lap"
    },
    {
      "label": "Gutter to gutter width",
      "value": "40'-0\"",
      "unit": "ft-in",
      "appliesTo": "deck cross width, both panels"
    },
    {
      "label": "Out to out width",
      "value": "43'-7\"",
      "unit": "ft-in",
      "appliesTo": "deck cross width, both panels"
    },
    {
      "label": "Edge dimension",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "outer edge to gutter line, both panels"
    },
    {
      "label": "Half-width dimension",
      "value": "22'-0\"",
      "unit": "ft-in",
      "appliesTo": "centerline to gutter, both panels"
    }
  ],
  "notes": [
    "8\" FILLET, TYP.",
    "1'-0\" EDGEBEAM, TYP.",
    "10\" CONCRETE DIAPHRAGM, TYP.",
    "2'-0\" MIN. LAP",
    "81°-20'-05.0\", TYP.",
    "FENCE POST SPACING"
  ],
  "labels": [
    "SPAN 2",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "CONSTRUCTION ℄ SR 21"
  ],
  "description": "This crop is a plan view of Span 2 of a bridge deck, showing two adjacent skewed deck panels (westbound and eastbound roadways) each 82'-0\" long and containing six precast beams (Beams 1-6 upper, 7-12 lower). It details deck reinforcement bar marks (12-502D, 12-502E, 400B, 400C), edgebeam and fillet callouts, concrete diaphragm locations, fence post spacing along the deck edges, and overall/partial transverse dimensions (gutter-to-gutter, out-to-out) along with the roadway skew angle and centerline bearing."
}

p05_r01 out to out

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r01_out_to_out

Plan21 objects · 20 measurements · 6 notes · 4 labels

This crop is a plan view of Span 2 of a bridge deck, showing two adjacent skewed deck panels (westbound and eastbound roadways) each 82'-0" long and containing six precast beams (Beams 1-6 upper, 7-12 lower). It details deck reinforcement bar marks (12-502D, 12-502E, 400B, 400C), edgebeam and fillet callouts, concrete diaphragm locations, fence post spacing along the deck edges, and overall/partial transverse dimensions (gutter-to-gutter, out-to-out) along with the roadway skew angle and centerline bearing.

Objects · 21

MarkObjectNo.ShapeMaterialNote
Bridge deck (beam bay)2trapezoidal/skewed rectangularconcrete deck slabTwo adjacent skewed deck plan panels shown, upper (westbound) and lower (eastbound), each 82'-0" long with 12 beams total, 6 per panel
BEAM 1Beam1straight, parallel lineCenterline of beam shown as dashed line, upper panel
BEAM 2Beam1straight, parallel line
BEAM 3Beam1straight, parallel line
BEAM 4Beam1straight, parallel line
BEAM 5Beam1straight, parallel line
BEAM 6Beam1straight, parallel line
BEAM 7Beam1straight, parallel lineLower panel, eastbound
BEAM 8Beam1straight, parallel line
BEAM 9Beam1straight, parallel line
BEAM 10Beam1straight, parallel line
BEAM 11Beam1straight, parallel line
BEAM 12Beam1straight, parallel line
Concrete diaphragm2transverse strip, rectangular in planconcreteShown as "10" CONCRETE DIAPHRAGM, TYP." crossing beams in both deck panels
Edgebeam4linear strip along deck edgeconcrete (implied)1'-0" EDGEBEAM, TYP., along outer edges of both deck panels
Fillet4linear stripconcrete (implied)8" FILLET, TYP., shown at beam-deck edge transitions
12-502DReinforcement bar8bent bar, hooked end shown in planreinforcing steelRepeated transverse bars along both top and bottom deck edges of each panel
12-502EReinforcement bar4bent bar, hooked end shown in planreinforcing steelEnd bar at edge of fence post spacing zone, both panels
400BReinforcement bar2straight longitudinal barreinforcing steelLongitudinal bar shown within deck panel, one callout per panel
400CReinforcement bar2straight longitudinal bar with lap splicereinforcing steelShown with 2'-0" MIN. LAP callout, one per panel
Fence post spacing (fence line)linear spacing marksMarked along both outer edges of both deck panels with 3'-0"/9'-6" spacing pattern

Measurements · 20

MeasurementValueUnitApplies to
Overall deck length82'-0"ft-inupper panel (westbound)
Overall deck length82'-0"ft-inlower panel (eastbound)
Bay spacing16'-4 1/2"ft-inupper and lower panels, repeated 4 times
End bay spacing16'-6"ft-inend bay, both panels
Sub-spacing9'-6"ft-intop and bottom edge dimension lines, both panels
Sub-spacing9'-10 1/2"ft-ininner dimension lines near beams, both panels
Edge offset3'-0"ft-infence post spacing start/end, outer edges
Edge offset2'-0"ft-infence post spacing inner edge, both panels
Edge offset1'-0"ft-infence post spacing inner edge, both panels
Fence post spacing gap5'-0"ft-inpaired spacing marks at both ends of upper and lower panels
Skew angle81°-20'-05.0"construction centerline SR 21 / beam skew, typical
BearingN 83°-43'-21.7" Ecenterline reference between panels
Diaphragm thickness10"inconcrete diaphragm, typical
Fillet dimension8"infillet, typical
Edgebeam width1'-0"ft-inedgebeam, typical
Lap length2'-0"ft-in400C bar minimum lap
Gutter to gutter width40'-0"ft-indeck cross width, both panels
Out to out width43'-7"ft-indeck cross width, both panels
Edge dimension1'-9 1/2"ft-inouter edge to gutter line, both panels
Half-width dimension22'-0"ft-incenterline to gutter, both panels

Labels

SPAN 2PGL WESTBOUNDPGL EASTBOUNDCONSTRUCTION ℄ SR 21

Notes

  • 8" FILLET, TYP.
  • 1'-0" EDGEBEAM, TYP.
  • 10" CONCRETE DIAPHRAGM, TYP.
  • 2'-0" MIN. LAP
  • 81°-20'-05.0", TYP.
  • FENCE POST SPACING

anthropic/claude-sonnet-5 · 9508 tokens · 35.9s

crop · 1421 × 1128

p05_r02 details of 1 expansion joint in barrier

page 5 · gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r02_details_of_1_expansion_joint_in_barrier
Original
p05_r02 details of 1 expansion joint in barrier
{
  "view": "Detail",
  "objects": [
    {
      "name": "Expansion joint (barrier)",
      "tag": "",
      "shape": "rectangular joint with chamfered edges",
      "material": "preformed joint filler / silicone sealant",
      "count": 1,
      "note": "Shown in Plan and Elevation views, joint width 1\" with 3/4\" chamfers on both faces"
    },
    {
      "name": "Barrier (traffic/parapet)",
      "tag": "",
      "shape": "tapered/trapezoidal profile",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Shown in Side Elevation, only partial profile with expansion joint at base area indicated by 3\" dimension"
    },
    {
      "name": "Preformed joint filler",
      "tag": "",
      "shape": "rectangular strip, 1\" thick",
      "material": "preformed filler material",
      "count": 1,
      "note": "Located within barrier joint, held with 10d galvanized nails per note"
    },
    {
      "name": "Low modulus silicone sealant (Type A)",
      "tag": "",
      "shape": "linear sealant bead",
      "material": "silicone sealant",
      "count": 1,
      "note": "Applied at joint face, both plan and elevation views"
    }
  ],
  "measurements": [
    {
      "label": "Chamfer",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "barrier edge chamfer"
    },
    {
      "label": "Joint filler thickness",
      "value": "1",
      "unit": "in",
      "appliesTo": "preformed joint filler"
    },
    {
      "label": "Top offset",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "joint filler top clearance"
    },
    {
      "label": "Bottom offset",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "joint filler bottom clearance (elevation view)"
    },
    {
      "label": "Nail size",
      "value": "10d",
      "unit": "",
      "appliesTo": "galvanized nails holding joint filler"
    },
    {
      "label": "Side elevation offset",
      "value": "3",
      "unit": "in",
      "appliesTo": "barrier side elevation, joint location from base"
    }
  ],
  "notes": [
    "3/4\" CHAMFER",
    "LOW MODULUS SILICONE SEALANT (TYPE A)",
    "1\" PREFORMED JOINT FILLER",
    "HOLD IN PLACE WITH 10d GALV. NAILS.",
    "DETAILS OF 1\" EXPANSION JOINT IN BARRIER",
    "NO SCALE"
  ],
  "labels": [
    "PLAN",
    "ELEVATION",
    "SIDE ELEVATION",
    "DETAILS OF 1\" EXPANSION JOINT IN BARRIER",
    "NO SCALE",
    "NTS"
  ],
  "description": "This crop shows a detail sheet illustrating a 1-inch expansion joint within a concrete traffic barrier, presented in Plan, Elevation, and Side Elevation views. The detail specifies a preformed joint filler with 3/4-inch chamfered edges, sealed with low modulus silicone sealant (Type A), and notes that the filler is held in place with 10d galvanized nails. The side elevation shows a partial tapered barrier profile with the joint located near its base, dimensioned at 3 inches from the base to the joint start."
}

p05_r02 details of 1 expansion joint in barrier

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r02_details_of_1_expansion_joint_in_barrier

Detail4 objects · 6 measurements · 6 notes · 6 labels

This crop shows a detail sheet illustrating a 1-inch expansion joint within a concrete traffic barrier, presented in Plan, Elevation, and Side Elevation views. The detail specifies a preformed joint filler with 3/4-inch chamfered edges, sealed with low modulus silicone sealant (Type A), and notes that the filler is held in place with 10d galvanized nails. The side elevation shows a partial tapered barrier profile with the joint located near its base, dimensioned at 3 inches from the base to the joint start.

Objects · 4

ObjectNo.ShapeMaterialNote
Expansion joint (barrier)1rectangular joint with chamfered edgespreformed joint filler / silicone sealantShown in Plan and Elevation views, joint width 1" with 3/4" chamfers on both faces
Barrier (traffic/parapet)1tapered/trapezoidal profilereinforced concreteShown in Side Elevation, only partial profile with expansion joint at base area indicated by 3" dimension
Preformed joint filler1rectangular strip, 1" thickpreformed filler materialLocated within barrier joint, held with 10d galvanized nails per note
Low modulus silicone sealant (Type A)1linear sealant beadsilicone sealantApplied at joint face, both plan and elevation views

Measurements · 6

MeasurementValueUnitApplies to
Chamfer3/4inbarrier edge chamfer
Joint filler thickness1inpreformed joint filler
Top offset3/4injoint filler top clearance
Bottom offset3/4injoint filler bottom clearance (elevation view)
Nail size10dgalvanized nails holding joint filler
Side elevation offset3inbarrier side elevation, joint location from base

Labels

PLANELEVATIONSIDE ELEVATIONDETAILS OF 1" EXPANSION JOINT IN BARRIERNO SCALENTS

Notes

  • 3/4" CHAMFER
  • LOW MODULUS SILICONE SEALANT (TYPE A)
  • 1" PREFORMED JOINT FILLER
  • HOLD IN PLACE WITH 10d GALV. NAILS.
  • DETAILS OF 1" EXPANSION JOINT IN BARRIER
  • NO SCALE

anthropic/claude-sonnet-5 · 4582 tokens · 15.2s

crop · 1218 × 1018

p05_r03 bar bending details at skewed joints

page 5 · gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r03_bar_bending_details_at_skewed_joints
Original
p05_r03 bar bending details at skewed joints
{
  "view": "Detail",
  "objects": [
    {
      "name": "Main slab reinforcement bar",
      "tag": "500B",
      "shape": "bent/curved bar detail (circular reference diagram)",
      "material": "reinforced steel",
      "count": null,
      "note": "Bar bending at skewed joint, shown adjusted parallel to B.F.P.R./construction joint line"
    },
    {
      "name": "Construction joint / B.F.P.R. line",
      "tag": "",
      "shape": "linear (skewed)",
      "material": "",
      "count": 1,
      "note": "Skewed relative to centerline bridge"
    },
    {
      "name": "Bridge centerline",
      "tag": "C BRIDGE",
      "shape": "linear",
      "material": "",
      "count": 1,
      "note": "Reference line shown dash-dot"
    }
  ],
  "measurements": [
    {
      "label": "Clearance to bar",
      "value": "2",
      "unit": "in",
      "appliesTo": "500B bar / main slab reinf."
    },
    {
      "label": "Sealant/low reveal dimension",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "joint sealant detail (partially visible, cut off)"
    }
  ],
  "notes": [
    "B.F.P.R. OR CONST. JOINT",
    "MAIN SLAB REINF.",
    "AT B.F.P.R. OR CONST. JOINT",
    "BARS ARE DETAILED IN BAR DETAILS AS EQUIVALENT FULL LENGTH BARS.",
    "* SEE SUBSECTION 511.3.05.G.5 OF THE GEORGIA DOT SPECIFICATION FOR PLACEMENT OF 500B BAR.",
    "LOW SEALA... (text cut off, partial)"
  ],
  "labels": [
    "BAR BENDING DETAILS AT SKEWED JOINTS",
    "NO SCALE",
    "2\" CL.",
    "C BRIDGE"
  ],
  "description": "This crop is a bar bending detail (no scale) showing how main slab reinforcement bars, specifically marked 500B, are adjusted near a skewed backwall/pavement relief (B.F.P.R.) or construction joint on a bridge deck. A circular reference diagram illustrates the bar layout relative to the bridge centerline and the skewed joint line, with a 2-inch clearance called out and a note referencing Georgia DOT Subsection 511.3.05.G.5 for 500B bar placement. A partial callout for a low sealant reveal (3/4 in) appears at the right edge but is cropped off."
}

p05_r03 bar bending details at skewed joints

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r03_bar_bending_details_at_skewed_joints

Detail3 objects · 2 measurements · 6 notes · 4 labels

This crop is a bar bending detail (no scale) showing how main slab reinforcement bars, specifically marked 500B, are adjusted near a skewed backwall/pavement relief (B.F.P.R.) or construction joint on a bridge deck. A circular reference diagram illustrates the bar layout relative to the bridge centerline and the skewed joint line, with a 2-inch clearance called out and a note referencing Georgia DOT Subsection 511.3.05.G.5 for 500B bar placement. A partial callout for a low sealant reveal (3/4 in) appears at the right edge but is cropped off.

Objects · 3

MarkObjectNo.ShapeMaterialNote
500BMain slab reinforcement barbent/curved bar detail (circular reference diagram)reinforced steelBar bending at skewed joint, shown adjusted parallel to B.F.P.R./construction joint line
Construction joint / B.F.P.R. line1linear (skewed)Skewed relative to centerline bridge
C BRIDGEBridge centerline1linearReference line shown dash-dot

Measurements · 2

MeasurementValueUnitApplies to
Clearance to bar2in500B bar / main slab reinf.
Sealant/low reveal dimension3/4injoint sealant detail (partially visible, cut off)

Labels

BAR BENDING DETAILS AT SKEWED JOINTSNO SCALE2" CL.C BRIDGE

Notes

  • B.F.P.R. OR CONST. JOINT
  • MAIN SLAB REINF.
  • AT B.F.P.R. OR CONST. JOINT
  • BARS ARE DETAILED IN BAR DETAILS AS EQUIVALENT FULL LENGTH BARS.
  • * SEE SUBSECTION 511.3.05.G.5 OF THE GEORGIA DOT SPECIFICATION FOR PLACEMENT OF 500B BAR.
  • LOW SEALA... (text cut off, partial)

anthropic/claude-sonnet-5 · 3781 tokens · 16.5s

crop · 1165 × 217

p05_r04 notes

page 5 · gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r04_notes
Original
p05_r04 notes
{
  "view": "Notes",
  "objects": [
    {
      "name": "reinforcement bar",
      "tag": "600",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Bars placed between each pair of 400 bars in top of slab over intermediate bents 2 and 3"
    },
    {
      "name": "reinforcement bar",
      "tag": "400",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "Referenced pair bars in top of slab"
    }
  ],
  "measurements": [
    {
      "label": "Bar length",
      "value": "10'-0\"",
      "unit": "ft-in",
      "appliesTo": "600 bars"
    },
    {
      "label": "Bar count",
      "value": "2",
      "unit": "",
      "appliesTo": "600 bars, between each pair of 400 bars"
    }
  ],
  "notes": [
    "2-600 (10'-0\" LONG) BETWEEN EACH PAIR OF 400 BARS IN TOP OF SLAB OVER INTERMEDIATE BENTS 2 AND 3.",
    "LAP IN BARS SHALL BE STAGGERED AND ALTERNATED TO MAXIMIZE THE DISTANCE BETWEEN ADJACENT SPLICES."
  ],
  "labels": [],
  "description": "This crop shows two numbered general notes (5 and 6) from a reinforcement or slab detail sheet, each marked with an asterisk-in-circle symbol. Note 5 specifies placement of 600-series bars relative to 400-series bars in the top slab reinforcement over intermediate bents 2 and 3, while note 6 gives a general instruction on staggering and alternating bar splices."
}

p05_r04 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r04_notes

Notes2 objects · 2 measurements · 2 notes

This crop shows two numbered general notes (5 and 6) from a reinforcement or slab detail sheet, each marked with an asterisk-in-circle symbol. Note 5 specifies placement of 600-series bars relative to 400-series bars in the top slab reinforcement over intermediate bents 2 and 3, while note 6 gives a general instruction on staggering and alternating bar splices.

Objects · 2

MarkObjectMaterialNote
600reinforcement barreinforced concreteBars placed between each pair of 400 bars in top of slab over intermediate bents 2 and 3
400reinforcement barreinforced concreteReferenced pair bars in top of slab

Measurements · 2

MeasurementValueUnitApplies to
Bar length10'-0"ft-in600 bars
Bar count2600 bars, between each pair of 400 bars

Notes

  • 2-600 (10'-0" LONG) BETWEEN EACH PAIR OF 400 BARS IN TOP OF SLAB OVER INTERMEDIATE BENTS 2 AND 3.
  • LAP IN BARS SHALL BE STAGGERED AND ALTERNATED TO MAXIMIZE THE DISTANCE BETWEEN ADJACENT SPLICES.

anthropic/claude-sonnet-5 · 2196 tokens · 9.5s

crop · 1801 × 988

p05_r05 title block

page 5 · gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r05_title_block
Original
p05_r05 title block
{
  "view": "Title Block",
  "objects": [],
  "measurements": [
    {
      "label": "Scale",
      "value": "1/8\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Drawing scale (unless otherwise noted)"
    }
  ],
  "notes": [
    "BRIDGE NO. 1 LT. AND RT.",
    "SCALE: 1/8\" = 1'-0\" (UNLESS OTHERWISE NOTED)  APRIL 2025",
    "1 INCH WHEN PRINTED FULL SIZE"
  ],
  "labels": [
    "S&A SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375  FAX: 770-442-0761",
    "GEORGIA DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "DECK PLAN - 2 OF 3",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "0019181",
    "DRAWING NO. 35-0005",
    "BRIDGE SHEET 5 OF 21",
    "DESIGNED UP",
    "DRAWN EPR",
    "CHECKED AS",
    "DESIGN GROUP JBK",
    "REVIEWED DLC/SKG",
    "APPROVED DPD",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY",
    "0019181_0005.dgn",
    "DATE",
    "REVISIONS",
    "BY"
  ],
  "description": "This crop is the title block of a Georgia Department of Transportation bridge drawing, sheet 5 of 21, prepared by Sastry & Associates, Inc. for a project on SR 21 at NS #620272Y in Jenkins County, Georgia, titled 'Deck Plan - 2 of 3'. It contains firm and agency information, project identifiers, engineer's seal, scale note, and design/drawn/checked/reviewed/approved signature blocks, with no structural or dimensioned drawing content."
}

p05_r05 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r05_title_block

Title Block1 measurement · 3 notes · 23 labels

This crop is the title block of a Georgia Department of Transportation bridge drawing, sheet 5 of 21, prepared by Sastry & Associates, Inc. for a project on SR 21 at NS #620272Y in Jenkins County, Georgia, titled 'Deck Plan - 2 of 3'. It contains firm and agency information, project identifiers, engineer's seal, scale note, and design/drawn/checked/reviewed/approved signature blocks, with no structural or dimensioned drawing content.

Objects · 0

No objects read. Edit to add one.

Measurements · 1

MeasurementValueApplies to
Scale1/8" = 1'-0"Drawing scale (unless otherwise noted)

Labels

S&A SASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375 FAX: 770-442-0761GEORGIA DEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESDECK PLAN - 2 OF 3SR 21 @ NS #620272YJENKINS COUNTY0019181DRAWING NO. 35-0005BRIDGE SHEET 5 OF 21DESIGNED UPDRAWN EPRCHECKED ASDESIGN GROUP JBKREVIEWED DLC/SKGAPPROVED DPDGEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY0019181_0005.dgnDATEREVISIONSBY

Notes

  • BRIDGE NO. 1 LT. AND RT.
  • SCALE: 1/8" = 1'-0" (UNLESS OTHERWISE NOTED) APRIL 2025
  • 1 INCH WHEN PRINTED FULL SIZE

anthropic/claude-sonnet-5 · 4452 tokens · 18.4s

crop · 1671 × 248

p05_r06 title block

page 5 · gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r06_title_block
Original
p05_r06 title block
{
  "view": "Title Block",
  "objects": [],
  "measurements": [],
  "notes": [],
  "labels": [
    "DECK PLAN",
    "aruna sastry",
    "5/28/202..."
  ],
  "description": "This crop shows a title block/border area with the sheet title 'DECK PLAN' underlined, and a handwritten name 'aruna sastry' with a partial date '5/28/202...' along the bottom border. No structural or constructional content, such as objects or dimensions, is visible in this crop."
}

p05_r06 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p05_r06_title_block

Title Block3 labels

This crop shows a title block/border area with the sheet title 'DECK PLAN' underlined, and a handwritten name 'aruna sastry' with a partial date '5/28/202...' along the bottom border. No structural or constructional content, such as objects or dimensions, is visible in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

DECK PLANaruna sastry5/28/202...

anthropic/claude-sonnet-5 · 2015 tokens · 6.8s

item · 3517 × 3575

Other P05 R01

page 5 · other_p05_r01
Original
Other P05 R01
{
  "view": "Plan",
  "objects": [
    {
      "name": "beam",
      "tag": "BEAM 1 through BEAM 12",
      "shape": "straight, skewed at ends",
      "material": "",
      "count": 12,
      "note": "centerlines shown for each beam, in two groups of six (westbound and eastbound decks)"
    },
    {
      "name": "deck slab",
      "tag": "",
      "shape": "trapezoidal/skewed rectangular",
      "material": "concrete",
      "count": 2,
      "note": "one deck panel per roadway (PGL Westbound and PGL Eastbound), each spanning between skewed end lines"
    },
    {
      "name": "concrete diaphragm",
      "tag": "",
      "shape": "transverse strip",
      "material": "concrete",
      "count": null,
      "note": "labeled '10\" CONCRETE DIAPHRAGM, TYP.' at multiple locations between beams"
    },
    {
      "name": "edge beam",
      "tag": "",
      "shape": "linear strip along deck edge",
      "material": "concrete",
      "count": 4,
      "note": "labeled '1'-0\" EDGEBEAM, TYP.' along outer edges of both decks"
    },
    {
      "name": "fillet",
      "tag": "",
      "shape": "linear strip",
      "material": "concrete",
      "count": 4,
      "note": "labeled '8\" FILLET, TYP.' along beam edges"
    },
    {
      "name": "reinforcement bar",
      "tag": "502D",
      "shape": "bar, bent detail shown",
      "material": "reinforcement steel",
      "count": 8,
      "note": "top transverse bars along deck edges, spaced between beam groups"
    },
    {
      "name": "reinforcement bar",
      "tag": "502E",
      "shape": "bar",
      "material": "reinforcement steel",
      "count": 4,
      "note": "end bars at outer edges of deck, near fence post spacing zones"
    },
    {
      "name": "reinforcement bar",
      "tag": "400B",
      "shape": "bar, longitudinal",
      "material": "reinforcement steel",
      "count": 2,
      "note": "longitudinal bar labeled '400B' within deck reinforcement layers"
    },
    {
      "name": "reinforcement bar",
      "tag": "400C",
      "shape": "bar, longitudinal",
      "material": "reinforcement steel",
      "count": 2,
      "note": "longitudinal bar labeled '400C', shown near '2'-0\" MIN. LAP' callout"
    },
    {
      "name": "fence post",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "only spacing dimensions shown, posts themselves not drawn; labeled 'FENCE POST SPACING'"
    }
  ],
  "measurements": [
    {
      "label": "overall deck width",
      "value": "82'-0\"",
      "unit": "",
      "appliesTo": "deck (both spans/decks)"
    },
    {
      "label": "panel spacing",
      "value": "16'-4 1/2\"",
      "unit": "",
      "appliesTo": "deck transverse spacing, repeated 4 times"
    },
    {
      "label": "end panel spacing",
      "value": "16'-6\"",
      "unit": "",
      "appliesTo": "deck transverse spacing, end panel"
    },
    {
      "label": "sub-spacing",
      "value": "9'-6\"",
      "unit": "",
      "appliesTo": "spacing between 502D/502E bars, top row"
    },
    {
      "label": "sub-spacing (alt row)",
      "value": "9'-10 1/2\"",
      "unit": "",
      "appliesTo": "spacing between 502D/502E bars, second row"
    },
    {
      "label": "end offset",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "edge offset to first bar/fence post, top and bottom rows"
    },
    {
      "label": "end offset (alt)",
      "value": "2'-0\"",
      "unit": "",
      "appliesTo": "edge offset to first bar, middle rows"
    },
    {
      "label": "end offset (alt)",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "edge offset near fence post spacing, middle rows"
    },
    {
      "label": "fillet thickness",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "fillet, typ."
    },
    {
      "label": "edgebeam width",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "edgebeam, typ."
    },
    {
      "label": "diaphragm thickness",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "concrete diaphragm, typ."
    },
    {
      "label": "minimum lap",
      "value": "2'-0\"",
      "unit": "",
      "appliesTo": "400B/400C bar lap, marked with ** symbol"
    },
    {
      "label": "skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "",
      "appliesTo": "deck end skew, typ."
    },
    {
      "label": "bearing",
      "value": "N 83°-43'-21.7\" E",
      "unit": "",
      "appliesTo": "construction centerline SR 21"
    },
    {
      "label": "gutter to gutter width",
      "value": "40'-0\"",
      "unit": "",
      "appliesTo": "westbound and eastbound deck"
    },
    {
      "label": "out to out width",
      "value": "43'-7\"",
      "unit": "",
      "appliesTo": "westbound and eastbound deck"
    },
    {
      "label": "curb offset",
      "value": "1'-9 1/2\"",
      "unit": "",
      "appliesTo": "gutter to out-to-out edge offset"
    },
    {
      "label": "lap bar spacing at ends",
      "value": "5'-0\"",
      "unit": "",
      "appliesTo": "** marked lap bars near deck ends"
    },
    {
      "label": "median width",
      "value": "22'-0\"",
      "unit": "",
      "appliesTo": "distance between PGL Westbound and PGL Eastbound centerlines"
    },
    {
      "label": "span label",
      "value": "SPAN 2",
      "unit": "",
      "appliesTo": "overall deck plan"
    }
  ],
  "notes": [],
  "labels": [
    "SPAN 2",
    "CONSTRUCTION ℄ SR 21",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "FENCE POST SPACING",
    "8\" FILLET, TYP.",
    "1'-0\" EDGEBEAM, TYP.",
    "10\" CONCRETE DIAPHRAGM, TYP.",
    "2'-0\" MIN. LAP",
    "℄ BEAM 1",
    "℄ BEAM 2",
    "℄ BEAM 3",
    "℄ BEAM 4",
    "℄ BEAM 5",
    "℄ BEAM 6",
    "℄ BEAM 7",
    "℄ BEAM 8",
    "℄ BEAM 9",
    "℄ BEAM 10",
    "℄ BEAM 11",
    "℄ BEAM 12"
  ],
  "description": "This crop is a plan view of Span 2 of a twin-roadway bridge deck, showing two parallel skewed deck panels (westbound and eastbound) each supported on six beams (Beams 1-6 and 7-12), with dimensioned transverse spacing, edge beams, fillets, concrete diaphragms, and top-slab reinforcement bars (502D, 502E, 400B, 400C) including a minimum lap callout. Overall deck geometry (82'-0\" width, 81°20'05.0\" skew, gutter-to-gutter and out-to-out widths) and the SR 21 construction centerline bearing are also annotated."
}

Other P05 R01

done

other_p05_r01

Plan10 objects · 20 measurements · 21 labels

This crop is a plan view of Span 2 of a twin-roadway bridge deck, showing two parallel skewed deck panels (westbound and eastbound) each supported on six beams (Beams 1-6 and 7-12), with dimensioned transverse spacing, edge beams, fillets, concrete diaphragms, and top-slab reinforcement bars (502D, 502E, 400B, 400C) including a minimum lap callout. Overall deck geometry (82'-0" width, 81°20'05.0" skew, gutter-to-gutter and out-to-out widths) and the SR 21 construction centerline bearing are also annotated.

Objects · 10

MarkObjectNo.ShapeMaterialNote
BEAM 1 through BEAM 12beam12straight, skewed at endscenterlines shown for each beam, in two groups of six (westbound and eastbound decks)
deck slab2trapezoidal/skewed rectangularconcreteone deck panel per roadway (PGL Westbound and PGL Eastbound), each spanning between skewed end lines
concrete diaphragmtransverse stripconcretelabeled '10" CONCRETE DIAPHRAGM, TYP.' at multiple locations between beams
edge beam4linear strip along deck edgeconcretelabeled '1'-0" EDGEBEAM, TYP.' along outer edges of both decks
fillet4linear stripconcretelabeled '8" FILLET, TYP.' along beam edges
502Dreinforcement bar8bar, bent detail shownreinforcement steeltop transverse bars along deck edges, spaced between beam groups
502Ereinforcement bar4barreinforcement steelend bars at outer edges of deck, near fence post spacing zones
400Breinforcement bar2bar, longitudinalreinforcement steellongitudinal bar labeled '400B' within deck reinforcement layers
400Creinforcement bar2bar, longitudinalreinforcement steellongitudinal bar labeled '400C', shown near '2'-0" MIN. LAP' callout
fence postonly spacing dimensions shown, posts themselves not drawn; labeled 'FENCE POST SPACING'

Measurements · 20

MeasurementValueUnitApplies to
overall deck width82'-0"deck (both spans/decks)
panel spacing16'-4 1/2"deck transverse spacing, repeated 4 times
end panel spacing16'-6"deck transverse spacing, end panel
sub-spacing9'-6"spacing between 502D/502E bars, top row
sub-spacing (alt row)9'-10 1/2"spacing between 502D/502E bars, second row
end offset3'-0"edge offset to first bar/fence post, top and bottom rows
end offset (alt)2'-0"edge offset to first bar, middle rows
end offset (alt)1'-0"edge offset near fence post spacing, middle rows
fillet thickness8"infillet, typ.
edgebeam width1'-0"edgebeam, typ.
diaphragm thickness10"inconcrete diaphragm, typ.
minimum lap2'-0"400B/400C bar lap, marked with ** symbol
skew angle81°-20'-05.0"deck end skew, typ.
bearingN 83°-43'-21.7" Econstruction centerline SR 21
gutter to gutter width40'-0"westbound and eastbound deck
out to out width43'-7"westbound and eastbound deck
curb offset1'-9 1/2"gutter to out-to-out edge offset
lap bar spacing at ends5'-0"** marked lap bars near deck ends
median width22'-0"distance between PGL Westbound and PGL Eastbound centerlines
span labelSPAN 2overall deck plan

Labels

SPAN 2CONSTRUCTION ℄ SR 21PGL WESTBOUNDPGL EASTBOUNDFENCE POST SPACING8" FILLET, TYP.1'-0" EDGEBEAM, TYP.10" CONCRETE DIAPHRAGM, TYP.2'-0" MIN. LAP℄ BEAM 1℄ BEAM 2℄ BEAM 3℄ BEAM 4℄ BEAM 5℄ BEAM 6℄ BEAM 7℄ BEAM 8℄ BEAM 9℄ BEAM 10℄ BEAM 11℄ BEAM 12

anthropic/claude-sonnet-5 · 8841 tokens · 30.0s

item · 1467 × 1159

Other P05 R02

page 5 · other_p05_r02
Original
Other P05 R02
{
  "view": "Detail",
  "objects": [
    {
      "name": "Expansion joint (in barrier)",
      "tag": "",
      "shape": "rectangular/vertical joint",
      "material": "preformed joint filler with silicone sealant",
      "count": 1,
      "note": "Shown in Plan, Elevation, and Side Elevation views"
    },
    {
      "name": "Barrier",
      "tag": "",
      "shape": "tapered (sloped face)",
      "material": "concrete",
      "count": 1,
      "note": "Side elevation shows tapered barrier profile with chamfer and joint"
    },
    {
      "name": "Chamfer",
      "tag": "",
      "shape": "linear edge chamfer",
      "material": "concrete",
      "count": 1,
      "note": "3/4\" chamfer at barrier edge"
    },
    {
      "name": "Preformed joint filler",
      "tag": "",
      "shape": "rectangular strip",
      "material": "preformed filler material",
      "count": 1,
      "note": "1\" thick, spans joint width"
    },
    {
      "name": "Silicone sealant",
      "tag": "",
      "shape": "linear bead",
      "material": "low modulus silicone (Type A)",
      "count": 1,
      "note": "Applied at joint face"
    }
  ],
  "measurements": [
    {
      "label": "Chamfer size",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "barrier edge chamfer"
    },
    {
      "label": "Joint filler cover (plan)",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "preformed joint filler, plan view top"
    },
    {
      "label": "Joint filler cover (plan)",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "preformed joint filler, plan view bottom"
    },
    {
      "label": "Preformed joint filler thickness",
      "value": "1",
      "unit": "in",
      "appliesTo": "preformed joint filler"
    },
    {
      "label": "Joint filler cover (elevation)",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "preformed joint filler, elevation view top"
    },
    {
      "label": "Offset dimension",
      "value": "3",
      "unit": "in",
      "appliesTo": "side elevation, base of barrier"
    }
  ],
  "notes": [
    "HOLD IN PLACE WITH 10d GALV. NAILS."
  ],
  "labels": [
    "PLAN",
    "ELEVATION",
    "SIDE ELEVATION",
    "DETAILS OF 1\" EXPANSION JOINT IN BARRIER",
    "NO SCALE",
    "JOINTS"
  ],
  "description": "This crop is a detail sheet showing the construction of a 1-inch expansion joint within a concrete barrier, illustrated in plan, elevation, and side elevation views. It specifies a 3/4-inch chamfer, 1-inch preformed joint filler, and low modulus silicone sealant (Type A) at the joint, with the filler held in place using 10d galvanized nails. The side elevation shows the tapered barrier profile with a 3-inch offset dimension near its base."
}

Other P05 R02

done

other_p05_r02

Detail5 objects · 6 measurements · 1 note · 6 labels

This crop is a detail sheet showing the construction of a 1-inch expansion joint within a concrete barrier, illustrated in plan, elevation, and side elevation views. It specifies a 3/4-inch chamfer, 1-inch preformed joint filler, and low modulus silicone sealant (Type A) at the joint, with the filler held in place using 10d galvanized nails. The side elevation shows the tapered barrier profile with a 3-inch offset dimension near its base.

Objects · 5

ObjectNo.ShapeMaterialNote
Expansion joint (in barrier)1rectangular/vertical jointpreformed joint filler with silicone sealantShown in Plan, Elevation, and Side Elevation views
Barrier1tapered (sloped face)concreteSide elevation shows tapered barrier profile with chamfer and joint
Chamfer1linear edge chamferconcrete3/4" chamfer at barrier edge
Preformed joint filler1rectangular strippreformed filler material1" thick, spans joint width
Silicone sealant1linear beadlow modulus silicone (Type A)Applied at joint face

Measurements · 6

MeasurementValueUnitApplies to
Chamfer size3/4inbarrier edge chamfer
Joint filler cover (plan)3/4inpreformed joint filler, plan view top
Joint filler cover (plan)3/4inpreformed joint filler, plan view bottom
Preformed joint filler thickness1inpreformed joint filler
Joint filler cover (elevation)3/4inpreformed joint filler, elevation view top
Offset dimension3inside elevation, base of barrier

Labels

PLANELEVATIONSIDE ELEVATIONDETAILS OF 1" EXPANSION JOINT IN BARRIERNO SCALEJOINTS

Notes

  • HOLD IN PLACE WITH 10d GALV. NAILS.

anthropic/claude-sonnet-5 · 4823 tokens · 13.8s

item · 1266 × 1049

Other P05 R03

page 5 · other_p05_r03
Original
Other P05 R03
{
  "view": "Detail",
  "objects": [
    {
      "name": "Main slab reinforcement bars",
      "tag": "",
      "shape": "straight bar, bent near skewed joint",
      "material": "reinforced steel",
      "count": null,
      "note": "Shown as parallel bars terminating/adjusting at the B.F.P.R. or construction joint line"
    },
    {
      "name": "Skew adjustment bar",
      "tag": "500B",
      "shape": "bar, bent to follow skew angle",
      "material": "steel reinforcement",
      "count": 1,
      "note": "Placement governed by referenced Georgia DOT subsection 511.3.05.G.5"
    },
    {
      "name": "Construction/expansion joint (B.F.P.R.)",
      "tag": "",
      "shape": "linear, skewed",
      "material": "",
      "count": 1,
      "note": "Back face of parapet rail or construction joint line shown diagonally crossing slab"
    }
  ],
  "measurements": [
    {
      "label": "Clear cover",
      "value": "2",
      "unit": "IN",
      "appliesTo": "Main slab reinforcement/500B bar at joint"
    },
    {
      "label": "Sealant width",
      "value": "3/4",
      "unit": "IN",
      "appliesTo": "Low modulus sealant (partially shown, outside main circle detail)"
    }
  ],
  "notes": [
    "BARS ARE DETAILED IN BAR DETAILS AS EQUIVALENT FULL LENGTH BARS.",
    "SEE SUBSECTION 511.3.05.G.5 OF THE GEORGIA DOT SPECIFICATION FOR PLACEMENT OF 500B BAR."
  ],
  "labels": [
    "B.F.P.R. OR CONST. JOINT",
    "MAIN SLAB REINF.",
    "2\" CL.",
    "C BRIDGE",
    "500B",
    "AT B.F.P.R. OR CONST. JOINT",
    "BAR BENDING DETAILS AT SKEWED JOINTS",
    "NO SCALE",
    "LOW MODULUS SEALANT"
  ],
  "description": "This crop is a reinforcement bending detail showing how main slab reinforcing bars and a special bar marked 500B are bent/adjusted where they meet a skewed construction joint or back face of parapet rail (B.F.P.R.), referenced to the bridge centerline. A 2-inch clear cover is called out near the joint, and notes clarify that bars are detailed as equivalent full-length bars and that 500B bar placement follows a specific Georgia DOT specification subsection. A partial callout for a 3/4-inch low modulus sealant appears at the right edge of the crop, likely part of an adjacent joint detail not fully included here."
}

Other P05 R03

done

other_p05_r03

Detail3 objects · 2 measurements · 2 notes · 9 labels

This crop is a reinforcement bending detail showing how main slab reinforcing bars and a special bar marked 500B are bent/adjusted where they meet a skewed construction joint or back face of parapet rail (B.F.P.R.), referenced to the bridge centerline. A 2-inch clear cover is called out near the joint, and notes clarify that bars are detailed as equivalent full-length bars and that 500B bar placement follows a specific Georgia DOT specification subsection. A partial callout for a 3/4-inch low modulus sealant appears at the right edge of the crop, likely part of an adjacent joint detail not fully included here.

Objects · 3

MarkObjectNo.ShapeMaterialNote
Main slab reinforcement barsstraight bar, bent near skewed jointreinforced steelShown as parallel bars terminating/adjusting at the B.F.P.R. or construction joint line
500BSkew adjustment bar1bar, bent to follow skew anglesteel reinforcementPlacement governed by referenced Georgia DOT subsection 511.3.05.G.5
Construction/expansion joint (B.F.P.R.)1linear, skewedBack face of parapet rail or construction joint line shown diagonally crossing slab

Measurements · 2

MeasurementValueUnitApplies to
Clear cover2INMain slab reinforcement/500B bar at joint
Sealant width3/4INLow modulus sealant (partially shown, outside main circle detail)

Labels

B.F.P.R. OR CONST. JOINTMAIN SLAB REINF.2" CL.C BRIDGE500BAT B.F.P.R. OR CONST. JOINTBAR BENDING DETAILS AT SKEWED JOINTSNO SCALELOW MODULUS SEALANT

Notes

  • BARS ARE DETAILED IN BAR DETAILS AS EQUIVALENT FULL LENGTH BARS.
  • SEE SUBSECTION 511.3.05.G.5 OF THE GEORGIA DOT SPECIFICATION FOR PLACEMENT OF 500B BAR.

anthropic/claude-sonnet-5 · 4273 tokens · 14.2s

item · 1213 × 247

Other P05 R04

page 5 · other_p05_r04
Original
Other P05 R04
{
  "view": "Notes",
  "objects": [
    {
      "name": "reinforcement bar",
      "tag": "600",
      "shape": "",
      "material": "reinforced concrete (rebar)",
      "count": null,
      "note": "referenced as 2-600 bars, 10'-0\" long, placed between pairs of 400 bars"
    },
    {
      "name": "reinforcement bar",
      "tag": "400",
      "shape": "",
      "material": "reinforced concrete (rebar)",
      "count": null,
      "note": "bars in top of slab over intermediate bents 2 and 3"
    },
    {
      "name": "deck slab",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": null,
      "note": "slab over intermediate bents referenced in note 5"
    },
    {
      "name": "bent",
      "tag": "Bent 2",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "intermediate bent referenced in note text"
    },
    {
      "name": "bent",
      "tag": "Bent 3",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "intermediate bent referenced in note text"
    }
  ],
  "measurements": [
    {
      "label": "length",
      "value": "10'-0\"",
      "unit": "",
      "appliesTo": "600 bar"
    },
    {
      "label": "quantity",
      "value": "2",
      "unit": "",
      "appliesTo": "600 bar, per pair of 400 bars"
    }
  ],
  "notes": [
    "...CONSTRUCTION JOINT IN DECK.",
    "5. 2-600 (10'-0\" LONG) BETWEEN EACH PAIR OF 400 BARS IN TOP OF SLAB OVER INTERMEDIATE BENTS 2 AND 3.",
    "6. LAP IN BARS SHALL BE STAGGERED AND ALTERNATED TO MAXIMIZE THE DISTANCE BETWEEN ADJACENT SPLICES."
  ],
  "labels": [],
  "description": "This crop shows a partial list of general construction notes, specifically items 5 and 6 (with a fragment of a note above referencing a construction joint in deck), concerning placement and staggering of reinforcement bars (600 and 400 bar marks) in the top of the deck slab over intermediate bents 2 and 3. It is a text-only notes block, not a plan or detail view, and appears to be part of a larger reinforcement notes list on the sheet."
}

Other P05 R04

done

other_p05_r04

Notes5 objects · 2 measurements · 3 notes

This crop shows a partial list of general construction notes, specifically items 5 and 6 (with a fragment of a note above referencing a construction joint in deck), concerning placement and staggering of reinforcement bars (600 and 400 bar marks) in the top of the deck slab over intermediate bents 2 and 3. It is a text-only notes block, not a plan or detail view, and appears to be part of a larger reinforcement notes list on the sheet.

Objects · 5

MarkObjectNo.MaterialNote
600reinforcement barreinforced concrete (rebar)referenced as 2-600 bars, 10'-0" long, placed between pairs of 400 bars
400reinforcement barreinforced concrete (rebar)bars in top of slab over intermediate bents 2 and 3
deck slabreinforced concreteslab over intermediate bents referenced in note 5
Bent 2bent1intermediate bent referenced in note text
Bent 3bent1intermediate bent referenced in note text

Measurements · 2

MeasurementValueApplies to
length10'-0"600 bar
quantity2600 bar, per pair of 400 bars

Notes

  • ...CONSTRUCTION JOINT IN DECK.
  • 5. 2-600 (10'-0" LONG) BETWEEN EACH PAIR OF 400 BARS IN TOP OF SLAB OVER INTERMEDIATE BENTS 2 AND 3.
  • 6. LAP IN BARS SHALL BE STAGGERED AND ALTERNATED TO MAXIMIZE THE DISTANCE BETWEEN ADJACENT SPLICES.

anthropic/claude-sonnet-5 · 2502 tokens · 11.7s

2Map the items87 items · 1146 readings · 45 on more than one pageconfigured openai/gpt-5.6-terra-pro · about 12¢ at the last run’s size · default

One set of distinct items across every page. The same bent read as “BENT”, “Interior bent” and “Bent No. 2” is one item here, carrying every page and crop it was seen in. One model call over all of step 1’s readings; the page mapping is resolved from its grouping rather than retyped by it.

87 items from 1146 readings · 2 the model left out, matched by name · 87 new.

87items1146readings45on 2+ pages50,082tokens in11,065tokens out
Reinforcement Barmaterial×3257 · bar · reinforcing steelp2, p4, p5, p6, p7, p8, p9, p10, p11, p13, p14, p16, p17, p19, p2171 crops
Reinforcement Bar

also calledSuperstructure reinforcement steelBar reinforcement steelMain slab reinforcement barMain slab reinforcement barsSkew adjustment barReinforcement bar groupReinforcement bar markFence post anchorage/rebarReinforcement bar (stirrup/tie)Slab reinforcementLongitudinal reinforcement barHorizontal/tie reinforcement barVertical reinforcement barreinforcement bar groupReinforcement barsReinforcement bar - straightReinforcement bar - top bent barReinforcement bar - closed/rectangularReinforcement bar - diagonal/bentReinforcement bar - straight tie+53 more

marksBAR REINF STEELBR NO-1 LT / RT511-3000511-100012-502A12-502B12-502C400A12-502D12-502E400B400C500B600400502D502E500A501502+114 more

PSC Beamsuperstructure×230 · I-girder · precast prestressed concretep2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p1554 crops
PSC Beam

also calledPSC beam spanBeambeamGirder/BeamSupport Stem/Web (beam bottom flange support)Beam (unlabeled additional)GirderPSC beam (unlabeled)beam/deck edge elementbeam / girderPSC beam (I-girder) cross section at endPSC beam (I-girder) cross section at midpointBeam (girder)PSC beam cross sectionbeam web/end blockPSC beam (end bevel detail)beam end cross-section detailPSC beam (girder)Beam (PSC beam, partial)beam (girder end)+3 more

marksAASHTO Type II, BR NO-1AASHTO Type III, BR NO-1507-9002507-9003BEAM 1-6 (Westbound span)BEAM 7-12 (Eastbound span)BEAM 1–BEAM 12BEAM 1BEAM 2BEAM 3BEAM 4BEAM 5BEAM 6BEAM 7BEAM 8BEAM 9BEAM 10BEAM 11BEAM 12BEAM 1 through BEAM 12+8 more

Bentsubstructure×64 · rectangular · reinforced concretep1, p2, p3, p4, p5, p6, p7, p11, p13, p14, p15, p16, p1830 crops
Bent

also calledintermediate bentBent (Substructure)Bridge BentIntermediate bent (pier)

marksBENT 1 (B.F.P.R. BENT 1L/1R)BENT 2 (BENT 2L/2R)BENT 3 (BENT 3L/3R)BENT 4 (B.F.P.R. BENT 4L/4R)BENT 1BENT 2BENT 3BENT 41 (B.F.P.R. BENT 1)2 (BENT 2L/2R)3 (BENT 3L/3R)4 (B.F.P.R. BENT 4)BENT 1 (Left Bridge)BENT 2 (Left Bridge)BENT 3 (Left Bridge)BENT 4 (Left Bridge)BENT 1 (Right Bridge)BENT 2 (Right Bridge)BENT 3 (Right Bridge)BENT 4 (Right Bridge)+16 more

Bearingsuperstructure×41 · rectangular · not stated (likely elastomeric or steel bearing)p1, p8, p10, p11, p13, p14, p15, p1715 crops
Bearing

also calledbearing pointBearing deviceBearing pointBearing pad location

marksEXPFIXBRG.C BEARINGCL BEARINGBEARING

Steel H-pilefoundation×297 · H-section · structural steelp1, p2, p13, p14, p16, p17, p1838 crops
Steel H-pile

also calledPilepileLoad test pile

marksHP 12 X 53520-1125520-4125HP12X53H-PILE1234567,8,9,10,11,12Bent 1 Left / 1 RightBent 2 Left, Footing 1 & 2Bent 2 Right, Footing 3 & 4Bent 3 Left, Footing 1 & 21-12 (Bent 3 Left/Right)1-12 (Bent 4 Left/Right)78+6 more

Bent Capsubstructure×40 · rectangular · reinforced concretep2, p13, p14, p15, p16, p17, p1829 crops
Bent Cap

also calledbent cap / pedestal footingCap beam / bent capPile cap / bent cap beambent cap / pile cap beamBent cap / pile capBent cap / pier capBent cap / column sectionBent cap (with corbel/notch at bearing)Bent cap/columnCap beam / Bent capCap/Beam section (rectangular concrete member)

marksBENT 1BENT 1 RIGHTBENT 1 LEFTBENT 2 LEFTBENT 2 RIGHTBENT 2BENTSECTION B-BBENT 4 LEFTBENT 4 RIGHT

Deck Slabdeck×23 · rectangular/trapezoidal · grooved concretep1, p2, p4, p5, p7, p8, p921 crops
Deck Slab

also calleddeck/superstructureDeck/SuperstructureBridge deckBridge deck (beam bay)

marksLEFT BRIDGE / RIGHT BRIDGESPAN 12-800SLAB

Diaphragmsuperstructure×45 · rectangular transverse strip · concretep2, p4, p5, p6, p7, p9, p1016 crops
Diaphragm

also calledConcrete diaphragmconcrete diaphragmBeam / diaphragm concrete section

marks400A

Concrete Barrierrailing×21 · tapered · reinforced concretep2, p4, p5, p7, p8, p917 crops
Concrete Barrier

also calledBarrierBarrier (parapet) transitionBarrier (transition segment)Barrier (traffic/parapet)Parapet/BarrierEdge parapet/barrier upstandBarrier/ParapetBarrier (bridge parapet/traffic barrier)Traffic barrier (parapet)edge beam / barrier curbparapet/fence post support

marks500-2100

Columnsubstructure×52 · rectangular · reinforced concretep13, p14, p16, p17, p1828 crops
Column

also calledColumn/Pier (end)Column/pedestal (end, left)Column/pedestal (end, right)Reinforced concrete member (rectangular section, possibly pier/column cap)end column/pierColumn/pedestalPile or columncolumn/pier stemconcrete column/pedestal (rectangular capital)Column/Pier elementConcrete member (pile/column section)Reinforced concrete member (section)column or pier cross sectionPile/column section detailReinforced concrete member (section B-B)Reinforced concrete member (section C-C)Concrete member (wall/pier section)Column/pier cross-sectionColumn/PierPile/Column (intermediate)+8 more

marksCOLUMN 1COLUMN 2DETAIL 1 / SECTION A-ADETAIL 3 / SECTION D-DSECTION B-BSECTION C-CSECTION E-ESECTION F-FDetail 1 / Section A-ADetail 3 / Section D-D

Footingfoundation×44 · rectangular/square · reinforced concretep2, p14, p16, p17, p1821 crops
Footing

also calledpedestal footingpile cap/footingConcrete cap/footing sectionPile cap / footingBent cap/Footing

marksFOOTING PLAN - BENT 3BENT 2Bent 3FOOTING 1FOOTING 2FOOTING 3FOOTING 4BENT 4 LEFTBENT 4 RIGHTFooting 1Footing 2Footing 3Footing 4Bent 4 LeftBent 4 Right

Chain Link Fencerailing×8 · linear · zinc coated steelp1, p2, p7, p8, p917 crops
Chain Link Fence

also calledchain link wire fenceChain link wire fencefenceFence (not shown)FenceChain link fence fabric

marks643-1152

Edge Beamdeck×21 · linear strip · concretep4, p5, p6, p7, p911 crops
Edge Beam

also calledEdgebeam

marks2-800

Preformed Joint Fillermaterial×12 · rectangular strip · preformed filler materialp4, p5, p8, p9, p1210 crops
Preformed Joint Filler

also calledFiller materialJoint fillerPreformed foam joint filler

marks*

Dowel Holeother×5 · circular · concrete (formed hole)p12, p13, p14, p15, p179 crops
Dowel Hole

also calledDowel bar hole

End Postrailing×17 · vertical pipe · zinc coated steelp2, p4, p6, p810 crops
End Post

also calledend post and guardrail attachmentEnd post (fence)

marksEND POST

Endwallsubstructure×22 · linear/rectangular · concretep4, p6, p8, p128 crops
Endwall

marks3'-0" ENDWALL1'-6" ENDWALL

Fence Postrailing×11 · vertical pipe · zinc coated steelp4, p5, p6, p88 crops
Fence Post

also calledFence post spacing (fence line)Fence post spacing markersFence post (typical vertical)Pull post (fence)

marks12-502A / 12-502B / 12-502C*

Construction Jointdeck×8 · linearp5, p7, p8, p98 crops
Construction Joint

also calledConstruction joint / B.F.P.R. lineConstruction/expansion joint (B.F.P.R.)

Bearing Padsuperstructure×20 · rectangular · elastomericp7, p9, p1217 crops
Bearing Pad

also calledbearing pad (not shown)Bearing pad / beveled shim plate assemblySecond bearing pad (partial)

marksBent 1Bent 2 BackBent 2 AheadBent 3 BackBent 3 AheadBent 4BENT 1BENT 2 BACKBENT 2 AHEADBENT 3 BACKBENT 3 AHEADBENT 4

Wingwallsubstructure×12 · rectangular · reinforced concretep1, p13, p176 crops
Wingwall

also calledwingwall/wallWingwall/Retaining WallWingwall/wallWingwall / retaining wallWall (retaining/wingwall)

marksWALL 1WALL 2

Joint Sealermaterial×7 · linear bead · silicone sealantp4, p5, p96 crops
Joint Sealer

also calledExpansion joint seal assemblyExpansion joint sealSilicone adhesiveLow modulus silicone sealant (Type A)Silicone sealantJoint sealer detail

marksDetail A

Drip Beaddeck×7 · triangular · unspecified (likely sealant/concrete)p7, p8, p96 crops
Drip Bead
Section Cut Lineother×8 · linep12, p13, p174 crops
Section Cut Line

also calledSection cut markerSection cut markers

marksA-AABB-B

Filletdeck×16 · linear strip · concretep4, p5, p65 crops
Fillet
Prestressing Strandsuperstructure×89 · strand · low-relaxation steelp10, p1110 crops
Prestressing Strand

also calleddraped strandsPrestressed stranddraped strand groupstrand (pretensioning)

marks2-5502-4508-45113-3502-4522-650

Existing Railroad Trackancillary×23 · linear · steelp1, p38 crops
Existing Railroad Track

also calledrailroad trackRail trackRailroad Track (Existing)Railroad track (existing)

marksCENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACKEXIST. TRACK

Plain Barmaterial×4 · circular · plain steelp7, p97 crops
Plain Bar

also calledPlain bar (tie rod)

Diaphragm Barsuperstructure×4 · bar · structural steelp10, p116 crops
Diaphragm Bar

marks

Diaphragm Bar Holesuperstructure×10 · circular · void/opening in concretep10, p116 crops
Diaphragm Bar Hole

also calledRecess (pocket for diaphragm bar end)Recess hole

Dowel Barmaterial×2 · circular rod · steelp2, p126 crops
Dowel Bar

also calledSmooth Dowel BarSmooth doweldowel

Endfillearthwork×4 · sloped embankment · earth fillp1, p24 crops
Endfill

also calledEndfill control pointEndfill slope / embankmentEndfill slopefill detail at end of bridge

Future Trackancillary×21 · linear · steel railp1, p36 crops
Future Track

also calledRailroad track (future)Railroad Track (Future)

marksFUTURE TRACK

Paving Restpavement×10 · ledge · concretep4, p66 crops
Paving Rest
Bridgeother×4 · rectangularp3, p183 crops
Bridge

also calledBridge (Left)Bridge (Right)Bridge (left)Bridge (right)

marksLEFT BRIDGERIGHT BRIDGESR 21 @ NS #620272Y

Cap Beamsubstructure×4 · rectangular · reinforced concretep13, p174 crops
Cap Beam

also calledCoping

End Bentsubstructure×6 · H-section piles · structural steel piles / MSE wallp2, p84 crops
End Bent

also calledEnd bent cap/section

marksEND BENT 1END BENT 1 / END BENT 4

Expansion Jointdeck×2 · linear · preformed joint filler / silicone sealantp2, p54 crops
Expansion Joint

also calledExpansion joint (barrier)Expansion joint (in barrier)

Hex Nutmaterial×6 · hexagonal · steelp10, p114 crops
Hex Nut
Hold Down Devicesuperstructure×4p10, p114 crops
Hold Down Device

also calledlow friction type hold downlow friction hold down

Washermaterial×6 · circular · steelp10, p114 crops
Washer
Beam Centerlineother×36 · linear centerline · n/ap13, p173 crops
Beam Centerline

also calledBeam centerline markerBeam centerline referenceBeam centerline marks

marksBEAM 1 - BEAM 12BEAM 1-12

Future Access Roadpavement×3 · linearp1, p33 crops
Future Access Road

also calledAccess Road (Future)

marksFUTURE ACCESS ROAD

Holeother×2 · circularp11, p122 crops
Hole

also called2" diameter holeHole (in beveled shim plate)

Professional Engineer Sealother×2 · circularp11, p182 crops
Professional Engineer Seal

marksNo.19371

Beveled Shim Platesuperstructure×15 · tapered rectangular plate · structural steelp1210 crops
Beveled Shim Plate

also calledShim plateshim plate

marksBent 1Bent 2 BackBent 2 AheadBent 3 BackBent 3 AheadBent 4BENT 1BENT 4

Bearing Platesuperstructure×3 · rectangular · steelp124 crops
Bearing Plate

also calledBearing plate/base plate (plan view)Internal platesinternal plateInternal plate

Railroad Right-of-Way Boundaryother×29 · linear boundaryp34 crops
Railroad Right-of-Way Boundary

also calledRailroad Right-of-WayExisting railroad right-of-way boundaryRailroad right-of-way lineExisting RR right-of-way boundary

marksRR R/WEXIST. RR ROW

Load Platesuperstructure×4 · rectangular · steelp123 crops
Load Plate
Sealing ribmatched by name×5 · rectangular · steelp123 crops
Sealing rib
Abutmentsubstructure×2 · tapered · reinforced concretep72 crops
Abutment

also calledAbutment/backwallabutment/end support

Access Roadpavement×17 · linearp32 crops
Access Road

marksACCESS RD.

Approach Slabdeckp22 crops
Approach Slab
Concrete Nosingdeck×4 · rounded edge · concretep42 crops
Concrete Nosing

also calledConcrete edge/nosingJoint recess/nosing

Cross-section Detailother×2 · unclear, croppedp102 crops
Cross-section Detail

also calledpartial section detailcross-section detail (partial)

marksSECTION A

  • p10p10_r01 notespartial section detail · SECTION A · ×1p10_r01cross-section detail (partial) · ×1
Fence Tension Barrailing×1 · pipe · zinc coated steelp82 crops
Fence Tension Bar

also calledTension bar

Fence Truss Bracingrailing×1 · diagonal pipe · zinc coated steelp82 crops
Fence Truss Bracing

also calledTruss bracing

High Railancillary×2 · point/calloutp12 crops
High Rail

also calledtop of high rail

Mechanical Couplermaterialp142 crops
Mechanical Coupler
Pipe Sleeveancillary×2 · circular · galvanized steelp82 crops
Pipe Sleeve
Profile Grade Lineother×2 · linear alignmentp31 crop
Profile Grade Line

also calledPGL profile grade line

marksPGL WESTBOUNDPGL EASTBOUND

  • p3p03_r01PGL profile grade line · PGL WESTBOUND · ×1p03_r01PGL profile grade line · PGL EASTBOUND · ×1
Reference Lineother×2 · linear reference linep161 crop
Reference Line

also calledReference line BReference line C

marksBC

  • p16p16_r03Reference line B · B · ×1p16_r03Reference line C · C · ×1
Reinforcement Bar Bending Detailotherreinforcing steelp22 crops
Reinforcement Bar Bending Detail

also calledbar bending detail referencereinforcing bar bending detail

Roadway Centerlineother×2 · linear alignmentp32 crops
Roadway Centerline

also calledRoadway Centerline SR 21

marksC SR 21SR 21

Superstructure Concretematerialconcrete, Class Dp22 crops
Superstructure Concrete

also calledSuperstructure (general)

marks500-1011

Sway Bracingsuperstructurep22 crops
Sway Bracing

also calledswaybracing

Temporary Shoringancillary×1 · linearp12 crops
Temporary Shoring
Track centerlinematched by name×2 · linear (centerline)p12 crops
Track centerline

marksC TRACK

Bearing Lineother×2 · linearp141 crop
Bearing Line

marks℄ BEARING

  • p14p14_r01Bearing line · ℄ BEARING · ×2
Bent Number And Pile Tip Elevation Tableother×1 · tabularp21 crop
Bent Number And Pile Tip Elevation Table

also calledBent Number / Pile Tip Elevation Table

Bridge Begin Reference Pointother×2 · point marker · n/ap131 crop
Bridge Begin Reference Point

also calledBridge begin/reference point (B.F.P.R.)

Bridge Centerlineother×1 · linearp51 crop
Bridge Centerline

marksC BRIDGE

Bridge Excavationearthworkearth/soilp21 crop
Bridge Excavation

marks211-0200

  • p2p02_r05Bridge excavation · 211-0200
Chamferdeck×1 · linear edge chamfer · concretep51 crop
Chamfer
Class AA Concretematerialconcretep21 crop
Class AA Concrete

marks500-3002

  • p2p02_r05Class AA concrete · 500-3002
Clearance Envelopeother×1 · rectangularp11 crop
Clearance Envelope
Dynamic Pile Testfoundationp21 crop
Dynamic Pile Test

marks523-1100

  • p2p02_r05Dynamic pile test · 523-1100
Elevation Data Tableother×1 · tabularp31 crop
Elevation Data Table

marksSURVEYED TOP OF RAIL ELEVATIONS

  • p3p03_r01Elevation data table · SURVEYED TOP OF RAIL ELEVATIONS · ×1
Existing Grade Lineother×9 · irregular profile linep31 crop
Existing Grade Line

also calledGround/existing grade line

Foundation Backfillearthworkgranular backfillp21 crop
Foundation Backfill

also calledFoundation backfill material

marks207-0203

  • p2p02_r05Foundation backfill material · 207-0203
Grooved Concrete Surfacedeckconcretep21 crop
Grooved Concrete Surface

marks500-0100

  • p2p02_r05Grooved concrete surface · 500-0100
Mechanically Stabilized Earth Wallsubstructurep21 crop
Mechanically Stabilized Earth Wall
  • p2p02_r06mechanically stabilized earth wall
Pile Bent Supportfoundation×2 · pile group/footing · reinforced concretep11 crop
Pile Bent Support
Pile Connection Detailfoundation×1 · H-section pile connection · structural steel / reinforcing steelp141 crop
Pile Connection Detail
Substructure Concretematerialreinforced concrete, Class AAp21 crop
Substructure Concrete

also calledSubstructure (general)

Title Blockother×1p211 crop
Title Block
Waterproofingmaterialper Section 530 Georgia DOT Specificationsp81 crop
Waterproofing
3Match the ontology36 of 87 matched · 7 to check · 51 unmatchedconfigured openai/gpt-5.6-terra-pro · about $2.42 for a full pass · default

Every item from step 2 compared against the project’s engineering ontology, and then, for each one that lands in a class, a take-off of what that class asks for. The class list goes up as a closed vocabulary, so regional wording resolves without a synonym table — BENT to a pier system, PSC BEAM to a prestressed girder. Any class id that is not in the ontology is rejected rather than stored. The take-off reads every crop behind an item, derives what the drawings imply, shows its arithmetic, and says plainly when a number is not there. Matching against bridge v1.0.0, 133 classes.

23 items could not be worked out. Open one to see why, and work it out again from its own page.

29matched7to check51unmatched41% covered30values8gaps2,058,391tokens in60,862tokens out

51 items the bridge ontology has no class forAdd a class

  • Chain Link Fencep1, p2, p7, p8, p9 · 17 crops · ×8The ontology would need a chain-link fence class.
  • Edge Beamp4, p5, p6, p7, p9 · 11 crops · ×21The ontology would need a bridge edge beam class.
  • Preformed Joint Fillerp4, p5, p8, p9, p12 · 10 crops · ×12The ontology would need a preformed joint filler material class.
  • Dowel Holep12, p13, p14, p15, p17 · 9 crops · ×5The ontology would need a dowel-hole or formed-opening class.
  • End Postp2, p4, p6, p8 · 10 crops · ×17The ontology would need a fence end-post class.
  • Construction Jointp5, p7, p8, p9 · 8 crops · ×8The ontology would need a construction-joint class.
  • Endwallp4, p6, p8, p12 · 8 crops · ×22The ontology would need an endwall class.
  • Fence Postp4, p5, p6, p8 · 8 crops · ×11The ontology would need a fence-post class.
  • Drip Beadp7, p8, p9 · 6 crops · ×7The ontology would need a drip-bead class.
  • Joint Sealerp4, p5, p9 · 6 crops · ×7The ontology would need a joint sealant material class.
  • Filletp4, p5, p6 · 5 crops · ×16The ontology would need a concrete fillet class.
  • Section Cut Linep12, p13, p17 · 4 crops · ×8The ontology would need a drawing section-cut reference class.
  • Plain Barp7, p9 · 7 crops · ×4The ontology would need a plain steel tie-bar class.
  • Diaphragm Barp10, p11 · 6 crops · ×4The ontology would need a diaphragm-bar connection class.
  • Diaphragm Bar Holep10, p11 · 6 crops · ×10The ontology would need a diaphragm-bar recess or opening class.
  • Dowel Barp2, p12 · 6 crops · ×2The ontology would need a smooth dowel-bar class.
  • Paving Restp4, p6 · 6 crops · ×10The ontology would need a paving-rest ledge class.
  • Hex Nutp10, p11 · 4 crops · ×6The ontology would need a structural nut class.
  • Hold Down Devicep10, p11 · 4 crops · ×4The ontology would need a bridge hold-down device class.
  • Washerp10, p11 · 4 crops · ×6The ontology would need a structural washer class.
  • Beam Centerlinep13, p17 · 3 crops · ×36The ontology would need a beam-centerline reference class.
  • Future Access Roadp1, p3 · 3 crops · ×3The ontology would need an approach access-road class.
  • Holep11, p12 · 2 crops · ×2The ontology would need a generic formed-hole class.
  • Professional Engineer Sealp11, p18 · 2 crops · ×2The professional engineer seal is a drawing administrative mark, not a bridge work item.
  • Beveled Shim Platep12 · 10 crops · ×15The ontology would need a bearing shim-plate class.
  • Bearing Platep12 · 4 crops · ×3The ontology would need a bearing plate or base-plate class.
  • Railroad Right-of-Way Boundaryp3 · 4 crops · ×29The railroad right-of-way boundary is a land reference, not a listed bridge component.
  • Load Platep12 · 3 crops · ×4The ontology would need a bearing load-plate class.
  • Sealing ribp12 · 3 crops · ×5The ontology would need a sealing-rib component class.
  • Access Roadp3 · 2 crops · ×17The ontology would need an approach access-road class.
  • Concrete Nosingp4 · 2 crops · ×4The ontology would need a concrete nosing class.
  • Cross-section Detailp10 · 2 crops · ×2The item is a drawing detail rather than a permanent bridge component.
  • Fence Tension Barp8 · 2 crops · ×1The ontology would need a fence tension-bar class.
  • Fence Truss Bracingp8 · 2 crops · ×1The ontology would need a fence bracing class.
  • Mechanical Couplerp14 · 2 cropsThe ontology would need a reinforcing-bar mechanical coupler class.
  • Pipe Sleevep8 · 2 crops · ×2The ontology would need a pipe-sleeve class.
  • Reinforcement Bar Bending Detailp2 · 2 cropsThe item is a reinforcement detailing reference rather than a built reinforcing-bar item.
  • Superstructure Concretep2 · 2 cropsThe ontology would need a structural concrete material class.
  • Bearing Linep14 · 1 crop · ×2The ontology would need a bearing-line reference class.
  • Bent Number And Pile Tip Elevation Tablep2 · 1 crop · ×1The item is a drawing data table rather than a bridge component.
  • Bridge Begin Reference Pointp13 · 1 crop · ×2The ontology would need a bridge-begin reference-point class.
  • Chamferp5 · 1 crop · ×1The ontology would need a concrete chamfer class.
  • Class AA Concretep2 · 1 cropThe ontology would need a Class AA concrete material class.
  • Clearance Envelopep1 · 1 crop · ×1The clearance envelope is a design reference, not a listed bridge component.
  • Dynamic Pile Testp2 · 1 cropDynamic pile testing is a construction testing activity, not a permanent bridge component.
  • Elevation Data Tablep3 · 1 crop · ×1The item is a surveyed elevation data table rather than a bridge component.
  • Grooved Concrete Surfacep2 · 1 cropThe ontology would need a grooved concrete surface treatment class.
  • Pile Connection Detailp14 · 1 crop · ×1The item is a pile connection detail rather than a separately listed bridge component.
  • Reference Linep16 · 1 crop · ×2The ontology would need a generic drawing reference-line class.
  • Substructure Concretep2 · 1 cropThe ontology would need a structural concrete material class.
  • Title Blockp21 · 1 crop · ×1The title block is a drawing administrative element, not a bridge work item.

superstructure8

  • PSC BeamPrestressed Concrete Girderbridge.superstructure.main_load_system.psc_girderp2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p15 · 54 crops · ×2302 read · 1 derived · 1 gapon “PSC Beam
  • BearingcheckBridge Bearing Systemgroupingbridge.superstructure.bearing_systemp1, p8, p10, p11, p13, p14, p15, p17 · 15 crops · ×41on “Bearing
  • Deck SlabDeck Slabbridge.superstructure.deck_system.deck_slabp1, p2, p4, p5, p7, p8, p9 · 21 crops · ×233 read · 1 derived · 1 gapon “Deck Slab
  • DiaphragmDiaphragmbridge.superstructure.secondary_member_system.diaphragmp2, p4, p5, p6, p7, p9, p10 · 16 crops · ×451 read · 4 gapson “Diaphragm
  • Bearing PadElastomeric Bearingbridge.superstructure.bearing_system.elastomeric_bearingp7, p9, p12 · 17 crops · ×20take-off failedon “bearing pad
  • Expansion JointcheckExpansion Joint Systemgroupingbridge.superstructure.expansion_joint_systemp2, p5 · 4 crops · ×2on “Expansion joint
  • Sway BracingcheckLateral Bracingbridge.superstructure.secondary_member_system.lateral_bracingp2 · 2 cropstake-off failedon “swaybracing
  • WaterproofingcheckDeck Waterproofingbridge.superstructure.deck_system.waterproofingp8 · 1 croptake-off failedon “Waterproofing

alignment system7

substructure7

  • BentPier Systemgroupingbridge.substructure.pier_systemp1, p2, p3, p4, p5, p6, p7, p11, p13, p14, p15, p16, p18 · 30 crops · ×64on “BENT
  • Bent CapPier Capbridge.substructure.pier_system.pier_capp2, p13, p14, p15, p16, p17, p18 · 29 crops · ×404 read · 1 derivedon “Bent Cap
  • ColumnRectangular Pier Shaftbridge.substructure.pier_system.pier_shaft.rectangularp13, p14, p16, p17, p18 · 28 crops · ×524 read · 1 gapon “Column/pier shaft
  • WingwallWing Wallbridge.substructure.abutment_system.wing_wallp1, p13, p17 · 6 crops · ×12take-off failedon “Wingwall
  • Cap BeamPier Capbridge.substructure.pier_system.pier_capp13, p17 · 4 crops · ×4take-off failedon “Cap Beam
  • End BentAbutment Systemgroupingbridge.substructure.abutment_systemp2, p8 · 4 crops · ×6on “End Bent
  • AbutmentAbutment Systemgroupingbridge.substructure.abutment_systemp7 · 2 crops · ×2on “Abutment

approach earthwork system5

ancillary system3

  • Reinforcement BarReinforcing Barbridge.ancillary_system.reinforcement_system.rebarp2, p4, p5, p6, p7, p8, p9, p10, p11, p13, p14, p16, p17, p19, p21 · 71 crops · ×32573 read · 2 derivedon “Reinforcement Bar
  • Concrete BarrierBridge Crash Barrierbridge.ancillary_system.crash_barrierp2, p4, p5, p7, p8, p9 · 17 crops · ×211 read · 3 derivedon “Barrier
  • Prestressing StrandPrestressing Tendonbridge.ancillary_system.prestressing_system.tendonp10, p11 · 10 crops · ×89take-off failedon “Prestressing Strand

foundation system3

  • Steel H-pileSteel H Pilebridge.foundation_system.deep_foundation.pile.steel_hp1, p2, p13, p14, p16, p17, p18 · 38 crops · ×2971 read · 3 derived · 1 gapon “Steel H-pile
  • FootingcheckPile Capbridge.foundation_system.deep_foundation.pile_capp2, p14, p16, p17, p18 · 21 crops · ×44take-off failedon “Pile cap/footing
  • Pile Bent SupportcheckPile Groupbridge.foundation_system.deep_foundation.pile_groupp1 · 1 crop · ×2take-off failedon “Pile Bent Support

asset1

  • BridgeBridge Assetgroupingbridge.assetp3, p18 · 3 crops · ×4take-off failedon “Bridge

construction system1

ground system1

Index for the agent4897 points · 269 crops · 87 itemsopenai/text-embedding-3-small

Everything steps 1 and 2 know, written to the vector store for a chat agent to answer from. Cut fine — a point for each object, each measurement and each note, not one per crop — with the page, the crop and the drawing written into every one, so a retrieved number arrives with enough context to be an answer. The readings as a whole and step 2’s items are indexed too, for the questions that are about a drawing rather than a figure.

Re-runnable at any time: each point is keyed to the record it came from, so re-indexing replaces what changed, adds what is new, and drops what the drawings no longer support. Re-read a crop or correct one by hand, then press this.

4897 points indexed and up to date.

4,897points stored4,897points ready269crops87items388,013tokens embedded

Collection mindmap_vectors, filtered on projectId = gdot_plan-649084f395824aaebf1f5ed48132696f.
