1Read the crops282 crops · 269 read · 1146 objects · 2583 measurementsconfigured openai/gpt-5.6-terra-pro · about 7¢ for 13 crops · default

Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.

269 of 282 crops read · 13 failed. Analysing again retries only those.

282crops269read1146objects found2583measurements912,569tokens in478,800tokens out
Page 224 crops · 24 read
crop · 1810 × 611

p02_r07 listed on qpl 60 per section 501 or grea

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r07_listed_on_qpl_60_per_section_501_or_grea
Original
p02_r07 listed on qpl 60 per section 501 or grea
{
  "view": "Notes",
  "objects": [
    {
      "name": "Diaphragm",
      "tag": "",
      "shape": "",
      "material": "structural steel (alternative) / concrete (as shown in plans)",
      "count": null,
      "note": "Steel diaphragms may be substituted for concrete diaphragms at contractor's option, subject to design and material requirements stated in the note."
    }
  ],
  "measurements": [
    {
      "label": "three second gust wind speed",
      "value": "140",
      "unit": "MPH",
      "appliesTo": "steel diaphragm design"
    }
  ],
  "notes": [
    "STEEL DIAPHRAGMS - AT CONTRACTOR'S OPTION, STEEL DIAPHRAGMS MAY BE USED IN LIEU OF THE CONCRETE DIAPHRAGMS SHOWN IN THE PLANS.",
    "AT A MINIMUM, STEEL DIAPHRAGMS ARE TO BE DESIGNED AT STRENGTH LIMIT STATE III WITH A THREE SECOND GUST WIND SPEED OF 140MPH APPLIED TO ONE HALF OF THE VERTICAL SURFACE AREA OF THE EXPOSED BEAM USING EXPOSURE CATEGORY D.",
    "CROSS FRAME CONFIGURATIONS SHALL HAVE A HORIZONTAL ANGLE OR CHANNEL AT EITHER THE TOP OR BOTTOM POSITION.",
    "STEEL DIAPHRAGMS SHALL BE MANUFACTURED BY A FABRICATOR LISTED ON QPL 60 PER SECTION 501 OR GREATER STEEL.",
    "ALL COMPONENTS OF THE STEEL DIAPHRAGM SHALL BE GALVANIZED ACCORDING TO ASTM A123.",
    "CONNECTION BOLTS SHALL CONFORM TO ASTM F3125 (GRADE A325).",
    "NUTS SHALL CONFORM TO ASTM A563.",
    "WASHERS SHALL CONFORM TO ASTM F436.",
    "ALL HARDWARE SHALL BE GALVANIZED ACCORDING TO ASTM A153.",
    "STABILITY OF THE BEAMS AND STRUCTURE DURING ALL PHASES OF CONSTRUCTION ARE THE SOLE RESPONSIBILITY OF THE CONTRACTOR.",
    "SUBMIT SHOP DRAWINGS AND CALCULATIONS FOR THE STEEL DIAPHRAGMS TO THE ENGINEER FOR REVIEW AND ACCEPTANCE.",
    "THE USE OF STEEL DIAPHRAGMS SHALL BE INCLUDED IN THE PRICE BID FOR \"LUMP-SUPESTR CONCRETE.\""
  ],
  "labels": [],
  "description": "This crop is a block of specification notes concerning steel diaphragms as an alternative to concrete diaphragms in the superstructure design. It specifies design criteria (wind load, strength limit state), material and hardware standards (ASTM specifications for bolts, nuts, washers, galvanizing), fabrication qualification requirements, and contractual/administrative requirements (shop drawing submittal, bid item inclusion). No graphical elements, dimensions, or drawn objects are shown—only text notes."
}

p02_r07 listed on qpl 60 per section 501 or grea

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r07_listed_on_qpl_60_per_section_501_or_grea

Notes1 object · 1 measurement · 12 notes

This crop is a block of specification notes concerning steel diaphragms as an alternative to concrete diaphragms in the superstructure design. It specifies design criteria (wind load, strength limit state), material and hardware standards (ASTM specifications for bolts, nuts, washers, galvanizing), fabrication qualification requirements, and contractual/administrative requirements (shop drawing submittal, bid item inclusion). No graphical elements, dimensions, or drawn objects are shown—only text notes.

Objects · 1

ObjectMaterialNote
Diaphragmstructural steel (alternative) / concrete (as shown in plans)Steel diaphragms may be substituted for concrete diaphragms at contractor's option, subject to design and material requirements stated in the note.

Measurements · 1

MeasurementValueUnitApplies to
three second gust wind speed140MPHsteel diaphragm design

Notes

  • STEEL DIAPHRAGMS - AT CONTRACTOR'S OPTION, STEEL DIAPHRAGMS MAY BE USED IN LIEU OF THE CONCRETE DIAPHRAGMS SHOWN IN THE PLANS.
  • AT A MINIMUM, STEEL DIAPHRAGMS ARE TO BE DESIGNED AT STRENGTH LIMIT STATE III WITH A THREE SECOND GUST WIND SPEED OF 140MPH APPLIED TO ONE HALF OF THE VERTICAL SURFACE AREA OF THE EXPOSED BEAM USING EXPOSURE CATEGORY D.
  • CROSS FRAME CONFIGURATIONS SHALL HAVE A HORIZONTAL ANGLE OR CHANNEL AT EITHER THE TOP OR BOTTOM POSITION.
  • STEEL DIAPHRAGMS SHALL BE MANUFACTURED BY A FABRICATOR LISTED ON QPL 60 PER SECTION 501 OR GREATER STEEL.
  • ALL COMPONENTS OF THE STEEL DIAPHRAGM SHALL BE GALVANIZED ACCORDING TO ASTM A123.
  • CONNECTION BOLTS SHALL CONFORM TO ASTM F3125 (GRADE A325).
  • NUTS SHALL CONFORM TO ASTM A563.
  • WASHERS SHALL CONFORM TO ASTM F436.
  • ALL HARDWARE SHALL BE GALVANIZED ACCORDING TO ASTM A153.
  • STABILITY OF THE BEAMS AND STRUCTURE DURING ALL PHASES OF CONSTRUCTION ARE THE SOLE RESPONSIBILITY OF THE CONTRACTOR.
  • SUBMIT SHOP DRAWINGS AND CALCULATIONS FOR THE STEEL DIAPHRAGMS TO THE ENGINEER FOR REVIEW AND ACCEPTANCE.
  • THE USE OF STEEL DIAPHRAGMS SHALL BE INCLUDED IN THE PRICE BID FOR "LUMP-SUPESTR CONCRETE."

anthropic/claude-sonnet-5 · 3924 tokens · 14.8s

crop · 1763 × 220

p02_r08 general notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r08_general_notes
Original
p02_r08 general notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "SPECIFICATIONS - GEORGIA STANDARD SPECIFICATIONS, 2021 EDITION, AND 2024 SUPPLEMENTAL SPECIFICATIONS AS MODIFIED BY CONTRACT DOCUMENTS."
  ],
  "labels": [
    "GENERAL NOTES"
  ],
  "description": "This crop shows the title 'GENERAL NOTES' followed by a single specification note referencing the Georgia Standard Specifications, 2021 Edition, and 2024 Supplemental Specifications. No constructional objects or measurements are depicted; this is purely a text notes block from the drawing sheet."
}

p02_r08 general notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r08_general_notes

Notes1 note · 1 label

This crop shows the title 'GENERAL NOTES' followed by a single specification note referencing the Georgia Standard Specifications, 2021 Edition, and 2024 Supplemental Specifications. No constructional objects or measurements are depicted; this is purely a text notes block from the drawing sheet.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

GENERAL NOTES

Notes

  • SPECIFICATIONS - GEORGIA STANDARD SPECIFICATIONS, 2021 EDITION, AND 2024 SUPPLEMENTAL SPECIFICATIONS AS MODIFIED BY CONTRACT DOCUMENTS.

anthropic/claude-sonnet-5 · 2069 tokens · 8.0s

crop · 1764 × 218

p02_r09 standard plan modification modify the ap

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r09_standard_plan_modification_modify_the_ap
Original
p02_r09 standard plan modification modify the ap
{
  "view": "Notes",
  "objects": [
    {
      "name": "Approach slab",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced in note text; standard plan modification applies to this element"
    },
    {
      "name": "Expansion joint",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Joint between approach slab and back face paving rest and end post, dimension increased per note"
    },
    {
      "name": "End post",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced as part of joint location"
    },
    {
      "name": "Bent",
      "tag": "1",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Location where joint width is increased"
    },
    {
      "name": "Bent",
      "tag": "4",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Location where joint width is increased"
    }
  ],
  "measurements": [
    {
      "label": "Expansion joint width (original)",
      "value": "3/4",
      "unit": "in",
      "appliesTo": "Approach slab expansion joint"
    },
    {
      "label": "Expansion joint width (revised)",
      "value": "1 3/8",
      "unit": "in",
      "appliesTo": "Approach slab expansion joint at Bent 1 and 4"
    }
  ],
  "notes": [
    "STANDARD PLAN MODIFICATION - MODIFY THE APPROACH SLAB STANDARD TO INCREASE THE 3/4\" EXPANSION JOINT SHOWN BETWEEN THE APPROACH SLAB AND THE BACK FACE PAVING REST AND END POST TO 1 3/8\" AT BENT 1 AND 4.",
    "KEEP THE EXPANSION JOINT AT END BENT CONTINUOUS AROUND END POST.",
    "INCLUDE COST OF JOINT IN APPROACH SLAB PAYMENT.",
    "SEE ROADWAY PLANS FOR APPROACH SLAB PAYMENT."
  ],
  "labels": [],
  "description": "This crop contains a block of general construction notes (no drawn geometry) describing a standard plan modification for the approach slab expansion joint detail at Bent 1 and Bent 4. It specifies the change in joint width from 3/4 inch to 1 3/8 inch, instructions to keep the joint continuous around the end post, and payment/cost inclusion guidance referencing roadway plans."
}

p02_r09 standard plan modification modify the ap

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r09_standard_plan_modification_modify_the_ap

Notes5 objects · 2 measurements · 4 notes

This crop contains a block of general construction notes (no drawn geometry) describing a standard plan modification for the approach slab expansion joint detail at Bent 1 and Bent 4. It specifies the change in joint width from 3/4 inch to 1 3/8 inch, instructions to keep the joint continuous around the end post, and payment/cost inclusion guidance referencing roadway plans.

Objects · 5

MarkObjectNote
Approach slabReferenced in note text; standard plan modification applies to this element
Expansion jointJoint between approach slab and back face paving rest and end post, dimension increased per note
End postReferenced as part of joint location
1BentLocation where joint width is increased
4BentLocation where joint width is increased

Measurements · 2

MeasurementValueUnitApplies to
Expansion joint width (original)3/4inApproach slab expansion joint
Expansion joint width (revised)1 3/8inApproach slab expansion joint at Bent 1 and 4

Notes

  • STANDARD PLAN MODIFICATION - MODIFY THE APPROACH SLAB STANDARD TO INCREASE THE 3/4" EXPANSION JOINT SHOWN BETWEEN THE APPROACH SLAB AND THE BACK FACE PAVING REST AND END POST TO 1 3/8" AT BENT 1 AND 4.
  • KEEP THE EXPANSION JOINT AT END BENT CONTINUOUS AROUND END POST.
  • INCLUDE COST OF JOINT IN APPROACH SLAB PAYMENT.
  • SEE ROADWAY PLANS FOR APPROACH SLAB PAYMENT.

anthropic/claude-sonnet-5 · 2607 tokens · 11.5s

crop · 1764 × 218

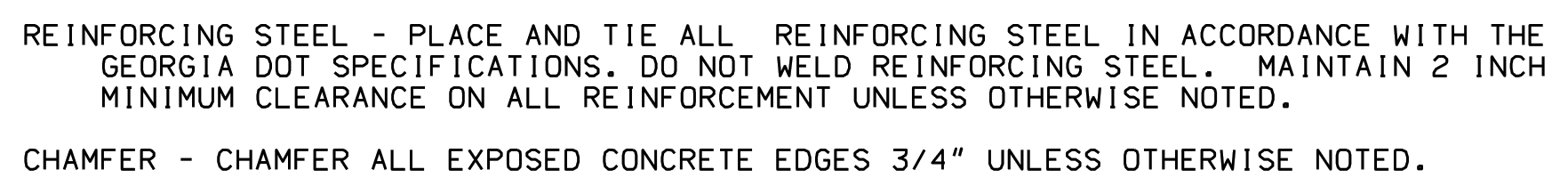

p02_r10 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r10_notes
Original
p02_r10 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "Minimum clearance on reinforcement",
      "value": "2",
      "unit": "INCH",
      "appliesTo": "reinforcing steel"
    },
    {
      "label": "Chamfer on exposed concrete edges",
      "value": "3/4",
      "unit": "\"",
      "appliesTo": "concrete edges"
    }
  ],
  "notes": [
    "REINFORCING STEEL - PLACE AND TIE ALL REINFORCING STEEL IN ACCORDANCE WITH THE GEORGIA DOT SPECIFICATIONS. DO NOT WELD REINFORCING STEEL. MAINTAIN 2 INCH MINIMUM CLEARANCE ON ALL REINFORCEMENT UNLESS OTHERWISE NOTED.",
    "CHAMFER - CHAMFER ALL EXPOSED CONCRETE EDGES 3/4\" UNLESS OTHERWISE NOTED."
  ],
  "labels": [],
  "description": "This crop shows a block of general construction notes, specifically covering requirements for placement and tying of reinforcing steel per Georgia DOT specifications, minimum clearance, and chamfering of exposed concrete edges. No drawn objects, dimensions figures, or schedules are present, only text notes."
}

p02_r10 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r10_notes

Notes2 measurements · 2 notes

This crop shows a block of general construction notes, specifically covering requirements for placement and tying of reinforcing steel per Georgia DOT specifications, minimum clearance, and chamfering of exposed concrete edges. No drawn objects, dimensions figures, or schedules are present, only text notes.

Objects · 0

No objects read. Edit to add one.

Measurements · 2

MeasurementValueUnitApplies to
Minimum clearance on reinforcement2INCHreinforcing steel
Chamfer on exposed concrete edges3/4"concrete edges

Notes

  • REINFORCING STEEL - PLACE AND TIE ALL REINFORCING STEEL IN ACCORDANCE WITH THE GEORGIA DOT SPECIFICATIONS. DO NOT WELD REINFORCING STEEL. MAINTAIN 2 INCH MINIMUM CLEARANCE ON ALL REINFORCEMENT UNLESS OTHERWISE NOTED.
  • CHAMFER - CHAMFER ALL EXPOSED CONCRETE EDGES 3/4" UNLESS OTHERWISE NOTED.

anthropic/claude-sonnet-5 · 2273 tokens · 9.1s

crop · 1768 × 260

p02_r11 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r11_notes
Original
p02_r11 notes
{
  "view": "Notes",
  "objects": [
    {
      "name": "deck slab",
      "tag": "",
      "shape": "",
      "material": "grooved concrete",
      "count": null,
      "note": "Bridge deck surface requiring transverse grooving"
    },
    {
      "name": "fence",
      "tag": "",
      "shape": "",
      "material": "chain link, zinc coated",
      "count": null,
      "note": "6FT height, 9 GA wire, paid per linear foot"
    }
  ],
  "measurements": [
    {
      "label": "Fence height",
      "value": "6",
      "unit": "FT",
      "appliesTo": "chain link fence"
    },
    {
      "label": "Wire gauge",
      "value": "9",
      "unit": "GA",
      "appliesTo": "chain link fence"
    }
  ],
  "notes": [
    "GROOVED CONCRETE - GROOVE THE ENTIRE LENGTH OF THE BRIDGE TRANSVERSELY AS PER SUB-SECTION 500.3.05.T.9.C. OF THE GEORGIA DOT SPECIFICATIONS. PROVIDE GROOVING BEFORE PLACING TRAFFIC ON DECK.",
    "CHAIN LINK FENCE - CHAIN LINK FENCE SHALL BE PAID FOR AS \"LF CH LK FENCE, ZC COAT, 6FT, 9 GA.\""
  ],
  "labels": [],
  "description": "This crop contains two general construction notes from a bridge drawing sheet. The first note specifies grooving requirements for the bridge deck concrete per Georgia DOT specifications, and the second specifies the payment description for chain link fence including coating, height, and gauge. No plan, section, or schedule graphics are present in this crop."
}

p02_r11 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r11_notes

Notes2 objects · 2 measurements · 2 notes

This crop contains two general construction notes from a bridge drawing sheet. The first note specifies grooving requirements for the bridge deck concrete per Georgia DOT specifications, and the second specifies the payment description for chain link fence including coating, height, and gauge. No plan, section, or schedule graphics are present in this crop.

Objects · 2

ObjectMaterialNote
deck slabgrooved concreteBridge deck surface requiring transverse grooving
fencechain link, zinc coated6FT height, 9 GA wire, paid per linear foot

Measurements · 2

MeasurementValueUnitApplies to
Fence height6FTchain link fence
Wire gauge9GAchain link fence

Notes

  • GROOVED CONCRETE - GROOVE THE ENTIRE LENGTH OF THE BRIDGE TRANSVERSELY AS PER SUB-SECTION 500.3.05.T.9.C. OF THE GEORGIA DOT SPECIFICATIONS. PROVIDE GROOVING BEFORE PLACING TRAFFIC ON DECK.
  • CHAIN LINK FENCE - CHAIN LINK FENCE SHALL BE PAID FOR AS "LF CH LK FENCE, ZC COAT, 6FT, 9 GA."

anthropic/claude-sonnet-5 · 2518 tokens · 9.4s

crop · 1764 × 218

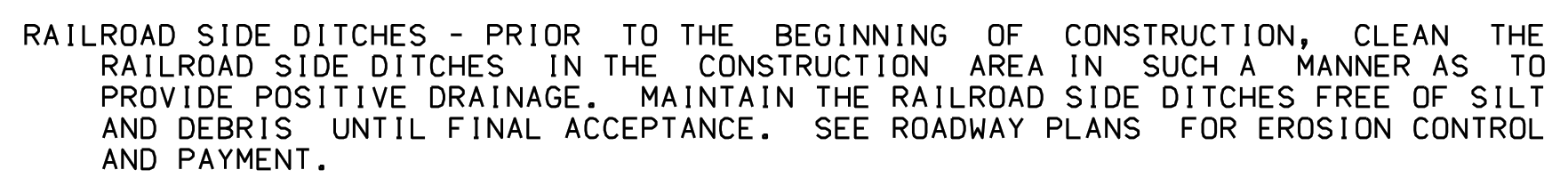

p02_r12 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r12_notes
Original
p02_r12 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "RAILROAD SIDE DITCHES - PRIOR TO THE BEGINNING OF CONSTRUCTION, CLEAN THE RAILROAD SIDE DITCHES IN THE CONSTRUCTION AREA IN SUCH A MANNER AS TO PROVIDE POSITIVE DRAINAGE. MAINTAIN THE RAILROAD SIDE DITCHES FREE OF SILT AND DEBRIS UNTIL FINAL ACCEPTANCE. SEE ROADWAY PLANS FOR EROSION CONTROL AND PAYMENT."
  ],
  "labels": [],
  "description": "This crop is a text note block describing a construction requirement for cleaning and maintaining railroad side ditches within the construction area, with a reference to separate roadway plans for erosion control and payment details. No drawings, dimensions, or constructional elements are depicted in this crop."
}

p02_r12 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r12_notes

Notes1 note

This crop is a text note block describing a construction requirement for cleaning and maintaining railroad side ditches within the construction area, with a reference to separate roadway plans for erosion control and payment details. No drawings, dimensions, or constructional elements are depicted in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • RAILROAD SIDE DITCHES - PRIOR TO THE BEGINNING OF CONSTRUCTION, CLEAN THE RAILROAD SIDE DITCHES IN THE CONSTRUCTION AREA IN SUCH A MANNER AS TO PROVIDE POSITIVE DRAINAGE. MAINTAIN THE RAILROAD SIDE DITCHES FREE OF SILT AND DEBRIS UNTIL FINAL ACCEPTANCE. SEE ROADWAY PLANS FOR EROSION CONTROL AND PAYMENT.

anthropic/claude-sonnet-5 · 2160 tokens · 8.9s

crop · 1764 × 218

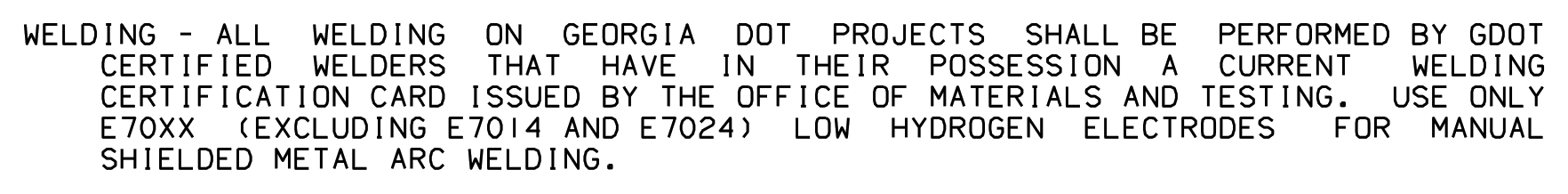

p02_r13 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r13_notes
Original
p02_r13 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "WELDING - ALL WELDING ON GEORGIA DOT PROJECTS SHALL BE PERFORMED BY GDOT CERTIFIED WELDERS THAT HAVE IN THEIR POSSESSION A CURRENT WELDING CERTIFICATION CARD ISSUED BY THE OFFICE OF MATERIALS AND TESTING. USE ONLY E70XX (EXCLUDING E7014 AND E7024) LOW HYDROGEN ELECTRODES FOR MANUAL SHIELDED METAL ARC WELDING."
  ],
  "labels": [],
  "description": "This crop contains a single general note regarding welding requirements for Georgia DOT projects, specifying welder certification and electrode type requirements. No drawn objects, dimensions, or graphical elements are present in this crop."
}

p02_r13 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r13_notes

Notes1 note

This crop contains a single general note regarding welding requirements for Georgia DOT projects, specifying welder certification and electrode type requirements. No drawn objects, dimensions, or graphical elements are present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • WELDING - ALL WELDING ON GEORGIA DOT PROJECTS SHALL BE PERFORMED BY GDOT CERTIFIED WELDERS THAT HAVE IN THEIR POSSESSION A CURRENT WELDING CERTIFICATION CARD ISSUED BY THE OFFICE OF MATERIALS AND TESTING. USE ONLY E70XX (EXCLUDING E7014 AND E7024) LOW HYDROGEN ELECTRODES FOR MANUAL SHIELDED METAL ARC WELDING.

anthropic/claude-sonnet-5 · 2127 tokens · 7.0s

crop · 1755 × 140

p02_r14 clearance as defined in the construction

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r14_clearance_as_defined_in_the_construction
Original
p02_r14 clearance as defined in the construction
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "PROTECTIVE PLATFORMS - PROVIDE PROTECTIVE PLATFORMS AT THIS SITE, SEE SECTION 510 OF THE GEORGIA DOT SPECIFICATIONS. MAINTAIN A MINIMUM VERTICAL CLEARANCE AS DEFINED IN THE CONSTRUCTION CLEARANCE DIAGRAM."
  ],
  "labels": [],
  "description": "This crop contains a single printed construction note referencing protective platforms and required vertical clearance per Georgia DOT Specification Section 510. No drawn objects, dimensions, or graphical elements are present in this fragment."
}

p02_r14 clearance as defined in the construction

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r14_clearance_as_defined_in_the_construction

Notes1 note

This crop contains a single printed construction note referencing protective platforms and required vertical clearance per Georgia DOT Specification Section 510. No drawn objects, dimensions, or graphical elements are present in this fragment.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • PROTECTIVE PLATFORMS - PROVIDE PROTECTIVE PLATFORMS AT THIS SITE, SEE SECTION 510 OF THE GEORGIA DOT SPECIFICATIONS. MAINTAIN A MINIMUM VERTICAL CLEARANCE AS DEFINED IN THE CONSTRUCTION CLEARANCE DIAGRAM.

anthropic/claude-sonnet-5 · 1883 tokens · 7.0s

crop · 1760 × 179

p02_r15 waiting period none required

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r15_waiting_period_none_required
Original
p02_r15 waiting period none required
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "TEMPORARY SHORING - INCLUDE THE COST OF TEMPORARY SHORING AS NECESSARY FOR BRIDGE CONSTRUCTION IN THE OVERALL BID SUBMITTED.",
    "WAITING PERIOD - NONE REQUIRED."
  ],
  "labels": [],
  "description": "This crop contains two general construction notes rather than a drawn view. One note instructs that temporary shoring costs for bridge construction be included in the overall bid, and the other states no waiting period is required. No objects, dimensions, or graphical elements are shown."
}

p02_r15 waiting period none required

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r15_waiting_period_none_required

Notes2 notes

This crop contains two general construction notes rather than a drawn view. One note instructs that temporary shoring costs for bridge construction be included in the overall bid, and the other states no waiting period is required. No objects, dimensions, or graphical elements are shown.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • TEMPORARY SHORING - INCLUDE THE COST OF TEMPORARY SHORING AS NECESSARY FOR BRIDGE CONSTRUCTION IN THE OVERALL BID SUBMITTED.
  • WAITING PERIOD - NONE REQUIRED.

anthropic/claude-sonnet-5 · 1986 tokens · 6.8s

crop · 1768 × 255

p02_r16 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r16_notes
Original
p02_r16 notes
{
  "view": "Notes",
  "objects": [
    {
      "name": "pile",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "End bent and intermediate bent piling referenced regarding special protective coating extents"
    },
    {
      "name": "swaybracing",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced as also requiring special protective coating"
    },
    {
      "name": "bent cap / pedestal footing",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Reference point for coating extent on intermediate bent piling"
    }
  ],
  "measurements": [
    {
      "label": "Coating extent below ground - end bent piling",
      "value": "2",
      "unit": "FT",
      "appliesTo": "end bent piling"
    },
    {
      "label": "Coating extent below ground - intermediate bent piling",
      "value": "5",
      "unit": "FT",
      "appliesTo": "intermediate bent piling"
    }
  ],
  "notes": [
    "SPECIAL PROTECTIVE COATING - CLEAN AND PAINT PILES AND SWAYBRACING WITH SPECIAL PROTECTIVE COATING NO. 2P IN ACCORDANCE WITH SECTIONS 520 AND 535 OF THE GEORGIA DOT SPECIFICATIONS.",
    "EXTEND COATING FROM TOP OF PILE TO 2FT BELOW GROUND FOR END BENT PILING.",
    "EXTEND COATING FROM BOTTOM OF CAP OR PEDESTAL FOOTING TO 5FT BELOW GROUND FOR INTERMEDIATE BENT PILING, REGARDLESS OF ENCASEMENT."
  ],
  "labels": [],
  "description": "This crop contains a single block of general construction notes specifying the application of special protective coating (No. 2P) to piles and swaybracing per Georgia DOT specifications, including the vertical extents of coating required for end bent and intermediate bent piling. No drawn objects, dimensions, or graphic elements are present, only text notes."
}

p02_r16 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r16_notes

Notes3 objects · 2 measurements · 3 notes

This crop contains a single block of general construction notes specifying the application of special protective coating (No. 2P) to piles and swaybracing per Georgia DOT specifications, including the vertical extents of coating required for end bent and intermediate bent piling. No drawn objects, dimensions, or graphic elements are present, only text notes.

Objects · 3

ObjectNote
pileEnd bent and intermediate bent piling referenced regarding special protective coating extents
swaybracingReferenced as also requiring special protective coating
bent cap / pedestal footingReference point for coating extent on intermediate bent piling

Measurements · 2

MeasurementValueUnitApplies to
Coating extent below ground - end bent piling2FTend bent piling
Coating extent below ground - intermediate bent piling5FTintermediate bent piling

Notes

  • SPECIAL PROTECTIVE COATING - CLEAN AND PAINT PILES AND SWAYBRACING WITH SPECIAL PROTECTIVE COATING NO. 2P IN ACCORDANCE WITH SECTIONS 520 AND 535 OF THE GEORGIA DOT SPECIFICATIONS.
  • EXTEND COATING FROM TOP OF PILE TO 2FT BELOW GROUND FOR END BENT PILING.
  • EXTEND COATING FROM BOTTOM OF CAP OR PEDESTAL FOOTING TO 5FT BELOW GROUND FOR INTERMEDIATE BENT PILING, REGARDLESS OF ENCASEMENT.

anthropic/claude-sonnet-5 · 2637 tokens · 11.3s

crop · 1767 × 258

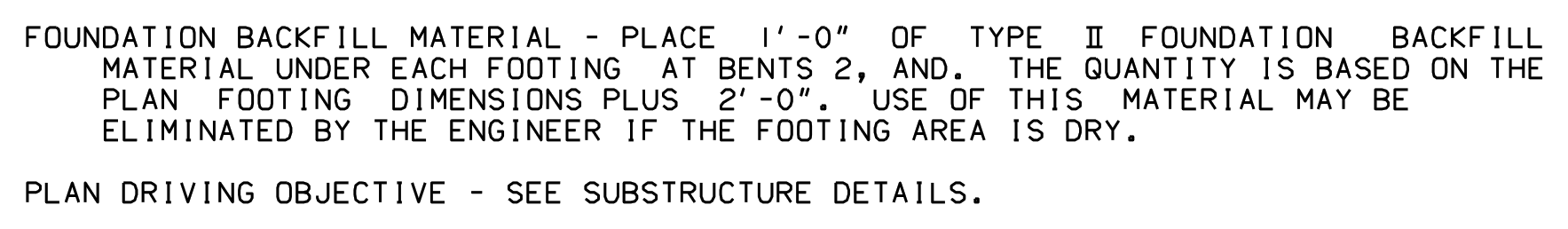

p02_r17 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r17_notes
Original
p02_r17 notes
{
  "view": "Notes",
  "objects": [
    {
      "name": "footing",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced at Bents 2 and (an unreadable additional bent number) as location for foundation backfill placement"
    }
  ],
  "measurements": [
    {
      "label": "Foundation backfill material thickness",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "footing at Bents"
    },
    {
      "label": "Quantity basis addition to plan footing dimensions",
      "value": "2'-0\"",
      "unit": "ft-in",
      "appliesTo": "footing"
    }
  ],
  "notes": [
    "FOUNDATION BACKFILL MATERIAL - PLACE 1'-0\" OF TYPE II FOUNDATION BACKFILL MATERIAL UNDER EACH FOOTING AT BENTS 2, AND. THE QUANTITY IS BASED ON THE PLAN FOOTING DIMENSIONS PLUS 2'-0\". USE OF THIS MATERIAL MAY BE ELIMINATED BY THE ENGINEER IF THE FOOTING AREA IS DRY.",
    "PLAN DRIVING OBJECTIVE - SEE SUBSTRUCTURE DETAILS."
  ],
  "labels": [],
  "description": "This crop is a block of general construction notes, not a graphical view, addressing foundation backfill material requirements under footings at specified bents and referencing pile driving objectives found in substructure details elsewhere in the drawing set. No plan, section, or schedule graphics are present in this crop."
}

p02_r17 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r17_notes

Notes1 object · 2 measurements · 2 notes

This crop is a block of general construction notes, not a graphical view, addressing foundation backfill material requirements under footings at specified bents and referencing pile driving objectives found in substructure details elsewhere in the drawing set. No plan, section, or schedule graphics are present in this crop.

Objects · 1

ObjectNote
footingReferenced at Bents 2 and (an unreadable additional bent number) as location for foundation backfill placement

Measurements · 2

MeasurementValueUnitApplies to
Foundation backfill material thickness1'-0"ft-infooting at Bents
Quantity basis addition to plan footing dimensions2'-0"ft-infooting

Notes

  • FOUNDATION BACKFILL MATERIAL - PLACE 1'-0" OF TYPE II FOUNDATION BACKFILL MATERIAL UNDER EACH FOOTING AT BENTS 2, AND. THE QUANTITY IS BASED ON THE PLAN FOOTING DIMENSIONS PLUS 2'-0". USE OF THIS MATERIAL MAY BE ELIMINATED BY THE ENGINEER IF THE FOOTING AREA IS DRY.
  • PLAN DRIVING OBJECTIVE - SEE SUBSTRUCTURE DETAILS.

anthropic/claude-sonnet-5 · 2495 tokens · 15.7s

crop · 1778 × 371

p02_r18 items necessary to complete the work

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r18_items_necessary_to_complete_the_work
Original
p02_r18 items necessary to complete the work
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "SHOP DRAWING SUBMISSION - SUBMIT SHOP DRAWINGS WITH DEPENDENT INFORMATION AS A SET. SHOP DRAWINGS FOR BEAMS, METAL DECK FORMS AND STEEL DIAPHRAGMS WILL NOT BE REVIEWED UNTIL ALL HAVE BEEN RECEIVED.",
    "INCIDENTAL ITEMS - INCLUDE THE COST INCIDENTAL TO THE WORK THAT IS NOT SPECIFICALLY COVERED BY THE GEORGIA STANDARD SPECIFICATIONS, SUPPLEMENTAL SPECIFICATIONS AND/OR SPECIAL PROVISIONS IN THE OVERALL BID SUBMITTED. THIS INCLUDES THE COST OF WATERPROOFING, JOINT FILLERS AND OTHER INCIDENTAL ITEMS NECESSARY TO COMPLETE THE WORK."
  ],
  "labels": [],
  "description": "This crop contains two general construction notes typed in a monospaced font, addressing shop drawing submission requirements for beams, metal deck forms, and steel diaphragms, and clarifying what costs are considered incidental to the work per Georgia Standard Specifications. No drawn objects, dimensions, or graphical elements are present in this crop."
}

p02_r18 items necessary to complete the work

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r18_items_necessary_to_complete_the_work

Notes2 notes

This crop contains two general construction notes typed in a monospaced font, addressing shop drawing submission requirements for beams, metal deck forms, and steel diaphragms, and clarifying what costs are considered incidental to the work per Georgia Standard Specifications. No drawn objects, dimensions, or graphical elements are present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • SHOP DRAWING SUBMISSION - SUBMIT SHOP DRAWINGS WITH DEPENDENT INFORMATION AS A SET. SHOP DRAWINGS FOR BEAMS, METAL DECK FORMS AND STEEL DIAPHRAGMS WILL NOT BE REVIEWED UNTIL ALL HAVE BEEN RECEIVED.
  • INCIDENTAL ITEMS - INCLUDE THE COST INCIDENTAL TO THE WORK THAT IS NOT SPECIFICALLY COVERED BY THE GEORGIA STANDARD SPECIFICATIONS, SUPPLEMENTAL SPECIFICATIONS AND/OR SPECIAL PROVISIONS IN THE OVERALL BID SUBMITTED. THIS INCLUDES THE COST OF WATERPROOFING, JOINT FILLERS AND OTHER INCIDENTAL ITEMS NECESSARY TO COMPLETE THE WORK.

anthropic/claude-sonnet-5 · 2720 tokens · 9.1s

crop · 1787 × 576

p02_r19 title block

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r19_title_block
Original
p02_r19 title block
{
  "view": "Title Block",
  "objects": [],
  "measurements": [],
  "notes": [],
  "labels": [
    "BRIDGE NO. I LT. AND RT.",
    "S&A",
    "Atlanta",
    "SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375",
    "FAX: 770-442-0761",
    "GEORGIA",
    "DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "GENERAL NOTES",
    "DATE",
    "GEORGIA REGISTERED No.19371 PROFESSIONAL ENGINEER ARUNA SASTRY"
  ],
  "description": "This crop shows the title block portion of a bridge drawing sheet, identifying the project as Bridge No. I Lt. and Rt., prepared by Sastry & Associates, Inc. for the Georgia Department of Transportation, Engineering Division-Office of Bridges and Structures. The sheet title reads 'GENERAL NOTES' and includes a professional engineer's seal for Aruna Sastry (Georgia Registration No. 19371). No structural or dimensional content is present in this crop, only title block and certification information."
}

p02_r19 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r19_title_block

Title Block14 labels

This crop shows the title block portion of a bridge drawing sheet, identifying the project as Bridge No. I Lt. and Rt., prepared by Sastry & Associates, Inc. for the Georgia Department of Transportation, Engineering Division-Office of Bridges and Structures. The sheet title reads 'GENERAL NOTES' and includes a professional engineer's seal for Aruna Sastry (Georgia Registration No. 19371). No structural or dimensional content is present in this crop, only title block and certification information.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

BRIDGE NO. I LT. AND RT.S&AAtlantaSASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375FAX: 770-442-0761GEORGIADEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESGENERAL NOTESDATEGEORGIA REGISTERED No.19371 PROFESSIONAL ENGINEER ARUNA SASTRY

anthropic/claude-sonnet-5 · 3149 tokens · 9.1s

crop · 1801 × 988

p02_r20 title block

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r20_title_block
Original
p02_r20 title block
{
  "view": "Title Block",
  "objects": [],
  "measurements": [],
  "notes": [],
  "labels": [
    "BRIDGE NO. 1 LT. AND RT.",
    "S&A",
    "SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375   FAX: 770-442-0761",
    "GEORGIA",
    "DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "GENERAL NOTES",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "0019181",
    "DRAWING NO. 35-0002",
    "BRIDGE SHEET 2 OF 21",
    "NO SCALE",
    "APRIL 2025",
    "DESIGNED UP",
    "DRAWN EPR",
    "CHECKED AS",
    "DESIGN GROUP JBK",
    "REVIEWED DLC/SKG",
    "APPROVED DPD",
    "1 INCH WHEN PRINTED FULL SIZE",
    "0019181_0002.dgn",
    "DATE",
    "REVISIONS",
    "BY",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No. 19371 ARUNA SASTRY"
  ],
  "description": "This crop is the title block of a Georgia DOT bridge drawing sheet, identifying the project as Bridge No. 1 Lt. and Rt. over SR 21 at NS crossing #620272Y in Jenkins County, prepared by Sastry & Associates, Inc. It contains no constructional drawing content, only administrative and identification information including firm details, professional engineer seal, sheet numbering (Bridge Sheet 2 of 21, Drawing No. 35-0002), and personnel sign-off fields. The sheet is titled 'GENERAL NOTES', indicating the following sheets in this set will contain textual general notes rather than plan or detail views."
}

p02_r20 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r20_title_block

Title Block29 labels

This crop is the title block of a Georgia DOT bridge drawing sheet, identifying the project as Bridge No. 1 Lt. and Rt. over SR 21 at NS crossing #620272Y in Jenkins County, prepared by Sastry & Associates, Inc. It contains no constructional drawing content, only administrative and identification information including firm details, professional engineer seal, sheet numbering (Bridge Sheet 2 of 21, Drawing No. 35-0002), and personnel sign-off fields. The sheet is titled 'GENERAL NOTES', indicating the following sheets in this set will contain textual general notes rather than plan or detail views.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

BRIDGE NO. 1 LT. AND RT.S&ASASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375 FAX: 770-442-0761GEORGIADEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESGENERAL NOTESSR 21 @ NS #620272YJENKINS COUNTY0019181DRAWING NO. 35-0002BRIDGE SHEET 2 OF 21NO SCALEAPRIL 2025DESIGNED UPDRAWN EPRCHECKED ASDESIGN GROUP JBKREVIEWED DLC/SKGAPPROVED DPD1 INCH WHEN PRINTED FULL SIZE0019181_0002.dgnDATEREVISIONSBYGEORGIA REGISTERED PROFESSIONAL ENGINEER No. 19371 ARUNA SASTRY

anthropic/claude-sonnet-5 · 4415 tokens · 14.0s

crop · 1762 × 218

p02_r21 testing in accordance with sub section 5

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r21_testing_in_accordance_with_sub_section_5
Original
p02_r21 testing in accordance with sub section 5
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "DRIVING RESISTANCE - DETERMINE DRIVING RESISTANCE FOR PILES USING DYNAMIC PILE TESTING IN ACCORDANCE WITH SUB-SECTION 520.3.05.D.2 OF THE GEORGIA DOT SPECIFICATIONS. DYNAMIC PILE TESTING SHALL BE REQUIRED AT BRIDGE LEFT BENT 1 RIGHT, BRIDGE LEFT BENT 3 LEFT, BRIDGE RIGHT BENT 2 RIGHT AND BRIDGE RIGHT BENT 4 RIGHT."
  ],
  "labels": [],
  "description": "This crop contains a single typed construction note specifying that dynamic pile testing must be performed to determine driving resistance for piles, per Georgia DOT specification sub-section 520.3.05.D.2. It identifies specific bent locations (Bridge Left Bent 1 Right, Bridge Left Bent 3 Left, Bridge Right Bent 2 Right, Bridge Right Bent 4 Right) where this testing is required. No graphical elements, dimensions, or objects are shown in this crop."
}

p02_r21 testing in accordance with sub section 5

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r21_testing_in_accordance_with_sub_section_5

Notes1 note

This crop contains a single typed construction note specifying that dynamic pile testing must be performed to determine driving resistance for piles, per Georgia DOT specification sub-section 520.3.05.D.2. It identifies specific bent locations (Bridge Left Bent 1 Right, Bridge Left Bent 3 Left, Bridge Right Bent 2 Right, Bridge Right Bent 4 Right) where this testing is required. No graphical elements, dimensions, or objects are shown in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • DRIVING RESISTANCE - DETERMINE DRIVING RESISTANCE FOR PILES USING DYNAMIC PILE TESTING IN ACCORDANCE WITH SUB-SECTION 520.3.05.D.2 OF THE GEORGIA DOT SPECIFICATIONS. DYNAMIC PILE TESTING SHALL BE REQUIRED AT BRIDGE LEFT BENT 1 RIGHT, BRIDGE LEFT BENT 3 LEFT, BRIDGE RIGHT BENT 2 RIGHT AND BRIDGE RIGHT BENT 4 RIGHT.

anthropic/claude-sonnet-5 · 2258 tokens · 8.2s

crop · 1768 × 258

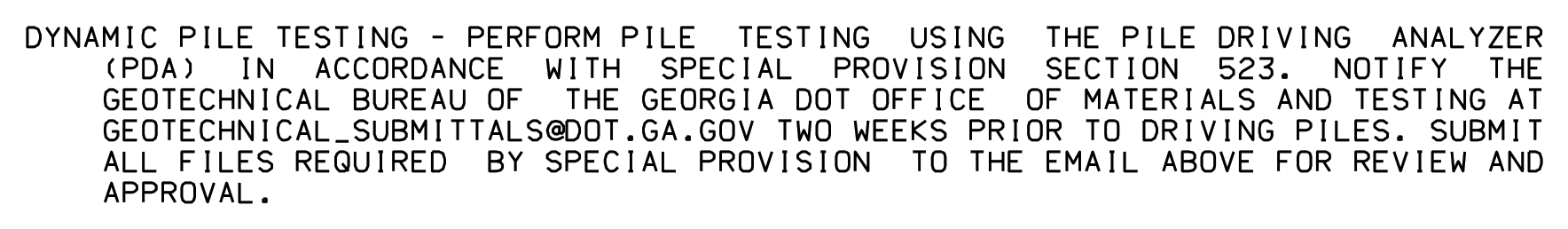

p02_r22 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r22_notes
Original
p02_r22 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "DYNAMIC PILE TESTING - PERFORM PILE TESTING USING THE PILE DRIVING ANALYZER (PDA) IN ACCORDANCE WITH SPECIAL PROVISION SECTION 523. NOTIFY THE GEOTECHNICAL BUREAU OF THE GEORGIA DOT OFFICE OF MATERIALS AND TESTING AT GEOTECHNICAL_SUBMITTALS@DOT.GA.GOV TWO WEEKS PRIOR TO DRIVING PILES. SUBMIT ALL FILES REQUIRED BY SPECIAL PROVISION TO THE EMAIL ABOVE FOR REVIEW AND APPROVAL."
  ],
  "labels": [],
  "description": "This crop contains a single typed construction note regarding dynamic pile testing requirements, referencing use of a Pile Driving Analyzer (PDA) per Special Provision Section 523 and specifying notification and submittal procedures to the Georgia DOT Geotechnical Bureau. No drawn objects, dimensions, or graphical elements are present in this crop."
}

p02_r22 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r22_notes

Notes1 note

This crop contains a single typed construction note regarding dynamic pile testing requirements, referencing use of a Pile Driving Analyzer (PDA) per Special Provision Section 523 and specifying notification and submittal procedures to the Georgia DOT Geotechnical Bureau. No drawn objects, dimensions, or graphical elements are present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • DYNAMIC PILE TESTING - PERFORM PILE TESTING USING THE PILE DRIVING ANALYZER (PDA) IN ACCORDANCE WITH SPECIAL PROVISION SECTION 523. NOTIFY THE GEOTECHNICAL BUREAU OF THE GEORGIA DOT OFFICE OF MATERIALS AND TESTING AT GEOTECHNICAL_SUBMITTALS@DOT.GA.GOV TWO WEEKS PRIOR TO DRIVING PILES. SUBMIT ALL FILES REQUIRED BY SPECIAL PROVISION TO THE EMAIL ABOVE FOR REVIEW AND APPROVAL.

anthropic/claude-sonnet-5 · 2373 tokens · 9.5s

crop · 1956 × 422

p02_r23 notes

page 2 · gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r23_notes
Original
p02_r23 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "WAVE EQUATION - PERFORM WAVE EQUATION ANALYSIS (WEAP) IN ACCORDANCE WITH SUB-SECTION 520.3.05.D.2 OF THE GEORGIA DOT SPECIFICATION. PROVIDE RESULTS OF THE WEAP TO THE GEOTECHNICAL BUREAU OF THE GEORGIA DOT OFFICE OF MATERIALS AND TESTING AT GEOTECHNICAL_SUBMITTALS@DOT.GA.GOV FOR REVIEW AND APPROVAL TWO WEEKS PRIOR TO DRIVING PILES."
  ],
  "labels": [
    "aruna sastry",
    "5/31/2025",
    "11:03:"
  ],
  "description": "This crop shows a general notes block from a construction drawing, containing a single note regarding the requirement to perform a Wave Equation Analysis (WEAP) for pile driving, referencing Georgia DOT specifications and submittal procedures. There is a footer strip below with a name, date, and partial time stamp, typical of a drawing sheet's metadata bar, but no drawn structural elements are present in this crop."
}

p02_r23 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p02_r23_notes

Notes1 note · 3 labels

This crop shows a general notes block from a construction drawing, containing a single note regarding the requirement to perform a Wave Equation Analysis (WEAP) for pile driving, referencing Georgia DOT specifications and submittal procedures. There is a footer strip below with a name, date, and partial time stamp, typical of a drawing sheet's metadata bar, but no drawn structural elements are present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

aruna sastry5/31/202511:03:

Notes

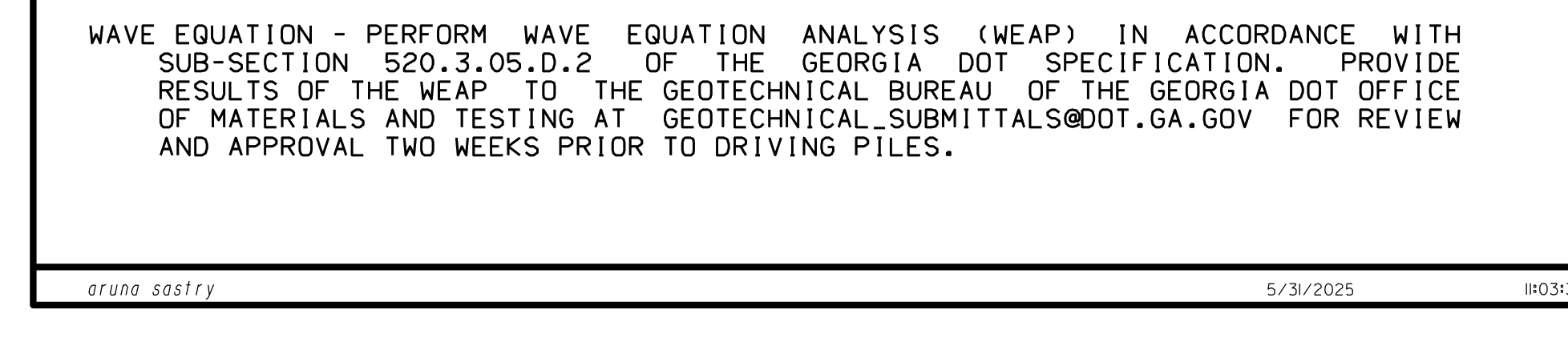

  • WAVE EQUATION - PERFORM WAVE EQUATION ANALYSIS (WEAP) IN ACCORDANCE WITH SUB-SECTION 520.3.05.D.2 OF THE GEORGIA DOT SPECIFICATION. PROVIDE RESULTS OF THE WEAP TO THE GEOTECHNICAL BUREAU OF THE GEORGIA DOT OFFICE OF MATERIALS AND TESTING AT GEOTECHNICAL_SUBMITTALS@DOT.GA.GOV FOR REVIEW AND APPROVAL TWO WEEKS PRIOR TO DRIVING PILES.

anthropic/claude-sonnet-5 · 2872 tokens · 9.0s

item · 4019 × 998

Other P02 R01

page 2 · other_p02_r01
Original
Other P02 R01
{
  "view": "Notes",
  "objects": [
    {
      "name": "Steel H-Pile",
      "tag": "",
      "shape": "H-section",
      "material": "structural steel, ASTM A709 Gr 50",
      "count": null,
      "note": "Referenced in general notes and design data table; not graphically depicted in this crop."
    },
    {
      "name": "Smooth Dowel Bar",
      "tag": "",
      "shape": "cylindrical (3\" dia)",
      "material": "steel (implied, grouted)",
      "count": null,
      "note": "Placed in formed 3\" diameter x 12\" deep holes, grouted similar to anchor bolts; mentioned only in text."
    },
    {
      "name": "PSC Beam",
      "tag": "",
      "shape": "",
      "material": "precast concrete, Class AAA",
      "count": null,
      "note": "Referenced only in Design Data concrete schedule; not shown graphically."
    },
    {
      "name": "Barrier",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete, Class D",
      "count": null,
      "note": "Referenced only in Design Data concrete schedule; not shown graphically."
    },
    {
      "name": "Bent (Substructure)",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete, Class AA",
      "count": null,
      "note": "Referenced in Design Data; bent numbers listed in small table but obscured by asterisks."
    }
  ],
  "measurements": [
    {
      "label": "Bent Number",
      "value": "*",
      "unit": "",
      "appliesTo": "Bent (unspecified, masked)"
    },
    {
      "label": "Pile Tip Elevation",
      "value": "***.**",
      "unit": "",
      "appliesTo": "Pile (bent tip elevation, masked/placeholder)"
    },
    {
      "label": "Dowel hole diameter",
      "value": "3",
      "unit": "in",
      "appliesTo": "Smooth Dowel Bar"
    },
    {
      "label": "Dowel hole depth",
      "value": "12",
      "unit": "in",
      "appliesTo": "Smooth Dowel Bar"
    },
    {
      "label": "Pile freeze time",
      "value": "24",
      "unit": "hours",
      "appliesTo": "Steel H-Pile"
    },
    {
      "label": "Future Paving Allowance",
      "value": "30",
      "unit": "LBS PER SQ FT",
      "appliesTo": ""
    },
    {
      "label": "Superstructure Concrete Strength",
      "value": "4,000",
      "unit": "PSI",
      "appliesTo": "Superstructure concrete, Class D"
    },
    {
      "label": "Barrier Concrete Strength",
      "value": "4,000",
      "unit": "PSI",
      "appliesTo": "Barrier, Class D"
    },
    {
      "label": "Substructure Concrete Strength",
      "value": "3,500",
      "unit": "PSI",
      "appliesTo": "Substructure, Class AA"
    },
    {
      "label": "Reinforcing Steel Yield Strength",
      "value": "60,000",
      "unit": "PSI",
      "appliesTo": "Reinforcement Steel, Grade 60"
    },
    {
      "label": "Pretensioning Strand Strength",
      "value": "270,000",
      "unit": "PSI",
      "appliesTo": "Pretensioning Strands"
    },
    {
      "label": "Steel H-Pile Yield Strength",
      "value": "50,000",
      "unit": "PSI",
      "appliesTo": "Steel H-Pile, Grade 50"
    },
    {
      "label": "Seismic Performance Zone Parameters",
      "value": "AS=0.142, SDI=0.155",
      "unit": "",
      "appliesTo": "Design Specifications"
    }
  ],
  "notes": [
    "VIBRATION MONITORING - THE PROJECT ENGINEER SHOULD CONTACT THE GEOTECHNICAL BUREAU OF THE GEORGIA DOT OFFICE OF MATERIALS AND TESTING AT GEOTECHNICAL_SUBMITTALS @DOT.GA.GOV TWO WEEKS PRIOR TO DRIVING PILES. SEE SPECIAL PROVISION 154 - CONSTRUCTION VIBRATION MONITORING.",
    "STEEL H-PILES - USE STEEL FOR H-PILES THAT MEETS THE REQUIREMENTS OF ASTM A 709 GR 50.",
    "PILE LENGTHS - ERRATIC PILE LENGTHS CAN BE EXPECTED.",
    "PILE DRIVING - SHOULD PILES FAIL TO OBTAIN DRIVING RESISTANCE AFTER ACHIEVING THE PILE TIP ELEVATIONS SHOWN, ALLOW PILES TO FREEZE A MINIMUM OF 24 HOURS AND RESTRIKE WITH A WARM HAMMER.",
    "SMOOTH DOWEL BARS - PLACE SMOOTH DOWEL BARS IN FORMED 3\" DIAMETER X 12\" DEEP HOLES AND GROUT IN PLACE SIMILAR TO ANCHOR BOLTS, SEE SUB-SECTION 501.3.05.B.3 OF THE GEORGIA DOT SPECIFICATIONS. STIRRUPS MAY BE SHIFTED SLIGHTLY TO CLEAR FORMED HOLES.",
    "provide table for 2' above estimated tip elevations",
    "SPECIFICATIONS ------------------------------------- AASHTO LRFD 9TH EDITION, 2020 (DESIGNED FOR SEISMIC PERFORMANCE ZONE 2, AS=0.142, SDI=0.155)",
    "DESIGN VEHICLE LIVE LOAD --------------------------------------------------- HL-93",
    "FUTURE PAVING ALLOWANCE --------------------------------------------- 30 LBS PER SQ FT",
    "CONCRETE: SUPERSTRUCTURE ------------------------------------- CLASS D, f'c = 4,000 PSI",
    "BARRIER-------------------------------------- CLASS D, f'c = 4,000 PSI",
    "PSC BEAMS ------------------------- CLASS AAA, f'c = SEE BEAM SHEETS",
    "PSC BEAM ALLOWABLE TENSION ----------------------- SEE BEAM SHEETS",
    "SUBSTRUCTURE ------------------------------- CLASS AA, f'c = 3,500 PSI",
    "REINFORCING STEEL: --------------------------------- GRADE 60, fy = 60,000 PSI",
    "PRETENSIONING STRANDS: ------------------------------------- f's = 270,000 PSI",
    "STEEL H-PILES: ---------------------------------------GRADE 50, fy = 50,000 PSI"
  ],
  "labels": [
    "GENERAL NOTES CONTINUED",
    "BENT NUMBER",
    "PILE TIP ELEVATION",
    "DESIGN DATA",
    "GDOT",
    "P.I. NO.",
    "0019181"
  ],
  "description": "This crop is the right-hand continuation of a General Notes sheet paired with a Design Data block, both typical of a GDOT bridge plan set. It contains text notes on vibration monitoring, steel H-pile material, pile driving procedure, and smooth dowel bar installation, plus a small partially-masked Bent Number/Pile Tip Elevation table, and a Design Data summary listing specifications, live load, concrete classes and strengths, reinforcing steel grade, pretensioning strand strength, and steel H-pile grade. No structural elements are graphically drawn; all content is specification/reference text supporting substructure and superstructure material call-outs."
}

Other P02 R01

done

other_p02_r01

Notes5 objects · 13 measurements · 17 notes · 7 labels

This crop is the right-hand continuation of a General Notes sheet paired with a Design Data block, both typical of a GDOT bridge plan set. It contains text notes on vibration monitoring, steel H-pile material, pile driving procedure, and smooth dowel bar installation, plus a small partially-masked Bent Number/Pile Tip Elevation table, and a Design Data summary listing specifications, live load, concrete classes and strengths, reinforcing steel grade, pretensioning strand strength, and steel H-pile grade. No structural elements are graphically drawn; all content is specification/reference text supporting substructure and superstructure material call-outs.

Objects · 5

ObjectShapeMaterialNote
Steel H-PileH-sectionstructural steel, ASTM A709 Gr 50Referenced in general notes and design data table; not graphically depicted in this crop.
Smooth Dowel Barcylindrical (3" dia)steel (implied, grouted)Placed in formed 3" diameter x 12" deep holes, grouted similar to anchor bolts; mentioned only in text.
PSC Beamprecast concrete, Class AAAReferenced only in Design Data concrete schedule; not shown graphically.
Barrierreinforced concrete, Class DReferenced only in Design Data concrete schedule; not shown graphically.
Bent (Substructure)reinforced concrete, Class AAReferenced in Design Data; bent numbers listed in small table but obscured by asterisks.

Measurements · 13

MeasurementValueUnitApplies to
Bent Number*Bent (unspecified, masked)
Pile Tip Elevation***.**Pile (bent tip elevation, masked/placeholder)
Dowel hole diameter3inSmooth Dowel Bar
Dowel hole depth12inSmooth Dowel Bar
Pile freeze time24hoursSteel H-Pile
Future Paving Allowance30LBS PER SQ FT
Superstructure Concrete Strength4,000PSISuperstructure concrete, Class D
Barrier Concrete Strength4,000PSIBarrier, Class D
Substructure Concrete Strength3,500PSISubstructure, Class AA
Reinforcing Steel Yield Strength60,000PSIReinforcement Steel, Grade 60
Pretensioning Strand Strength270,000PSIPretensioning Strands
Steel H-Pile Yield Strength50,000PSISteel H-Pile, Grade 50
Seismic Performance Zone ParametersAS=0.142, SDI=0.155Design Specifications

Labels

GENERAL NOTES CONTINUEDBENT NUMBERPILE TIP ELEVATIONDESIGN DATAGDOTP.I. NO.0019181

Notes

  • VIBRATION MONITORING - THE PROJECT ENGINEER SHOULD CONTACT THE GEOTECHNICAL BUREAU OF THE GEORGIA DOT OFFICE OF MATERIALS AND TESTING AT GEOTECHNICAL_SUBMITTALS @DOT.GA.GOV TWO WEEKS PRIOR TO DRIVING PILES. SEE SPECIAL PROVISION 154 - CONSTRUCTION VIBRATION MONITORING.
  • STEEL H-PILES - USE STEEL FOR H-PILES THAT MEETS THE REQUIREMENTS OF ASTM A 709 GR 50.
  • PILE LENGTHS - ERRATIC PILE LENGTHS CAN BE EXPECTED.
  • PILE DRIVING - SHOULD PILES FAIL TO OBTAIN DRIVING RESISTANCE AFTER ACHIEVING THE PILE TIP ELEVATIONS SHOWN, ALLOW PILES TO FREEZE A MINIMUM OF 24 HOURS AND RESTRIKE WITH A WARM HAMMER.
  • SMOOTH DOWEL BARS - PLACE SMOOTH DOWEL BARS IN FORMED 3" DIAMETER X 12" DEEP HOLES AND GROUT IN PLACE SIMILAR TO ANCHOR BOLTS, SEE SUB-SECTION 501.3.05.B.3 OF THE GEORGIA DOT SPECIFICATIONS. STIRRUPS MAY BE SHIFTED SLIGHTLY TO CLEAR FORMED HOLES.
  • provide table for 2' above estimated tip elevations
  • SPECIFICATIONS ------------------------------------- AASHTO LRFD 9TH EDITION, 2020 (DESIGNED FOR SEISMIC PERFORMANCE ZONE 2, AS=0.142, SDI=0.155)
  • DESIGN VEHICLE LIVE LOAD --------------------------------------------------- HL-93
  • FUTURE PAVING ALLOWANCE --------------------------------------------- 30 LBS PER SQ FT
  • CONCRETE: SUPERSTRUCTURE ------------------------------------- CLASS D, f'c = 4,000 PSI
  • BARRIER-------------------------------------- CLASS D, f'c = 4,000 PSI
  • PSC BEAMS ------------------------- CLASS AAA, f'c = SEE BEAM SHEETS
  • PSC BEAM ALLOWABLE TENSION ----------------------- SEE BEAM SHEETS
  • SUBSTRUCTURE ------------------------------- CLASS AA, f'c = 3,500 PSI
  • REINFORCING STEEL: --------------------------------- GRADE 60, fy = 60,000 PSI
  • PRETENSIONING STRANDS: ------------------------------------- f's = 270,000 PSI
  • STEEL H-PILES: ---------------------------------------GRADE 50, fy = 50,000 PSI

anthropic/claude-sonnet-5 · 9160 tokens · 42.6s

item · 1920 × 916

Other P02 R02

page 2 · other_p02_r02
Original
Other P02 R02
{
  "view": "Notes",
  "objects": [
    {
      "name": "PSC beam span",
      "tag": "",
      "shape": "AASHTO Type II",
      "material": "precast concrete",
      "count": 2,
      "note": "55'-0\" span length, special design"
    },
    {
      "name": "PSC beam span",
      "tag": "",
      "shape": "AASHTO Type III",
      "material": "precast concrete",
      "count": 1,
      "note": "82'-0\" span length, special design"
    },
    {
      "name": "end bent",
      "tag": "",
      "shape": "",
      "material": "structural steel (H piles), MSE wall abutments",
      "count": 2,
      "note": "steel H pile end bents with MSE wall abutments, special design"
    },
    {
      "name": "intermediate bent",
      "tag": "",
      "shape": "",
      "material": "reinforced concrete",
      "count": 2,
      "note": "special design"
    },
    {
      "name": "end post and guardrail attachment",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 4,
      "note": "per GA. STD. 3054 (9-30-02); two size variants listed with L, W, H dimensions"
    },
    {
      "name": "reinforcing bar bending detail",
      "tag": "",
      "shape": "",
      "material": "reinforcing steel",
      "count": null,
      "note": "per GA. STD. 3901 (8-69)"
    },
    {
      "name": "chain link wire fence",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "per GA. STD. 9031N (8-13-85)"
    },
    {
      "name": "fill detail at end of bridge",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "typical detail per GA. STD. 9037 (9-99)"
    }
  ],
  "measurements": [
    {
      "label": "span length",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "AASHTO Type II PSC beam spans"
    },
    {
      "label": "span length",
      "value": "82'-0\"",
      "unit": "ft-in",
      "appliesTo": "AASHTO Type III PSC beam span"
    },
    {
      "label": "end post/guardrail attachment dimension L",
      "value": "4'-3\"",
      "unit": "ft-in",
      "appliesTo": "end post and guardrail attachment detail (variant 1)"
    },
    {
      "label": "end post/guardrail attachment dimension W",
      "value": "1'-1\"",
      "unit": "ft-in",
      "appliesTo": "end post and guardrail attachment detail (variant 1)"
    },
    {
      "label": "end post/guardrail attachment dimension H",
      "value": "3'-6\"",
      "unit": "ft-in",
      "appliesTo": "end post and guardrail attachment detail (variant 1)"
    },
    {
      "label": "end post/guardrail attachment dimension L",
      "value": "4'-6\"",
      "unit": "ft-in",
      "appliesTo": "end post and guardrail attachment detail (variant 2)"
    },
    {
      "label": "end post/guardrail attachment dimension W",
      "value": "1'-1\"",
      "unit": "ft-in",
      "appliesTo": "end post and guardrail attachment detail (variant 2)"
    },
    {
      "label": "end post/guardrail attachment dimension H",
      "value": "3'-6\"",
      "unit": "ft-in",
      "appliesTo": "end post and guardrail attachment detail (variant 2)"
    }
  ],
  "notes": [
    "2 - 55'-0\" AASHTO TYPE II PSC BEAM SPANS ------------------------- SPECIAL DESIGN",
    "1 - 82'-0\" AASHTO TYPE III PSC BEAM SPAN ------------------------- SPECIAL DESIGN",
    "2 - STEEL H PILE END BENTS WITH MSE WALL ABUTMENTS ------------- SPECIAL DESIGN",
    "2 - CONCRETE INTERMEDIATE BENTS --------------------------------- SPECIAL DESIGN",
    "4 - END POST AND GUARDRAIL ATTACHMENT DETAIL ---------- GA. STD. 3054 (9-30-02)",
    "(L = 4'-3\"; W = 1'-1\"; H = 3'-6\")",
    "(L = 4'-6\"; W = 1'-1\"; H = 3'-6\")",
    "BAR BENDING DETAILS ------------------------------------------ GA. STD. 3901 (8-69)",
    "CHAIN LINK WIRE FENCE ------------------------------------ GA. STD. 9031N (8-13-85)",
    "TYPICAL FILL DETAIL AT END OF BRIDGE -----------------GA. STD. 9037 (9-99)"
  ],
  "labels": [
    "EACH BRIDGE CONSISTS OF"
  ],
  "description": "This crop is a summary notes block titled 'EACH BRIDGE CONSISTS OF' listing the components that make up the bridge structure: PSC beam spans (2 at 55'-0\" AASHTO Type II, 1 at 82'-0\" AASHTO Type III), steel H pile end bents with MSE wall abutments, concrete intermediate bents, end post/guardrail attachment details with dimensions, and references to standard details (bar bending, chain link fence, fill detail) with their GDOT standard drawing numbers and revision dates. It functions as an itemized structural inventory rather than a plan or section view."
}

Other P02 R02

done

other_p02_r02

Notes8 objects · 8 measurements · 10 notes · 1 label

This crop is a summary notes block titled 'EACH BRIDGE CONSISTS OF' listing the components that make up the bridge structure: PSC beam spans (2 at 55'-0" AASHTO Type II, 1 at 82'-0" AASHTO Type III), steel H pile end bents with MSE wall abutments, concrete intermediate bents, end post/guardrail attachment details with dimensions, and references to standard details (bar bending, chain link fence, fill detail) with their GDOT standard drawing numbers and revision dates. It functions as an itemized structural inventory rather than a plan or section view.

Objects · 8

ObjectNo.ShapeMaterialNote
PSC beam span2AASHTO Type IIprecast concrete55'-0" span length, special design
PSC beam span1AASHTO Type IIIprecast concrete82'-0" span length, special design
end bent2structural steel (H piles), MSE wall abutmentssteel H pile end bents with MSE wall abutments, special design
intermediate bent2reinforced concretespecial design
end post and guardrail attachment4per GA. STD. 3054 (9-30-02); two size variants listed with L, W, H dimensions
reinforcing bar bending detailreinforcing steelper GA. STD. 3901 (8-69)
chain link wire fenceper GA. STD. 9031N (8-13-85)
fill detail at end of bridgetypical detail per GA. STD. 9037 (9-99)

Measurements · 8

MeasurementValueUnitApplies to
span length55'-0"ft-inAASHTO Type II PSC beam spans
span length82'-0"ft-inAASHTO Type III PSC beam span
end post/guardrail attachment dimension L4'-3"ft-inend post and guardrail attachment detail (variant 1)
end post/guardrail attachment dimension W1'-1"ft-inend post and guardrail attachment detail (variant 1)
end post/guardrail attachment dimension H3'-6"ft-inend post and guardrail attachment detail (variant 1)
end post/guardrail attachment dimension L4'-6"ft-inend post and guardrail attachment detail (variant 2)
end post/guardrail attachment dimension W1'-1"ft-inend post and guardrail attachment detail (variant 2)
end post/guardrail attachment dimension H3'-6"ft-inend post and guardrail attachment detail (variant 2)

Labels

EACH BRIDGE CONSISTS OF

Notes

  • 2 - 55'-0" AASHTO TYPE II PSC BEAM SPANS ------------------------- SPECIAL DESIGN
  • 1 - 82'-0" AASHTO TYPE III PSC BEAM SPAN ------------------------- SPECIAL DESIGN
  • 2 - STEEL H PILE END BENTS WITH MSE WALL ABUTMENTS ------------- SPECIAL DESIGN
  • 2 - CONCRETE INTERMEDIATE BENTS --------------------------------- SPECIAL DESIGN
  • 4 - END POST AND GUARDRAIL ATTACHMENT DETAIL ---------- GA. STD. 3054 (9-30-02)
  • (L = 4'-3"; W = 1'-1"; H = 3'-6")
  • (L = 4'-6"; W = 1'-1"; H = 3'-6")
  • BAR BENDING DETAILS ------------------------------------------ GA. STD. 3901 (8-69)
  • CHAIN LINK WIRE FENCE ------------------------------------ GA. STD. 9031N (8-13-85)
  • TYPICAL FILL DETAIL AT END OF BRIDGE -----------------GA. STD. 9037 (9-99)

anthropic/claude-sonnet-5 · 7333 tokens · 17.8s

item · 1804 × 171

Other P02 R03

page 2 · other_p02_r03
Original
Other P02 R03
{
  "view": "Notes",
  "objects": [],
  "measurements": [],
  "notes": [
    "ABUTMENT SOIL REINFORCING DEVICE INSERTS - INCLUDE THE COST OF FURNISHING AND INSTALLING INSERTS FOR SOIL REINFORCING DEVICES AT ABUTMENT IN THE OVERALL BID SUBMITTED."
  ],
  "labels": [],
  "description": "This crop contains a single typed construction note referring to abutment soil reinforcing device inserts, instructing that furnishing and installation costs be included in the overall bid. No drawing elements, dimensions, or graphical objects are present in this crop."
}

Other P02 R03

done

other_p02_r03

Notes1 note

This crop contains a single typed construction note referring to abutment soil reinforcing device inserts, instructing that furnishing and installation costs be included in the overall bid. No drawing elements, dimensions, or graphical objects are present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Notes

  • ABUTMENT SOIL REINFORCING DEVICE INSERTS - INCLUDE THE COST OF FURNISHING AND INSTALLING INSERTS FOR SOIL REINFORCING DEVICES AT ABUTMENT IN THE OVERALL BID SUBMITTED.

anthropic/claude-sonnet-5 · 2030 tokens · 6.9s

item · 1805 × 402

Other P02 R04

page 2 · other_p02_r04
Original
Other P02 R04
{
  "view": "Table",
  "objects": [],
  "measurements": [
    {
      "label": "ADT",
      "value": "2,750",
      "unit": "",
      "appliesTo": "Traffic (2027)"
    },
    {
      "label": "ADT",
      "value": "3,300",
      "unit": "",
      "appliesTo": "Traffic (2047)"
    },
    {
      "label": "Design Speed",
      "value": "55",
      "unit": "MPH",
      "appliesTo": ""
    },
    {
      "label": "Trucks",
      "value": "32.5",
      "unit": "%",
      "appliesTo": ""
    }
  ],
  "notes": [],
  "labels": [
    "TRAFFIC DATA",
    "TRAFFIC",
    "DESIGN SPEED",
    "TRUCKS"
  ],
  "description": "This crop is a small data table titled 'TRAFFIC DATA' listing traffic-related design parameters: average daily traffic (ADT) projections for two design years, the design speed, and the truck percentage. It contains no drawn constructional elements, only tabulated text values typically found on a title/notes sheet supporting roadway design."
}

Other P02 R04

done

other_p02_r04

Table4 measurements · 4 labels

This crop is a small data table titled 'TRAFFIC DATA' listing traffic-related design parameters: average daily traffic (ADT) projections for two design years, the design speed, and the truck percentage. It contains no drawn constructional elements, only tabulated text values typically found on a title/notes sheet supporting roadway design.

Objects · 0

No objects read. Edit to add one.

Measurements · 4

MeasurementValueUnitApplies to
ADT2,750Traffic (2027)
ADT3,300Traffic (2047)
Design Speed55MPH
Trucks32.5%

Labels

TRAFFIC DATATRAFFICDESIGN SPEEDTRUCKS

anthropic/claude-sonnet-5 · 2671 tokens · 8.5s

item · 1976 × 1439

Other P02 R05

page 2 · other_p02_r05
Original
Other P02 R05
{
  "view": "Table",
  "objects": [
    {
      "name": "Foundation backfill material",
      "tag": "207-0203",
      "shape": "",
      "material": "granular/backfill",
      "count": null,
      "note": "Type II"
    },
    {
      "name": "Bridge excavation",
      "tag": "211-0200",
      "shape": "",
      "material": "earth/soil",
      "count": null,
      "note": "Grade separation"
    },
    {
      "name": "Grooved concrete surface",
      "tag": "500-0100",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": ""
    },
    {
      "name": "Superstructure concrete",
      "tag": "500-1011",
      "shape": "",
      "material": "concrete, Class D",
      "count": null,
      "note": "Br No-1 LT and RT, lump sum items, reference (249)"
    },
    {
      "name": "Concrete barrier",
      "tag": "500-2100",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": ""
    },
    {
      "name": "Class AA concrete",
      "tag": "500-3002",
      "shape": "",
      "material": "concrete",
      "count": null,
      "note": ""
    },
    {
      "name": "PSC beam",
      "tag": "507-9002",
      "shape": "AASHTO Type II",
      "material": "precast concrete",
      "count": null,
      "note": "Br No-1"
    },
    {
      "name": "PSC beam",
      "tag": "507-9003",
      "shape": "AASHTO Type III",
      "material": "precast concrete",
      "count": null,
      "note": "Br No-1"
    },
    {
      "name": "Bar reinforcement steel",
      "tag": "511-1000",
      "shape": "",
      "material": "steel",
      "count": null,
      "note": ""
    },
    {
      "name": "Superstructure reinforcement steel",
      "tag": "511-3000",
      "shape": "",
      "material": "steel",
      "count": null,
      "note": "Br No-1 LT and RT, lump sum items, reference (69762)"
    },
    {
      "name": "Steel H pile",
      "tag": "520-1125",
      "shape": "H-section",
      "material": "structural steel",
      "count": null,
      "note": "HP 12 X 53, in place piling"
    },
    {
      "name": "Load test pile",
      "tag": "520-4125",
      "shape": "H-section",
      "material": "structural steel",
      "count": null,
      "note": "HP 12 X 53, if required"
    },
    {
      "name": "Dynamic pile test",
      "tag": "523-1100",
      "shape": "",
      "material": "",
      "count": null,
      "note": ""
    },
    {
      "name": "Chain link fence",
      "tag": "643-1152",
      "shape": "",
      "material": "steel, zinc coated",
      "count": null,
      "note": "6 FT height, 9 GA"
    }
  ],
  "measurements": [
    {
      "label": "FOUND BKFILL MATL TP II - LEFT BRIDGE",
      "value": "35",
      "unit": "CY",
      "appliesTo": "207-0203"
    },
    {
      "label": "FOUND BKFILL MATL TP II - RIGHT BRIDGE",
      "value": "35",
      "unit": "CY",
      "appliesTo": "207-0203"
    },
    {
      "label": "BRIDGE EXCAVATION - LEFT BRIDGE",
      "value": "295",
      "unit": "CY",
      "appliesTo": "211-0200"
    },
    {
      "label": "BRIDGE EXCAVATION - RIGHT BRIDGE",
      "value": "295",
      "unit": "CY",
      "appliesTo": "211-0200"
    },
    {
      "label": "GROOVED CONCRETE - LEFT BRIDGE",
      "value": "811",
      "unit": "SY",
      "appliesTo": "500-0100"
    },
    {
      "label": "GROOVED CONCRETE - RIGHT BRIDGE",
      "value": "811",
      "unit": "SY",
      "appliesTo": "500-0100"
    },
    {
      "label": "SUPERSTR CONCRETE CL D BR NO-1 LT - LEFT BRIDGE",
      "value": "LUMP",
      "unit": "LS",
      "appliesTo": "500-1011"
    },
    {
      "label": "SUPERSTR CONCRETE CL D BR NO-1 LT reference",
      "value": "249",
      "unit": "",
      "appliesTo": "500-1011"
    },
    {
      "label": "SUPERSTR CONCRETE CL D BR NO-1 RT - RIGHT BRIDGE",
      "value": "LUMP",
      "unit": "LS",
      "appliesTo": "500-1011"
    },
    {
      "label": "SUPERSTR CONCRETE CL D BR NO-1 RT reference",
      "value": "249",
      "unit": "",
      "appliesTo": "500-1011"
    },
    {
      "label": "CONCRETE BARRIER - LEFT BRIDGE",
      "value": "378",
      "unit": "LF",
      "appliesTo": "500-2100"
    },
    {
      "label": "CONCRETE BARRIER - RIGHT BRIDGE",
      "value": "378",
      "unit": "LF",
      "appliesTo": "500-2100"
    },
    {
      "label": "CLASS AA CONCRETE - LEFT BRIDGE",
      "value": "221",
      "unit": "CY",
      "appliesTo": "500-3002"
    },
    {
      "label": "CLASS AA CONCRETE - RIGHT BRIDGE",
      "value": "221",
      "unit": "CY",
      "appliesTo": "500-3002"
    },
    {
      "label": "PSC BEAMS AASHTO TYPE II BR NO-1 - LEFT BRIDGE",
      "value": "644",
      "unit": "LF",
      "appliesTo": "507-9002"
    },
    {
      "label": "PSC BEAMS AASHTO TYPE II BR NO-1 - RIGHT BRIDGE",
      "value": "644",
      "unit": "LF",
      "appliesTo": "507-9002"
    },
    {
      "label": "PSC BEAMS AASHTO TYPE III BR NO-1 - LEFT BRIDGE",
      "value": "486",
      "unit": "LF",
      "appliesTo": "507-9003"
    },
    {
      "label": "PSC BEAMS AASHTO TYPE III BR NO-1 - RIGHT BRIDGE",
      "value": "486",
      "unit": "LF",
      "appliesTo": "507-9003"
    },
    {
      "label": "BAR REINF STEEL - LEFT BRIDGE",
      "value": "35422",
      "unit": "LB",
      "appliesTo": "511-1000"
    },
    {
      "label": "BAR REINF STEEL - RIGHT BRIDGE",
      "value": "35397",
      "unit": "LB",
      "appliesTo": "511-1000"
    },
    {
      "label": "SUPERSTR REINF STEEL BR NO-1 LT - LEFT BRIDGE",
      "value": "LUMP",
      "unit": "LS",
      "appliesTo": "511-3000"
    },
    {
      "label": "SUPERSTR REINF STEEL BR NO-1 LT reference",
      "value": "69762",
      "unit": "",
      "appliesTo": "511-3000"
    },
    {
      "label": "SUPERSTR REINF STEEL BR NO-1 RT - RIGHT BRIDGE",
      "value": "LUMP",
      "unit": "LS",
      "appliesTo": "511-3000"
    },
    {
      "label": "SUPERSTR REINF STEEL BR NO-1 RT reference",
      "value": "69762",
      "unit": "",
      "appliesTo": "511-3000"
    },
    {
      "label": "PILING IN PLACE STEEL H HP 12X53 - LEFT BRIDGE",
      "value": "2720",
      "unit": "LF",
      "appliesTo": "520-1125"
    },
    {
      "label": "PILING IN PLACE STEEL H HP 12X53 - RIGHT BRIDGE",
      "value": "2540",
      "unit": "LF",
      "appliesTo": "520-1125"
    },
    {
      "label": "Pile size callout",
      "value": "12 X 53",
      "unit": "",
      "appliesTo": "520-1125"
    },
    {
      "label": "LOAD TEST STEEL H HP 12X53 - LEFT BRIDGE",
      "value": "1",
      "unit": "EA",
      "appliesTo": "520-4125"
    },
    {
      "label": "LOAD TEST STEEL H HP 12X53 - RIGHT BRIDGE",
      "value": "1",
      "unit": "EA",
      "appliesTo": "520-4125"
    },
    {
      "label": "DYNAMIC PILE TEST - LEFT BRIDGE",
      "value": "2",
      "unit": "EA",
      "appliesTo": "523-1100"
    },
    {
      "label": "DYNAMIC PILE TEST - RIGHT BRIDGE",
      "value": "2",
      "unit": "EA",
      "appliesTo": "523-1100"
    },
    {
      "label": "CH LK FENCE ZC COAT 6FT 9GA - LEFT BRIDGE",
      "value": "378",
      "unit": "LF",
      "appliesTo": "643-1152"
    },
    {
      "label": "CH LK FENCE ZC COAT 6FT 9GA - RIGHT BRIDGE",
      "value": "378",
      "unit": "LF",
      "appliesTo": "643-1152"
    }
  ],
  "notes": [
    "LOAD TEST, STEEL H, HP 12 X 53 (IF REQD)"
  ],
  "labels": [
    "SUMMARY OF QUANTITIES",
    "PAY ITEM NUMBER",
    "LEFT BRIDGE",
    "RIGHT BRIDGE",
    "UNIT",
    "PAY ITEM",
    "12 X 53"
  ],
  "description": "This crop is a Summary of Quantities schedule table listing pay item numbers, quantities for a Left Bridge and Right Bridge, units, and pay item descriptions for a bridge project (Bridge No.-1). Items include earthwork, various concrete classes and superstructure concrete/reinforcement (some lump sum with cross-references to items 249 and 69762), PSC beams (AASHTO Type II and III), steel H-piling (HP 12x53) with an associated pile size callout, load and dynamic pile testing, concrete barrier, and chain link fencing. All quantity values that appear highlighted in yellow are printed numeric quantities; the table documents overall bridge quantities for bill-of-quantities preparation."
}

Other P02 R05

done

other_p02_r05

Table14 objects · 33 measurements · 1 note · 7 labels

This crop is a Summary of Quantities schedule table listing pay item numbers, quantities for a Left Bridge and Right Bridge, units, and pay item descriptions for a bridge project (Bridge No.-1). Items include earthwork, various concrete classes and superstructure concrete/reinforcement (some lump sum with cross-references to items 249 and 69762), PSC beams (AASHTO Type II and III), steel H-piling (HP 12x53) with an associated pile size callout, load and dynamic pile testing, concrete barrier, and chain link fencing. All quantity values that appear highlighted in yellow are printed numeric quantities; the table documents overall bridge quantities for bill-of-quantities preparation.

Objects · 14

MarkObjectShapeMaterialNote
207-0203Foundation backfill materialgranular/backfillType II
211-0200Bridge excavationearth/soilGrade separation
500-0100Grooved concrete surfaceconcrete
500-1011Superstructure concreteconcrete, Class DBr No-1 LT and RT, lump sum items, reference (249)
500-2100Concrete barrierconcrete
500-3002Class AA concreteconcrete
507-9002PSC beamAASHTO Type IIprecast concreteBr No-1
507-9003PSC beamAASHTO Type IIIprecast concreteBr No-1
511-1000Bar reinforcement steelsteel
511-3000Superstructure reinforcement steelsteelBr No-1 LT and RT, lump sum items, reference (69762)
520-1125Steel H pileH-sectionstructural steelHP 12 X 53, in place piling
520-4125Load test pileH-sectionstructural steelHP 12 X 53, if required
523-1100Dynamic pile test
643-1152Chain link fencesteel, zinc coated6 FT height, 9 GA

Measurements · 33

MeasurementValueUnitApplies to
FOUND BKFILL MATL TP II - LEFT BRIDGE35CY207-0203
FOUND BKFILL MATL TP II - RIGHT BRIDGE35CY207-0203
BRIDGE EXCAVATION - LEFT BRIDGE295CY211-0200
BRIDGE EXCAVATION - RIGHT BRIDGE295CY211-0200
GROOVED CONCRETE - LEFT BRIDGE811SY500-0100
GROOVED CONCRETE - RIGHT BRIDGE811SY500-0100
SUPERSTR CONCRETE CL D BR NO-1 LT - LEFT BRIDGELUMPLS500-1011
SUPERSTR CONCRETE CL D BR NO-1 LT reference249500-1011
SUPERSTR CONCRETE CL D BR NO-1 RT - RIGHT BRIDGELUMPLS500-1011
SUPERSTR CONCRETE CL D BR NO-1 RT reference249500-1011
CONCRETE BARRIER - LEFT BRIDGE378LF500-2100
CONCRETE BARRIER - RIGHT BRIDGE378LF500-2100
CLASS AA CONCRETE - LEFT BRIDGE221CY500-3002
CLASS AA CONCRETE - RIGHT BRIDGE221CY500-3002
PSC BEAMS AASHTO TYPE II BR NO-1 - LEFT BRIDGE644LF507-9002
PSC BEAMS AASHTO TYPE II BR NO-1 - RIGHT BRIDGE644LF507-9002
PSC BEAMS AASHTO TYPE III BR NO-1 - LEFT BRIDGE486LF507-9003
PSC BEAMS AASHTO TYPE III BR NO-1 - RIGHT BRIDGE486LF507-9003
BAR REINF STEEL - LEFT BRIDGE35422LB511-1000
BAR REINF STEEL - RIGHT BRIDGE35397LB511-1000
SUPERSTR REINF STEEL BR NO-1 LT - LEFT BRIDGELUMPLS511-3000
SUPERSTR REINF STEEL BR NO-1 LT reference69762511-3000
SUPERSTR REINF STEEL BR NO-1 RT - RIGHT BRIDGELUMPLS511-3000
SUPERSTR REINF STEEL BR NO-1 RT reference69762511-3000
PILING IN PLACE STEEL H HP 12X53 - LEFT BRIDGE2720LF520-1125
PILING IN PLACE STEEL H HP 12X53 - RIGHT BRIDGE2540LF520-1125
Pile size callout12 X 53520-1125
LOAD TEST STEEL H HP 12X53 - LEFT BRIDGE1EA520-4125
LOAD TEST STEEL H HP 12X53 - RIGHT BRIDGE1EA520-4125
DYNAMIC PILE TEST - LEFT BRIDGE2EA523-1100
DYNAMIC PILE TEST - RIGHT BRIDGE2EA523-1100
CH LK FENCE ZC COAT 6FT 9GA - LEFT BRIDGE378LF643-1152
CH LK FENCE ZC COAT 6FT 9GA - RIGHT BRIDGE378LF643-1152

Labels

SUMMARY OF QUANTITIESPAY ITEM NUMBERLEFT BRIDGERIGHT BRIDGEUNITPAY ITEM12 X 53

Notes

  • LOAD TEST, STEEL H, HP 12 X 53 (IF REQD)

anthropic/claude-sonnet-5 · 8354 tokens · 32.4s

item · 1808 × 210

Other P02 R06

page 2 · other_p02_r06
Original
Other P02 R06
{
  "view": "Notes",
  "objects": [
    {
      "name": "pile",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Piles driven at Bents 1 and 4, referenced in note text regarding negative skin friction protection"
    },
    {
      "name": "bent",
      "tag": "1",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced as location where piles are driven"
    },
    {
      "name": "bent",
      "tag": "4",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced as location where piles are driven"
    },
    {
      "name": "mechanically stabilized earth wall",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced in conjunction with pile protection from negative skin friction"
    }
  ],
  "measurements": [],
  "notes": [
    "FILL SETTLEMENT - PROTECT PILES DRIVEN AT BENTS 1 AND 4 FROM NEGATIVE SKIN FRICTION WHEN USED IN CONJUNCTION WITH MECHANICALLY STABILIZED EARTH WALLS, SEE SECTION 551 OF THE GEORGIA DOT SPECIFICATIONS. DRIVE PILES AT END BENTS BEFORE WALL LEVELING PADS ARE CONSTRUCTED."
  ],
  "labels": [],
  "description": "This crop contains a single construction note addressing fill settlement and pile protection requirements at Bents 1 and 4, referencing Georgia DOT Specification Section 551 for mechanically stabilized earth wall interaction with piles. It instructs that piles at end bents be driven before wall leveling pads are constructed. No drawn objects, dimensions, or graphical elements are present in this crop, only text."
}

Other P02 R06

done

other_p02_r06

Notes4 objects · 1 note

This crop contains a single construction note addressing fill settlement and pile protection requirements at Bents 1 and 4, referencing Georgia DOT Specification Section 551 for mechanically stabilized earth wall interaction with piles. It instructs that piles at end bents be driven before wall leveling pads are constructed. No drawn objects, dimensions, or graphical elements are present in this crop, only text.

Objects · 4

MarkObjectNote
pilePiles driven at Bents 1 and 4, referenced in note text regarding negative skin friction protection
1bentReferenced as location where piles are driven
4bentReferenced as location where piles are driven
mechanically stabilized earth wallReferenced in conjunction with pile protection from negative skin friction

Measurements · 0

No measurements read. Edit to add one.

Notes

  • FILL SETTLEMENT - PROTECT PILES DRIVEN AT BENTS 1 AND 4 FROM NEGATIVE SKIN FRICTION WHEN USED IN CONJUNCTION WITH MECHANICALLY STABILIZED EARTH WALLS, SEE SECTION 551 OF THE GEORGIA DOT SPECIFICATIONS. DRIVE PILES AT END BENTS BEFORE WALL LEVELING PADS ARE CONSTRUCTED.

anthropic/claude-sonnet-5 · 2451 tokens · 9.8s

item · 1858 × 643

Other P02 R07

page 2 · other_p02_r07
Original
Other P02 R07
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "three second gust wind speed",
      "value": "140",
      "unit": "MPH",
      "appliesTo": "steel diaphragms"
    },
    {
      "label": "steel grade",
      "value": "60",
      "unit": "",
      "appliesTo": "steel diaphragms (QPL)"
    }
  ],
  "notes": [
    "STEEL DIAPHRAGMS - AT CONTRACTOR'S OPTION, STEEL DIAPHRAGMS MAY BE USED IN LIEU OF THE CONCRETE DIAPHRAGMS SHOWN IN THE PLANS. AT A MINIMUM, STEEL DIAPHRAGMS ARE TO BE DESIGNED AT STRENGTH LIMIT STATE III WITH A THREE SECOND GUST WIND SPEED OF 140MPH APPLIED TO ONE HALF OF THE VERTICAL SURFACE AREA OF THE EXPOSED BEAM USING EXPOSURE CATEGORY D. CROSS FRAME CONFIGURATIONS SHALL HAVE A HORIZONTAL ANGLE OR CHANNEL AT EITHER THE TOP OR BOTTOM POSITION. STEEL DIAPHRAGMS SHALL BE MANUFACTURED BY A FABRICATOR LISTED ON QPL 60 PER SECTION 501 OR GREATER STEEL. ALL COMPONENTS OF THE STEEL DIAPHRAGM SHALL BE GALVANIZED ACCORDING TO ASTM A123. CONNECTION BOLTS SHALL CONFORM TO ASTM F3125 (GRADE A325). NUTS SHALL CONFORM TO ASTM A563. WASHERS SHALL CONFORM TO ASTM F436. ALL HARDWARE SHALL BE GALVANIZED ACCORDING TO ASTM A153. STABILITY OF THE BEAMS AND STRUCTURE DURING ALL PHASES OF CONSTRUCTION ARE THE SOLE RESPONSIBILITY OF THE CONTRACTOR. SUBMIT SHOP DRAWINGS AND CALCULATIONS FOR THE STEEL DIAPHRAGMS TO THE ENGINEER FOR REVIEW AND ACCEPTANCE. THE USE OF STEEL DIAPHRAGMS SHALL BE INCLUDED IN THE PRICE BID FOR \"LUMP-SUPESTR CONCRETE.\""
  ],
  "labels": [],
  "description": "This crop is a notes block from the general notes sheet, specifically covering the option to substitute steel diaphragms for concrete diaphragms shown in the plans, with design criteria, material/hardware specifications, and payment terms. A partial line from a preceding note (mentioning 'end bent wingwall elevations') is visible at the very top but cut off. No drawn structural elements are shown in this crop."
}

Other P02 R07

done

other_p02_r07

Notes2 measurements · 1 note

This crop is a notes block from the general notes sheet, specifically covering the option to substitute steel diaphragms for concrete diaphragms shown in the plans, with design criteria, material/hardware specifications, and payment terms. A partial line from a preceding note (mentioning 'end bent wingwall elevations') is visible at the very top but cut off. No drawn structural elements are shown in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 2

MeasurementValueUnitApplies to
three second gust wind speed140MPHsteel diaphragms
steel grade60steel diaphragms (QPL)

Notes

  • STEEL DIAPHRAGMS - AT CONTRACTOR'S OPTION, STEEL DIAPHRAGMS MAY BE USED IN LIEU OF THE CONCRETE DIAPHRAGMS SHOWN IN THE PLANS. AT A MINIMUM, STEEL DIAPHRAGMS ARE TO BE DESIGNED AT STRENGTH LIMIT STATE III WITH A THREE SECOND GUST WIND SPEED OF 140MPH APPLIED TO ONE HALF OF THE VERTICAL SURFACE AREA OF THE EXPOSED BEAM USING EXPOSURE CATEGORY D. CROSS FRAME CONFIGURATIONS SHALL HAVE A HORIZONTAL ANGLE OR CHANNEL AT EITHER THE TOP OR BOTTOM POSITION. STEEL DIAPHRAGMS SHALL BE MANUFACTURED BY A FABRICATOR LISTED ON QPL 60 PER SECTION 501 OR GREATER STEEL. ALL COMPONENTS OF THE STEEL DIAPHRAGM SHALL BE GALVANIZED ACCORDING TO ASTM A123. CONNECTION BOLTS SHALL CONFORM TO ASTM F3125 (GRADE A325). NUTS SHALL CONFORM TO ASTM A563. WASHERS SHALL CONFORM TO ASTM F436. ALL HARDWARE SHALL BE GALVANIZED ACCORDING TO ASTM A153. STABILITY OF THE BEAMS AND STRUCTURE DURING ALL PHASES OF CONSTRUCTION ARE THE SOLE RESPONSIBILITY OF THE CONTRACTOR. SUBMIT SHOP DRAWINGS AND CALCULATIONS FOR THE STEEL DIAPHRAGMS TO THE ENGINEER FOR REVIEW AND ACCEPTANCE. THE USE OF STEEL DIAPHRAGMS SHALL BE INCLUDED IN THE PRICE BID FOR "LUMP-SUPESTR CONCRETE."

anthropic/claude-sonnet-5 · 5891 tokens · 14.6s

2Map the items87 items · 1146 readings · 45 on more than one pageconfigured openai/gpt-5.6-terra-pro · about 12¢ at the last run’s size · default

One set of distinct items across every page. The same bent read as “BENT”, “Interior bent” and “Bent No. 2” is one item here, carrying every page and crop it was seen in. One model call over all of step 1’s readings; the page mapping is resolved from its grouping rather than retyped by it.

87 items from 1146 readings · 2 the model left out, matched by name · 87 new.

87items1146readings45on 2+ pages50,082tokens in11,065tokens out
Reinforcement Barmaterial×3257 · bar · reinforcing steelp2, p4, p5, p6, p7, p8, p9, p10, p11, p13, p14, p16, p17, p19, p2171 crops
Reinforcement Bar

also calledSuperstructure reinforcement steelBar reinforcement steelMain slab reinforcement barMain slab reinforcement barsSkew adjustment barReinforcement bar groupReinforcement bar markFence post anchorage/rebarReinforcement bar (stirrup/tie)Slab reinforcementLongitudinal reinforcement barHorizontal/tie reinforcement barVertical reinforcement barreinforcement bar groupReinforcement barsReinforcement bar - straightReinforcement bar - top bent barReinforcement bar - closed/rectangularReinforcement bar - diagonal/bentReinforcement bar - straight tie+53 more

marksBAR REINF STEELBR NO-1 LT / RT511-3000511-100012-502A12-502B12-502C400A12-502D12-502E400B400C500B600400502D502E500A501502+114 more

PSC Beamsuperstructure×230 · I-girder · precast prestressed concretep2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p1554 crops
PSC Beam

also calledPSC beam spanBeambeamGirder/BeamSupport Stem/Web (beam bottom flange support)Beam (unlabeled additional)GirderPSC beam (unlabeled)beam/deck edge elementbeam / girderPSC beam (I-girder) cross section at endPSC beam (I-girder) cross section at midpointBeam (girder)PSC beam cross sectionbeam web/end blockPSC beam (end bevel detail)beam end cross-section detailPSC beam (girder)Beam (PSC beam, partial)beam (girder end)+3 more

marksAASHTO Type II, BR NO-1AASHTO Type III, BR NO-1507-9002507-9003BEAM 1-6 (Westbound span)BEAM 7-12 (Eastbound span)BEAM 1–BEAM 12BEAM 1BEAM 2BEAM 3BEAM 4BEAM 5BEAM 6BEAM 7BEAM 8BEAM 9BEAM 10BEAM 11BEAM 12BEAM 1 through BEAM 12+8 more

Bentsubstructure×64 · rectangular · reinforced concretep1, p2, p3, p4, p5, p6, p7, p11, p13, p14, p15, p16, p1830 crops
Bent

also calledintermediate bentBent (Substructure)Bridge BentIntermediate bent (pier)

marksBENT 1 (B.F.P.R. BENT 1L/1R)BENT 2 (BENT 2L/2R)BENT 3 (BENT 3L/3R)BENT 4 (B.F.P.R. BENT 4L/4R)BENT 1BENT 2BENT 3BENT 41 (B.F.P.R. BENT 1)2 (BENT 2L/2R)3 (BENT 3L/3R)4 (B.F.P.R. BENT 4)BENT 1 (Left Bridge)BENT 2 (Left Bridge)BENT 3 (Left Bridge)BENT 4 (Left Bridge)BENT 1 (Right Bridge)BENT 2 (Right Bridge)BENT 3 (Right Bridge)BENT 4 (Right Bridge)+16 more

Bearingsuperstructure×41 · rectangular · not stated (likely elastomeric or steel bearing)p1, p8, p10, p11, p13, p14, p15, p1715 crops
Bearing

also calledbearing pointBearing deviceBearing pointBearing pad location

marksEXPFIXBRG.C BEARINGCL BEARINGBEARING

Steel H-pilefoundation×297 · H-section · structural steelp1, p2, p13, p14, p16, p17, p1838 crops
Steel H-pile

also calledPilepileLoad test pile

marksHP 12 X 53520-1125520-4125HP12X53H-PILE1234567,8,9,10,11,12Bent 1 Left / 1 RightBent 2 Left, Footing 1 & 2Bent 2 Right, Footing 3 & 4Bent 3 Left, Footing 1 & 21-12 (Bent 3 Left/Right)1-12 (Bent 4 Left/Right)78+6 more

Bent Capsubstructure×40 · rectangular · reinforced concretep2, p13, p14, p15, p16, p17, p1829 crops
Bent Cap

also calledbent cap / pedestal footingCap beam / bent capPile cap / bent cap beambent cap / pile cap beamBent cap / pile capBent cap / pier capBent cap / column sectionBent cap (with corbel/notch at bearing)Bent cap/columnCap beam / Bent capCap/Beam section (rectangular concrete member)

marksBENT 1BENT 1 RIGHTBENT 1 LEFTBENT 2 LEFTBENT 2 RIGHTBENT 2BENTSECTION B-BBENT 4 LEFTBENT 4 RIGHT

Deck Slabdeck×23 · rectangular/trapezoidal · grooved concretep1, p2, p4, p5, p7, p8, p921 crops
Deck Slab

also calleddeck/superstructureDeck/SuperstructureBridge deckBridge deck (beam bay)

marksLEFT BRIDGE / RIGHT BRIDGESPAN 12-800SLAB

Diaphragmsuperstructure×45 · rectangular transverse strip · concretep2, p4, p5, p6, p7, p9, p1016 crops
Diaphragm

also calledConcrete diaphragmconcrete diaphragmBeam / diaphragm concrete section

marks400A

Concrete Barrierrailing×21 · tapered · reinforced concretep2, p4, p5, p7, p8, p917 crops
Concrete Barrier

also calledBarrierBarrier (parapet) transitionBarrier (transition segment)Barrier (traffic/parapet)Parapet/BarrierEdge parapet/barrier upstandBarrier/ParapetBarrier (bridge parapet/traffic barrier)Traffic barrier (parapet)edge beam / barrier curbparapet/fence post support

marks500-2100

Columnsubstructure×52 · rectangular · reinforced concretep13, p14, p16, p17, p1828 crops
Column

also calledColumn/Pier (end)Column/pedestal (end, left)Column/pedestal (end, right)Reinforced concrete member (rectangular section, possibly pier/column cap)end column/pierColumn/pedestalPile or columncolumn/pier stemconcrete column/pedestal (rectangular capital)Column/Pier elementConcrete member (pile/column section)Reinforced concrete member (section)column or pier cross sectionPile/column section detailReinforced concrete member (section B-B)Reinforced concrete member (section C-C)Concrete member (wall/pier section)Column/pier cross-sectionColumn/PierPile/Column (intermediate)+8 more

marksCOLUMN 1COLUMN 2DETAIL 1 / SECTION A-ADETAIL 3 / SECTION D-DSECTION B-BSECTION C-CSECTION E-ESECTION F-FDetail 1 / Section A-ADetail 3 / Section D-D

Footingfoundation×44 · rectangular/square · reinforced concretep2, p14, p16, p17, p1821 crops
Footing

also calledpedestal footingpile cap/footingConcrete cap/footing sectionPile cap / footingBent cap/Footing

marksFOOTING PLAN - BENT 3BENT 2Bent 3FOOTING 1FOOTING 2FOOTING 3FOOTING 4BENT 4 LEFTBENT 4 RIGHTFooting 1Footing 2Footing 3Footing 4Bent 4 LeftBent 4 Right

Chain Link Fencerailing×8 · linear · zinc coated steelp1, p2, p7, p8, p917 crops
Chain Link Fence

also calledchain link wire fenceChain link wire fencefenceFence (not shown)FenceChain link fence fabric

marks643-1152

Edge Beamdeck×21 · linear strip · concretep4, p5, p6, p7, p911 crops
Edge Beam

also calledEdgebeam

marks2-800

Preformed Joint Fillermaterial×12 · rectangular strip · preformed filler materialp4, p5, p8, p9, p1210 crops
Preformed Joint Filler

also calledFiller materialJoint fillerPreformed foam joint filler

marks*

Dowel Holeother×5 · circular · concrete (formed hole)p12, p13, p14, p15, p179 crops
Dowel Hole

also calledDowel bar hole

End Postrailing×17 · vertical pipe · zinc coated steelp2, p4, p6, p810 crops
End Post

also calledend post and guardrail attachmentEnd post (fence)

marksEND POST

Endwallsubstructure×22 · linear/rectangular · concretep4, p6, p8, p128 crops
Endwall

marks3'-0" ENDWALL1'-6" ENDWALL

Fence Postrailing×11 · vertical pipe · zinc coated steelp4, p5, p6, p88 crops
Fence Post

also calledFence post spacing (fence line)Fence post spacing markersFence post (typical vertical)Pull post (fence)

marks12-502A / 12-502B / 12-502C*

Construction Jointdeck×8 · linearp5, p7, p8, p98 crops
Construction Joint

also calledConstruction joint / B.F.P.R. lineConstruction/expansion joint (B.F.P.R.)

Bearing Padsuperstructure×20 · rectangular · elastomericp7, p9, p1217 crops
Bearing Pad

also calledbearing pad (not shown)Bearing pad / beveled shim plate assemblySecond bearing pad (partial)

marksBent 1Bent 2 BackBent 2 AheadBent 3 BackBent 3 AheadBent 4BENT 1BENT 2 BACKBENT 2 AHEADBENT 3 BACKBENT 3 AHEADBENT 4

Wingwallsubstructure×12 · rectangular · reinforced concretep1, p13, p176 crops
Wingwall

also calledwingwall/wallWingwall/Retaining WallWingwall/wallWingwall / retaining wallWall (retaining/wingwall)

marksWALL 1WALL 2

Joint Sealermaterial×7 · linear bead · silicone sealantp4, p5, p96 crops
Joint Sealer

also calledExpansion joint seal assemblyExpansion joint sealSilicone adhesiveLow modulus silicone sealant (Type A)Silicone sealantJoint sealer detail

marksDetail A

Drip Beaddeck×7 · triangular · unspecified (likely sealant/concrete)p7, p8, p96 crops
Drip Bead
Section Cut Lineother×8 · linep12, p13, p174 crops
Section Cut Line

also calledSection cut markerSection cut markers

marksA-AABB-B

Filletdeck×16 · linear strip · concretep4, p5, p65 crops
Fillet
Prestressing Strandsuperstructure×89 · strand · low-relaxation steelp10, p1110 crops
Prestressing Strand

also calleddraped strandsPrestressed stranddraped strand groupstrand (pretensioning)

marks2-5502-4508-45113-3502-4522-650

Existing Railroad Trackancillary×23 · linear · steelp1, p38 crops
Existing Railroad Track

also calledrailroad trackRail trackRailroad Track (Existing)Railroad track (existing)

marksCENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACKEXIST. TRACK

Plain Barmaterial×4 · circular · plain steelp7, p97 crops
Plain Bar

also calledPlain bar (tie rod)

Diaphragm Barsuperstructure×4 · bar · structural steelp10, p116 crops
Diaphragm Bar

marks

Diaphragm Bar Holesuperstructure×10 · circular · void/opening in concretep10, p116 crops
Diaphragm Bar Hole

also calledRecess (pocket for diaphragm bar end)Recess hole

Dowel Barmaterial×2 · circular rod · steelp2, p126 crops
Dowel Bar

also calledSmooth Dowel BarSmooth doweldowel

Endfillearthwork×4 · sloped embankment · earth fillp1, p24 crops
Endfill

also calledEndfill control pointEndfill slope / embankmentEndfill slopefill detail at end of bridge

Future Trackancillary×21 · linear · steel railp1, p36 crops
Future Track

also calledRailroad track (future)Railroad Track (Future)

marksFUTURE TRACK

Paving Restpavement×10 · ledge · concretep4, p66 crops
Paving Rest
Bridgeother×4 · rectangularp3, p183 crops
Bridge

also calledBridge (Left)Bridge (Right)Bridge (left)Bridge (right)

marksLEFT BRIDGERIGHT BRIDGESR 21 @ NS #620272Y

Cap Beamsubstructure×4 · rectangular · reinforced concretep13, p174 crops
Cap Beam

also calledCoping

End Bentsubstructure×6 · H-section piles · structural steel piles / MSE wallp2, p84 crops
End Bent

also calledEnd bent cap/section

marksEND BENT 1END BENT 1 / END BENT 4

Expansion Jointdeck×2 · linear · preformed joint filler / silicone sealantp2, p54 crops
Expansion Joint

also calledExpansion joint (barrier)Expansion joint (in barrier)

Hex Nutmaterial×6 · hexagonal · steelp10, p114 crops
Hex Nut
Hold Down Devicesuperstructure×4p10, p114 crops
Hold Down Device

also calledlow friction type hold downlow friction hold down

Washermaterial×6 · circular · steelp10, p114 crops
Washer
Beam Centerlineother×36 · linear centerline · n/ap13, p173 crops
Beam Centerline

also calledBeam centerline markerBeam centerline referenceBeam centerline marks

marksBEAM 1 - BEAM 12BEAM 1-12

Future Access Roadpavement×3 · linearp1, p33 crops
Future Access Road

also calledAccess Road (Future)

marksFUTURE ACCESS ROAD

Holeother×2 · circularp11, p122 crops
Hole

also called2" diameter holeHole (in beveled shim plate)

Professional Engineer Sealother×2 · circularp11, p182 crops
Professional Engineer Seal

marksNo.19371

Beveled Shim Platesuperstructure×15 · tapered rectangular plate · structural steelp1210 crops
Beveled Shim Plate

also calledShim plateshim plate

marksBent 1Bent 2 BackBent 2 AheadBent 3 BackBent 3 AheadBent 4BENT 1BENT 4

Bearing Platesuperstructure×3 · rectangular · steelp124 crops
Bearing Plate

also calledBearing plate/base plate (plan view)Internal platesinternal plateInternal plate

Railroad Right-of-Way Boundaryother×29 · linear boundaryp34 crops
Railroad Right-of-Way Boundary

also calledRailroad Right-of-WayExisting railroad right-of-way boundaryRailroad right-of-way lineExisting RR right-of-way boundary

marksRR R/WEXIST. RR ROW

Load Platesuperstructure×4 · rectangular · steelp123 crops
Load Plate
Sealing ribmatched by name×5 · rectangular · steelp123 crops
Sealing rib
Abutmentsubstructure×2 · tapered · reinforced concretep72 crops
Abutment

also calledAbutment/backwallabutment/end support

Access Roadpavement×17 · linearp32 crops
Access Road

marksACCESS RD.

Approach Slabdeckp22 crops
Approach Slab
Concrete Nosingdeck×4 · rounded edge · concretep42 crops
Concrete Nosing

also calledConcrete edge/nosingJoint recess/nosing

Cross-section Detailother×2 · unclear, croppedp102 crops
Cross-section Detail

also calledpartial section detailcross-section detail (partial)

marksSECTION A

  • p10p10_r01 notespartial section detail · SECTION A · ×1p10_r01cross-section detail (partial) · ×1
Fence Tension Barrailing×1 · pipe · zinc coated steelp82 crops
Fence Tension Bar

also calledTension bar

Fence Truss Bracingrailing×1 · diagonal pipe · zinc coated steelp82 crops
Fence Truss Bracing

also calledTruss bracing

High Railancillary×2 · point/calloutp12 crops
High Rail

also calledtop of high rail

Mechanical Couplermaterialp142 crops
Mechanical Coupler
Pipe Sleeveancillary×2 · circular · galvanized steelp82 crops
Pipe Sleeve
Profile Grade Lineother×2 · linear alignmentp31 crop
Profile Grade Line

also calledPGL profile grade line

marksPGL WESTBOUNDPGL EASTBOUND

  • p3p03_r01PGL profile grade line · PGL WESTBOUND · ×1p03_r01PGL profile grade line · PGL EASTBOUND · ×1
Reference Lineother×2 · linear reference linep161 crop
Reference Line

also calledReference line BReference line C

marksBC

  • p16p16_r03Reference line B · B · ×1p16_r03Reference line C · C · ×1
Reinforcement Bar Bending Detailotherreinforcing steelp22 crops
Reinforcement Bar Bending Detail

also calledbar bending detail referencereinforcing bar bending detail

Roadway Centerlineother×2 · linear alignmentp32 crops
Roadway Centerline

also calledRoadway Centerline SR 21

marksC SR 21SR 21

Superstructure Concretematerialconcrete, Class Dp22 crops
Superstructure Concrete

also calledSuperstructure (general)

marks500-1011

Sway Bracingsuperstructurep22 crops
Sway Bracing

also calledswaybracing

Temporary Shoringancillary×1 · linearp12 crops
Temporary Shoring
Track centerlinematched by name×2 · linear (centerline)p12 crops
Track centerline

marksC TRACK

Bearing Lineother×2 · linearp141 crop
Bearing Line

marks℄ BEARING

  • p14p14_r01Bearing line · ℄ BEARING · ×2
Bent Number And Pile Tip Elevation Tableother×1 · tabularp21 crop
Bent Number And Pile Tip Elevation Table

also calledBent Number / Pile Tip Elevation Table

Bridge Begin Reference Pointother×2 · point marker · n/ap131 crop
Bridge Begin Reference Point

also calledBridge begin/reference point (B.F.P.R.)

Bridge Centerlineother×1 · linearp51 crop
Bridge Centerline

marksC BRIDGE

Bridge Excavationearthworkearth/soilp21 crop
Bridge Excavation

marks211-0200

  • p2p02_r05Bridge excavation · 211-0200
Chamferdeck×1 · linear edge chamfer · concretep51 crop
Chamfer
Class AA Concretematerialconcretep21 crop
Class AA Concrete

marks500-3002

  • p2p02_r05Class AA concrete · 500-3002
Clearance Envelopeother×1 · rectangularp11 crop
Clearance Envelope
Dynamic Pile Testfoundationp21 crop
Dynamic Pile Test

marks523-1100

  • p2p02_r05Dynamic pile test · 523-1100
Elevation Data Tableother×1 · tabularp31 crop
Elevation Data Table

marksSURVEYED TOP OF RAIL ELEVATIONS

  • p3p03_r01Elevation data table · SURVEYED TOP OF RAIL ELEVATIONS · ×1
Existing Grade Lineother×9 · irregular profile linep31 crop
Existing Grade Line

also calledGround/existing grade line

Foundation Backfillearthworkgranular backfillp21 crop
Foundation Backfill

also calledFoundation backfill material

marks207-0203

  • p2p02_r05Foundation backfill material · 207-0203
Grooved Concrete Surfacedeckconcretep21 crop
Grooved Concrete Surface

marks500-0100

  • p2p02_r05Grooved concrete surface · 500-0100
Mechanically Stabilized Earth Wallsubstructurep21 crop
Mechanically Stabilized Earth Wall
  • p2p02_r06mechanically stabilized earth wall
Pile Bent Supportfoundation×2 · pile group/footing · reinforced concretep11 crop
Pile Bent Support
Pile Connection Detailfoundation×1 · H-section pile connection · structural steel / reinforcing steelp141 crop
Pile Connection Detail
Substructure Concretematerialreinforced concrete, Class AAp21 crop
Substructure Concrete

also calledSubstructure (general)

Title Blockother×1p211 crop
Title Block
Waterproofingmaterialper Section 530 Georgia DOT Specificationsp81 crop
Waterproofing
3Match the ontology36 of 87 matched · 7 to check · 51 unmatchedconfigured openai/gpt-5.6-terra-pro · about $2.42 for a full pass · default

Every item from step 2 compared against the project’s engineering ontology, and then, for each one that lands in a class, a take-off of what that class asks for. The class list goes up as a closed vocabulary, so regional wording resolves without a synonym table — BENT to a pier system, PSC BEAM to a prestressed girder. Any class id that is not in the ontology is rejected rather than stored. The take-off reads every crop behind an item, derives what the drawings imply, shows its arithmetic, and says plainly when a number is not there. Matching against bridge v1.0.0, 133 classes.

23 items could not be worked out. Open one to see why, and work it out again from its own page.

29matched7to check51unmatched41% covered30values8gaps2,058,391tokens in60,862tokens out

51 items the bridge ontology has no class forAdd a class

  • Chain Link Fencep1, p2, p7, p8, p9 · 17 crops · ×8The ontology would need a chain-link fence class.
  • Edge Beamp4, p5, p6, p7, p9 · 11 crops · ×21The ontology would need a bridge edge beam class.
  • Preformed Joint Fillerp4, p5, p8, p9, p12 · 10 crops · ×12The ontology would need a preformed joint filler material class.
  • Dowel Holep12, p13, p14, p15, p17 · 9 crops · ×5The ontology would need a dowel-hole or formed-opening class.
  • End Postp2, p4, p6, p8 · 10 crops · ×17The ontology would need a fence end-post class.
  • Construction Jointp5, p7, p8, p9 · 8 crops · ×8The ontology would need a construction-joint class.
  • Endwallp4, p6, p8, p12 · 8 crops · ×22The ontology would need an endwall class.
  • Fence Postp4, p5, p6, p8 · 8 crops · ×11The ontology would need a fence-post class.
  • Drip Beadp7, p8, p9 · 6 crops · ×7The ontology would need a drip-bead class.
  • Joint Sealerp4, p5, p9 · 6 crops · ×7The ontology would need a joint sealant material class.
  • Filletp4, p5, p6 · 5 crops · ×16The ontology would need a concrete fillet class.
  • Section Cut Linep12, p13, p17 · 4 crops · ×8The ontology would need a drawing section-cut reference class.
  • Plain Barp7, p9 · 7 crops · ×4The ontology would need a plain steel tie-bar class.
  • Diaphragm Barp10, p11 · 6 crops · ×4The ontology would need a diaphragm-bar connection class.
  • Diaphragm Bar Holep10, p11 · 6 crops · ×10The ontology would need a diaphragm-bar recess or opening class.
  • Dowel Barp2, p12 · 6 crops · ×2The ontology would need a smooth dowel-bar class.
  • Paving Restp4, p6 · 6 crops · ×10The ontology would need a paving-rest ledge class.
  • Hex Nutp10, p11 · 4 crops · ×6The ontology would need a structural nut class.
  • Hold Down Devicep10, p11 · 4 crops · ×4The ontology would need a bridge hold-down device class.
  • Washerp10, p11 · 4 crops · ×6The ontology would need a structural washer class.
  • Beam Centerlinep13, p17 · 3 crops · ×36The ontology would need a beam-centerline reference class.
  • Future Access Roadp1, p3 · 3 crops · ×3The ontology would need an approach access-road class.
  • Holep11, p12 · 2 crops · ×2The ontology would need a generic formed-hole class.
  • Professional Engineer Sealp11, p18 · 2 crops · ×2The professional engineer seal is a drawing administrative mark, not a bridge work item.
  • Beveled Shim Platep12 · 10 crops · ×15The ontology would need a bearing shim-plate class.
  • Bearing Platep12 · 4 crops · ×3The ontology would need a bearing plate or base-plate class.
  • Railroad Right-of-Way Boundaryp3 · 4 crops · ×29The railroad right-of-way boundary is a land reference, not a listed bridge component.
  • Load Platep12 · 3 crops · ×4The ontology would need a bearing load-plate class.
  • Sealing ribp12 · 3 crops · ×5The ontology would need a sealing-rib component class.
  • Access Roadp3 · 2 crops · ×17The ontology would need an approach access-road class.
  • Concrete Nosingp4 · 2 crops · ×4The ontology would need a concrete nosing class.
  • Cross-section Detailp10 · 2 crops · ×2The item is a drawing detail rather than a permanent bridge component.
  • Fence Tension Barp8 · 2 crops · ×1The ontology would need a fence tension-bar class.
  • Fence Truss Bracingp8 · 2 crops · ×1The ontology would need a fence bracing class.
  • Mechanical Couplerp14 · 2 cropsThe ontology would need a reinforcing-bar mechanical coupler class.
  • Pipe Sleevep8 · 2 crops · ×2The ontology would need a pipe-sleeve class.
  • Reinforcement Bar Bending Detailp2 · 2 cropsThe item is a reinforcement detailing reference rather than a built reinforcing-bar item.
  • Superstructure Concretep2 · 2 cropsThe ontology would need a structural concrete material class.
  • Bearing Linep14 · 1 crop · ×2The ontology would need a bearing-line reference class.
  • Bent Number And Pile Tip Elevation Tablep2 · 1 crop · ×1The item is a drawing data table rather than a bridge component.
  • Bridge Begin Reference Pointp13 · 1 crop · ×2The ontology would need a bridge-begin reference-point class.
  • Chamferp5 · 1 crop · ×1The ontology would need a concrete chamfer class.
  • Class AA Concretep2 · 1 cropThe ontology would need a Class AA concrete material class.
  • Clearance Envelopep1 · 1 crop · ×1The clearance envelope is a design reference, not a listed bridge component.
  • Dynamic Pile Testp2 · 1 cropDynamic pile testing is a construction testing activity, not a permanent bridge component.
  • Elevation Data Tablep3 · 1 crop · ×1The item is a surveyed elevation data table rather than a bridge component.
  • Grooved Concrete Surfacep2 · 1 cropThe ontology would need a grooved concrete surface treatment class.
  • Pile Connection Detailp14 · 1 crop · ×1The item is a pile connection detail rather than a separately listed bridge component.
  • Reference Linep16 · 1 crop · ×2The ontology would need a generic drawing reference-line class.
  • Substructure Concretep2 · 1 cropThe ontology would need a structural concrete material class.
  • Title Blockp21 · 1 crop · ×1The title block is a drawing administrative element, not a bridge work item.

superstructure8

  • PSC BeamPrestressed Concrete Girderbridge.superstructure.main_load_system.psc_girderp2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p15 · 54 crops · ×2302 read · 1 derived · 1 gapon “PSC Beam
  • BearingcheckBridge Bearing Systemgroupingbridge.superstructure.bearing_systemp1, p8, p10, p11, p13, p14, p15, p17 · 15 crops · ×41on “Bearing
  • Deck SlabDeck Slabbridge.superstructure.deck_system.deck_slabp1, p2, p4, p5, p7, p8, p9 · 21 crops · ×233 read · 1 derived · 1 gapon “Deck Slab
  • DiaphragmDiaphragmbridge.superstructure.secondary_member_system.diaphragmp2, p4, p5, p6, p7, p9, p10 · 16 crops · ×451 read · 4 gapson “Diaphragm
  • Bearing PadElastomeric Bearingbridge.superstructure.bearing_system.elastomeric_bearingp7, p9, p12 · 17 crops · ×20take-off failedon “bearing pad
  • Expansion JointcheckExpansion Joint Systemgroupingbridge.superstructure.expansion_joint_systemp2, p5 · 4 crops · ×2on “Expansion joint
  • Sway BracingcheckLateral Bracingbridge.superstructure.secondary_member_system.lateral_bracingp2 · 2 cropstake-off failedon “swaybracing
  • WaterproofingcheckDeck Waterproofingbridge.superstructure.deck_system.waterproofingp8 · 1 croptake-off failedon “Waterproofing

alignment system7

substructure7

  • BentPier Systemgroupingbridge.substructure.pier_systemp1, p2, p3, p4, p5, p6, p7, p11, p13, p14, p15, p16, p18 · 30 crops · ×64on “BENT
  • Bent CapPier Capbridge.substructure.pier_system.pier_capp2, p13, p14, p15, p16, p17, p18 · 29 crops · ×404 read · 1 derivedon “Bent Cap
  • ColumnRectangular Pier Shaftbridge.substructure.pier_system.pier_shaft.rectangularp13, p14, p16, p17, p18 · 28 crops · ×524 read · 1 gapon “Column/pier shaft
  • WingwallWing Wallbridge.substructure.abutment_system.wing_wallp1, p13, p17 · 6 crops · ×12take-off failedon “Wingwall
  • Cap BeamPier Capbridge.substructure.pier_system.pier_capp13, p17 · 4 crops · ×4take-off failedon “Cap Beam
  • End BentAbutment Systemgroupingbridge.substructure.abutment_systemp2, p8 · 4 crops · ×6on “End Bent
  • AbutmentAbutment Systemgroupingbridge.substructure.abutment_systemp7 · 2 crops · ×2on “Abutment

approach earthwork system5

ancillary system3

  • Reinforcement BarReinforcing Barbridge.ancillary_system.reinforcement_system.rebarp2, p4, p5, p6, p7, p8, p9, p10, p11, p13, p14, p16, p17, p19, p21 · 71 crops · ×32573 read · 2 derivedon “Reinforcement Bar
  • Concrete BarrierBridge Crash Barrierbridge.ancillary_system.crash_barrierp2, p4, p5, p7, p8, p9 · 17 crops · ×211 read · 3 derivedon “Barrier
  • Prestressing StrandPrestressing Tendonbridge.ancillary_system.prestressing_system.tendonp10, p11 · 10 crops · ×89take-off failedon “Prestressing Strand

foundation system3

  • Steel H-pileSteel H Pilebridge.foundation_system.deep_foundation.pile.steel_hp1, p2, p13, p14, p16, p17, p18 · 38 crops · ×2971 read · 3 derived · 1 gapon “Steel H-pile
  • FootingcheckPile Capbridge.foundation_system.deep_foundation.pile_capp2, p14, p16, p17, p18 · 21 crops · ×44take-off failedon “Pile cap/footing
  • Pile Bent SupportcheckPile Groupbridge.foundation_system.deep_foundation.pile_groupp1 · 1 crop · ×2take-off failedon “Pile Bent Support

asset1

  • BridgeBridge Assetgroupingbridge.assetp3, p18 · 3 crops · ×4take-off failedon “Bridge

construction system1

ground system1

Index for the agent4897 points · 269 crops · 87 itemsopenai/text-embedding-3-small

Everything steps 1 and 2 know, written to the vector store for a chat agent to answer from. Cut fine — a point for each object, each measurement and each note, not one per crop — with the page, the crop and the drawing written into every one, so a retrieved number arrives with enough context to be an answer. The readings as a whole and step 2’s items are indexed too, for the questions that are about a drawing rather than a figure.

Re-runnable at any time: each point is keyed to the record it came from, so re-indexing replaces what changed, adds what is new, and drops what the drawings no longer support. Re-read a crop or correct one by hand, then press this.

4897 points indexed and up to date.

4,897points stored4,897points ready269crops87items388,013tokens embedded

Collection mindmap_vectors, filtered on projectId = gdot_plan-649084f395824aaebf1f5ed48132696f.
