Endwall

4 pages · 8 crops · ×22 · substructure

⚠ No class in the bridge ontology fits this itemAdd a class

The ontology would need an endwall class.

How the sheets named it

3'-0" ENDWALL1'-6" ENDWALL

Every dimension read for it6

  • 1'-6" ft-inEndwall thickness (interior)p4 · p04_r01 title block
  • 1'-6" ft-inEndwall thicknessp4 · p04_r01
  • 1'-6"Endwall dimension (other)p6 · p06_r01 title block
  • 1'-6" ft-inEndwall widthp6 · p06_r01
  • 3'-0" ft-inEndwall heightp8 · p08_r01
  • 1'-6" ft-inEndwall heightp8 · p08_r01

Notes on the sheets that carry it

  • p43'-0" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.
  • p48" FILLET, TYP.
  • p4B.F.P.R. BENT 1
  • p412" PAVING REST
  • p41'-6" ENDWALL
  • p41'-0" EDGEBEAM, TYP.
  • p410" CONCRETE DIAPHRAGM, TYP.
  • p481°-20'-05.0", TYP.
  • p4CONSTRUCTION CL SR 21
  • p481°-20'-05.0"
  • p4FENCE POST SPACING
  • p4END POST
  • p6B.F.P.R. BENT 4
  • p6CONSTRUCTION ℄ SR 21
  • p6PGL WESTBOUND
  • p6PGL EASTBOUND
  • p6N 83°-43'-21.7" E
  • p8NOTE: BARS 401, 504 SERIES, 505, AND 506 SERIES NOT SHOWN
  • p8FENCE NOTES:
  • p81. FENCE SHALL BE 9 GAGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.
  • p82. CAST 4" DIA. GALVANIZED SLEEVE IN THE PARAPET. ALLOW NON-SHRINK, NON-METALLIC GROUT TO CURE FOR THREE DAYS BEFORE FENCE FABRIC IS INSTALLED.
  • p83. APPLY GALVANIZING REPAIR COMPOUND, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATION 645, TO ENDS OF 4" DIA. GALVANIZED SLEEVES.
  • p84. PROVIDE EXPANSION SLEEVE FOR ALL RAILS TO MATCH SUPERSTRUCTURE JOINTS.
  • p85. FASTEN FABRIC TO POSTS AT INTERVALS NOT GREATER THAN 14".
  • p86. SPACE POSTS AT A MINIMUM OF 7'-0" AND A MAXIMUM OF 10'-0". PLACE POSTS 1'-0" MINIMUM FROM JOINTS IN BARRIER. SEE DECK PLAN FOR POST SPACING.
  • p87. FOR FURTHER DETAILS, SEE GEORGIA DOT SPECIFICATIONS SECTIONS 643 AND 894.
  • p8WATERPROOFING, SEE SECTION 530 OF THE GEORGIA DOT SPECIFICATIONS
  • p8SLAB REINFORCEMENT NOT SHOWN
  • p8END BENT 1 SHOWN, END BENT 4 SIMILAR
  • p8* NON-SHRINK, NON-METALLIC PORTLAND CEMENT GROUT IN ACCORDANCE WITH ASTM C1107, TROWEL TO PROVIDE POSITIVE DRAINAGE.
  • p8REQUIRED CONSTRUCTION JOINT PARALLEL WITH DECK, TYP.

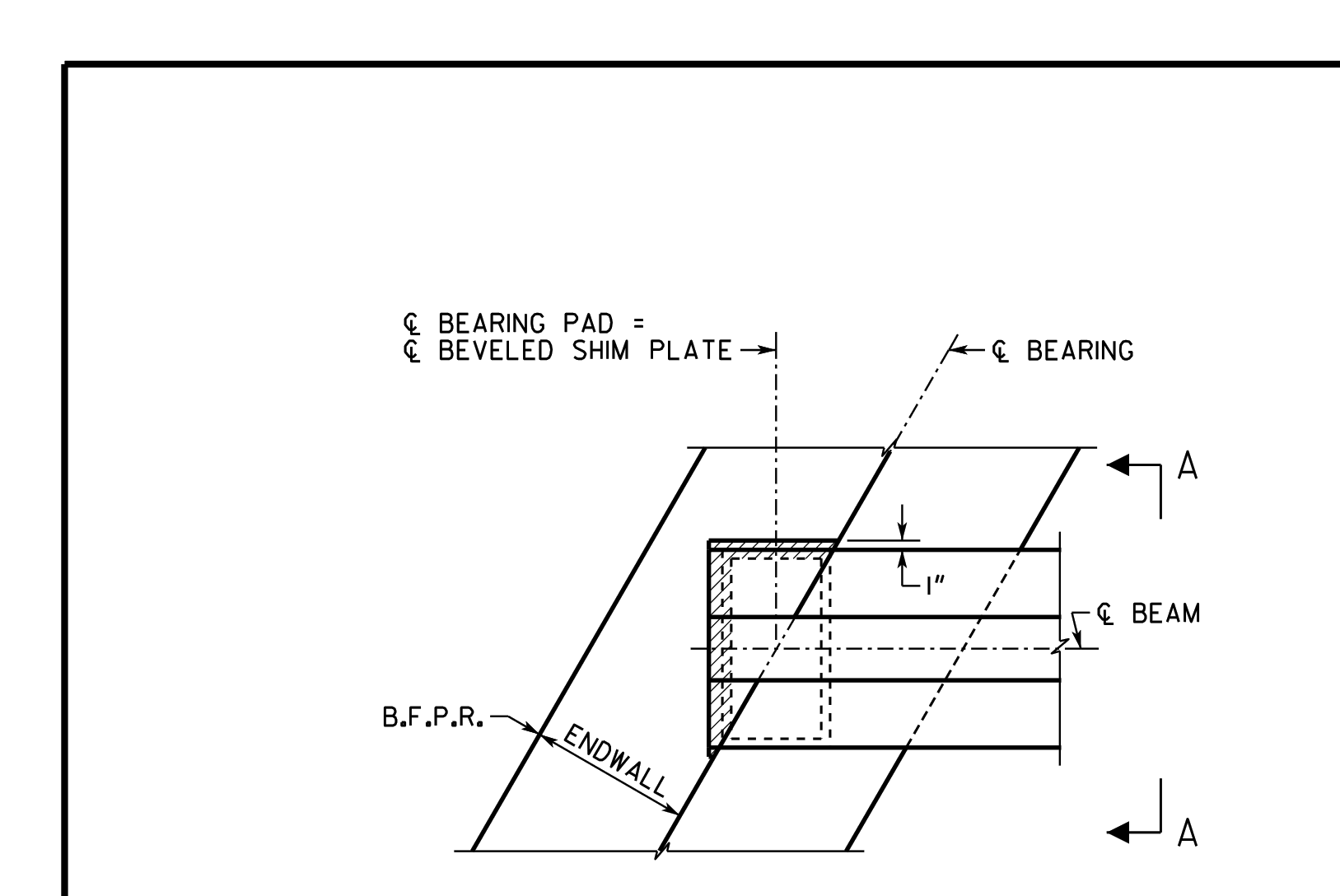

  • p12ℂ BEARING PAD = ℂ BEVELED SHIM PLATE
  • p12ℂ BEARING
  • p12ℂ BEAM
  • p12B.F.P.R.

Every crop it was read in — the drawing beside what the model took off it

Page 4

crop

p04_r01 title block

page 4 · gdot_plan_649084f395824aaebf1f5ed48132696f_p04_r01_title_block
Original
p04_r01 title block
{
  "view": "Plan",
  "objects": [
    {
      "name": "Beam",
      "tag": "BEAM 1-6 (Westbound span)",
      "shape": "linear/I-shaped (beam line)",
      "material": "precast concrete (implied by 400A callout)",
      "count": 6,
      "note": "Centerlines shown as dash-dot lines, beams 1 through 6 for westbound deck"
    },
    {
      "name": "Beam",
      "tag": "BEAM 7-12 (Eastbound span)",
      "shape": "linear/I-shaped (beam line)",
      "material": "precast concrete (implied by 400A callout)",
      "count": 6,
      "note": "Centerlines shown as dash-dot lines, beams 7 through 12 for eastbound deck"
    },
    {
      "name": "Diaphragm",
      "tag": "400A",
      "shape": "rectangular strip, perpendicular to beams",
      "material": "reinforced concrete",
      "count": 3,
      "note": "Labeled '10\" CONCRETE DIAPHRAGM, TYP.', shown crossing beams at intervals, callout '400A' repeated twice (once per span)"
    },
    {
      "name": "Edgebeam",
      "tag": "",
      "shape": "linear strip along deck edge",
      "material": "concrete",
      "count": 2,
      "note": "1'-0\" EDGEBEAM, TYP., one along each side of each span"
    },
    {
      "name": "Fillet",
      "tag": "",
      "shape": "linear strip",
      "material": "concrete",
      "count": 4,
      "note": "8\" FILLET, TYP., shown along beam edges"
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "linear/rectangular",
      "material": "concrete",
      "count": 4,
      "note": "Two types called out: '3'-0\" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.' and '1'-6\" ENDWALL'"
    },
    {
      "name": "Paving rest",
      "tag": "",
      "shape": "ledge/rectangular",
      "material": "concrete",
      "count": 2,
      "note": "12\" PAVING REST, TYP., one per span at bent location"
    },
    {
      "name": "Bent",
      "tag": "BENT 1 (B.F.P.R. BENT 1)",
      "shape": "not fully shown, referenced at edge of plan",
      "material": "concrete",
      "count": 2,
      "note": "Labeled 'B.F.P.R. BENT 1' appears at both spans, likely 'Back Face Paving Rest' or bent reference; only tag visible, structure not detailed in this crop"
    },
    {
      "name": "Fence post",
      "tag": "12-502A / 12-502B / 12-502C",
      "shape": "circular (post markers shown as small circles)",
      "material": "not stated",
      "count": 9,
      "note": "Fence post spacing marks along top and bottom edges of both spans, tagged 502A, 502B, 502C with quantity prefix '12-'"
    },
    {
      "name": "Deck slab",
      "tag": "",
      "shape": "rectangular/trapezoidal (skewed)",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Two deck panels shown, Westbound and Eastbound, both skewed at 81°-20'-05.0\""
    }
  ],
  "measurements": [
    {
      "label": "Overall deck width (top span)",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge"
    },
    {
      "label": "Segment width",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge (3 segments)"
    },
    {
      "label": "Beam spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge beam spacing (5 instances)"
    },
    {
      "label": "End segment",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge end segment"
    },
    {
      "label": "Edge offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck top edge start offset"
    },
    {
      "label": "Gutter to gutter width",
      "value": "40'-0\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width, both spans"
    },
    {
      "label": "Out to out width",
      "value": "43'-7\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width, both spans"
    },
    {
      "label": "Offset from gutter to out",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "Deck edge, both spans (4 instances)"
    },
    {
      "label": "Fence post spacing width",
      "value": "5'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence posts near edgebeam ends, both spans (4 instances)"
    },
    {
      "label": "Skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "degrees-min-sec",
      "appliesTo": "Beam skew / construction centerline skew, multiple callouts"
    },
    {
      "label": "Bearing",
      "value": "N 83°-43'-21.7\" E",
      "unit": "bearing",
      "appliesTo": "Construction reference line between spans"
    },
    {
      "label": "Fillet thickness",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "Fillet, typ."
    },
    {
      "label": "Diaphragm thickness",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "Concrete diaphragm, typ."
    },
    {
      "label": "Edgebeam width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Edgebeam, typ."
    },
    {
      "label": "Endwall thickness (exterior)",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "Endwall outside exterior beam, typ."
    },
    {
      "label": "Endwall thickness (interior)",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "Endwall"
    },
    {
      "label": "Paving rest width",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "Paving rest"
    },
    {
      "label": "Bottom span width dimension set",
      "value": "22'-0\"",
      "unit": "ft-in",
      "appliesTo": "Vertical dimension between spans (2 instances)"
    },
    {
      "label": "Lower fence post spacing overall (bottom of westbound)",
      "value": "52'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck bottom edge overall"
    },
    {
      "label": "Segment dimension",
      "value": "17'-4 5/16\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck bottom edge segment"
    },
    {
      "label": "Segment dimension",
      "value": "17'-5 1/4\"",
      "unit": "ft-in",
      "appliesTo": "Westbound deck bottom edge segment (2 instances)"
    },
    {
      "label": "End post dimension",
      "value": "4'-3\"",
      "unit": "ft-in",
      "appliesTo": "End post, westbound bottom edge"
    },
    {
      "label": "Fence post spacing segments (bottom westbound)",
      "value": "8'-9\", 8'-9\", 8'-0\", 9'-6\", 9'-6\", 6'-8 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Westbound bottom edge fence post spacing"
    },
    {
      "label": "Offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound bottom edge start offset"
    },
    {
      "label": "Eastbound top edge overall",
      "value": "51'-8 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck top edge overall"
    },
    {
      "label": "Segment dimension",
      "value": "17'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck top edge segment (2 instances)"
    },
    {
      "label": "Segment dimension",
      "value": "17'-2 3/4\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck top edge segment"
    },
    {
      "label": "End post dimension",
      "value": "4'-6\"",
      "unit": "ft-in",
      "appliesTo": "End post, eastbound top edge"
    },
    {
      "label": "Fence post spacing segments (top eastbound)",
      "value": "8'-9\", 8'-9\", 8'-0\", 9'-6\", 9'-6\", 6'-2 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound top edge fence post spacing"
    },
    {
      "label": "Offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound top edge start offset"
    },
    {
      "label": "Overall deck width (bottom span)",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge"
    },
    {
      "label": "Segment width",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge (3 segments)"
    },
    {
      "label": "Beam spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge beam spacing (5 instances)"
    },
    {
      "label": "End segment",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge end segment"
    },
    {
      "label": "Offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound deck bottom edge start offset"
    }
  ],
  "notes": [
    "3'-0\" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.",
    "8\" FILLET, TYP.",
    "B.F.P.R. BENT 1",
    "12\" PAVING REST",
    "1'-6\" ENDWALL",
    "1'-0\" EDGEBEAM, TYP.",
    "10\" CONCRETE DIAPHRAGM, TYP.",
    "81°-20'-05.0\", TYP.",
    "CONSTRUCTION CL SR 21",
    "81°-20'-05.0\"",
    "FENCE POST SPACING",
    "END POST"
  ],
  "labels": [
    "DECK PLAN",
    "SPAN 1",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "12-502A",
    "12-502B",
    "12-502C",
    "400A",
    "N 83°-43'-21.7\" E",
    "aruna sastry",
    "5/31/2025",
    "11:05:27 AM"
  ],
  "description": "This crop is a Deck Plan (Span 1) for a two-span bridge structure, showing separate westbound and eastbound decks in plan view, each skewed at 81°-20'-05.0\". It details beam centerlines (Beam 1-12), fence post spacing and tags (502A/B/C), edgebeams, fillets, endwalls, paving rests, concrete diaphragms (400A), and overall/segment dimensions for deck width, gutter-to-gutter and out-to-out widths, plus a construction centerline (SR 21) and bearing reference between the two spans."
}

p04_r01 title blockPlan

  • Endwall×4linear/rectangularconcreteTwo types called out: '3'-0" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.' and '1'-6" ENDWALL'

55'-0" ft-in Overall deck width (top span)18'-4" ft-in Segment width9'-6" ft-in Beam spacing6'-6" ft-in End segment1'-0" ft-in Edge offset40'-0" ft-in Gutter to gutter width43'-7" ft-in Out to out width1'-9 1/2" ft-in Offset from gutter to out+27 more

crop

p04_r01

page 4 · other_p04_r01
Original
p04_r01
{
  "view": "Plan",
  "objects": [
    {
      "name": "Deck slab",
      "tag": "SPAN 1",
      "shape": "trapezoidal (skewed)",
      "material": "reinforced concrete",
      "count": 2,
      "note": "One deck plan shown for each bridge (westbound and eastbound), both labeled Span 1"
    },
    {
      "name": "Beam",
      "tag": "BEAM 1–BEAM 12",
      "shape": "longitudinal, parallel",
      "material": "precast/prestressed concrete (implied by beam callouts, not stated)",
      "count": 12,
      "note": "Six beams shown per bridge, centerlines labeled CL BEAM 1 through CL BEAM 12"
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "linear, at ends of span",
      "material": "concrete",
      "count": 4,
      "note": "Two sizes noted: 3'-0\" endwall outside exterior beam (typ.) and 1'-6\" endwall"
    },
    {
      "name": "Edgebeam",
      "tag": "",
      "shape": "linear, along deck edge",
      "material": "concrete",
      "count": 2,
      "note": "1'-0\" edgebeam, typ., one per bridge"
    },
    {
      "name": "Diaphragm",
      "tag": "",
      "shape": "transverse, rectangular",
      "material": "concrete",
      "count": 6,
      "note": "10\" concrete diaphragm, typ.; three transverse lines shown per bridge deck"
    },
    {
      "name": "Paving rest",
      "tag": "",
      "shape": "linear ledge",
      "material": "concrete",
      "count": 2,
      "note": "12\" paving rest, one per bridge at bent end"
    },
    {
      "name": "Bent",
      "tag": "B.F.P.R. BENT 1",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Referenced as back face of bent (B.F.P.R.), one per bridge deck plan"
    },
    {
      "name": "End post",
      "tag": "END POST",
      "shape": "",
      "material": "concrete",
      "count": 2,
      "note": "Located at the skewed end of each span, dimensioned 4'-3\" and 4'-6\""
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502A",
      "shape": "bar, transverse",
      "material": "reinforcing steel",
      "count": 6,
      "note": "Shown at top and bottom edges of both bridge decks"
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502B",
      "shape": "bar, transverse",
      "material": "reinforcing steel",
      "count": 3,
      "note": "Shown along lower edge of upper (westbound) deck"
    },
    {
      "name": "Reinforcement bar",
      "tag": "12-502C",
      "shape": "bar, transverse",
      "material": "reinforcing steel",
      "count": 3,
      "note": "Shown along upper edge of lower (eastbound) deck"
    },
    {
      "name": "Reinforcement bar",
      "tag": "400A",
      "shape": "bar, longitudinal",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Labeled once per deck, appears to run along beam lines"
    }
  ],
  "measurements": [
    {
      "label": "Overall deck width",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Span 1 deck (both bridges)"
    },
    {
      "label": "Panel spacing",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Deck panel spacing, repeated 3x per deck"
    },
    {
      "label": "Bar spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "12-502A/B/C bar spacing, repeated multiple times"
    },
    {
      "label": "End spacing",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing at deck end"
    },
    {
      "label": "Edge offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Deck edge dimension, multiple locations"
    },
    {
      "label": "Bearing pad spacing",
      "value": "5'-0\"",
      "unit": "ft-in",
      "appliesTo": "Bearing marks (*) near beam ends, x2"
    },
    {
      "label": "Fillet thickness",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "Fillet, typ."
    },
    {
      "label": "Diaphragm thickness",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "Concrete diaphragm, typ."
    },
    {
      "label": "Paving rest width",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "Paving rest"
    },
    {
      "label": "Endwall thickness",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "Endwall outside exterior beam, typ."
    },
    {
      "label": "Endwall thickness",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "Endwall"
    },
    {
      "label": "Edgebeam width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Edgebeam, typ."
    },
    {
      "label": "Gutter to gutter width",
      "value": "40'-0\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width"
    },
    {
      "label": "Out to out width",
      "value": "43'-7\"",
      "unit": "ft-in",
      "appliesTo": "Deck cross width"
    },
    {
      "label": "Overhang dimension",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "Deck overhang, repeated top and bottom"
    },
    {
      "label": "Distance",
      "value": "22'-0\"",
      "unit": "ft-in",
      "appliesTo": "Between gutter lines, both bridges"
    },
    {
      "label": "Skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "deg-min-sec",
      "appliesTo": "Beam/skew angle, typ., repeated multiple times"
    },
    {
      "label": "Bearing",
      "value": "N 83°-43'-21.7\" E",
      "unit": "",
      "appliesTo": "Construction bearing line"
    },
    {
      "label": "End post dimension",
      "value": "4'-3\"",
      "unit": "ft-in",
      "appliesTo": "End post, upper deck"
    },
    {
      "label": "End post dimension",
      "value": "4'-6\"",
      "unit": "ft-in",
      "appliesTo": "End post, lower deck"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-4 5/16\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-5 1/4\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment, x2"
    },
    {
      "label": "Total diagonal dimension",
      "value": "52'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge total, upper deck"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment, lower deck, x2"
    },
    {
      "label": "Diagonal dimension",
      "value": "17'-2 3/4\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge segment, lower deck"
    },
    {
      "label": "Total diagonal dimension",
      "value": "51'-8 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Skewed deck edge total, lower deck"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-9\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, repeated multiple times"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, x2"
    },
    {
      "label": "Fence post spacing",
      "value": "6'-8 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, upper deck end"
    },
    {
      "label": "Fence post spacing",
      "value": "6'-2 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing, lower deck end"
    }
  ],
  "notes": [],
  "labels": [
    "DECK PLAN",
    "SPAN 1",
    "CONSTRUCTION CL SR 21",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "FENCE POST SPACING",
    "END POST",
    "B.F.P.R. BENT 1",
    "CL BEAM 1",
    "CL BEAM 2",
    "CL BEAM 3",
    "CL BEAM 4",
    "CL BEAM 5",
    "CL BEAM 6",
    "CL BEAM 7",
    "CL BEAM 8",
    "CL BEAM 9",
    "CL BEAM 10",
    "CL BEAM 11",
    "CL BEAM 12"
  ],
  "description": "This crop shows the Deck Plan for Span 1 of a twin-bridge structure, depicting the westbound and eastbound decks side by side with beam centerlines (Beams 1–12), endwalls, edgebeams, diaphragms, paving rests, and end posts. It is heavily dimensioned with panel widths, skew angles (81°-20'-05.0\"), fence post spacing, and gutter-to-gutter/out-to-out widths, and references reinforcing bar marks 12-502A/B/C and 400A along with a construction centerline (SR 21) and bearing call-out."
}

p04_r01Plan

  • Endwall×4linear, at ends of spanconcreteTwo sizes noted: 3'-0" endwall outside exterior beam (typ.) and 1'-6" endwall

55'-0" ft-in Overall deck width18'-4" ft-in Panel spacing9'-6" ft-in Bar spacing6'-6" ft-in End spacing1'-0" ft-in Edge offset5'-0" ft-in Bearing pad spacing8" in Fillet thickness10" in Diaphragm thickness+22 more

Page 6

crop

p06_r01 title block

page 6 · gdot_plan_649084f395824aaebf1f5ed48132696f_p06_r01_title_block
Original
p06_r01 title block
{
  "view": "Plan",
  "objects": [
    {
      "name": "Beam",
      "tag": "BEAM 1-12",
      "shape": "linear, longitudinal",
      "material": "precast concrete",
      "count": 12,
      "note": "Six beams shown per each of two deck halves (westbound and eastbound), individually labeled BEAM 1 through BEAM 12"
    },
    {
      "name": "Concrete diaphragm",
      "tag": "",
      "shape": "rectangular, transverse",
      "material": "concrete",
      "count": 6,
      "note": "Labeled '10\" CONCRETE DIAPHRAGM, TYP.'; shown between beams at intermediate locations, three per deck half"
    },
    {
      "name": "Edge beam",
      "tag": "",
      "shape": "linear",
      "material": "concrete",
      "count": 2,
      "note": "Labeled '1'-0\" EDGEBEAM, TYP.', one along each deck half"
    },
    {
      "name": "Fillet",
      "tag": "",
      "shape": "linear, tapered edge detail",
      "material": "concrete",
      "count": 2,
      "note": "Labeled '8\" FILLET, TYP.'"
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "linear, angled",
      "material": "concrete",
      "count": 4,
      "note": "Two sizes noted: '3'-0\" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.' and '1'-6\" ENDWALL', two each (one per deck end)"
    },
    {
      "name": "Paving rest",
      "tag": "",
      "shape": "linear",
      "material": "concrete",
      "count": 2,
      "note": "Labeled '12\" PAVING REST' at bent ends"
    },
    {
      "name": "Bent",
      "tag": "BENT 4",
      "shape": "",
      "material": "concrete",
      "count": 2,
      "note": "Labeled 'B.F.P.R. BENT 4' at both ends of the span (top and bottom edges of deck plan)"
    },
    {
      "name": "Reinforcement bar group",
      "tag": "12-502A",
      "shape": "",
      "material": "reinforcing steel",
      "count": 6,
      "note": "Appears at top and bottom edges of deck (fence post/parapet reinforcement), 3 marks per edge x2 edges"
    },
    {
      "name": "Reinforcement bar group",
      "tag": "12-502B",
      "shape": "",
      "material": "reinforcing steel",
      "count": 3,
      "note": "Appears along eastbound deck edge near construction centerline"
    },
    {
      "name": "Reinforcement bar group",
      "tag": "12-502C",
      "shape": "",
      "material": "reinforcing steel",
      "count": 3,
      "note": "Appears along westbound deck edge near construction centerline"
    },
    {
      "name": "Reinforcement bar mark",
      "tag": "400A",
      "shape": "",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Labeled once per deck half, likely deck slab main reinforcement"
    },
    {
      "name": "Fence post spacing markers",
      "tag": "",
      "shape": "point markers",
      "material": "",
      "count": null,
      "note": "Rows of dimensioned spacing along both outer edges and inner edges of both deck halves; some marked with * and ** symbols"
    },
    {
      "name": "End post",
      "tag": "END POST",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Located at inner ends of each deck half near construction centerline of SR 21"
    }
  ],
  "measurements": [
    {
      "label": "Overall deck width, top deck",
      "value": "55'-0\"",
      "unit": "",
      "appliesTo": "westbound deck outer bay"
    },
    {
      "label": "Beam bay spacing (3 bays)",
      "value": "18'-4\"",
      "unit": "",
      "appliesTo": "westbound deck, repeated 3 times"
    },
    {
      "label": "Fence post spacing sequence",
      "value": "6'-6\", 9'-6\", 9'-6\", 9'-6\", 9'-6\", 9'-6\"",
      "unit": "",
      "appliesTo": "westbound deck outer edge"
    },
    {
      "label": "End dimension",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "westbound deck outer edge end"
    },
    {
      "label": "Skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "",
      "appliesTo": "deck skew, typ."
    },
    {
      "label": "Diaphragm thickness",
      "value": "10\"",
      "unit": "",
      "appliesTo": "concrete diaphragm"
    },
    {
      "label": "Fillet dimension",
      "value": "8\"",
      "unit": "",
      "appliesTo": "fillet, typ."
    },
    {
      "label": "Edgebeam width",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "edgebeam, typ."
    },
    {
      "label": "Endwall dimension (exterior)",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "endwall outside exterior beam, typ."
    },
    {
      "label": "Endwall dimension (other)",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "endwall"
    },
    {
      "label": "Paving rest width",
      "value": "12\"",
      "unit": "",
      "appliesTo": "paving rest"
    },
    {
      "label": "Gutter to gutter width",
      "value": "40'-0\"",
      "unit": "",
      "appliesTo": "westbound/eastbound deck section"
    },
    {
      "label": "Out to out width",
      "value": "43'-7\"",
      "unit": "",
      "appliesTo": "westbound/eastbound deck section"
    },
    {
      "label": "Offset at edge",
      "value": "1'-9 1/2\"",
      "unit": "",
      "appliesTo": "deck edge offset from gutter line, top and bottom"
    },
    {
      "label": "Beam spacing bay (5'-0\" marks)",
      "value": "5'-0\"",
      "unit": "",
      "appliesTo": "Beam 1/Beam 2 area and Beam 11/Beam 12 area"
    },
    {
      "label": "Fence post spacing sequence (lower rows)",
      "value": "6'-2 3/8\", 9'-6\", 9'-6\", 8'-0\", 8'-9\", 8'-9\"",
      "unit": "",
      "appliesTo": "inner edge near bent 4, westbound"
    },
    {
      "label": "End post dimension",
      "value": "4'-6\"",
      "unit": "",
      "appliesTo": "end post, westbound"
    },
    {
      "label": "Sub-span dimension",
      "value": "17'-2 3/4\", 17'-2 13/16\", 17'-2 13/16\"",
      "unit": "",
      "appliesTo": "inner deck edge dimensions"
    },
    {
      "label": "Total inner edge length",
      "value": "51'-8 3/8\"",
      "unit": "",
      "appliesTo": "westbound inner deck edge total"
    },
    {
      "label": "Total deck length (construction centerline area)",
      "value": "52'-2 13/16\"",
      "unit": "",
      "appliesTo": "deck length along construction centerline SR 21"
    },
    {
      "label": "Sub-span dimension",
      "value": "17'-5 1/4\", 17'-5 1/4\", 17'-4 5/16\"",
      "unit": "",
      "appliesTo": "eastbound inner deck edge"
    },
    {
      "label": "Fence post spacing sequence (eastbound inner)",
      "value": "6'-8 13/16\", 9'-6\", 9'-6\", 8'-0\", 8'-9\", 8'-9\"",
      "unit": "",
      "appliesTo": "eastbound deck inner edge"
    },
    {
      "label": "End post dimension",
      "value": "4'-3\"",
      "unit": "",
      "appliesTo": "end post, eastbound"
    },
    {
      "label": "Total width, bottom deck",
      "value": "55'-0\"",
      "unit": "",
      "appliesTo": "eastbound deck outer bay"
    },
    {
      "label": "Beam bay spacing (3 bays), bottom deck",
      "value": "18'-4\"",
      "unit": "",
      "appliesTo": "eastbound deck, repeated 3 times"
    },
    {
      "label": "Fence post spacing sequence, bottom",
      "value": "6'-6\", 9'-6\", 9'-6\", 9'-6\", 9'-6\", 9'-6\"",
      "unit": "",
      "appliesTo": "eastbound deck outer edge"
    },
    {
      "label": "Skew/bearing angle line",
      "value": "N 83°-43'-21.7\" E",
      "unit": "",
      "appliesTo": "reference bearing line between decks"
    },
    {
      "label": "Gutter to gutter width (repeat)",
      "value": "22'-0\"",
      "unit": "",
      "appliesTo": "partial dimension near end post areas"
    }
  ],
  "notes": [
    "FENCE POST SPACING",
    "1'-0\" EDGEBEAM, TYP.",
    "8\" FILLET, TYP.",
    "81°-20'-05.0\", TYP.",
    "10\" CONCRETE DIAPHRAGM, TYP.",
    "3'-0\" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.",
    "1'-6\" ENDWALL",
    "12\" PAVING REST",
    "B.F.P.R. BENT 4",
    "CONSTRUCTION ℄ SR 21",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "N 83°-43'-21.7\" E"
  ],
  "labels": [
    "SPAN 3",
    "DECK PLAN",
    "℄ BEAM 1",
    "℄ BEAM 2",
    "℄ BEAM 3",
    "℄ BEAM 4",
    "℄ BEAM 5",
    "℄ BEAM 6",
    "℄ BEAM 7",
    "℄ BEAM 8",
    "℄ BEAM 9",
    "℄ BEAM 10",
    "℄ BEAM 11",
    "℄ BEAM 12",
    "12-502A",
    "12-502B",
    "12-502C",
    "400A",
    "END POST"
  ],
  "description": "This crop is a deck plan view for Span 3 of a bridge, showing two parallel roadway decks (westbound and eastbound), each carrying six precast beams (Beams 1-6 and 7-12 respectively) supported at Bent 4. The drawing details fence post spacing, edge beams, fillets, concrete diaphragms, endwalls, and paving rests, along with numerous linear dimensions, skew angles, and gutter/out-to-out width callouts for both deck halves. Reinforcement bar marks (12-502A/B/C, 400A) are called out at deck edges and diaphragm locations, indicating this sheet documents deck slab layout and edge/fence detailing for take-off of concrete and reinforcement quantities."
}

p06_r01 title blockPlan

  • Endwall×4linear, angledconcreteTwo sizes noted: '3'-0" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.' and '1'-6" ENDWALL', two each (one per deck end)

55'-0" Overall deck width, top deck18'-4" Beam bay spacing (3 bays)6'-6", 9'-6", 9'-6", 9'-6", 9'-6", 9'-6" Fence post spacing sequence1'-0" End dimension81°-20'-05.0" Skew angle10" Diaphragm thickness8" Fillet dimension1'-0" Edgebeam width+20 more

crop

p06_r01

page 6 · other_p06_r01
Original
p06_r01
{
  "view": "Plan",
  "objects": [
    {
      "name": "Beam",
      "tag": "BEAM 1-12",
      "shape": "longitudinal, parallel",
      "material": "precast concrete (implied)",
      "count": 12,
      "note": "Centerlines of 12 beams shown (BEAM 1 through BEAM 12), 6 per roadway (westbound and eastbound)."
    },
    {
      "name": "Fence post anchorage/rebar",
      "tag": "12-502A",
      "shape": "",
      "material": "reinforcement bar (implied)",
      "count": 6,
      "note": "Marks at top and bottom edges of deck plan, at fence post spacing locations."
    },
    {
      "name": "Fence post anchorage/rebar",
      "tag": "12-502B",
      "shape": "",
      "material": "reinforcement bar (implied)",
      "count": 3,
      "note": "Marks along eastbound roadway upper edge."
    },
    {
      "name": "Fence post anchorage/rebar",
      "tag": "12-502C",
      "shape": "",
      "material": "reinforcement bar (implied)",
      "count": 3,
      "note": "Marks along westbound roadway lower edge."
    },
    {
      "name": "Edgebeam",
      "tag": "",
      "shape": "linear, 1'-0\" wide",
      "material": "reinforced concrete (implied)",
      "count": 2,
      "note": "Typical edgebeam along outer edge of each roadway deck."
    },
    {
      "name": "Concrete diaphragm",
      "tag": "400A",
      "shape": "transverse, 10\" thick",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Typical diaphragm between beams, shown at midspan of each roadway; tag 400A appears once per roadway."
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "linear, 1'-6\" and 3'-0\" widths",
      "material": "concrete (implied)",
      "count": 4,
      "note": "1'-6\" endwall and 3'-0\" endwall outside exterior beam, at both ends of each roadway."
    },
    {
      "name": "Fillet",
      "tag": "",
      "shape": "linear, 8\" typical",
      "material": "concrete (implied)",
      "count": 2,
      "note": "8\" fillet typical, shown along beam lines."
    },
    {
      "name": "Paving rest",
      "tag": "",
      "shape": "linear, 12\" wide",
      "material": "concrete (implied)",
      "count": 2,
      "note": "12\" paving rest at end of each roadway deck."
    },
    {
      "name": "Bent",
      "tag": "BENT 4",
      "shape": "",
      "material": "concrete (implied)",
      "count": 1,
      "note": "Referenced as 'B.F.P.R. BENT 4' (likely 'Back Face of Pier/Bent Rest') at the far end of the span for both roadways."
    },
    {
      "name": "Fence post spacing markers",
      "tag": "*",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Asterisk symbols denote fence post spacing locations, referenced but not individually described."
    },
    {
      "name": "End post",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Labeled 'END POST' at the terminal fence post location on each roadway."
    }
  ],
  "measurements": [
    {
      "label": "Overall deck width",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound roadway (top)"
    },
    {
      "label": "Segment width",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Westbound roadway (3 segments)"
    },
    {
      "label": "Fence post spacing",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Westbound roadway, first spacing"
    },
    {
      "label": "Fence post spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Westbound roadway (repeated 5 times)"
    },
    {
      "label": "Fence post spacing (end)",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound roadway, end spacing"
    },
    {
      "label": "Post bracket spacing",
      "value": "5'-0\"",
      "unit": "ft-in",
      "appliesTo": "Near Beam 1, both sides"
    },
    {
      "label": "Skew angle",
      "value": "81°-20'-05.0\"",
      "unit": "degrees-min-sec",
      "appliesTo": "Beam skew, typical"
    },
    {
      "label": "Diaphragm thickness",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "Concrete diaphragm, typical"
    },
    {
      "label": "Edgebeam width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Edgebeam, typical"
    },
    {
      "label": "Fillet size",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "Fillet, typical"
    },
    {
      "label": "Endwall width",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "Endwall outside exterior beam, typical"
    },
    {
      "label": "Endwall width",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "Endwall"
    },
    {
      "label": "Paving rest width",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "Paving rest"
    },
    {
      "label": "Gutter to gutter",
      "value": "40'-0\"",
      "unit": "ft-in",
      "appliesTo": "Roadway width, both roadways"
    },
    {
      "label": "Out to out",
      "value": "43'-7\"",
      "unit": "ft-in",
      "appliesTo": "Deck width, both roadways"
    },
    {
      "label": "Edge offset",
      "value": "1'-9 1/2\"",
      "unit": "ft-in",
      "appliesTo": "Edge distance, both roadways (multiple locations)"
    },
    {
      "label": "Roadway offset",
      "value": "22'-0\"",
      "unit": "ft-in",
      "appliesTo": "Half-width dimension, both roadways"
    },
    {
      "label": "Fence post spacing (lower edge)",
      "value": "6'-2 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Westbound roadway lower edge, first spacing"
    },
    {
      "label": "Fence post spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Westbound lower edge (x2)"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound lower edge"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-9\"",
      "unit": "ft-in",
      "appliesTo": "Westbound lower edge (x2)"
    },
    {
      "label": "End spacing",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Westbound lower edge end"
    },
    {
      "label": "End post width",
      "value": "4'-6\"",
      "unit": "ft-in",
      "appliesTo": "End post, westbound lower edge"
    },
    {
      "label": "Segment length",
      "value": "17'-2 3/4\"",
      "unit": "ft-in",
      "appliesTo": "Westbound lower edge segment"
    },
    {
      "label": "Segment length",
      "value": "17'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Westbound lower edge segment (x2)"
    },
    {
      "label": "Total length",
      "value": "51'-8 3/8\"",
      "unit": "ft-in",
      "appliesTo": "Westbound lower edge total"
    },
    {
      "label": "Bearing",
      "value": "N 83°-43'-21.7\" E",
      "unit": "bearing",
      "appliesTo": "Construction centerline SR 21"
    },
    {
      "label": "Total length",
      "value": "52'-2 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound roadway upper edge total"
    },
    {
      "label": "Segment length",
      "value": "17'-5 1/4\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound upper edge segment (x2)"
    },
    {
      "label": "Segment length",
      "value": "17'-4 5/16\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound upper edge segment"
    },
    {
      "label": "Fence post spacing",
      "value": "6'-8 13/16\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound roadway upper edge, first spacing"
    },
    {
      "label": "Fence post spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound upper edge (x2)"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound upper edge"
    },
    {
      "label": "Fence post spacing",
      "value": "8'-9\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound upper edge (x2)"
    },
    {
      "label": "End spacing",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound upper edge end"
    },
    {
      "label": "End post width",
      "value": "4'-3\"",
      "unit": "ft-in",
      "appliesTo": "End post, eastbound upper edge"
    },
    {
      "label": "Fence post spacing",
      "value": "6'-6\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound roadway lower edge, first spacing"
    },
    {
      "label": "Fence post spacing",
      "value": "9'-6\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound lower edge (repeated 5 times)"
    },
    {
      "label": "End spacing",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound lower edge end"
    },
    {
      "label": "Segment width",
      "value": "18'-4\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound roadway (3 segments)"
    },
    {
      "label": "Overall deck width",
      "value": "55'-0\"",
      "unit": "ft-in",
      "appliesTo": "Eastbound roadway (bottom)"
    }
  ],
  "notes": [
    "FENCE POST SPACING",
    "8\" FILLET, TYP.",
    "1'-0\" EDGEBEAM, TYP.",
    "10\" CONCRETE DIAPHRAGM, TYP.",
    "81°-20'-05.0\", TYP.",
    "3'-0\" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.",
    "1'-6\" ENDWALL",
    "12\" PAVING REST",
    "END POST"
  ],
  "labels": [
    "DECK PLAN",
    "SPAN 3",
    "CONSTRUCTION ℄ SR 21",
    "PGL WESTBOUND",
    "PGL EASTBOUND",
    "GUTTER TO GUTTER",
    "OUT TO OUT",
    "B.F.P.R. BENT 4"
  ],
  "description": "This crop is a plan view titled 'DECK PLAN' for 'SPAN 3' of a bridge, showing the deck geometry for two parallel roadways (westbound and eastbound) each supported on six beams (Beams 1-6 and 7-12). It details fence post spacing, edgebeam, concrete diaphragm, fillet, endwall, and paving rest dimensions along the skewed deck edges, along with overall width, gutter-to-gutter, and out-to-out dimensions, plus a construction centerline bearing and skew angle for SR 21."
}

p06_r01Plan

  • Endwall×4linear, 1'-6" and 3'-0" widthsconcrete (implied)1'-6" endwall and 3'-0" endwall outside exterior beam, at both ends of each roadway.

55'-0" ft-in Overall deck width18'-4" ft-in Segment width6'-6" ft-in Fence post spacing9'-6" ft-in Fence post spacing1'-0" ft-in Fence post spacing (end)5'-0" ft-in Post bracket spacing81°-20'-05.0" degrees-min-sec Skew angle10" in Diaphragm thickness+33 more

Page 8

crop

p08_r01 for further details see georgia dot spec

page 8 · gdot_plan_649084f395824aaebf1f5ed48132696f_p08_r01_for_further_details_see_georgia_dot_spec
Original
p08_r01 for further details see georgia dot spec
{
  "view": "Detail",
  "objects": [
    {
      "name": "Endwall",
      "tag": "3'-0\" ENDWALL",
      "shape": "rectangular/tapered",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Shown in Section Thru Endwall at left side of deck"
    },
    {
      "name": "Endwall",
      "tag": "1'-6\" ENDWALL",
      "shape": "rectangular/tapered",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Shown in Section Thru Endwall, inboard of 3'-0\" endwall"
    },
    {
      "name": "Deck slab",
      "tag": "SLAB",
      "shape": "tapered, cross-slope 2%",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Spans full width shown, SR 21 WB = PGL centerline marked"
    },
    {
      "name": "Girder/Beam",
      "tag": "",
      "shape": "bulb-tee / I-section (PSC beam)",
      "material": "precast concrete",
      "count": 5,
      "note": "Repeating beam sections shown under deck slab; rebar marks 900A/900B point to beam tops"
    },
    {
      "name": "Preformed joint filler",
      "tag": "",
      "shape": "strip",
      "material": "preformed foam/elastomeric",
      "count": 3,
      "note": "1/2\" preformed joint filler (typ.) and 1\" preformed foam joint filler around pad"
    },
    {
      "name": "Construction joint",
      "tag": "",
      "shape": "linear joint",
      "material": "",
      "count": 1,
      "note": "Required construction joint parallel with deck, 1\" gap min."
    },
    {
      "name": "Barrier",
      "tag": "",
      "shape": "tapered/rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Shown in Fence Elevation and Fence Post Detail, supports fence"
    },
    {
      "name": "End post (fence)",
      "tag": "",
      "shape": "vertical pipe",
      "material": "galvanized/zinc coated steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "Pull post (fence)",
      "tag": "",
      "shape": "2 7/8\" dia pipe",
      "material": "zinc coated steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "Fence post (typical vertical)",
      "tag": "",
      "shape": "2 7/8\" dia pipe, curved top 45°",
      "material": "zinc coated steel",
      "count": null,
      "note": "Post spaced per Fence Notes 6, curved top detail with 2'-6\" R"
    },
    {
      "name": "Tension bar",
      "tag": "",
      "shape": "1 5/8\" dia pipe",
      "material": "zinc coated steel",
      "count": null,
      "note": ""
    },
    {
      "name": "Truss bracing",
      "tag": "",
      "shape": "diagonal 1 5/8\" dia pipe",
      "material": "zinc coated steel",
      "count": null,
      "note": "At end or pull post"
    },
    {
      "name": "Chain link fence fabric",
      "tag": "",
      "shape": "woven mesh",
      "material": "zinc coated steel, 9 gage",
      "count": 1,
      "note": "Security fence, 2 inch mesh"
    },
    {
      "name": "Pipe sleeve",
      "tag": "",
      "shape": "circular",
      "material": "galvanized steel",
      "count": 1,
      "note": "4\" dia. std. wt. pipe sleeve cast in barrier"
    },
    {
      "name": "End bent cap/section",
      "tag": "END BENT 1",
      "shape": "as detailed in Section at Endwall",
      "material": "reinforced concrete",
      "count": 1,
      "note": "End Bent 4 similar per note"
    },
    {
      "name": "Reinforcement bar",
      "tag": "900A",
      "shape": "bent bar",
      "material": "reinforcement steel",
      "count": null,
      "note": "4-900A called out at girder top"
    },
    {
      "name": "Reinforcement bar",
      "tag": "900B",
      "shape": "bent bar",
      "material": "reinforcement steel",
      "count": null,
      "note": "4-900B called out at girder tops, two locations"
    },
    {
      "name": "Reinforcement bar",
      "tag": "401",
      "shape": "bar",
      "material": "reinforcement steel",
      "count": null,
      "note": "4-401 shown in Section at Endwall; series not shown in main section per note"
    },
    {
      "name": "Reinforcement bar",
      "tag": "504A",
      "shape": "bar",
      "material": "reinforcement steel",
      "count": null,
      "note": "2-504A AT END"
    },
    {
      "name": "Reinforcement bar",
      "tag": "504B",
      "shape": "bar",
      "material": "reinforcement steel",
      "count": null,
      "note": "8-504B AT 12\"± BETWEEN BEAMS"
    },
    {
      "name": "Reinforcement bar",
      "tag": "505",
      "shape": "bar",
      "material": "reinforcement steel",
      "count": null,
      "note": "1-505 shown"
    },
    {
      "name": "Reinforcement bar",
      "tag": "506A",
      "shape": "bar",
      "material": "reinforcement steel",
      "count": null,
      "note": ""
    },
    {
      "name": "Reinforcement bar",
      "tag": "506B",
      "shape": "bar",
      "material": "reinforcement steel",
      "count": null,
      "note": "506B AT 18\"± ALT. TO GIVE 9\" SP."
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Called out as 'BEARING NOT S[HOWN]' - not depicted, text partial/cut off"
    },
    {
      "name": "Slab reinforcement",
      "tag": "",
      "shape": "",
      "material": "reinforcement steel",
      "count": null,
      "note": "Noted as not shown in Section at Endwall"
    }
  ],
  "measurements": [
    {
      "label": "Overhang width",
      "value": "1 1/2",
      "unit": "in",
      "appliesTo": "Section Thru Endwall, left edge"
    },
    {
      "label": "Width",
      "value": "1'-8\"",
      "unit": "ft-in",
      "appliesTo": "Section Thru Endwall, left edge"
    },
    {
      "label": "Width",
      "value": "34'-0\"",
      "unit": "ft-in",
      "appliesTo": "Section Thru Endwall, main span"
    },
    {
      "label": "Width",
      "value": "6'-8\"",
      "unit": "ft-in",
      "appliesTo": "Section Thru Endwall, right side"
    },
    {
      "label": "Width",
      "value": "1'-1\"",
      "unit": "ft-in",
      "appliesTo": "Section Thru Endwall, right edge"
    },
    {
      "label": "Barrier height at right",
      "value": "3'-6\"",
      "unit": "ft-in",
      "appliesTo": "Section Thru Endwall right barrier"
    },
    {
      "label": "Cross slope",
      "value": "2",
      "unit": "%",
      "appliesTo": "Deck slab"
    },
    {
      "label": "Gap min.",
      "value": "1",
      "unit": "in",
      "appliesTo": "Construction joint at deck"
    },
    {
      "label": "Joint filler thickness",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "Preformed joint filler, typical"
    },
    {
      "label": "Joint filler thickness",
      "value": "1",
      "unit": "in",
      "appliesTo": "Preformed foam joint filler around pad"
    },
    {
      "label": "Post spacing max",
      "value": "12",
      "unit": "in",
      "appliesTo": "Tension bar bands O.C. max"
    },
    {
      "label": "Pipe diameter",
      "value": "1 5/8",
      "unit": "in",
      "appliesTo": "Tension bar/truss bracing pipe, zinc coated"
    },
    {
      "label": "Pipe diameter",
      "value": "2 7/8",
      "unit": "in",
      "appliesTo": "Fence pipe, typical"
    },
    {
      "label": "Pull post width",
      "value": "2 7/8",
      "unit": "in",
      "appliesTo": "Pull post diameter"
    },
    {
      "label": "Offset",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence elevation, base dimension"
    },
    {
      "label": "Offset",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "Offset dimension in fence elevation"
    },
    {
      "label": "Fence height",
      "value": "5'-1\"",
      "unit": "ft-in",
      "appliesTo": "Fence Post Detail"
    },
    {
      "label": "Fence height",
      "value": "4'-7\"",
      "unit": "ft-in",
      "appliesTo": "Fence Post Detail"
    },
    {
      "label": "Total height",
      "value": "10'-4\"",
      "unit": "ft-in",
      "appliesTo": "Fence Post Detail total"
    },
    {
      "label": "Fence height",
      "value": "7'-0\"",
      "unit": "ft-in",
      "appliesTo": "Zinc coated fence height"
    },
    {
      "label": "Base height",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence Post Detail base"
    },
    {
      "label": "Barrier height",
      "value": "3'-6\"",
      "unit": "ft-in",
      "appliesTo": "Fence Post Detail barrier"
    },
    {
      "label": "Curve radius",
      "value": "2'-6\"",
      "unit": "ft-in",
      "appliesTo": "Fence Post Detail curved top, R"
    },
    {
      "label": "Angle",
      "value": "45",
      "unit": "degrees",
      "appliesTo": "Fence Post Detail curved top"
    },
    {
      "label": "Offset dimension",
      "value": "10 1/4\"",
      "unit": "in",
      "appliesTo": "Fence Post Detail"
    },
    {
      "label": "Pipe sleeve diameter",
      "value": "4",
      "unit": "in",
      "appliesTo": "Pipe sleeve, std wt"
    },
    {
      "label": "Section at Endwall width",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "Section at Endwall top dimension"
    },
    {
      "label": "Section at Endwall width",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "Section at Endwall"
    },
    {
      "label": "Section at Endwall width",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "Section at Endwall"
    },
    {
      "label": "Radius",
      "value": "1/4\"",
      "unit": "in",
      "appliesTo": "Section at Endwall, R"
    },
    {
      "label": "Clear cover",
      "value": "3 1/2",
      "unit": "in min",
      "appliesTo": "Section at Endwall min. clearance"
    },
    {
      "label": "Depth",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "Section at Endwall"
    },
    {
      "label": "Depth",
      "value": "9\"",
      "unit": "in",
      "appliesTo": "Section at Endwall"
    },
    {
      "label": "Depth",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "Section at Endwall"
    },
    {
      "label": "Depth",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "Section at Endwall"
    },
    {
      "label": "Clearance",
      "value": "2\" CL. 3 SIDES",
      "unit": "in",
      "appliesTo": "Section at Endwall reinforcement clearance"
    },
    {
      "label": "Spacing",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "Section at Endwall dimension near 506A"
    },
    {
      "label": "Bar spacing",
      "value": "18\"±",
      "unit": "in",
      "appliesTo": "506B bar spacing"
    },
    {
      "label": "Alt spacing",
      "value": "9\"",
      "unit": "in",
      "appliesTo": "506B alternate spacing"
    },
    {
      "label": "Bar spacing",
      "value": "12\"±",
      "unit": "in",
      "appliesTo": "504B bar spacing between beams"
    },
    {
      "label": "Post fastening interval max",
      "value": "14",
      "unit": "in",
      "appliesTo": "Fence fabric fastening (Fence Note 5)"
    },
    {
      "label": "Post spacing min",
      "value": "7'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing minimum (Fence Note 6)"
    },
    {
      "label": "Post spacing max",
      "value": "10'-0\"",
      "unit": "ft-in",
      "appliesTo": "Fence post spacing maximum (Fence Note 6)"
    },
    {
      "label": "Post distance from joint",
      "value": "1'-0\"",
      "unit": "ft-in min",
      "appliesTo": "Fence post minimum distance from barrier joints (Fence Note 6)"
    }
  ],
  "notes": [
    "NOTE: BARS 401, 504 SERIES, 505, AND 506 SERIES NOT SHOWN",
    "FENCE NOTES:",
    "1. FENCE SHALL BE 9 GAGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.",
    "2. CAST 4\" DIA. GALVANIZED SLEEVE IN THE PARAPET. ALLOW NON-SHRINK, NON-METALLIC GROUT TO CURE FOR THREE DAYS BEFORE FENCE FABRIC IS INSTALLED.",
    "3. APPLY GALVANIZING REPAIR COMPOUND, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATION 645, TO ENDS OF 4\" DIA. GALVANIZED SLEEVES.",
    "4. PROVIDE EXPANSION SLEEVE FOR ALL RAILS TO MATCH SUPERSTRUCTURE JOINTS.",
    "5. FASTEN FABRIC TO POSTS AT INTERVALS NOT GREATER THAN 14\".",
    "6. SPACE POSTS AT A MINIMUM OF 7'-0\" AND A MAXIMUM OF 10'-0\". PLACE POSTS 1'-0\" MINIMUM FROM JOINTS IN BARRIER. SEE DECK PLAN FOR POST SPACING.",
    "7. FOR FURTHER DETAILS, SEE GEORGIA DOT SPECIFICATIONS SECTIONS 643 AND 894.",
    "WATERPROOFING, SEE SECTION 530 OF THE GEORGIA DOT SPECIFICATIONS",
    "SLAB REINFORCEMENT NOT SHOWN",
    "END BENT 1 SHOWN, END BENT 4 SIMILAR",
    "* NON-SHRINK, NON-METALLIC PORTLAND CEMENT GROUT IN ACCORDANCE WITH ASTM C1107, TROWEL TO PROVIDE POSITIVE DRAINAGE.",
    "REQUIRED CONSTRUCTION JOINT PARALLEL WITH DECK, TYP."
  ],
  "labels": [
    "SECTION THRU ENDWALL",
    "(LOOKING AHEAD, LEFT BRIDGE SHOWN, RIGHT BRIDGE SIMILAR)",
    "FENCE ELEVATION",
    "SCALE: 3/4\" = 1'-0\"",
    "FENCE POST DETAIL",
    "SECTION AT ENDWALL",
    "SCALE: 3/4\" = 1'-0\"",
    "SR 21 WB = PGL",
    "END POST",
    "CONST. JOINT",
    "BARRIER",
    "SLAB",
    "ZINC COATED FENCE",
    "TENSION BAR BANDS AT 12\" O.C. MAX.",
    "TENSION BAR ZINC COATED",
    "1 5/8\" DIA. PIPE ZINC COATED",
    "2 7/8\" DIA. PIPE, TYP.",
    "TRUSS BRACING AT END OR PULL",
    "POST VERT. ZINC COATED",
    "2 7/8\" PULL POST",
    "1/2\" OFFSET",
    "4\" DIA. STD. WT. PIPE SLEEVE",
    "7'-0\" ZINC COATED FENCE",
    "2 7/8\" DIA. PIPE"
  ],
  "description": "This sheet contains four related details for a bridge structure: a full-width Section Thru Endwall showing the deck cross-slope, precast beams, endwalls and joint fillers with rebar callouts 900A/900B; a Fence Elevation and Fence Post Detail showing chain link security fence construction with tension bars, truss bracing, and post dimensions atop a concrete barrier; and a Section at Endwall (End Bent 1, similar at End Bent 4) showing end bent reinforcement details (bars 900, 401, 504A, 504B, 506A, 506B, 505) with bearing area and waterproofing notes. It documents deck cross-section geometry, endwall/joint details, security fence construction requirements per Georgia DOT specifications, and end bent reinforcement layout for the barrier and beam seat area."
}

p08_r01 for further details see georgia dot specDetail

  • Endwall3'-0" ENDWALL×1rectangular/taperedreinforced concreteShown in Section Thru Endwall at left side of deck
  • Endwall1'-6" ENDWALL×1rectangular/taperedreinforced concreteShown in Section Thru Endwall, inboard of 3'-0" endwall

1 1/2 in Overhang width1'-8" ft-in Width34'-0" ft-in Width6'-8" ft-in Width1'-1" ft-in Width3'-6" ft-in Barrier height at right2 % Cross slope1 in Gap min.+36 more

crop

p08_r01

page 8 · other_p08_r01
Original
p08_r01
{
  "view": "Detail",
  "objects": [
    {
      "name": "Endwall",
      "tag": "3'-0\" ENDWALL",
      "shape": "rectangular/tapered",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Larger endwall shown at left of section thru endwall"
    },
    {
      "name": "Endwall",
      "tag": "1'-6\" ENDWALL",
      "shape": "rectangular/tapered",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Smaller endwall shown at right side of deck"
    },
    {
      "name": "Girder",
      "tag": "",
      "shape": "I-girder",
      "material": "structural steel or precast concrete",
      "count": 6,
      "note": "Repeated girder sections shown in Section Thru Endwall"
    },
    {
      "name": "Deck slab",
      "tag": "",
      "shape": "rectangular",
      "material": "reinforced concrete",
      "count": 1,
      "note": ""
    },
    {
      "name": "Reinforcement bar",
      "tag": "4-900B",
      "shape": "",
      "material": "reinforced steel",
      "count": 2,
      "note": "Located at each endwall"
    },
    {
      "name": "Reinforcement bar",
      "tag": "4-900A",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": "Located mid-span area of section"
    },
    {
      "name": "Preformed joint filler",
      "tag": "",
      "shape": "strip",
      "material": "preformed elastomeric material",
      "count": 3,
      "note": "1/2\" and 1\" thicknesses noted at joints and around pad"
    },
    {
      "name": "Construction joint",
      "tag": "",
      "shape": "linear",
      "material": "",
      "count": 1,
      "note": "Required construction joint parallel with deck"
    },
    {
      "name": "Barrier",
      "tag": "",
      "shape": "tapered/rectangular",
      "material": "reinforced concrete",
      "count": 2,
      "note": "Shown in Fence Elevation and Fence Post Detail atop slab"
    },
    {
      "name": "Fence",
      "tag": "",
      "shape": "chain link with pipe posts",
      "material": "zinc coated steel",
      "count": 1,
      "note": "9 gage chain link security fence per notes"
    },
    {
      "name": "Fence post",
      "tag": "",
      "shape": "pipe, curved top",
      "material": "zinc coated steel",
      "count": 1,
      "note": "2 7/8\" dia. pipe pull post with truss bracing"
    },
    {
      "name": "Pipe sleeve",
      "tag": "",
      "shape": "circular",
      "material": "galvanized steel",
      "count": 1,
      "note": "4\" dia. std. wt. pipe sleeve cast in parapet"
    },
    {
      "name": "Tension bar",
      "tag": "",
      "shape": "linear",
      "material": "zinc coated steel",
      "count": 1,
      "note": "Tension bar bands at 12\" o.c. max."
    },
    {
      "name": "Truss bracing",
      "tag": "",
      "shape": "diagonal",
      "material": "zinc coated steel",
      "count": 1,
      "note": "At end or pull post"
    },
    {
      "name": "End Bent",
      "tag": "END BENT 1 / END BENT 4",
      "shape": "",
      "material": "reinforced concrete",
      "count": 1,
      "note": "Section at Endwall shows End Bent 1; End Bent 4 similar per note"
    },
    {
      "name": "Reinforcement bar",
      "tag": "1-505",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": "Shown in Section at Endwall"
    },
    {
      "name": "Reinforcement bar",
      "tag": "506B",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": "At 18\" spacing, alt. to give 9\" sp."
    },
    {
      "name": "Reinforcement bar",
      "tag": "506A",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "Reinforcement bar",
      "tag": "4-900",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "Reinforcement bar",
      "tag": "8-504B",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": "At 12\"± between beams"
    },
    {
      "name": "Reinforcement bar",
      "tag": "2-504A",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": "At end of beam (text cut off)"
    },
    {
      "name": "Reinforcement bar",
      "tag": "4-401",
      "shape": "",
      "material": "reinforced steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "Bearing",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Labeled 'BEARING NOT SH[OWN]', partially cut off"
    },
    {
      "name": "Waterproofing",
      "tag": "",
      "shape": "",
      "material": "per Section 530 Georgia DOT Specifications",
      "count": null,
      "note": "Callout only, not detailed as an item"
    }
  ],
  "measurements": [
    {
      "label": "Width",
      "value": "1 1/2",
      "unit": "in",
      "appliesTo": "gap at left edge of section"
    },
    {
      "label": "Width",
      "value": "1'-8\"",
      "unit": "ft-in",
      "appliesTo": "left endwall region"
    },
    {
      "label": "Length",
      "value": "34'-0\"",
      "unit": "ft-in",
      "appliesTo": "deck section thru endwall span"
    },
    {
      "label": "Width",
      "value": "6'-8\"",
      "unit": "ft-in",
      "appliesTo": "right side of deck near endwall"
    },
    {
      "label": "Width",
      "value": "1'-1\"",
      "unit": "ft-in",
      "appliesTo": "right edge of section"
    },
    {
      "label": "Height",
      "value": "3'-6\"",
      "unit": "ft-in",
      "appliesTo": "right endwall parapet height"
    },
    {
      "label": "Slope",
      "value": "2%",
      "unit": "%",
      "appliesTo": "deck cross slope"
    },
    {
      "label": "Gap",
      "value": "1\"",
      "unit": "in",
      "appliesTo": "required construction joint gap, min."
    },
    {
      "label": "Joint filler thickness",
      "value": "1/2\"",
      "unit": "in",
      "appliesTo": "preformed joint filler, typ."
    },
    {
      "label": "Joint filler thickness",
      "value": "1\"",
      "unit": "in",
      "appliesTo": "preformed foam joint filler around pad"
    },
    {
      "label": "Endwall height",
      "value": "3'-0\"",
      "unit": "ft-in",
      "appliesTo": "3'-0\" ENDWALL"
    },
    {
      "label": "Endwall height",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "1'-6\" ENDWALL"
    },
    {
      "label": "Fence fabric interval",
      "value": "14",
      "unit": "in",
      "appliesTo": "fence fastening interval, max"
    },
    {
      "label": "Post spacing minimum",
      "value": "7'-0\"",
      "unit": "ft-in",
      "appliesTo": "fence posts, min."
    },
    {
      "label": "Post spacing maximum",
      "value": "10'-0\"",
      "unit": "ft-in",
      "appliesTo": "fence posts, max."
    },
    {
      "label": "Post offset from joint",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "fence posts min from barrier joints"
    },
    {
      "label": "Tension bar band spacing",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "tension bar bands o.c. max."
    },
    {
      "label": "Pipe diameter",
      "value": "1 5/8\"",
      "unit": "in",
      "appliesTo": "pipe, zinc coated (fence)"
    },
    {
      "label": "Pipe diameter",
      "value": "2 7/8\"",
      "unit": "in",
      "appliesTo": "pipe, typ. (fence posts)"
    },
    {
      "label": "Offset",
      "value": "1/2\"",
      "unit": "in",
      "appliesTo": "offset dimension in fence elevation"
    },
    {
      "label": "Distance",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "end post/const joint spacing"
    },
    {
      "label": "Radius",
      "value": "2'-6\"",
      "unit": "ft-in",
      "appliesTo": "fence post curve radius"
    },
    {
      "label": "Angle",
      "value": "45°",
      "unit": "degrees",
      "appliesTo": "fence post bend angle"
    },
    {
      "label": "Dimension",
      "value": "10 1/4\"",
      "unit": "in",
      "appliesTo": "fence post detail"
    },
    {
      "label": "Height",
      "value": "5'-1\"",
      "unit": "ft-in",
      "appliesTo": "fence post detail"
    },
    {
      "label": "Height",
      "value": "4'-7\"",
      "unit": "ft-in",
      "appliesTo": "fence post height"
    },
    {
      "label": "Height",
      "value": "10'-4\"",
      "unit": "ft-in",
      "appliesTo": "overall fence post detail height"
    },
    {
      "label": "Fence height",
      "value": "7'-0\"",
      "unit": "ft",
      "appliesTo": "zinc coated fence"
    },
    {
      "label": "Distance",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "fence post detail lower dimension"
    },
    {
      "label": "Barrier height",
      "value": "3'-6\"",
      "unit": "ft-in",
      "appliesTo": "barrier in fence post detail"
    },
    {
      "label": "Pipe sleeve diameter",
      "value": "4\"",
      "unit": "in",
      "appliesTo": "pipe sleeve, std wt."
    },
    {
      "label": "Clear cover",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "CL. 3 SIDES, section at endwall"
    },
    {
      "label": "Minimum clearance",
      "value": "3 1/2\"",
      "unit": "in",
      "appliesTo": "506B min. clearance"
    },
    {
      "label": "Dimension",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "section at endwall top dimension"
    },
    {
      "label": "Dimension",
      "value": "1'-6\"",
      "unit": "ft-in",
      "appliesTo": "section at endwall dimension"
    },
    {
      "label": "Dimension",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "section at endwall dimension"
    },
    {
      "label": "Dimension",
      "value": "10\"",
      "unit": "in",
      "appliesTo": "section at endwall vertical dimension"
    },
    {
      "label": "Dimension",
      "value": "9\"",
      "unit": "in",
      "appliesTo": "section at endwall vertical dimension"
    },
    {
      "label": "Dimension",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "section at endwall vertical dimension"
    },
    {
      "label": "Dimension",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "section at endwall lower dimension"
    },
    {
      "label": "Spacing",
      "value": "18\"",
      "unit": "in",
      "appliesTo": "506B rebar spacing, approx."
    },
    {
      "label": "Spacing",
      "value": "9\"",
      "unit": "in",
      "appliesTo": "506B alt. spacing to give"
    },
    {
      "label": "Spacing",
      "value": "12\"",
      "unit": "in",
      "appliesTo": "8-504B spacing between beams, approx."
    },
    {
      "label": "Radius",
      "value": "1/4\"",
      "unit": "in",
      "appliesTo": "corner radius, section at endwall"
    },
    {
      "label": "Scale",
      "value": "3/4\" = 1'-0\"",
      "unit": "",
      "appliesTo": "Fence Elevation, Fence Post Detail, Section at Endwall"
    }
  ],
  "notes": [
    "NOTE: BARS 401, 504 SERIES, 505, AND 506 SERIES NOT SHOWN",
    "FENCE NOTES:",
    "1. FENCE SHALL BE 9 GAGE CHAIN LINK ZINC COATED TWO INCH SECURITY FENCE.",
    "2. CAST 4\" DIA. GALVANIZED SLEEVE IN THE PARAPET. ALLOW NON-SHRINK, NON-METALLIC GROUT TO CURE FOR THREE DAYS BEFORE FENCE FABRIC IS INSTALLED.",
    "3. APPLY GALVANIZING REPAIR COMPOUND, IN ACCORDANCE WITH GEORGIA DOT SPECIFICATION 645, TO ENDS OF 4\" DIA. GALVANIZED SLEEVES.",
    "4. PROVIDE EXPANSION SLEEVE FOR ALL RAILS TO MATCH SUPERSTRUCTURE JOINTS.",
    "5. FASTEN FABRIC TO POSTS AT INTERVALS NOT GREATER THAN 14\".",
    "6. SPACE POSTS AT A MINIMUM OF 7'-0\" AND A MAXIMUM OF 10'-0\". PLACE POSTS 1'-0\" MINIMUM FROM JOINTS IN BARRIER. SEE DECK PLAN FOR POST SPACING.",
    "7. FOR FURTHER DETAILS, SEE GEORGIA DOT SPECIFICATIONS SECTIONS 643 AND 894.",
    "WATERPROOFING, SEE SECTION 530 OF THE GEORGIA DOT SPECIFICATIONS",
    "SLAB REINFORCEMENT NOT SHOWN",
    "* NON-SHRINK, NON-METALLIC PORTLAND CEMENT GROUT IN ACCORDANCE WITH ASTM C1107, TROWEL TO PROVIDE POSITIVE DRAINAGE.",
    "END BENT 1 SHOWN, END BENT 4 SIMILAR"
  ],
  "labels": [
    "SECTION THRU ENDWALL",
    "(LOOKING AHEAD, LEFT BRIDGE SHOWN, RIGHT BRIDGE SIMILAR)",
    "SR 21 WB = PGL",
    "FENCE ELEVATION",
    "FENCE POST DETAIL",
    "SECTION AT ENDWALL",
    "SCALE: 3/4\" = 1'-0\"",
    "BARRIER",
    "SLAB",
    "END POST",
    "CONST. JOINT",
    "TENSION BAR ZINC COATED",
    "ZINC COATED FENCE",
    "POST VERT. ZINC COATED",
    "TRUSS BRACING AT END OR PULL",
    "2 7/8\" PULL POST",
    "4\" DIA. STD. WT. PIPE SLEEVE",
    "7'-0\" ZINC COATED FENCE",
    "BEARING NOT SH[OWN]"
  ],
  "description": "This crop contains multiple bridge structural details: a full-width cross section thru an endwall showing girders, deck slab, endwall heights, and joint fillers with rebar marks (4-900A/B); a set of fence notes governing chain link security fence construction; a fence elevation and fence post detail showing pipe post dimensions and bracing; and a section at the endwall (End Bent 1/4) showing reinforcement bars, bearing area (not shown), and waterproofing callout. The sheet appears to document both superstructure endwall/deck geometry and appurtenant fence/security barrier details for a bridge, likely along SR 21."
}

p08_r01Detail

  • Endwall3'-0" ENDWALL×1rectangular/taperedreinforced concreteLarger endwall shown at left of section thru endwall
  • Endwall1'-6" ENDWALL×1rectangular/taperedreinforced concreteSmaller endwall shown at right side of deck

1 1/2 in Width1'-8" ft-in Width34'-0" ft-in Length6'-8" ft-in Width1'-1" ft-in Width3'-6" ft-in Height2% % Slope1" in Gap+37 more

Page 12

crop

p12_r01 endwall

page 12 · gdot_plan_649084f395824aaebf1f5ed48132696f_p12_r01_endwall
Original
p12_r01 endwall
{
  "view": "Plan",
  "objects": [
    {
      "name": "Bearing pad",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Shown hatched at skewed intersection with beam; centerline noted as coincident with beveled shim plate centerline"
    },
    {
      "name": "Beveled shim plate",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Centerline coincides with bearing pad centerline; shown dashed outline"
    },
    {
      "name": "Beam",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Shown in plan with parallel edge lines; centerline (CL BEAM) marked"
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "trapezoidal",
      "material": "",
      "count": 1,
      "note": "Skewed plan outline labeled ENDWALL, bounded by B.F.P.R. line"
    },
    {
      "name": "Section cut line",
      "tag": "A-A",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Section arrows labeled A at top and bottom indicating cutting plane through beam/bearing area"
    }
  ],
  "measurements": [
    {
      "label": "Shim plate thickness/offset",
      "value": "1",
      "unit": "in",
      "appliesTo": "Beveled shim plate"
    }
  ],
  "notes": [
    "ℂ BEARING PAD = ℂ BEVELED SHIM PLATE",
    "ℂ BEARING",
    "ℂ BEAM",
    "B.F.P.R."
  ],
  "labels": [
    "ENDWALL",
    "A"
  ],
  "description": "This crop is a plan view detail showing the skewed relationship between a bearing pad/beveled shim plate assembly and a beam centerline at an endwall, with a section cut (A-A) indicated through the bearing area. It documents the geometric alignment of the bearing pad, shim plate, and beam centerlines relative to the back face of pavement/roadway (B.F.P.R.) at the endwall, including a 1-inch dimension callout near the bearing detail. No overall structure, full endwall geometry, or additional dimensions are visible in this fragment."
}

p12_r01 endwallPlan

  • Endwall×1trapezoidalSkewed plan outline labeled ENDWALL, bounded by B.F.P.R. line

1 in Shim plate thickness/offset

crop

p12_r01

page 12 · other_p12_r01
Original
p12_r01
{
  "view": "Plan",
  "objects": [
    {
      "name": "Bearing pad / beveled shim plate assembly",
      "tag": "",
      "shape": "rectangular",
      "material": "",
      "count": 1,
      "note": "Shown in plan with hatched/dashed outline near endwall, at intersection of skewed centerlines for bearing, bearing pad, and beveled shim plate."
    },
    {
      "name": "Endwall",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Labeled with B.F.P.R. callout at edge of skewed wall."
    },
    {
      "name": "Beam",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Centerline of beam shown, offset from bearing/bearing pad centerline due to skew."
    },
    {
      "name": "Section cut line",
      "tag": "A-A",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Section arrows labeled A at top and bottom indicating a section cut through the assembly."
    }
  ],
  "measurements": [
    {
      "label": "Offset dimension",
      "value": "1",
      "unit": "in",
      "appliesTo": "bearing pad/plate assembly"
    }
  ],
  "notes": [],
  "labels": [
    "C BEARING PAD =",
    "C BEVELED SHIM PLATE",
    "C BEARING",
    "C BEAM",
    "B.F.P.R.",
    "ENDWALL",
    "A"
  ],
  "description": "This crop is a plan view detail showing the relative alignment of the bearing pad centerline, beveled shim plate centerline, bearing centerline, and beam centerline at a skewed endwall, with a 1-inch offset dimension called out. Section cut markers labeled A-A indicate where an associated section view is taken through the bearing assembly. The B.F.P.R. and ENDWALL labels identify the wall edge relative to which the bearing components are positioned."
}

p12_r01Plan

  • Endwall×1Labeled with B.F.P.R. callout at edge of skewed wall.

1 in Offset dimension
