Matched toPier Capbridge.substructure.pier_system.pier_capon “Bent Cap”
| The class asks for | Value | How | From |
|---|---|---|---|
| LengthLwants m/mm | 44'-1 1/16" (Bent 1 and Bent 4 caps); 42'-6" (Bent 2 caps and the two generic BENT plan caps) ft-inThe drawings show two bent-cap length types. Bent 1 and Bent 4 plan views explicitly dimension each left/right cap at 44'-1 1/16". Bent 2 left/right and the two generic BENT plan caps are explicitly dimensioned 42'-6". | read | p13 · p13_r01 title blockp14 · p14_r01 planp17 · p17_r01 title blockp15 · p15_r01 |
| WidthWwants m/mm | 3'-0" (Bent 1 and Bent 4 end-bent cap sections); 4'-3" (Bent 2/Bent 3-type cap sections) ft-inSection B-B for the end-bent cap explicitly gives a 3'-0" cap width. The separate Section A-A / Section B-B detail for the Bent 2/Bent 3-type cap explicitly gives an overall width of 4'-3". | read | p13 · p13_r05 section b bp16 · p16_r01 section a ap17 · p17_r05 section b b |
| ThicknessTwants m/mm | 2'-0" MIN. (Bent 1 and Bent 4 end-bent cap sections); 4'-0" MIN. (Bent 2/Bent 3-type cap sections) ft-inThe end-bent Section B-B explicitly states cap depth 2'-0" MIN. The Bent 2 elevation and the Bent 2/Bent 3-type cap section explicitly state a 4'-0" minimum cap depth. | read | p13 · p13_r05 section b bp14 · p14_r02 title blockp16 · p16_r01 section a ap17 · p17_r05 section b b |
| Instance CountNwants count | 8 count2 Bent 1 caps (BENT 1 RIGHT + BENT 1 LEFT) + 2 Bent 2 caps (BENT 2 LEFT + BENT 2 RIGHT) + 2 generic BENT caps shown in the two-plan view + 2 Bent 4 caps (BENT 4 LEFT + BENT 4 RIGHT) = 8.Each cited plan identifies two separate bent-cap instances: left and right caps for Bent 1, Bent 2, and Bent 4, plus two separate generic BENT cap plans on page 15. | derived | p13 · p13_r01 title blockp14 · p14_r01 planp15 · p15_r01p17 · p17_r01 title block |
| Concrete Gradefck | Class AA ConcreteThe Substructure Quantities table explicitly lists CY Class AA Concrete for Bent 2 LT. and Bent 2 RT. The quantity is for the complete Bent 2 substructure rather than the cap alone, so the reading does not independently demonstrate that every bent-cap type uses this grade. | readcheck | p14 · p14_r02 title block |
Worked out by openai/gpt-5.6-terra-pro from the readings below, which are the source. A derived value shows its arithmetic — check it against the drawing before it is priced.
How the sheets named it
Every dimension read for it20
- 3/4" = 1'-0"Scalep13 · p13_r05 section b b
- 1'-6"Cap end offsetp13 · p13_r01
- 1'-6"Cap end offsetp13 · p13_r01
- 44'-1 1/16"Overall cap lengthp13 · p13_r01
- 44'-1 1/16"Overall cap lengthp13 · p13_r01
- 42'-6"Overall length between beam 1 and beam 6 centerline groupp14 · p14_r01 plan
- 42'-6"Overall length between beam 7 and beam 12 centerline groupp14 · p14_r01 plan
- 1'-2"Setback dimensionp14 · p14_r01 plan
- 2'-1 1/2"Half width to centerline bentp16 · p16_r02
- 11 1/2"Segmentp16 · p16_r02
- 1'-2"Segmentp16 · p16_r02
- 4'-0" MIN.Heightp16 · p16_r02
- 9"Bottom segmentp16 · p16_r02
- 81°-20'-05.0" deg-min-secSkew anglep17 · p17_r01 title block
- 81°-20'-05.0", TYP. deg-min-secSkew angle typp17 · p17_r01 title block
- 81°-20'-05.0" deg-min-secSkew anglep17 · p17_r01 title block
- 81°-20'-05.0", TYP. deg-min-secSkew angle typp17 · p17_r01 title block
- STA. 19+11.65Stationp17 · p17_r01 title block
- 3/4" = 1'-0"Scalep17 · p17_r05 section b b
- 3/4" = 1'-0"Scalep17 · p17_r05
Notes on the sheets that carry it
- p2SPECIAL PROTECTIVE COATING - CLEAN AND PAINT PILES AND SWAYBRACING WITH SPECIAL PROTECTIVE COATING NO. 2P IN ACCORDANCE WITH SECTIONS 520 AND 535 OF THE GEORGIA DOT SPECIFICATIONS.
- p2EXTEND COATING FROM TOP OF PILE TO 2FT BELOW GROUND FOR END BENT PILING.
- p2EXTEND COATING FROM BOTTOM OF CAP OR PEDESTAL FOOTING TO 5FT BELOW GROUND FOR INTERMEDIATE BENT PILING, REGARDLESS OF ENCASEMENT.
- p13FORM 3" DIA. X 12" DEEP HOLE FOR 1 1/2" DIA. SMOOTH DOWEL, TYP.
- p13SEE DETAIL 1 BRIDGE SHEET 16
- p13SEE DETAIL 2 BRIDGE SHEET 16
- p13B.F.P.R.
- p13SR 21 EB = PGL
- p13SR 21 WB = PGL
- p13BEGIN BRIDGE B.F.P.R. BENT 1
- p13AHEAD
- p134-410 OVER EACH PILE
- p1310", TYP.
- p137-411 AT EQ. SPS. TYP. EA. BAY
- p134-411 AT EQ. SPACES
- p132-415A, TYP.
- p13℄ SR 21
- p13℄ BRG.
- p132" MIN. CL.
- p132" CL. 3 SIDES
- p131'-0" TYP.
- p136'-0" MIN.
- p132'-0" MIN.
- p14FORM 3" DIA. X 12" DEEP HOLE FOR 1 1/2" DIA. SMOOTH DOWEL BAR, TYP.
- p1481°-20'-05.0", TYP.
- p14SEE BRIDGE SHEET NO. 16 FOR CAP, COLUMN AND FOOTING SECTIONS.
- p14BARS 422 NOT SHOWN.
- p14EXTEND BARS 1121A 3'-6" INTO CAP.
- p14REQUIRED CONSTRUCTION JOINT. AT CONTRACTOR'S OPTION, CONSTRUCTION JOINT MAY BE RELOCATED TO TOP OF FOOTING.
- p14MECHANICAL COUPLER, TYP. SEE SPECIAL PROVISION 511
- p14PILES ARE DESIGNED FOR A MAXIMUM FACTORED AXIAL LOAD OF 237 KIPS.
- p14ALL PILES SHALL BE STEEL H, HP 12 X 53.
- p14PLAN DRIVING OBJECTIVE: ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 365 KIPS AFTER A MINIMUM TIP ELEVATION OF 119 AT BENT 2L AND 118 AT BENT 2R IS ACHIEVED.
- p14ALL PILES SHALL BE DRIVEN TO A DRIVING RESISTANCE OF 365 KIPS AFTER A MINIMUM TIP ELEVATION OF 119 AT BENT 2L AND 118 AT BENT 2R IS ACHIEVED.
- p162" MIN. CL., TYP.
- p16EACH FACE
- p165-414 EA. FACE AT EQ. SPS.
- p165-444 EA. FACE AT EQ. SPS.
- p16AHEAD (direction arrow in footing plan)
- p165-422 OR 5-432 EACH FACE
Every crop it was read in — the drawing beside what the model took off it
Page 2
p02_r16 notesNotes
- bent cap / pedestal footingReference point for coating extent on intermediate bent piling
2 FT Coating extent below ground - end bent piling5 FT Coating extent below ground - intermediate bent piling
p02_r16Notes
- bent capReferenced as 'cap' from which coating extent is measured
2 FT Coating extension5 FT Coating extension
Page 13
p13_r01 title blockPlan
- Bent capBENT 1×2rectangular, elongated with rounded/elliptical endsreinforced concreteShown in two halves: 'BENT 1 RIGHT' and 'BENT 1 LEFT' plan views, each spanning 6 beam lines
22'-0" ft-in Span dimension7'-7" ft-in Beam spacing (typ.)7'-7 1/16" ft-in Beam spacing (typ., detail)3'-0 7/8" ft-in End overhang6'-10 1/2" ft-in End overhang (other side)6'-10 9/16" ft-in End overhang (other side, alt)44'-1 1/16" ft-in Total cap length segment2 3/4" in Dowel hole spacing+10 more
p13_r02 at eq spsElevation
- Cap beam / bent cap×1tapered, rectangularreinforced concreteContinuous longitudinal member spanning between end columns, with stepped top elevations
189.16 EL.189.23 EL.185.75 EL.185.65 EL.185.52 EL.185.39 EL.185.26 EL.185.10 EL.+14 more
p13_r03 at eq spsElevation
- Pile cap / bent cap beam×1rectangular, slightly stepped/sloped topreinforced concreteLong horizontal cap beam spanning full width of crop, with stepped top elevations shown along its length
188.03 ft Top elevation188.10 ft Top elevation184.75 ft Top elevation184.96 ft Top elevation185.13 ft Top elevation185.30 ft Top elevation185.47 ft Top elevation185.62 ft Top elevation+12 more
p13_r05 section b bSection
- Bent cap×2rectangularreinforced concreteShown in Section B-B (with rebar detail) and in Section at End Bent and Wall (labeled CAP)
3'-0" ft-in Cap width2" MIN. in Clear cover2'-0" ft Vertical dimension1'-0" ft Typical spacing2" CL. 3 SIDES in Side clearance1'-6" ft-in Half width1'-6" ft-in Half width3/4" = 1'-0" Scale+4 more
p13_r01Plan
- Bent capBENT 1 RIGHT×1rectangular with rounded/tapered endsreinforced concreteShows beam bearing locations for beams 7-12; dowel holes and bearing details at each beam line.
- Bent capBENT 1 LEFT×1rectangular with rounded/tapered endsreinforced concreteShows beam bearing locations for beams 1-6; dowel holes and bearing details at each beam line.
22'-0" Span between bents22'-0" Span between bents81°-20'-05.0" Skew angle81°-20'-05.0" Skew angle81°-20'-05.0" Skew angle3'-0" Cap edge dimension3'-0" Cap edge dimension1'-6" Cap end offset+22 more
p13_r02Elevation
- bent cap / pile cap beam×1rectangular, tapered top profilereinforced concreteLong horizontal cap beam spanning full width shown, with stepped top elevations along its length
189.16 Elevation189.23 Elevation185.75 Elevation185.65 Elevation185.52 Elevation185.39 Elevation185.26 Elevation185.10 Elevation+12 more
p13_r03Elevation
- Bent cap / pile cap×1rectangular, haunched/stepped topreinforced concreteContinuous cap beam spanning between end columns, top elevation steps down then up across its length, supported on piles
188.03 ft Elevation188.10 ft Elevation184.75 ft Elevation184.96 ft Elevation185.13 ft Elevation185.30 ft Elevation185.47 ft Elevation185.62 ft Elevation+16 more
p13_r05Section
- Bent cap×2rectangularreinforced concreteShown in cross section (Section B-B) and in relation view (Section at End Bent and Wall), labeled 'CAP'
3'-0" ft-in Cap width2" MIN. CL. in Clear cover top2'-0" MIN. ft-in Cap height (min)1'-0" TYP. ft-in Bar spacing typical2" CL. 3 SIDES in Clear cover 3 sides1'-6" ft-in Half-width dimension1'-6" ft-in Half-width dimension6'-0" MIN. ft-in Overall min width+2 more
Page 14

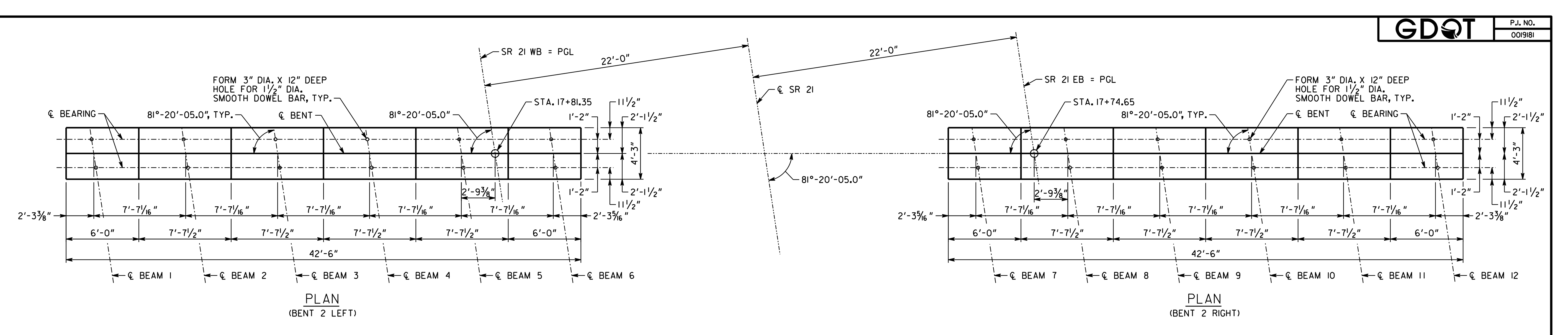

p14_r01 planPlan
- Bent capBENT 2 LEFT×1rectangularreinforced concreteShows bearing lines, beam centerlines, and dowel bar hole locations for 6 beams
- Bent capBENT 2 RIGHT×1rectangularreinforced concreteMirror layout of left bent cap, serving beams 7-12
42'-6" Overall length between beam 1 and beam 6 centerline group42'-6" Overall length between beam 7 and beam 12 centerline group6'-0" End spacing7'-7 1/2" Interior beam spacing7'-7 1/16" Interior beam spacing (alt notation)2'-3 3/8" End offset2'-3 5/16" End offset (right side)11 1/2" Cap width dimension+13 more
p14_r02 title blockElevation
- bent capBENT 2×2rectangular, slightly tapered topreinforced concreteLeft bent cap shown in full elevation; right bent cap shown partially cropped at right edge of sheet
185.78 ft Bent cap top elevation185.23 ft Bent cap top elevation185.96 ft Bent cap top elevation185.41 ft Bent cap top elevation186.10 ft Bent cap top elevation185.55 ft Bent cap top elevation186.24 ft Bent cap top elevation185.70 ft Bent cap top elevation+68 more
p14_r02Elevation
- Bent capBENT 2 LEFT×1rectangular, tapered top profilereinforced concreteElevation looking ahead; second partial bent cap (Bent 2 Right area) visible at far right edge of crop
44-421 Span between column centers185.78 ft Elevation top of cap (BK)185.23 ft Elevation top of cap (AH)185.96 ft Elevation top of cap (BK)185.41 ft Elevation top of cap (AH)186.10 ft Elevation top of cap (BK)185.55 ft Elevation top of cap (AH)186.24 ft Elevation top of cap (BK)+59 more
Page 15
p15_r01Plan
- Bent capBENT×2rectangularreinforced concreteTwo separate bent cap plan views shown side by side, one for each roadway direction (SR 21 WB and SR 21 EB)
81°-20'-05.0" Skew angle22'-0" ft-in Beam spacing offset22'-0" ft-in Beam spacing offset42'-6" ft-in Overall bent cap length42'-6" ft-in Overall bent cap length6'-0" ft-in End spacing7'-7 1/2" ft-in Interior beam spacing7'-7 1/16" ft-in Interior beam spacing (bearing line)+11 more
Page 16
p16_r01 section a aSection
- Bent cap / pier cap×1rectangularreinforced concreteCross section through cap at bearing locations, showing reinforcement layout
4'-3" Overall width2'-1 1/2" Half width to centerline bent2'-1 1/2" Half width to centerline bent1 1/2" Distance from edge to bearing centerline1'-2" Bearing spacing segment1'-2" Bearing spacing segment1 1/2" Distance from edge to bearing centerline4'-0" MIN. Minimum depth+3 more
p16_r02 footing plan bent 3Detail
- Bent cap / column sectionSECTION B-B×1rectangular with stepped top (haunch)reinforced concreteCross section through cap/column showing reinforcement layout; bar marks 2-520/530, 8-1121/1131, 44-421/431, 522/532, 8-1123/1133
4'-3" ft-in width2'-1 1/2" ft-in spacing11 1/2" in spacing1'-2" ft-in spacing4'-0" ft height9" in depth2" in clearance2" in clearance+13 more
p16_r01Cross Section
- Bent cap (with corbel/notch at bearing)×1rectangular with stepped notchreinforced concreteSection cut showing cap width, depth, and reinforcement layout
4'-3" ft-in Overall top width2'-1 1/2" ft-in Half width to bent centerline2'-1 1/2" ft-in Half width to bent centerline (other side)11 1/2" in Outer segment width1'-2" ft-in Inner segment width1'-2" ft-in Inner segment width11 1/2" in Outer segment width4'-0" ft Overall cap depth (minimum)+3 more
p16_r02Detail
- Bent cap/column×1rectangular with column stemreinforced concreteShown in Section B-B; reinforcement bars 2-520/2-530 (top), 8-1121/8-1131, 44-421/44-431 (vertical each face), 522/532 (ties), 8-1123/8-1133 (bottom)
4'-3" Width2'-1 1/2" Half width to centerline bent11 1/2" Segment1'-2" Segment2" Clear cover4'-0" MIN. Height9" Bottom segment2" Clear cover+13 more
Page 17
p17_r01 title blockPlan
- Bent capBENT 4 LEFT×1rectangular, elongated with rounded/tapered endsreinforced concreteShown with beam centerlines 1-6, bearing points, and dowel hole locations
- Bent capBENT 4 RIGHT×1rectangular, elongated with rounded/tapered endsreinforced concreteShown with beam centerlines 7-12, bearing points, and dowel hole locations
22'-0" ft-in Spacing22'-0" ft-in Spacing81°-20'-05.0" deg-min-sec Skew angle81°-20'-05.0", TYP. deg-min-sec Skew angle typ81°-20'-05.0" deg-min-sec Skew angle81°-20'-05.0", TYP. deg-min-sec Skew angle typ81°-20'-05.0" deg-min-sec Skew angleSTA. 19+18.35 Station+26 more
p17_r02 at eq spsElevation
- Cap beam / Bent cap×1tapered/stepped top profilereinforced concreteContinuous horizontal member spanning between end columns, top elevation varies along length (steps down from left to right)
189.42 Elevation top left column outer189.50 Elevation top left column inner186.04 Elevation cap beam near left185.93 Elevation cap beam185.80 Elevation cap beam mid-left185.67 Elevation cap beam mid-right185.53 Elevation cap beam right-center185.37 Elevation cap beam near right+10 more
p17_r03 at eq spsElevation
- Cap beam / bent cap×1rectangular, tapered top profilereinforced concreteContinuous cap spanning between end columns, with stepped top elevations shown; section cuts A-A and B-B taken through it
188.39 ft Elevation top left column outer188.45 ft Elevation top left column inner185.12 ft Elevation cap top at left185.32 ft Elevation cap top185.49 ft Elevation cap top185.66 ft Elevation cap top185.82 ft Elevation cap top185.96 ft Elevation cap top+12 more
p17_r05 section b bSection
- Bent cap×2rectangularreinforced concreteShown in both Section B-B (cross section of cap reinforcement) and Section at End Bent and Wall (cap in elevation/side view)
3'-0" ft-in Cap width2" MIN. CL. in Minimum clear cover to top bars2'-0" MIN. ft-in Minimum cap depth1'-0" ft-in Typical spacing2" CL. 3 SIDES in Clear cover 3 sides1'-6" ft-in Half-width dimension left1'-6" ft-in Half-width dimension right3/4" = 1'-0" Scale+4 more
p17_r06 title blockSection
- Cap/Beam section (rectangular concrete member)×1rectangularreinforced concreteOuter rectangular section 3'-0" wide, 2'-0" min deep, shown with reinforcement bars and cover dimensions
3'-0" ft-in Overall width1'-6" ft-in Half width (left)1'-6" ft-in Half width (right)2" in Top clear cover2'-0" ft Minimum depth1'-0" ft Bar spacing (vertical)2" in Side clear cover1'-6" ft-in Bottom half width (left)+2 more
p17_r01Plan
- Bent capBENT 4 LEFT×1rectangular, elongated with rounded/oval end sectionsreinforced concretePlan view of bent cap showing beam centerlines 1-6, dowel holes, and dimensioning
- Bent capBENT 4 RIGHT×1rectangular, elongated with rounded/oval end sectionsreinforced concretePlan view of bent cap showing beam centerlines 7-12, dowel holes, and dimensioning
22'-0" ft-in Span dimension22'-0" ft-in Span dimension44'-1 1/16" ft-in Overall length44'-1 1/16" ft-in Overall length3'-0 7/8" ft-in End segment length3'-0 7/8" ft-in End segment length7'-7 1/16" ft-in Segment length7'-7" ft-in Segment length+16 more
p17_r02Elevation
- Cap beam / bent cap×1rectangular, tapered top profilereinforced concreteHorizontal beam spanning between two end columns, top edge stepped with varying elevations
189.42 Elevation189.50 Elevation186.04 Elevation185.93 Elevation185.80 Elevation185.67 Elevation185.53 Elevation185.37 Elevation+13 more
p17_r03Elevation
- Pile cap / bent cap beam×1rectangular, elongated with slight camber/breaks along topreinforced concreteLong horizontal cap beam spanning between two end supports, with top elevation call-outs varying slightly along its length
188.39 Elevation188.45 Elevation185.12 Elevation185.32 Elevation185.49 Elevation185.66 Elevation185.82 Elevation185.96 Elevation+14 more
p17_r05Section
- Bent cap×2rectangularreinforced concreteShown in cross section (Section B-B) and in the plan/section view labeled 'CAP' at the End Bent and Wall detail
3'-0" ft-in Cap width2" MIN. CL. in Clear cover top2'-0" MIN. ft-in Min. depth to bars1'-0" TYP. ft-in Typical spacing2" CL. 3 SIDES in Clear cover sides1'-6" ft-in Half-width dimension1'-6" ft-in Half-width dimension3/4" = 1'-0" Scale+4 more
Page 18
p18_r01 bent 1 leftPlan
- Bent capBENT 1 LEFT×1elongated rectangular, skewed (tapered ends)reinforced concrete (assumed, typical for bent cap)Shown in plan, skewed relative to beam centerlines; divided into 6 beam bearing segments labeled 1-6.
- Bent cap×1elongated rectangular, skewed (tapered ends)reinforced concrete (assumed)Second bent cap plan below the first; label for this bent is cut off/not visible in this crop, divided into 6 beam bearing segments labeled 7-12.
p18_r01Plan
- bent capBENT 1 LEFT×1elongated rectangular (skewed)Shows 6 beam seat marks numbered 1-6 with centerline callouts BEAM 1 through BEAM 6; skewed alignment with dashed centerline and arrow labeled B.F.P.R. BENT 1
- bent cap×1elongated rectangular (skewed)Lower unlabeled bent cap segment showing beam seat marks numbered 7-12 with centerline callouts BEAM 7 through BEAM 12; also has B.F.P.R. BENT 1 label at bottom; likely a continuation or the 'right' portion of Bent 1 based on numbering sequence, but no explicit title visible in this crop
