Matched toReinforcing Barbridge.ancillary_system.reinforcement_system.rebaron “Reinforcement Bar”
| The class asks for | Value | How | From |
|---|---|---|---|
| Reinforcement Diameterbar_Dwants mm | 25.4 mmDiaphragm bar diameter = 1". Conversion required to ontology unit: 1 in × 25.4 mm/in = 25.4 mm.Applies specifically to the 1" diameter plain diaphragm bar, not to every differently marked reinforcing bar in the drawings. | derived | p10 · p10_r04 tighten diaphragm bar as per sub section |
| Bar LengthL_barwants m/mm | 10'-0" ft-inBar mark 600 is scheduled at a length of 10'-0".This is the stated length for reinforcement bar mark 600 in Span 2 Left; it is not a common length for all reinforcing bar marks. | read | p19 · p19_r01 locationp5 · p05_r04 notes |
| Reinforcement CountN_barwants count | 116 countSchedule entry for bar mark 600: NO. BARS REQ'D. = 116.Applies to bar mark 600 at the scheduled location, Span 2 Left. | read | p19 · p19_r01 location |
| Steel Gradefy | ASTM A709 Grade 36 -The diaphragm-bar note states that the 1" diameter plain diaphragm bar, washers, and hex nuts are ASTM A709 Grade 36.Applies specifically to the diaphragm bar; no common steel grade for every reinforcing bar mark is stated in the supplied readings. | read | p10 · p10_r04 tighten diaphragm bar as per sub section |
| MassMwants kg/t | 32.123 t35422 LB (Left Bridge BAR REINF STEEL) + 35397 LB (Right Bridge BAR REINF STEEL) = 70819 LB. 70819 LB × 0.45359237 kg/LB = 32122.958 kg. 32122.958 kg ÷ 1000 kg/t = 32.123 t.This is the combined mass of the separately scheduled Left Bridge and Right Bridge BAR REINF STEEL pay-item quantities. | derived | p2 · p02_r05 title block |
Worked out by openai/gpt-5.6-terra-pro from the readings below, which are the source. A derived value shows its arithmetic — check it against the drawing before it is priced.
How the sheets named it
Every dimension read for it86
- 35422 LBBAR REINF STEEL - LEFT BRIDGEp2 · p02_r05
- 35397 LBBAR REINF STEEL - RIGHT BRIDGEp2 · p02_r05
- LUMP LSSUPERSTR REINF STEEL BR NO-1 LT - LEFT BRIDGEp2 · p02_r05
- 69762SUPERSTR REINF STEEL BR NO-1 LT referencep2 · p02_r05
- LUMP LSSUPERSTR REINF STEEL BR NO-1 RT - RIGHT BRIDGEp2 · p02_r05
- 69762SUPERSTR REINF STEEL BR NO-1 RT referencep2 · p02_r05
- 14" inBar spacingp8 · p08_r02
- 1'-3"Bar 350 horizontal legp10 · p10_r02 title block
- 1'-0"Bar 351 lengthp10 · p10_r02 title block
- 5'-0"Bar 451 lengthp10 · p10_r02 title block
- 1'-6"Bar 452 widthp10 · p10_r02 title block
- 8"Bar 452 legp10 · p10_r02 title block
- 9"Bar 450 lengthp10 · p10_r02 title block
- 9"Bar 550 lengthp10 · p10_r02 title block
- 4'-11"Bar 550 vertical dimensionp10 · p10_r02 title block
- 6"Bar 651 lengthp10 · p10_r02 title block
- 4'-11"Bar 651 vertical dimensionp10 · p10_r02 title block
- 1'-0"Lap length minimump10 · p10_r02 title block
- 1'-1" ft-inleg lengthp10 · p10_r05 typ
- 45 degreesanglep10 · p10_r05 typ
- 1'-3" ft-inbase dimensionp10 · p10_r05 typ
- 1'-0" ft-inoverall lengthp10 · p10_r05 typ
- 9" inoverall lengthp10 · p10_r05 typ
- 1'-1" ft-indiagonal leg lengthp10 · p10_r05
- 45 degreesbend anglep10 · p10_r05
- 1'-3" ft-inoverall widthp10 · p10_r05
- 1'-0" ft-inoverall widthp10 · p10_r05
- 9" inoverall widthp10 · p10_r05
- 7"Bar 550 spacing at topp11 · p11_r02 title block
- 8Number of barsp11 · p11_r02 title block
- 2Number of barsp11 · p11_r02 title block
- 2Number of barsp11 · p11_r02 title block
- 2Number of bars per locationp11 · p11_r02 title block
- 1'-3"Angled leg lengthp11 · p11_r02 title block
- 45°Bend anglep11 · p11_r02 title block
- 4"Leg lengthp11 · p11_r02 title block
- 1'-7"Overall lengthp11 · p11_r02 title block
- 1'-0"Lengthp11 · p11_r02 title block
- 6'-0"Lengthp11 · p11_r02 title block
- 8"Leg lengthp11 · p11_r02 title block
- 1'-1"Lengthp11 · p11_r02 title block
- 1'-6"Lengthp11 · p11_r02 title block
- 5'-8"Heightp11 · p11_r02 title block
- 11"Leg lengthp11 · p11_r02 title block
- 5'-8"Heightp11 · p11_r02 title block
- 8"Leg lengthp11 · p11_r02 title block
- 1'-3" ft-indiagonal leg lengthp11 · p11_r05 typ
- 45 degreesbend anglep11 · p11_r05 typ
- 1'-7" ft-inoverall widthp11 · p11_r05 typ
- 1'-0" ft-inwidthp11 · p11_r05 typ
- 1'-1" ft-inwidthp11 · p11_r05 typ
- 1'-3" ft-inleg lengthp11 · p11_r05
- 45 degreesanglep11 · p11_r05
- 1'-7" ft-inwidthp11 · p11_r05
- 1'-0" ft-inwidthp11 · p11_r05
- 1'-1" ft-inwidthp11 · p11_r05
- 24" MIN.Bar bend dimensionp14 · p14_r02 title block
- 5-540ABar group spacingp16 · p16_r06
- 4-540BBar group spacingp16 · p16_r06
- 5-443ABar group spacingp16 · p16_r06
- 3-443BBar group spacingp16 · p16_r06

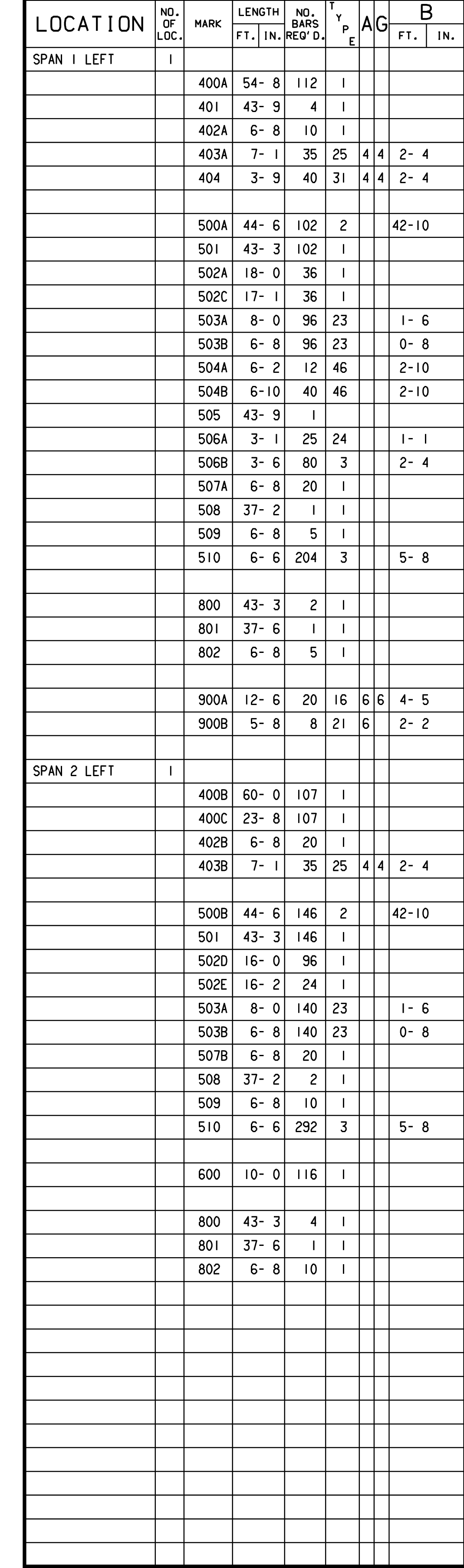

- 54-8 FT.-IN.LENGTHp19 · p19_r01 location
- 43-9 FT.-IN.LENGTHp19 · p19_r01 location
- 6-8 FT.-IN.LENGTHp19 · p19_r01 location
- 7-1 FT.-IN.LENGTHp19 · p19_r01 location
- 3-9 FT.-IN.LENGTHp19 · p19_r01 location
- 44-6 FT.-IN.LENGTHp19 · p19_r01 location
- 18-0 FT.-IN.LENGTHp19 · p19_r01 location
- 17-1 FT.-IN.LENGTHp19 · p19_r01 location
- 6-2 FT.-IN.LENGTHp19 · p19_r01 location
- 6-10 FT.-IN.LENGTHp19 · p19_r01 location
- 43-9 FT.-IN.LENGTHp19 · p19_r01 location
- 3-1 FT.-IN.LENGTHp19 · p19_r01 location
- 3-6 FT.-IN.LENGTHp19 · p19_r01 location
- 6-8 FT.-IN.LENGTHp19 · p19_r01 location
- 12-6 FT.-IN.LENGTHp19 · p19_r01 location
- 5-8 FT.-IN.LENGTHp19 · p19_r01 location
- 60-0 FT.-IN.LENGTHp19 · p19_r01 location
- 23-8 FT.-IN.LENGTHp19 · p19_r01 location
- 6-8 FT.-IN.LENGTHp19 · p19_r01 location
- 7-1 FT.-IN.LENGTHp19 · p19_r01 location
- 44-6 FT.-IN.LENGTHp19 · p19_r01 location
- 16-0 FT.-IN.LENGTHp19 · p19_r01 location
- 16-2 FT.-IN.LENGTHp19 · p19_r01 location
- 6-8 FT.-IN.LENGTHp19 · p19_r01 location
- 10-0 FT.-IN.LENGTHp19 · p19_r01 location
Notes on the sheets that carry it
- p2LOAD TEST, STEEL H, HP 12 X 53 (IF REQD)
- p58" FILLET, TYP.
- p51'-0" EDGEBEAM, TYP.
- p510" CONCRETE DIAPHRAGM, TYP.
- p52'-0" MIN. LAP
- p581°-20'-05.0", TYP.
- p5FENCE POST SPACING
- p5B.F.P.R. OR CONST. JOINT
- p5MAIN SLAB REINF.
- p5AT B.F.P.R. OR CONST. JOINT
- p5BARS ARE DETAILED IN BAR DETAILS AS EQUIVALENT FULL LENGTH BARS.
- p5* SEE SUBSECTION 511.3.05.G.5 OF THE GEORGIA DOT SPECIFICATION FOR PLACEMENT OF 500B BAR.
- p5LOW SEALA... (text cut off, partial)
- p52-600 (10'-0" LONG) BETWEEN EACH PAIR OF 400 BARS IN TOP OF SLAB OVER INTERMEDIATE BENTS 2 AND 3.
- p5LAP IN BARS SHALL BE STAGGERED AND ALTERNATED TO MAXIMIZE THE DISTANCE BETWEEN ADJACENT SPLICES.
- p5...CONSTRUCTION JOINT IN DECK.

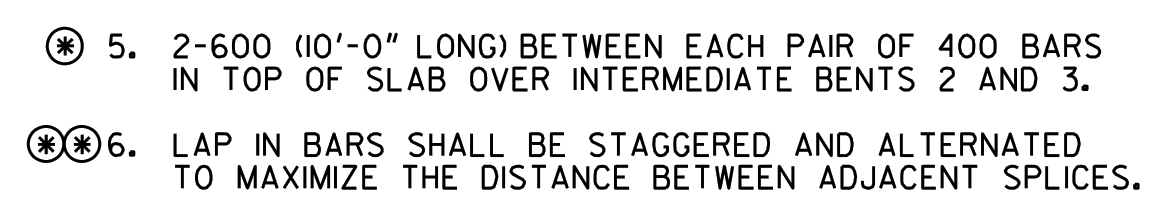

- p55. 2-600 (10'-0" LONG) BETWEEN EACH PAIR OF 400 BARS IN TOP OF SLAB OVER INTERMEDIATE BENTS 2 AND 3.
- p56. LAP IN BARS SHALL BE STAGGERED AND ALTERNATED TO MAXIMIZE THE DISTANCE BETWEEN ADJACENT SPLICES.
- p63'-0" ENDWALL OUTSIDE EXTERIOR BEAM, TYP.
- p61'-6" ENDWALL
- p612" PAVING REST
- p6B.F.P.R. BENT 4
- p6CONSTRUCTION ℄ SR 21
- p6PGL WESTBOUND
- p6PGL EASTBOUND
- p6N 83°-43'-21.7" E
- p6END POST
- p7DIMENSION "D" IS MEASURED FROM TOP OF SLAB TO TOP OF BEAMS AT CENTERLINE BEARING. VARY "D" BETWEEN BEARINGS TO COMPENSATE FOR DEAD LOAD DEFLECTION, AND VERTICAL CURVE.
- p7MAINTAIN A CONSTANT SLAB THICKNESS OF 7 3/4" BETWEEN BEAMS AND 8" IN THE OVERHANGS.
- p7"D" = 8 3/4" INTERIOR BEAMS
- p7"D" = 9 1/8" EXTERIOR BEAMS
- p7FENCE NOT SHOWN, TYP.
- p7502 AT EVERY 500A, TYP.
- p730-400A SPACED AS SHOWN
- p7500A AT 6 1/2"
- p7501 UNDER EVERY 500A
- p7REQUIRED CONSTRUCTION JOINT PARALLEL WITH DECK, TYP.
- p73/4" TRIANGULAR DRIP BEAD FULL LENGTH OF BRIDGE, TYP.
- p76-400A AT EQ. SPS.
- p714-400A AT EQUAL SPACES, TYP.
