GDOT TESTING

gdot_plan-649084f395824aaebf1f5ed48132696f · Bridge

Models

Step 1 sends drawing crops, so it needs a model that can see them. Steps 2 and 3 send step 1’s readings as text — a text-only model with a large context is a fair answer there.

1Read the crops282 crops · 269 read · 1146 objects · 2583 measurementsconfigured openai/gpt-5.6-terra-pro · about 7¢ for 13 crops · default

Every cropped image from the cropping run, page by page, with what the model read off it: view, objects, measurements, notes and labels. Click a crop to see it beside its JSON.

269 of 282 crops read · 13 failed. Analysing again retries only those.

282crops269read1146objects found2583measurements912,569tokens in478,800tokens out
Page 1012 crops · 12 read
item · 4589 × 1370

Other P10 R01

page 10 · other_p10_r01
Original
Other P10 R01
{
  "view": "Elevation",
  "objects": [
    {
      "name": "PSC beam",
      "tag": "",
      "shape": "tapered rectangular (elevation, beam end shown with draped strand profile)",
      "material": "precast, pretensioned concrete",
      "count": 1,
      "note": "Elevation view of a precast prestressed concrete beam end; note text references beams numbered up to 12, but only one beam elevation is drawn here."
    },
    {
      "name": "draped strand group",
      "tag": "",
      "shape": "linear (dashed strand lines)",
      "material": "prestressing strand",
      "count": 6,
      "note": "Labeled '6 - DRAPED STRANDS', shown sweeping from bottom of beam upward toward midpoint."
    },
    {
      "name": "diaphragm bar hole",
      "tag": "",
      "shape": "circular",
      "material": "void in concrete",
      "count": 2,
      "note": "2\" diameter hole for diaphragm bar; omitted at Beams 6 and 12 (one hole) and at Beams 1 and 7 (other hole)."
    },
    {
      "name": "hold down device",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Marked as centerline of 'LOW FRICTION TYPE HOLD DOWN' near midpoint region of beam."
    },
    {
      "name": "bearing point",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Centerline of bearing marked at each end of beam."
    },
    {
      "name": "cross-section detail (partial)",
      "tag": "",
      "shape": "unclear, cropped",
      "material": "",
      "count": 1,
      "note": "Fragment of a 'SECTION AT ...' detail visible at right edge of crop, showing dimensions (1'-0, 5\", 2 1/2\", 6\", 2 spaces at 2\", 3\", 2\", 7 spaces at ..., 1'-6...); title and full shape cut off."
    }
  ],
  "measurements": [
    {
      "label": "Span length",
      "value": "55'-0\"",
      "unit": "",
      "appliesTo": "beam elevation, B.F.P.R. to C Bent"
    },
    {
      "label": "Beam length",
      "value": "53'-7 5/8\"",
      "unit": "",
      "appliesTo": "PSC beam"
    },
    {
      "label": "Midpoint distance",
      "value": "26'-9 13/16\"",
      "unit": "",
      "appliesTo": "beam midpoint"
    },
    {
      "label": "Dimension",
      "value": "9 13/16\"",
      "unit": "",
      "appliesTo": "beam elevation, near midpoint"
    },
    {
      "label": "Spacing",
      "value": "3 SPACES AT 24\"",
      "unit": "",
      "appliesTo": "strand/rebar spacing"
    },
    {
      "label": "Dimension",
      "value": "6\"",
      "unit": "",
      "appliesTo": "beam elevation spacing"
    },
    {
      "label": "Spacing",
      "value": "18 SPACES AT 12\"",
      "unit": "",
      "appliesTo": "strand/rebar spacing"
    },
    {
      "label": "Dimension",
      "value": "4\"",
      "unit": "",
      "appliesTo": "beam elevation spacing"
    },
    {
      "label": "Spacing",
      "value": "3 SPACES AT 4\"",
      "unit": "",
      "appliesTo": "strand/rebar spacing"
    },
    {
      "label": "Dimension",
      "value": "2\"",
      "unit": "",
      "appliesTo": "beam elevation end spacing"
    },
    {
      "label": "Bar count/spec",
      "value": "2-550",
      "unit": "",
      "appliesTo": "reinforcement, each location"
    },
    {
      "label": "Bar count/spec",
      "value": "2-651",
      "unit": "",
      "appliesTo": "reinforcement, each location"
    },
    {
      "label": "Bar count/spec",
      "value": "2-450",
      "unit": "",
      "appliesTo": "reinforcement"
    },
    {
      "label": "Bar count/spec",
      "value": "8-451",
      "unit": "",
      "appliesTo": "reinforcement"
    },
    {
      "label": "Bar count/spacing",
      "value": "10-350 AT 6\"",
      "unit": "",
      "appliesTo": "reinforcement"
    },
    {
      "label": "Bar count/spec",
      "value": "2-452",
      "unit": "",
      "appliesTo": "reinforcement"
    },
    {
      "label": "Dimension",
      "value": "2 1/2\"",
      "unit": "",
      "appliesTo": "beam elevation, end region"
    },
    {
      "label": "Dimension",
      "value": "6 7/8\"",
      "unit": "",
      "appliesTo": "diaphragm bar hole spacing"
    },
    {
      "label": "Dimension",
      "value": "6 7/8\"",
      "unit": "",
      "appliesTo": "diaphragm bar hole spacing"
    },
    {
      "label": "Dimension",
      "value": "1'-9\"",
      "unit": "",
      "appliesTo": "beam elevation vertical dimension near hole"
    },
    {
      "label": "Tolerance",
      "value": "1/2\"",
      "unit": "",
      "appliesTo": "ΔNC"
    },
    {
      "label": "Tolerance",
      "value": "1/16\"",
      "unit": "",
      "appliesTo": "ΔC"
    },
    {
      "label": "Diameter",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "diaphragm bar hole"
    },
    {
      "label": "Dimension",
      "value": "10 3/16\"",
      "unit": "",
      "appliesTo": "beam end, bearing region"
    },
    {
      "label": "Dimension",
      "value": "8\"",
      "unit": "",
      "appliesTo": "bearing centerline offset"
    },
    {
      "label": "Dimension",
      "value": "1'-6 3/16\"",
      "unit": "",
      "appliesTo": "beam end dimension"
    },
    {
      "label": "Bearing to bearing length",
      "value": "52'-3 5/8\"",
      "unit": "",
      "appliesTo": "beam, C bearing to C bearing"
    },
    {
      "label": "Dimension",
      "value": "8\"",
      "unit": "",
      "appliesTo": "bearing centerline offset (opposite end)"
    },
    {
      "label": "Dimension",
      "value": "6 3/16\"",
      "unit": "",
      "appliesTo": "beam end dimension (opposite end)"
    },
    {
      "label": "Dimension",
      "value": "1'-2 3/16\"",
      "unit": "",
      "appliesTo": "beam end dimension (opposite end)"
    },
    {
      "label": "Dimension",
      "value": "1'-0",
      "unit": "",
      "appliesTo": "partial section detail (right edge, cropped)"
    },
    {
      "label": "Dimension",
      "value": "5\"",
      "unit": "",
      "appliesTo": "partial section detail"
    },
    {
      "label": "Dimension",
      "value": "2 1/2\"",
      "unit": "",
      "appliesTo": "partial section detail"
    },
    {
      "label": "Dimension",
      "value": "6\"",
      "unit": "",
      "appliesTo": "partial section detail"
    },
    {
      "label": "Dimension",
      "value": "3\"",
      "unit": "",
      "appliesTo": "partial section detail"
    },
    {
      "label": "Dimension",
      "value": "2\"",
      "unit": "",
      "appliesTo": "partial section detail"
    },
    {
      "label": "Spacing",
      "value": "2 SPACES AT 2\"",
      "unit": "",
      "appliesTo": "partial section detail"
    },
    {
      "label": "Spacing",
      "value": "7 SPA AT ...",
      "unit": "",
      "appliesTo": "partial section detail (text cut off)"
    },
    {
      "label": "Dimension",
      "value": "1'-6...",
      "unit": "",
      "appliesTo": "partial section detail (text cut off)"
    }
  ],
  "notes": [],
  "labels": [
    "ELEVATION",
    "NOTES",
    "B.F.P.R.",
    "C BENT",
    "C BEARING",
    "C LOW FRICTION TYPE HOLD DOWN",
    "OMIT HOLE AT BEAMS 6 AND 12",
    "OMIT HOLE AT BEAMS 1 AND 7",
    "SECTION AT"
  ],
  "description": "This crop shows the elevation of one end of a precast, pretensioned concrete bridge beam, dimensioned along its centerline with span length, beam length, bearing locations, strand/rebar spacing callouts (e.g. 2-550, 2-651, 8-451, 10-350), a 2-inch diameter diaphragm bar hole (omitted at specified beam numbers), six draped strands, and a low-friction hold-down location. A small, partially cropped cross-section detail ('SECTION AT ...') with its own set of dimensions appears at the far right edge of the crop but is cut off before its title or full shape can be read."
}

Other P10 R01

done

other_p10_r01

Elevation6 objects · 39 measurements · 9 labels

This crop shows the elevation of one end of a precast, pretensioned concrete bridge beam, dimensioned along its centerline with span length, beam length, bearing locations, strand/rebar spacing callouts (e.g. 2-550, 2-651, 8-451, 10-350), a 2-inch diameter diaphragm bar hole (omitted at specified beam numbers), six draped strands, and a low-friction hold-down location. A small, partially cropped cross-section detail ('SECTION AT ...') with its own set of dimensions appears at the far right edge of the crop but is cut off before its title or full shape can be read.

Objects · 6

ObjectNo.ShapeMaterialNote
PSC beam1tapered rectangular (elevation, beam end shown with draped strand profile)precast, pretensioned concreteElevation view of a precast prestressed concrete beam end; note text references beams numbered up to 12, but only one beam elevation is drawn here.
draped strand group6linear (dashed strand lines)prestressing strandLabeled '6 - DRAPED STRANDS', shown sweeping from bottom of beam upward toward midpoint.
diaphragm bar hole2circularvoid in concrete2" diameter hole for diaphragm bar; omitted at Beams 6 and 12 (one hole) and at Beams 1 and 7 (other hole).
hold down device1Marked as centerline of 'LOW FRICTION TYPE HOLD DOWN' near midpoint region of beam.
bearing point2Centerline of bearing marked at each end of beam.
cross-section detail (partial)1unclear, croppedFragment of a 'SECTION AT ...' detail visible at right edge of crop, showing dimensions (1'-0, 5", 2 1/2", 6", 2 spaces at 2", 3", 2", 7 spaces at ..., 1'-6...); title and full shape cut off.

Measurements · 39

MeasurementValueUnitApplies to
Span length55'-0"beam elevation, B.F.P.R. to C Bent
Beam length53'-7 5/8"PSC beam
Midpoint distance26'-9 13/16"beam midpoint
Dimension9 13/16"beam elevation, near midpoint
Spacing3 SPACES AT 24"strand/rebar spacing
Dimension6"beam elevation spacing
Spacing18 SPACES AT 12"strand/rebar spacing
Dimension4"beam elevation spacing
Spacing3 SPACES AT 4"strand/rebar spacing
Dimension2"beam elevation end spacing
Bar count/spec2-550reinforcement, each location
Bar count/spec2-651reinforcement, each location
Bar count/spec2-450reinforcement
Bar count/spec8-451reinforcement
Bar count/spacing10-350 AT 6"reinforcement
Bar count/spec2-452reinforcement
Dimension2 1/2"beam elevation, end region
Dimension6 7/8"diaphragm bar hole spacing
Dimension6 7/8"diaphragm bar hole spacing
Dimension1'-9"beam elevation vertical dimension near hole
Tolerance1/2"ΔNC
Tolerance1/16"ΔC
Diameter2"indiaphragm bar hole
Dimension10 3/16"beam end, bearing region
Dimension8"bearing centerline offset
Dimension1'-6 3/16"beam end dimension
Bearing to bearing length52'-3 5/8"beam, C bearing to C bearing
Dimension8"bearing centerline offset (opposite end)
Dimension6 3/16"beam end dimension (opposite end)
Dimension1'-2 3/16"beam end dimension (opposite end)
Dimension1'-0partial section detail (right edge, cropped)
Dimension5"partial section detail
Dimension2 1/2"partial section detail
Dimension6"partial section detail
Dimension3"partial section detail
Dimension2"partial section detail
Spacing2 SPACES AT 2"partial section detail
Spacing7 SPA AT ...partial section detail (text cut off)
Dimension1'-6...partial section detail (text cut off)

Labels

ELEVATIONNOTESB.F.P.R.C BENTC BEARINGC LOW FRICTION TYPE HOLD DOWNOMIT HOLE AT BEAMS 6 AND 12OMIT HOLE AT BEAMS 1 AND 7SECTION AT

anthropic/claude-sonnet-5 · 8172 tokens · 45.0s

item · 1893 × 2594

Other P10 R02

page 10 · other_p10_r02
Original
Other P10 R02
{
  "view": "Detail",
  "objects": [
    {
      "name": "PSC beam cross section",
      "tag": "",
      "shape": "tapered (bulb/I-shaped web with flared bottom flange)",
      "material": "precast prestressed concrete",
      "count": 2,
      "note": "Shown as 'SECTION AT MIDPOINT' and 'SECTION AT END' of the same beam, with strand and rebar placement dimensioned."
    },
    {
      "name": "Prestressed strand",
      "tag": "",
      "shape": "circular (shown as dots)",
      "material": "prestressing steel",
      "count": null,
      "note": "Legend states each dot indicates a 1/2\" diameter prestressed strand; strand pattern differs between midpoint and end sections."
    },
    {
      "name": "Reinforcement bar - top bent bar",
      "tag": "550",
      "shape": "straight with 90° bend (field/shop bent)",
      "material": "reinforcing steel",
      "count": 1,
      "note": "Extends from top of beam; horizontal leg extends between top and bottom mats of slab reinforcement per note."
    },
    {
      "name": "Reinforcement bar - top bent bar",
      "tag": "651",
      "shape": "straight with 90° bend",
      "material": "reinforcing steel",
      "count": 1,
      "note": "Same detailing as bar 550, shown at beam end section."
    },
    {
      "name": "Reinforcement bar - diagonal/bent",
      "tag": "350",
      "shape": "bent, two 45° angles (triangular/trapezoidal outline)",
      "material": "reinforcing steel",
      "count": 1,
      "note": "May be fabricated in two parts with 1'-0\" min lap per note."
    },
    {
      "name": "Reinforcement bar - straight",
      "tag": "351",
      "shape": "straight bar",
      "material": "reinforcing steel",
      "count": 1,
      "note": ""
    },
    {
      "name": "Reinforcement bar - straight",
      "tag": "451",
      "shape": "straight bar",
      "material": "reinforcing steel",
      "count": 1,
      "note": "8 bars (8-451) shown at end section; may be shifted/sloped to avoid strand conflict."
    },
    {
      "name": "Reinforcement bar - closed/rectangular",
      "tag": "452",
      "shape": "rectangular open bar (with one open end)",
      "material": "reinforcing steel",
      "count": 1,
      "note": "2 bars (2-452) at end section; placed with open ends away from beam ends per note."
    },
    {
      "name": "Reinforcement bar - straight tie",
      "tag": "450",
      "shape": "straight bar",
      "material": "reinforcing steel",
      "count": 1,
      "note": "2 bars (2-450) shown at end section."
    }
  ],
  "measurements": [
    {
      "label": "Top width",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Offset",
      "value": "5\"",
      "unit": "",
      "appliesTo": "Bar 550 / midpoint section"
    },
    {
      "label": "Cover",
      "value": "2 1/2\"",
      "unit": "",
      "appliesTo": "Midpoint section top"
    },
    {
      "label": "Spacing",
      "value": "6\"",
      "unit": "",
      "appliesTo": "Midpoint section web"
    },
    {
      "label": "Spacing",
      "value": "3\"",
      "unit": "",
      "appliesTo": "Midpoint section web"
    },
    {
      "label": "Spacing",
      "value": "6\"",
      "unit": "",
      "appliesTo": "Midpoint section web (upper)"
    },
    {
      "label": "Height",
      "value": "3\"",
      "unit": "",
      "appliesTo": "Midpoint section"
    },
    {
      "label": "Height",
      "value": "1'-3\"",
      "unit": "",
      "appliesTo": "Midpoint section"
    },
    {
      "label": "Overall height",
      "value": "3'-0\"",
      "unit": "",
      "appliesTo": "Midpoint section"
    },
    {
      "label": "Height",
      "value": "6\"",
      "unit": "",
      "appliesTo": "Midpoint section (lower)"
    },
    {
      "label": "Height",
      "value": "6\"",
      "unit": "",
      "appliesTo": "Midpoint section (lower)"
    },
    {
      "label": "Spacing",
      "value": "2 SPACES AT 2\"",
      "unit": "",
      "appliesTo": "Midpoint section strand pattern"
    },
    {
      "label": "Clearance",
      "value": "3\"",
      "unit": "",
      "appliesTo": "Midpoint section bottom"
    },
    {
      "label": "Edge distance",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Midpoint section bottom"
    },
    {
      "label": "Spacing",
      "value": "7 SPACES AT 2\"",
      "unit": "",
      "appliesTo": "Midpoint section strand pattern"
    },
    {
      "label": "Edge distance",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Midpoint section bottom"
    },
    {
      "label": "Bottom width",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "Midpoint section"
    },
    {
      "label": "Offset",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Bar 651 / end section"
    },
    {
      "label": "Clearance",
      "value": "1 1/8\"",
      "unit": "",
      "appliesTo": "End section, near bar 350"
    },
    {
      "label": "Height",
      "value": "1'-3\"",
      "unit": "",
      "appliesTo": "End section"
    },
    {
      "label": "Clearance",
      "value": "2\"",
      "unit": "",
      "appliesTo": "End section bottom, bar 2-452"
    },
    {
      "label": "Bar count",
      "value": "8",
      "unit": "bars",
      "appliesTo": "Bar 451 (8-451)"
    },
    {
      "label": "Bar count",
      "value": "2",
      "unit": "bars",
      "appliesTo": "Bar 450 (2-450)"
    },
    {
      "label": "Bar count",
      "value": "2",
      "unit": "bars",
      "appliesTo": "Bar 452 (2-452)"
    },
    {
      "label": "Length",
      "value": "1'-1\"",
      "unit": "",
      "appliesTo": "Bar 350 (typ.)"
    },
    {
      "label": "Angle",
      "value": "45°",
      "unit": "",
      "appliesTo": "Bar 350 (typ.)"
    },
    {
      "label": "Length",
      "value": "1'-3\"",
      "unit": "",
      "appliesTo": "Bar 350"
    },
    {
      "label": "Length",
      "value": "3\"",
      "unit": "",
      "appliesTo": "Bar 350 (typ.)"
    },
    {
      "label": "Length",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "Bar 351"
    },
    {
      "label": "Length",
      "value": "5'-0\"",
      "unit": "",
      "appliesTo": "Bar 451"
    },
    {
      "label": "Height",
      "value": "8\"",
      "unit": "",
      "appliesTo": "Bar 452"
    },
    {
      "label": "Length",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "Bar 452"
    },
    {
      "label": "Length",
      "value": "9\"",
      "unit": "",
      "appliesTo": "Bar 450"
    },
    {
      "label": "Length",
      "value": "4'-11\"",
      "unit": "",
      "appliesTo": "Bar 550"
    },
    {
      "label": "Length",
      "value": "9\"",
      "unit": "",
      "appliesTo": "Bar 550"
    },
    {
      "label": "Length",
      "value": "4'-11\"",
      "unit": "",
      "appliesTo": "Bar 651"
    },
    {
      "label": "Length",
      "value": "6\"",
      "unit": "",
      "appliesTo": "Bar 651"
    },
    {
      "label": "Minimum lap",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "Bar 350 fabrication note"
    },
    {
      "label": "Minimum clearance",
      "value": "1\"",
      "unit": "",
      "appliesTo": "General note"
    },
    {
      "label": "Strand diameter",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "Prestressed strands"
    }
  ],
  "notes": [
    "MAINTAIN 1\" MINIMUM CLEARANCE UNLESS OTHERWISE SHOWN.",
    "INDICATES 1/2\" DIAMETER PRESTRESSED STRANDS.",
    "ALL BAR DIMENSIONS ARE OUT TO OUT.",
    "AT THE TOP OF THE BEAM, BARS 550 AND 651 SHALL BE FIELD BENT OR SHOP BENT 90°, SUCH THAT THE HORIZONTAL LEG EXTENDS BETWEEN TOP AND BOTTOM MATS OF SLAB REINFORCEMENT.",
    "SLIGHTLY SHIFT OR SLOPE BARS 451 TO AVOID CONFLICT WITH STRANDS.",
    "BARS 350 MAY BE FABRICATED IN TWO PARTS BY LAPPING HORIZONTAL SECTION BY 1'-0\" MINIMUM.",
    "PLACE BARS 452 WITH OPEN ENDS AWAY FROM BEAM ENDS."
  ],
  "labels": [
    "SECTION AT MIDPOINT",
    "SECTION AT END",
    "REINFORCEMENT",
    "DIMENSIONS ALONG C BEAM (partial, cut off at left edge)",
    "ENT (partial text, cut off at top-left edge)",
    "ATION (partial text, cut off at left edge)"
  ],
  "description": "This crop shows two cross-section details of a precast prestressed concrete (PSC) beam — one taken at the beam midpoint and one at the beam end — with full dimensioning of strand and rebar placement, followed by a reinforcement schedule below listing individual bar shapes and dimensions for marks 350, 351, 450, 451, 452, 550, and 651 along with governing notes on bending, clearance, and placement. It documents the internal reinforcement and prestressing strand layout for a bridge girder, likely part of a superstructure beam design sheet."
}

Other P10 R02

done

other_p10_r02

Detail9 objects · 40 measurements · 7 notes · 6 labels

This crop shows two cross-section details of a precast prestressed concrete (PSC) beam — one taken at the beam midpoint and one at the beam end — with full dimensioning of strand and rebar placement, followed by a reinforcement schedule below listing individual bar shapes and dimensions for marks 350, 351, 450, 451, 452, 550, and 651 along with governing notes on bending, clearance, and placement. It documents the internal reinforcement and prestressing strand layout for a bridge girder, likely part of a superstructure beam design sheet.

Objects · 9

MarkObjectNo.ShapeMaterialNote
PSC beam cross section2tapered (bulb/I-shaped web with flared bottom flange)precast prestressed concreteShown as 'SECTION AT MIDPOINT' and 'SECTION AT END' of the same beam, with strand and rebar placement dimensioned.
Prestressed strandcircular (shown as dots)prestressing steelLegend states each dot indicates a 1/2" diameter prestressed strand; strand pattern differs between midpoint and end sections.
550Reinforcement bar - top bent bar1straight with 90° bend (field/shop bent)reinforcing steelExtends from top of beam; horizontal leg extends between top and bottom mats of slab reinforcement per note.
651Reinforcement bar - top bent bar1straight with 90° bendreinforcing steelSame detailing as bar 550, shown at beam end section.
350Reinforcement bar - diagonal/bent1bent, two 45° angles (triangular/trapezoidal outline)reinforcing steelMay be fabricated in two parts with 1'-0" min lap per note.
351Reinforcement bar - straight1straight barreinforcing steel
451Reinforcement bar - straight1straight barreinforcing steel8 bars (8-451) shown at end section; may be shifted/sloped to avoid strand conflict.
452Reinforcement bar - closed/rectangular1rectangular open bar (with one open end)reinforcing steel2 bars (2-452) at end section; placed with open ends away from beam ends per note.
450Reinforcement bar - straight tie1straight barreinforcing steel2 bars (2-450) shown at end section.

Measurements · 40

MeasurementValueUnitApplies to
Top width1'-0"Section at Midpoint
Offset5"Bar 550 / midpoint section
Cover2 1/2"Midpoint section top
Spacing6"Midpoint section web
Spacing3"Midpoint section web
Spacing6"Midpoint section web (upper)
Height3"Midpoint section
Height1'-3"Midpoint section
Overall height3'-0"Midpoint section
Height6"Midpoint section (lower)
Height6"Midpoint section (lower)
Spacing2 SPACES AT 2"Midpoint section strand pattern
Clearance3"Midpoint section bottom
Edge distance2"Midpoint section bottom
Spacing7 SPACES AT 2"Midpoint section strand pattern
Edge distance2"Midpoint section bottom
Bottom width1'-6"Midpoint section
Offset2"Bar 651 / end section
Clearance1 1/8"End section, near bar 350
Height1'-3"End section
Clearance2"End section bottom, bar 2-452
Bar count8barsBar 451 (8-451)
Bar count2barsBar 450 (2-450)
Bar count2barsBar 452 (2-452)
Length1'-1"Bar 350 (typ.)
Angle45°Bar 350 (typ.)
Length1'-3"Bar 350
Length3"Bar 350 (typ.)
Length1'-0"Bar 351
Length5'-0"Bar 451
Height8"Bar 452
Length1'-6"Bar 452
Length9"Bar 450
Length4'-11"Bar 550
Length9"Bar 550
Length4'-11"Bar 651
Length6"Bar 651
Minimum lap1'-0"Bar 350 fabrication note
Minimum clearance1"General note
Strand diameter1/2inPrestressed strands

Labels

SECTION AT MIDPOINTSECTION AT ENDREINFORCEMENTDIMENSIONS ALONG C BEAM (partial, cut off at left edge)ENT (partial text, cut off at top-left edge)ATION (partial text, cut off at left edge)

Notes

  • MAINTAIN 1" MINIMUM CLEARANCE UNLESS OTHERWISE SHOWN.
  • INDICATES 1/2" DIAMETER PRESTRESSED STRANDS.
  • ALL BAR DIMENSIONS ARE OUT TO OUT.
  • AT THE TOP OF THE BEAM, BARS 550 AND 651 SHALL BE FIELD BENT OR SHOP BENT 90°, SUCH THAT THE HORIZONTAL LEG EXTENDS BETWEEN TOP AND BOTTOM MATS OF SLAB REINFORCEMENT.
  • SLIGHTLY SHIFT OR SLOPE BARS 451 TO AVOID CONFLICT WITH STRANDS.
  • BARS 350 MAY BE FABRICATED IN TWO PARTS BY LAPPING HORIZONTAL SECTION BY 1'-0" MINIMUM.
  • PLACE BARS 452 WITH OPEN ENDS AWAY FROM BEAM ENDS.

anthropic/claude-sonnet-5 · 10204 tokens · 45.0s

item · 1846 × 299

Other P10 R03

page 10 · other_p10_r03
Original
Other P10 R03
{
  "view": "Notes",
  "objects": [
    {
      "name": "beam",
      "tag": "",
      "shape": "",
      "material": "",
      "count": null,
      "note": "Referenced generically in notes; no beam depicted or individually tagged in this crop."
    }
  ],
  "measurements": [
    {
      "label": "Pick-up distance from beam ends",
      "value": "4'-6\"",
      "unit": "",
      "appliesTo": "beam"
    },
    {
      "label": "Embedment of pick-ups from bottom of beam",
      "value": "4\"",
      "unit": "",
      "appliesTo": "beam"
    },
    {
      "label": "Chamfer edge dimension (option 1)",
      "value": "1/2\"",
      "unit": "",
      "appliesTo": "beam"
    },
    {
      "label": "Chamfer edge dimension (option 2)",
      "value": "3/4\"",
      "unit": "",
      "appliesTo": "beam"
    }
  ],
  "notes": [
    "1. BEAMS SHALL BE MAINTAINED IN AN UPRIGHT POSITION AT ALL TIMES AND SHALL BE PICKED UP WITHIN 4'-6\" FROM THEIR ENDS. DISREGARDING THIS REQUIREMENT COULD LEAD TO COLLAPSE OF THE BEAM. PICK-UPS SHALL BE EMBEDDED TO WITHIN 4\" OF THE BOTTOM OF THE BEAM. DETAILS OF PICK-UPS SHALL BE INCLUDED IN THE SHOP DRAWINGS.",
    "2. CHAMFER EDGES OF BEAMS 1/2\" OR 3/4\"."
  ],
  "labels": [],
  "description": "This crop contains two numbered general construction notes concerning precast/prestressed beam handling and edge treatment. Note 1 specifies requirements for maintaining beams upright during lifting, pick-up point locations, and embedment depth, referencing shop drawings for pick-up details. Note 2 specifies chamfer dimensions for beam edges. No drawing views, dimensioned elements, or object tags are shown."
}

Other P10 R03

done

other_p10_r03

Notes1 object · 4 measurements · 2 notes

This crop contains two numbered general construction notes concerning precast/prestressed beam handling and edge treatment. Note 1 specifies requirements for maintaining beams upright during lifting, pick-up point locations, and embedment depth, referencing shop drawings for pick-up details. Note 2 specifies chamfer dimensions for beam edges. No drawing views, dimensioned elements, or object tags are shown.

Objects · 1

ObjectNote
beamReferenced generically in notes; no beam depicted or individually tagged in this crop.

Measurements · 4

MeasurementValueApplies to
Pick-up distance from beam ends4'-6"beam
Embedment of pick-ups from bottom of beam4"beam
Chamfer edge dimension (option 1)1/2"beam
Chamfer edge dimension (option 2)3/4"beam

Notes

  • 1. BEAMS SHALL BE MAINTAINED IN AN UPRIGHT POSITION AT ALL TIMES AND SHALL BE PICKED UP WITHIN 4'-6" FROM THEIR ENDS. DISREGARDING THIS REQUIREMENT COULD LEAD TO COLLAPSE OF THE BEAM. PICK-UPS SHALL BE EMBEDDED TO WITHIN 4" OF THE BOTTOM OF THE BEAM. DETAILS OF PICK-UPS SHALL BE INCLUDED IN THE SHOP DRAWINGS.
  • 2. CHAMFER EDGES OF BEAMS 1/2" OR 3/4".

anthropic/claude-sonnet-5 · 2780 tokens · 11.1s

item · 1391 × 1138

Other P10 R04

page 10 · other_p10_r04
Original
Other P10 R04
{
  "view": "Detail",
  "objects": [
    {
      "name": "diaphragm bar",
      "tag": "",
      "shape": "circular (threaded rod)",
      "material": "steel (ASTM A709 Grade 36)",
      "count": 1,
      "note": "1\" diameter plain bar, threaded 5\" on each end, passes through 2\" diameter hole in beam"
    },
    {
      "name": "washer",
      "tag": "",
      "shape": "circular",
      "material": "steel",
      "count": 2,
      "note": "1/4\" x 3 1/2\" diameter washers at diaphragm bar ends"
    },
    {
      "name": "hex nut",
      "tag": "",
      "shape": "hexagonal",
      "material": "steel",
      "count": 2,
      "note": "secures diaphragm bar ends"
    },
    {
      "name": "beam/diaphragm reinforcement bar",
      "tag": "351",
      "shape": "rebar",
      "material": "reinforced concrete",
      "count": 4,
      "note": "4-351 bars at 4\" each way around hole"
    },
    {
      "name": "beam web/end block",
      "tag": "",
      "shape": "rectangular",
      "material": "precast concrete",
      "count": 1,
      "note": "shown in section with recess for diaphragm bar hardware"
    }
  ],
  "measurements": [
    {
      "label": "clearance",
      "value": "1",
      "unit": "in",
      "appliesTo": "beam face to hole edge"
    },
    {
      "label": "recess width",
      "value": "3",
      "unit": "in",
      "appliesTo": "recess for diaphragm bar hardware"
    },
    {
      "label": "hole diameter",
      "value": "2",
      "unit": "in",
      "appliesTo": "diaphragm bar hole"
    },
    {
      "label": "recess diameter",
      "value": "5",
      "unit": "in",
      "appliesTo": "recess for washer/nut"
    },
    {
      "label": "cutoff distance",
      "value": "1",
      "unit": "in",
      "appliesTo": "excess diaphragm bar cutoff from beam face"
    },
    {
      "label": "reinforcement spacing",
      "value": "4",
      "unit": "in",
      "appliesTo": "351 bars each way"
    },
    {
      "label": "bar count",
      "value": "4",
      "unit": "",
      "appliesTo": "351 bars"
    },
    {
      "label": "diaphragm bar diameter",
      "value": "1",
      "unit": "in",
      "appliesTo": "diaphragm bar"
    },
    {
      "label": "thread length",
      "value": "5",
      "unit": "in",
      "appliesTo": "diaphragm bar ends"
    },
    {
      "label": "washer size",
      "value": "1/4\" x 3 1/2\"",
      "unit": "in",
      "appliesTo": "washer diameter/thickness"
    }
  ],
  "notes": [
    "DIAPHRAGM BAR SHALL BE A 1\" DIAMETER PLAIN BAR, THREADED 5\" ON EACH END, WITH 1/4\" X 3 1/2\" DIAMETER WASHERS AND HEX NUTS (ASTM A 709 GRADE 36).",
    "TIGHTEN DIAPHRAGM BAR AS PER SUB-SECTION 507.3.05.C OF THE GEORGIA DOT SPECIFICATIONS.",
    "AFTER EXCESS DIAPHRAGM BAR HAS BEEN CUT OFF, PAINT DIAPHRAGM BAR, WASHER, AND NUT EXPOSED IN RECESS WITH SPECIAL PROTECTIVE COATING NO. 2 P AS PER SECTION 535 OF THE GEORGIA DOT SPECIFICATIONS. AFTER PAINTING, FILL THE RECESS WITH AN APPROVED EPOXY GROUT.",
    "GALVANIZING OF THE DIAPHRAGM BAR AS PER SUB-SECTION 865.2.01.B.12 OF THE GEORGIA DOT SPECIFICATIONS IS NOT REQUIRED.",
    "CUT OFF EXCESS DIAPHRAGM BAR 1\" FROM BEAM FACE."
  ],
  "labels": [
    "2\" DIAMETER HOLE",
    "4-351 AT 4\" EACH WAY",
    "1\" CL.",
    "3\"",
    "5\" DIA."
  ],
  "description": "This crop is a detail drawing of a diaphragm bar connection at a precast beam end, showing the bar's hole placement, threaded ends, washers, nuts, and recess dimensions, along with reinforcement bars (351) around the hole. Accompanying notes specify the diaphragm bar material and hardware specification, tightening procedure per Georgia DOT spec, post-installation coating and grouting requirements, and clarify that galvanizing is not required."
}

Other P10 R04

done

other_p10_r04

Detail5 objects · 10 measurements · 5 notes · 5 labels

This crop is a detail drawing of a diaphragm bar connection at a precast beam end, showing the bar's hole placement, threaded ends, washers, nuts, and recess dimensions, along with reinforcement bars (351) around the hole. Accompanying notes specify the diaphragm bar material and hardware specification, tightening procedure per Georgia DOT spec, post-installation coating and grouting requirements, and clarify that galvanizing is not required.

Objects · 5

MarkObjectNo.ShapeMaterialNote
diaphragm bar1circular (threaded rod)steel (ASTM A709 Grade 36)1" diameter plain bar, threaded 5" on each end, passes through 2" diameter hole in beam
washer2circularsteel1/4" x 3 1/2" diameter washers at diaphragm bar ends
hex nut2hexagonalsteelsecures diaphragm bar ends
351beam/diaphragm reinforcement bar4rebarreinforced concrete4-351 bars at 4" each way around hole
beam web/end block1rectangularprecast concreteshown in section with recess for diaphragm bar hardware

Measurements · 10

MeasurementValueUnitApplies to
clearance1inbeam face to hole edge
recess width3inrecess for diaphragm bar hardware
hole diameter2indiaphragm bar hole
recess diameter5inrecess for washer/nut
cutoff distance1inexcess diaphragm bar cutoff from beam face
reinforcement spacing4in351 bars each way
bar count4351 bars
diaphragm bar diameter1indiaphragm bar
thread length5indiaphragm bar ends
washer size1/4" x 3 1/2"inwasher diameter/thickness

Labels

2" DIAMETER HOLE4-351 AT 4" EACH WAY1" CL.3"5" DIA.

Notes

  • DIAPHRAGM BAR SHALL BE A 1" DIAMETER PLAIN BAR, THREADED 5" ON EACH END, WITH 1/4" X 3 1/2" DIAMETER WASHERS AND HEX NUTS (ASTM A 709 GRADE 36).
  • TIGHTEN DIAPHRAGM BAR AS PER SUB-SECTION 507.3.05.C OF THE GEORGIA DOT SPECIFICATIONS.
  • AFTER EXCESS DIAPHRAGM BAR HAS BEEN CUT OFF, PAINT DIAPHRAGM BAR, WASHER, AND NUT EXPOSED IN RECESS WITH SPECIAL PROTECTIVE COATING NO. 2 P AS PER SECTION 535 OF THE GEORGIA DOT SPECIFICATIONS. AFTER PAINTING, FILL THE RECESS WITH AN APPROVED EPOXY GROUT.
  • GALVANIZING OF THE DIAPHRAGM BAR AS PER SUB-SECTION 865.2.01.B.12 OF THE GEORGIA DOT SPECIFICATIONS IS NOT REQUIRED.
  • CUT OFF EXCESS DIAPHRAGM BAR 1" FROM BEAM FACE.

anthropic/claude-sonnet-5 · 5559 tokens · 17.9s

item · 951 × 1308

Other P10 R05

page 10 · other_p10_r05
Original
Other P10 R05
{
  "view": "Detail",
  "objects": [
    {
      "name": "reinforcement bar",
      "tag": "350",
      "shape": "bent/trapezoidal with 45° chamfered corners",
      "material": "steel (reinforcing bar)",
      "count": 1,
      "note": "shown with overall width 1'-3\" and diagonal leg 1'-1\" typ."
    },
    {
      "name": "reinforcement bar",
      "tag": "351",
      "shape": "straight/bent bar segment",
      "material": "steel (reinforcing bar)",
      "count": 1,
      "note": "width dimension 1'-0\" only, no shape sketch shown in this crop"
    },
    {
      "name": "reinforcement bar",
      "tag": "450",
      "shape": "straight/bent bar segment",
      "material": "steel (reinforcing bar)",
      "count": 1,
      "note": "width dimension 9\" only, no shape sketch shown in this crop"
    }
  ],
  "measurements": [
    {
      "label": "diagonal leg length",
      "value": "1'-1\"",
      "unit": "ft-in",
      "appliesTo": "350"
    },
    {
      "label": "bend angle",
      "value": "45",
      "unit": "degrees",
      "appliesTo": "350"
    },
    {
      "label": "overall width",
      "value": "1'-3\"",
      "unit": "ft-in",
      "appliesTo": "350"
    },
    {
      "label": "overall width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "351"
    },
    {
      "label": "overall width",
      "value": "9\"",
      "unit": "in",
      "appliesTo": "450"
    }
  ],
  "notes": [],
  "labels": [
    "AGM BAR",
    "350",
    "351",
    "450"
  ],
  "description": "This crop shows a partial bar-bending schedule/detail sheet listing individual reinforcing bar shapes identified by numeric marks (350, 351, 450), with a dimensioned sketch for bar 350 showing a chamfered triangular bend (45° typical, 1'-1\" diagonal leg typ., 1'-3\" overall width) and simple width call-outs for bars 351 (1'-0\") and 450 (9\") without accompanying sketches in this crop. The partially visible label 'AGM BAR' at left is likely the end of 'DIAPHRAGM BAR', consistent with the diaphragm bar referenced in the linked note panel."
}

Other P10 R05

done

other_p10_r05

Detail3 objects · 5 measurements · 4 labels

This crop shows a partial bar-bending schedule/detail sheet listing individual reinforcing bar shapes identified by numeric marks (350, 351, 450), with a dimensioned sketch for bar 350 showing a chamfered triangular bend (45° typical, 1'-1" diagonal leg typ., 1'-3" overall width) and simple width call-outs for bars 351 (1'-0") and 450 (9") without accompanying sketches in this crop. The partially visible label 'AGM BAR' at left is likely the end of 'DIAPHRAGM BAR', consistent with the diaphragm bar referenced in the linked note panel.

Objects · 3

MarkObjectNo.ShapeMaterialNote
350reinforcement bar1bent/trapezoidal with 45° chamfered cornerssteel (reinforcing bar)shown with overall width 1'-3" and diagonal leg 1'-1" typ.
351reinforcement bar1straight/bent bar segmentsteel (reinforcing bar)width dimension 1'-0" only, no shape sketch shown in this crop
450reinforcement bar1straight/bent bar segmentsteel (reinforcing bar)width dimension 9" only, no shape sketch shown in this crop

Measurements · 5

MeasurementValueUnitApplies to
diagonal leg length1'-1"ft-in350
bend angle45degrees350
overall width1'-3"ft-in350
overall width1'-0"ft-in351
overall width9"in450

Labels

AGM BAR350351450

anthropic/claude-sonnet-5 · 4686 tokens · 15.1s

item · 1966 × 1145

Other P10 R06

page 10 · other_p10_r06
Original
Other P10 R06
{
  "view": "Notes",
  "objects": [
    {
      "name": "PSC beam",
      "tag": "",
      "shape": "",
      "material": "precast concrete",
      "count": null,
      "note": "Subject of general notes 3-10 regarding fabrication, bearing details, surface finish, and prestressing"
    }
  ],
  "measurements": [
    {
      "label": "epoxy mortar thickness at beam ends",
      "value": "1/8",
      "unit": "in",
      "appliesTo": "beam"
    },
    {
      "label": "hole diameter at fixed ends bearing",
      "value": "1 3/4",
      "unit": "in",
      "appliesTo": "beam"
    },
    {
      "label": "hole depth at fixed ends bearing",
      "value": "7",
      "unit": "in",
      "appliesTo": "beam"
    },
    {
      "label": "slot dimensions at expansion ends bearing",
      "value": "4 x 1 3/4 x 7",
      "unit": "in",
      "appliesTo": "beam"
    },
    {
      "label": "dowel diameter",
      "value": "1 1/2",
      "unit": "in",
      "appliesTo": "beam"
    },
    {
      "label": "roughened surface amplitude on top of beam",
      "value": "1/4",
      "unit": "in",
      "appliesTo": "beam"
    },
    {
      "label": "ASTM strand specification",
      "value": "A 416 Grade 270",
      "unit": "",
      "appliesTo": "strand"
    }
  ],
  "notes": [
    "3. HORIZONTAL DIMENSIONS ARE IN PLACE DIMENSIONS. THE BEAM LENGTH INCLUDES THE 1/8\" EPOXY MORTAR AT EACH END. SHOP DRAWINGS SHALL ADJUST HORIZONTAL DIMENSIONS FOR GRADE AND FABRICATION EFFECTS SUCH AS SHRINKAGE AND ELASTIC SHORTENING.",
    "4. AT C BEARING, FORM A 1 3/4\" DIAMETER X 7\" DEEP HOLE AT THE FIXED ENDS AND A 4\" X 1 3/4\" X 7\" DEEP SLOT AT THE EXPANSION ENDS FOR A 1 1/2\" DIAMETER SMOOTH DOWEL. SEE PLAN AND ELEVATION SHEET FOR LOCATION OF FIXED AND EXPANSION ENDS.",
    "5. TOPS OF BEAMS SHALL BE ROUGH FLOATED AT APPROXIMATELY THE TIME OF INITIAL SET. ENTIRE TOP SHALL BE SCRUBBED TRANSVERSELY WITH A COARSE BRUSH TO REMOVE ALL LAITANCE AND TO PRODUCE A ROUGHENED SURFACE FOR BONDING TO THE SLAB. ROUGHENED SURFACE SHALL HAVE AN AMPLITUDE OF APPROXIMATELY 1/4\". CONCRETE FINS OR PROJECTIONS SHALL BE REMOVED TO PRODUCE A VERTICAL FACE AT THE EDGE OF THE BEAM.",
    "6. ALL HOLES FORMED INTO THE BEAMS TO FACILITATE TRANSPORT SHALL BE FILLED AND GIVEN A TYPE I FINISH, PRIOR TO ACCEPTANCE OF THE BEAM. REMOVE PVC OR SIMILAR FORMING MATERIALS FROM EACH HOLE, EXPOSING THE CONCRETE SURFACE. COAT INTERIOR OF HOLE WITH A TYPE II EPOXY RESIN ADHESIVE IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 886 AND FILL WITH A RAPID SETTING PATCHING MATERIAL IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 934.",
    "7. NON-COMPOSITE DEAD LOAD DEFLECTION (ΔNC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF THE SLAB AND COPING.",
    "8. COMPOSITE DEAD LOAD DEFLECTION (ΔC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF BARRIER.",
    "9. STRANDS SHALL MEET ALL REQUIREMENTS OF ASTM A 416 GRADE 270.",
    "10. PRESTRESSING DATA IS AS FOLLOWS:"
  ],
  "labels": [],
  "description": "This crop is a continuation of a numbered general notes block (items 3 through 10) for precast prestressed concrete beams, covering horizontal dimension conventions, bearing hole/slot/dowel details, top surface roughening for slab bond, handling hole treatment, dead load deflection definitions, and strand material specification. It leads into a prestressing data section that is cut off at the bottom of the crop."
}

Other P10 R06

done

other_p10_r06

Notes1 object · 7 measurements · 8 notes

This crop is a continuation of a numbered general notes block (items 3 through 10) for precast prestressed concrete beams, covering horizontal dimension conventions, bearing hole/slot/dowel details, top surface roughening for slab bond, handling hole treatment, dead load deflection definitions, and strand material specification. It leads into a prestressing data section that is cut off at the bottom of the crop.

Objects · 1

ObjectMaterialNote
PSC beamprecast concreteSubject of general notes 3-10 regarding fabrication, bearing details, surface finish, and prestressing

Measurements · 7

MeasurementValueUnitApplies to
epoxy mortar thickness at beam ends1/8inbeam
hole diameter at fixed ends bearing1 3/4inbeam
hole depth at fixed ends bearing7inbeam
slot dimensions at expansion ends bearing4 x 1 3/4 x 7inbeam
dowel diameter1 1/2inbeam
roughened surface amplitude on top of beam1/4inbeam
ASTM strand specificationA 416 Grade 270strand

Notes

  • 3. HORIZONTAL DIMENSIONS ARE IN PLACE DIMENSIONS. THE BEAM LENGTH INCLUDES THE 1/8" EPOXY MORTAR AT EACH END. SHOP DRAWINGS SHALL ADJUST HORIZONTAL DIMENSIONS FOR GRADE AND FABRICATION EFFECTS SUCH AS SHRINKAGE AND ELASTIC SHORTENING.
  • 4. AT C BEARING, FORM A 1 3/4" DIAMETER X 7" DEEP HOLE AT THE FIXED ENDS AND A 4" X 1 3/4" X 7" DEEP SLOT AT THE EXPANSION ENDS FOR A 1 1/2" DIAMETER SMOOTH DOWEL. SEE PLAN AND ELEVATION SHEET FOR LOCATION OF FIXED AND EXPANSION ENDS.
  • 5. TOPS OF BEAMS SHALL BE ROUGH FLOATED AT APPROXIMATELY THE TIME OF INITIAL SET. ENTIRE TOP SHALL BE SCRUBBED TRANSVERSELY WITH A COARSE BRUSH TO REMOVE ALL LAITANCE AND TO PRODUCE A ROUGHENED SURFACE FOR BONDING TO THE SLAB. ROUGHENED SURFACE SHALL HAVE AN AMPLITUDE OF APPROXIMATELY 1/4". CONCRETE FINS OR PROJECTIONS SHALL BE REMOVED TO PRODUCE A VERTICAL FACE AT THE EDGE OF THE BEAM.
  • 6. ALL HOLES FORMED INTO THE BEAMS TO FACILITATE TRANSPORT SHALL BE FILLED AND GIVEN A TYPE I FINISH, PRIOR TO ACCEPTANCE OF THE BEAM. REMOVE PVC OR SIMILAR FORMING MATERIALS FROM EACH HOLE, EXPOSING THE CONCRETE SURFACE. COAT INTERIOR OF HOLE WITH A TYPE II EPOXY RESIN ADHESIVE IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 886 AND FILL WITH A RAPID SETTING PATCHING MATERIAL IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 934.
  • 7. NON-COMPOSITE DEAD LOAD DEFLECTION (ΔNC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF THE SLAB AND COPING.
  • 8. COMPOSITE DEAD LOAD DEFLECTION (ΔC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF BARRIER.
  • 9. STRANDS SHALL MEET ALL REQUIREMENTS OF ASTM A 416 GRADE 270.
  • 10. PRESTRESSING DATA IS AS FOLLOWS:

anthropic/claude-sonnet-5 · 6590 tokens · 20.1s

item · 1196 × 320

Other P10 R07

page 10 · other_p10_r07
Original
Other P10 R07
{
  "view": "Notes",
  "objects": [
    {
      "name": "diaphragm bar",
      "tag": "",
      "shape": "",
      "material": "steel",
      "count": null,
      "note": "referenced in note text regarding recess ends and galvanizing requirement; not depicted graphically in this crop"
    }
  ],
  "measurements": [],
  "notes": [
    "THE GEORGIA DOT SPECIFICATIONS. AFTER PAINTING, FILL THE RECESS WITH AN APPROVED EPOXY GROUT.",
    "GALVANIZING OF THE DIAPHRAGM BAR AS PER SUB-SECTION 865.2.01.B.12 OF THE GEORGIA DOT SPECIFICATIONS IS NOT REQUIRED."
  ],
  "labels": [
    "RECESS DETAIL FOR DIAPHRAGM BAR ENDS"
  ],
  "description": "This crop contains only text notes and a title, with no accompanying graphic in view. It specifies finishing requirements for a recess at diaphragm bar ends—filling with approved epoxy grout after painting—and states that galvanizing per a specific Georgia DOT specification sub-section is not required. The title 'RECESS DETAIL FOR DIAPHRAGM BAR ENDS' indicates this note block accompanies a detail drawing not included in this particular crop."
}

Other P10 R07

done

other_p10_r07

Notes1 object · 2 notes · 1 label

This crop contains only text notes and a title, with no accompanying graphic in view. It specifies finishing requirements for a recess at diaphragm bar ends—filling with approved epoxy grout after painting—and states that galvanizing per a specific Georgia DOT specification sub-section is not required. The title 'RECESS DETAIL FOR DIAPHRAGM BAR ENDS' indicates this note block accompanies a detail drawing not included in this particular crop.

Objects · 1

ObjectMaterialNote
diaphragm barsteelreferenced in note text regarding recess ends and galvanizing requirement; not depicted graphically in this crop

Measurements · 0

No measurements read. Edit to add one.

Labels

RECESS DETAIL FOR DIAPHRAGM BAR ENDS

Notes

  • THE GEORGIA DOT SPECIFICATIONS. AFTER PAINTING, FILL THE RECESS WITH AN APPROVED EPOXY GROUT.
  • GALVANIZING OF THE DIAPHRAGM BAR AS PER SUB-SECTION 865.2.01.B.12 OF THE GEORGIA DOT SPECIFICATIONS IS NOT REQUIRED.

anthropic/claude-sonnet-5 · 2315 tokens · 10.0s

item · 1838 × 948

Other P10 R08

page 10 · other_p10_r08
Original
Other P10 R08
{
  "view": "Detail",
  "objects": [
    {
      "name": "PSC beam (end bevel detail)",
      "tag": "",
      "shape": "tapered",
      "material": "precast concrete",
      "count": 1,
      "note": "Plan/elevation sketch showing top flange beveled at beam end relative to bent centerline"
    }
  ],
  "measurements": [],
  "notes": [
    "BEVEL TOP FLANGE PARALLEL TO B.F.P.R. OR C BENT"
  ],
  "labels": [
    "B.F.P.R. OR C BENT",
    "C BEAM",
    "BEVEL DETAILS",
    "DRAWING NO. 35-0010",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY"
  ],
  "description": "This crop shows a detail titled 'BEVEL DETAILS' illustrating how the top flange of a precast beam end is to be beveled parallel to either the back-face-of-paving-rail (B.F.P.R.) or the bent centerline, with the beam centerline also indicated. To the right is a title block area containing a Georgia professional engineer's seal (Aruna Sastry, No. 19371) and drawing number 35-0010, with no additional constructional content visible."
}

Other P10 R08

done

other_p10_r08

Detail1 object · 1 note · 5 labels

This crop shows a detail titled 'BEVEL DETAILS' illustrating how the top flange of a precast beam end is to be beveled parallel to either the back-face-of-paving-rail (B.F.P.R.) or the bent centerline, with the beam centerline also indicated. To the right is a title block area containing a Georgia professional engineer's seal (Aruna Sastry, No. 19371) and drawing number 35-0010, with no additional constructional content visible.

Objects · 1

ObjectNo.ShapeMaterialNote
PSC beam (end bevel detail)1taperedprecast concretePlan/elevation sketch showing top flange beveled at beam end relative to bent centerline

Measurements · 0

No measurements read. Edit to add one.

Labels

B.F.P.R. OR C BENTC BEAMBEVEL DETAILSDRAWING NO. 35-0010GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY

Notes

  • BEVEL TOP FLANGE PARALLEL TO B.F.P.R. OR C BENT

anthropic/claude-sonnet-5 · 4642 tokens · 10.7s

item · 1729 × 144

Other P10 R09

page 10 · other_p10_r09
Original
Other P10 R09
{
  "view": "Notes",
  "objects": [
    {
      "name": "prestressing strand",
      "tag": "",
      "shape": "circular",
      "material": "steel (low-relaxation strand)",
      "count": 20,
      "note": "1/2\" diameter special low-relaxation strands, referenced in note A"
    }
  ],
  "measurements": [
    {
      "label": "Strand quantity",
      "value": "20",
      "unit": "",
      "appliesTo": "prestressing strands"
    },
    {
      "label": "Strand diameter",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "prestressing strands"
    },
    {
      "label": "Strand area",
      "value": "0.167",
      "unit": "SQ IN",
      "appliesTo": "prestressing strands"
    },
    {
      "label": "Pretension force per strand",
      "value": "33,818",
      "unit": "LBS",
      "appliesTo": "prestressing strands"
    }
  ],
  "notes": [
    "A. USE 20 - 1/2\" DIAMETER SPECIAL LOW-RELAXATION (A = 0.167 SQ IN) STRANDS. PRETENSION STRANDS TO 33,818 LBS EACH."
  ],
  "labels": [],
  "description": "This crop is a single typed construction note (Note A) specifying the use of 20 special low-relaxation prestressing strands of 1/2-inch diameter, each with a cross-sectional area of 0.167 square inches, to be pretensioned to 33,818 lbs each. No drawing view, dimensioned object, or schedule is shown—only the note text pertaining to prestressed concrete strand fabrication requirements, likely for a precast/prestressed girder or beam element referenced elsewhere on the sheet."
}

Other P10 R09

done

other_p10_r09

Notes1 object · 4 measurements · 1 note

This crop is a single typed construction note (Note A) specifying the use of 20 special low-relaxation prestressing strands of 1/2-inch diameter, each with a cross-sectional area of 0.167 square inches, to be pretensioned to 33,818 lbs each. No drawing view, dimensioned object, or schedule is shown—only the note text pertaining to prestressed concrete strand fabrication requirements, likely for a precast/prestressed girder or beam element referenced elsewhere on the sheet.

Objects · 1

ObjectNo.ShapeMaterialNote
prestressing strand20circularsteel (low-relaxation strand)1/2" diameter special low-relaxation strands, referenced in note A

Measurements · 4

MeasurementValueUnitApplies to
Strand quantity20prestressing strands
Strand diameter1/2inprestressing strands
Strand area0.167SQ INprestressing strands
Pretension force per strand33,818LBSprestressing strands

Notes

  • A. USE 20 - 1/2" DIAMETER SPECIAL LOW-RELAXATION (A = 0.167 SQ IN) STRANDS. PRETENSION STRANDS TO 33,818 LBS EACH.

anthropic/claude-sonnet-5 · 2277 tokens · 10.5s

item · 1848 × 1020

Other P10 R10

page 10 · other_p10_r10
Original
Other P10 R10
{
  "view": "Title Block",
  "objects": [],
  "measurements": [],
  "notes": [],
  "labels": [
    "BRIDGE NO. 1 LT. AND RT.",
    "S&A",
    "SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375",
    "FAX: 770-442-0761",
    "GEORGIA",
    "DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "TYPE II PSC BEAM - END SPANS",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "0019181",
    "DRAWING NO. 35-0010",
    "NO SCALE",
    "APRIL 2025",
    "BRIDGE SHEET 10 OF 21",
    "DESIGNED  UP",
    "DRAWN  EPR",
    "CHECKED  AS",
    "DESIGN GROUP  JBK",
    "REVIEWED  DLC/SKG",
    "APPROVED  DPD",
    "1 INCH WHEN PRINTED FULL SIZE",
    "0019181_0010.dgn",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY",
    "DATE",
    "REVISIONS",
    "BY"
  ],
  "description": "This crop is the title block of sheet 10 of a Georgia DOT bridge drawing set, identifying the sheet as covering the Type II PSC Beam - End Spans for Bridge No. 1 Lt. and Rt. on SR 21 at NS #620272Y in Jenkins County, prepared by Sastry & Associates, Inc. It contains no structural drawing content itself, only administrative and identification information including firm details, project number, drawing number, sheet count, scale note, date, and sign-off fields with a professional engineer's seal."
}

Other P10 R10

done

other_p10_r10

Title Block30 labels

This crop is the title block of sheet 10 of a Georgia DOT bridge drawing set, identifying the sheet as covering the Type II PSC Beam - End Spans for Bridge No. 1 Lt. and Rt. on SR 21 at NS #620272Y in Jenkins County, prepared by Sastry & Associates, Inc. It contains no structural drawing content itself, only administrative and identification information including firm details, project number, drawing number, sheet count, scale note, date, and sign-off fields with a professional engineer's seal.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

BRIDGE NO. 1 LT. AND RT.S&ASASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375FAX: 770-442-0761GEORGIADEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESTYPE II PSC BEAM - END SPANSSR 21 @ NS #620272YJENKINS COUNTY0019181DRAWING NO. 35-0010NO SCALEAPRIL 2025BRIDGE SHEET 10 OF 21DESIGNED UPDRAWN EPRCHECKED ASDESIGN GROUP JBKREVIEWED DLC/SKGAPPROVED DPD1 INCH WHEN PRINTED FULL SIZE0019181_0010.dgnGEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRYDATEREVISIONSBY

anthropic/claude-sonnet-5 · 5148 tokens · 13.9s

item · 1748 × 266

Other P10 R11

page 10 · other_p10_r11
Original
Other P10 R11
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "minimum concrete strength (f'ci)",
      "value": "5,200",
      "unit": "PSI",
      "appliesTo": "beam concrete/prestressed strands"
    },
    {
      "label": "total jacking force of pretensioning",
      "value": "676,350",
      "unit": "LBS",
      "appliesTo": "pretensioned strands (including top strands)"
    }
  ],
  "notes": [
    "B. PRETENSIONED STRANDS SHALL BE RELEASED AFTER THE CONCRETE HAS REACHED A MINIMUM STRENGTH (f'ci) OF 5,200 PSI.",
    "C. INCLUDING THE TOP STRANDS, THE TOTAL JACKING FORCE OF PRETENSIONING IS 676,350 LBS."
  ],
  "labels": [],
  "description": "This crop is a continuation of a numbered note list (items B and C) specifying release criteria and total jacking force for pretensioned strands in a precast concrete beam, related to the strand pretensioning notes seen elsewhere on this sheet. No drawn objects appear in this crop, only text notes."
}

Other P10 R11

done

other_p10_r11

Notes2 measurements · 2 notes

This crop is a continuation of a numbered note list (items B and C) specifying release criteria and total jacking force for pretensioned strands in a precast concrete beam, related to the strand pretensioning notes seen elsewhere on this sheet. No drawn objects appear in this crop, only text notes.

Objects · 0

No objects read. Edit to add one.

Measurements · 2

MeasurementValueUnitApplies to
minimum concrete strength (f'ci)5,200PSIbeam concrete/prestressed strands
total jacking force of pretensioning676,350LBSpretensioned strands (including top strands)

Notes

  • B. PRETENSIONED STRANDS SHALL BE RELEASED AFTER THE CONCRETE HAS REACHED A MINIMUM STRENGTH (f'ci) OF 5,200 PSI.
  • C. INCLUDING THE TOP STRANDS, THE TOTAL JACKING FORCE OF PRETENSIONING IS 676,350 LBS.

anthropic/claude-sonnet-5 · 2993 tokens · 8.9s

item · 1727 × 137

Other P10 R12

page 10 · other_p10_r12
Original
Other P10 R12
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "net prestressing force after all losses",
      "value": "536,584",
      "unit": "LBS",
      "appliesTo": "strands"
    }
  ],
  "notes": [
    "D. INCLUDING THE TOP STRANDS, THE NET PRESTRESSING FORCE OF THE STRANDS AFTER ALL LOSSES IS 536,584 LBS."
  ],
  "labels": [],
  "description": "This crop contains a single lettered note (item D) continuing a strand/prestressing specification, stating the net prestressing force of the strands after all losses including the top strands. It is a fragment of a larger notes block related to precast/prestressed beam design, likely following items A-C shown elsewhere on the sheet."
}

Other P10 R12

done

other_p10_r12

Notes1 measurement · 1 note

This crop contains a single lettered note (item D) continuing a strand/prestressing specification, stating the net prestressing force of the strands after all losses including the top strands. It is a fragment of a larger notes block related to precast/prestressed beam design, likely following items A-C shown elsewhere on the sheet.

Objects · 0

No objects read. Edit to add one.

Measurements · 1

MeasurementValueUnitApplies to
net prestressing force after all losses536,584LBSstrands

Notes

  • D. INCLUDING THE TOP STRANDS, THE NET PRESTRESSING FORCE OF THE STRANDS AFTER ALL LOSSES IS 536,584 LBS.

anthropic/claude-sonnet-5 · 2536 tokens · 8.9s

Page 1112 crops · 12 read
crop · 4496 × 1475

p11_r01 notes

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r01_notes
Original
p11_r01 notes
{
  "view": "Elevation",
  "objects": [
    {
      "name": "PSC beam",
      "tag": "",
      "shape": "tapered rectangular (I-shaped end shown in partial section at right)",
      "material": "precast concrete",
      "count": 1,
      "note": "Girder elevation shown between Bent 2 and Bent 3, with strand/rebar layout details"
    },
    {
      "name": "draped strands",
      "tag": "",
      "shape": "linear, draped/curved profile",
      "material": "prestressing steel",
      "count": 8,
      "note": "Labeled '8 - DRAPED STRANDS'"
    },
    {
      "name": "reinforcement bar group",
      "tag": "8-451",
      "shape": "straight bars",
      "material": "steel reinforcement",
      "count": 8,
      "note": "Vertical spacing dimension 8-451 shown at right portion of beam"
    },
    {
      "name": "reinforcement bar group",
      "tag": "2-550",
      "shape": "straight bars",
      "material": "steel reinforcement",
      "count": 2,
      "note": "Noted '2-550 AT EACH LOCATION'"
    },
    {
      "name": "reinforcement bar group",
      "tag": "2-450",
      "shape": "straight bars",
      "material": "steel reinforcement",
      "count": 2,
      "note": ""
    },
    {
      "name": "reinforcement bar group",
      "tag": "2-650",
      "shape": "straight bars",
      "material": "steel reinforcement",
      "count": 2,
      "note": "Noted '2-650 AT EACH LOCATION'"
    },
    {
      "name": "reinforcement bar group",
      "tag": "13-350",
      "shape": "straight bars",
      "material": "steel reinforcement",
      "count": 13,
      "note": "Spacing at 6\""
    },
    {
      "name": "reinforcement bar group",
      "tag": "2-452",
      "shape": "straight bars",
      "material": "steel reinforcement",
      "count": 2,
      "note": ""
    },
    {
      "name": "diaphragm bar hole",
      "tag": "",
      "shape": "circular",
      "material": "",
      "count": 2,
      "note": "2\" diameter hole for diaphragm bar; omitted at beams 6 and 12, and at beams 1 and 7 for another hole"
    },
    {
      "name": "low friction hold down",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "Centerline of low friction type hold down shown at midpoint region"
    },
    {
      "name": "bearing",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "Centerline of bearing marked at both ends of beam"
    },
    {
      "name": "beam end cross-section detail",
      "tag": "",
      "shape": "I-section (partial)",
      "material": "precast concrete",
      "count": 1,
      "note": "Partial cross section detail shown at far right edge of crop, cut off"
    }
  ],
  "measurements": [
    {
      "label": "Span length",
      "value": "82'-0\"",
      "unit": "ft-in",
      "appliesTo": "beam span Bent 2 to Bent 3"
    },
    {
      "label": "Beam length",
      "value": "80'-11 5/8\"",
      "unit": "ft-in",
      "appliesTo": "PSC beam"
    },
    {
      "label": "Midpoint distance",
      "value": "40'-5 13/16\"",
      "unit": "ft-in",
      "appliesTo": "beam midpoint from Bent 2"
    },
    {
      "label": "Dimension",
      "value": "11 13/16\"",
      "unit": "in",
      "appliesTo": "segment near midpoint"
    },
    {
      "label": "Spacing",
      "value": "9 SPACES AT 24\"",
      "unit": "in",
      "appliesTo": "reinforcement/strand spacing"
    },
    {
      "label": "Spacing",
      "value": "19 SPACES AT 12\"",
      "unit": "in",
      "appliesTo": "reinforcement/strand spacing"
    },
    {
      "label": "Dimension",
      "value": "4\"",
      "unit": "in",
      "appliesTo": "spacing segment"
    },
    {
      "label": "Spacing",
      "value": "6 SPACES AT 4\"",
      "unit": "in",
      "appliesTo": "reinforcement/strand spacing"
    },
    {
      "label": "Dimension",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "end spacing"
    },
    {
      "label": "Beam depth",
      "value": "2'-3\"",
      "unit": "ft-in",
      "appliesTo": "beam cross-section height"
    },
    {
      "label": "Camber (non-composite)",
      "value": "1 1/4\"",
      "unit": "in",
      "appliesTo": "NC deflection"
    },
    {
      "label": "Camber (composite)",
      "value": "1/8\"",
      "unit": "in",
      "appliesTo": "C deflection"
    },
    {
      "label": "Dimension",
      "value": "6 7/8\"",
      "unit": "in",
      "appliesTo": "hole spacing (left)"
    },
    {
      "label": "Dimension",
      "value": "6 7/8\"",
      "unit": "in",
      "appliesTo": "hole spacing (right)"
    },
    {
      "label": "Spacing",
      "value": "13-350 AT 6\"",
      "unit": "in",
      "appliesTo": "reinforcement group"
    },
    {
      "label": "Dimension",
      "value": "2 5/8\"",
      "unit": "in",
      "appliesTo": "end detail"
    },
    {
      "label": "Dimension",
      "value": "6 3/16\"",
      "unit": "in",
      "appliesTo": "end offset to bearing"
    },
    {
      "label": "Dimension",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "end offset to bearing"
    },
    {
      "label": "Dimension",
      "value": "1'-2 3/16\"",
      "unit": "ft-in",
      "appliesTo": "end offset to bearing"
    },
    {
      "label": "Bearing to bearing distance",
      "value": "79'-7 5/8\"",
      "unit": "ft-in",
      "appliesTo": "beam bearings"
    },
    {
      "label": "Clear cover",
      "value": "1 5/8\"",
      "unit": "in",
      "appliesTo": "section detail (right side)"
    },
    {
      "label": "Dimension",
      "value": "2 1/2\"",
      "unit": "in",
      "appliesTo": "section detail (right side)"
    },
    {
      "label": "Dimension",
      "value": "7\"",
      "unit": "in",
      "appliesTo": "section detail (right side), appears twice"
    },
    {
      "label": "Spacing",
      "value": "3 SPACES AT 2\"",
      "unit": "in",
      "appliesTo": "section detail (right side)"
    },
    {
      "label": "Dimension",
      "value": "3\"",
      "unit": "in",
      "appliesTo": "section detail (right side)"
    },
    {
      "label": "Dimension",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "section detail (right side)"
    },
    {
      "label": "Spacing (partial)",
      "value": "9 SP...AT...",
      "unit": "in",
      "appliesTo": "section detail (right side), text cut off"
    },
    {
      "label": "Dimension (partial)",
      "value": "1'-...",
      "unit": "ft-in",
      "appliesTo": "section detail (right side), text cut off"
    }
  ],
  "notes": [
    "MIDPOINT, DETAILS SYMMETRICAL ABOUT MIDPOINT UNLESS NOTED",
    "2\" DIAMETER HOLE FOR DIAPHRAGM BAR",
    "OMIT HOLE AT BEAMS 6 AND 12",
    "OMIT HOLE AT BEAMS 1 AND 7",
    "8 - DRAPED STRANDS",
    "ALL DIMENSIONS ARE ALONG C BEAM",
    "2-550 AT EACH LOCATION",
    "2-650 AT EACH LOCATION"
  ],
  "labels": [
    "NOTES",
    "ELEVATION",
    "C BENT 2",
    "C BENT 3",
    "C BEARING",
    "C LOW FRICTION TYPE HOLD DOWN"
  ],
  "description": "This crop shows the elevation view of a precast prestressed concrete (PSC) beam spanning between Bent 2 and Bent 3, with overall span, beam length, and bearing-to-bearing dimensions annotated. Detailed strand and reinforcement bar patterns (draped strands, bar groups 2-550, 2-450, 2-650, 13-350, 2-452, 8-451) are dimensioned along the beam length, along with diaphragm bar hole locations and omissions at specific beam numbers. A partial cross-section detail of the beam end is shown cut off at the right edge of the crop, and a Notes block heading appears at bottom left with no visible note text within this crop."
}

p11_r01 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r01_notes

Elevation12 objects · 28 measurements · 8 notes · 6 labels

This crop shows the elevation view of a precast prestressed concrete (PSC) beam spanning between Bent 2 and Bent 3, with overall span, beam length, and bearing-to-bearing dimensions annotated. Detailed strand and reinforcement bar patterns (draped strands, bar groups 2-550, 2-450, 2-650, 13-350, 2-452, 8-451) are dimensioned along the beam length, along with diaphragm bar hole locations and omissions at specific beam numbers. A partial cross-section detail of the beam end is shown cut off at the right edge of the crop, and a Notes block heading appears at bottom left with no visible note text within this crop.

Objects · 12

MarkObjectNo.ShapeMaterialNote
PSC beam1tapered rectangular (I-shaped end shown in partial section at right)precast concreteGirder elevation shown between Bent 2 and Bent 3, with strand/rebar layout details
draped strands8linear, draped/curved profileprestressing steelLabeled '8 - DRAPED STRANDS'
8-451reinforcement bar group8straight barssteel reinforcementVertical spacing dimension 8-451 shown at right portion of beam
2-550reinforcement bar group2straight barssteel reinforcementNoted '2-550 AT EACH LOCATION'
2-450reinforcement bar group2straight barssteel reinforcement
2-650reinforcement bar group2straight barssteel reinforcementNoted '2-650 AT EACH LOCATION'
13-350reinforcement bar group13straight barssteel reinforcementSpacing at 6"
2-452reinforcement bar group2straight barssteel reinforcement
diaphragm bar hole2circular2" diameter hole for diaphragm bar; omitted at beams 6 and 12, and at beams 1 and 7 for another hole
low friction hold down1Centerline of low friction type hold down shown at midpoint region
bearing2Centerline of bearing marked at both ends of beam
beam end cross-section detail1I-section (partial)precast concretePartial cross section detail shown at far right edge of crop, cut off

Measurements · 28

MeasurementValueUnitApplies to
Span length82'-0"ft-inbeam span Bent 2 to Bent 3
Beam length80'-11 5/8"ft-inPSC beam
Midpoint distance40'-5 13/16"ft-inbeam midpoint from Bent 2
Dimension11 13/16"insegment near midpoint
Spacing9 SPACES AT 24"inreinforcement/strand spacing
Spacing19 SPACES AT 12"inreinforcement/strand spacing
Dimension4"inspacing segment
Spacing6 SPACES AT 4"inreinforcement/strand spacing
Dimension2"inend spacing
Beam depth2'-3"ft-inbeam cross-section height
Camber (non-composite)1 1/4"inNC deflection
Camber (composite)1/8"inC deflection
Dimension6 7/8"inhole spacing (left)
Dimension6 7/8"inhole spacing (right)
Spacing13-350 AT 6"inreinforcement group
Dimension2 5/8"inend detail
Dimension6 3/16"inend offset to bearing
Dimension8"inend offset to bearing
Dimension1'-2 3/16"ft-inend offset to bearing
Bearing to bearing distance79'-7 5/8"ft-inbeam bearings
Clear cover1 5/8"insection detail (right side)
Dimension2 1/2"insection detail (right side)
Dimension7"insection detail (right side), appears twice
Spacing3 SPACES AT 2"insection detail (right side)
Dimension3"insection detail (right side)
Dimension2"insection detail (right side)
Spacing (partial)9 SP...AT...insection detail (right side), text cut off
Dimension (partial)1'-...ft-insection detail (right side), text cut off

Labels

NOTESELEVATIONC BENT 2C BENT 3C BEARINGC LOW FRICTION TYPE HOLD DOWN

Notes

  • MIDPOINT, DETAILS SYMMETRICAL ABOUT MIDPOINT UNLESS NOTED
  • 2" DIAMETER HOLE FOR DIAPHRAGM BAR
  • OMIT HOLE AT BEAMS 6 AND 12
  • OMIT HOLE AT BEAMS 1 AND 7
  • 8 - DRAPED STRANDS
  • ALL DIMENSIONS ARE ALONG C BEAM
  • 2-550 AT EACH LOCATION
  • 2-650 AT EACH LOCATION

anthropic/claude-sonnet-5 · 5810 tokens · 28.8s

crop · 2186 × 2765

p11_r02 title block

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r02_title_block
Original
p11_r02 title block
{
  "view": "Detail",
  "objects": [
    {
      "name": "PSC beam (girder)",
      "tag": "",
      "shape": "bulb-tee, tapered web widening to bottom flange",
      "material": "precast prestressed concrete",
      "count": 1,
      "note": "Shown in two cross sections: 'Section at Midpoint' and 'Section at End'; centerline of Bent 3 referenced at far left edge"
    },
    {
      "name": "Prestressing strand",
      "tag": "",
      "shape": "circular (dots in section)",
      "material": "prestressed steel strand",
      "count": null,
      "note": "Indicated by dot symbol; noted as 1/2\" diameter prestressed strands"
    },
    {
      "name": "Reinforcement bar",
      "tag": "350",
      "shape": "bent bar, 45° angled legs (V-shape) per schedule detail",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Called out at bottom flange in Section at End; may be fabricated in two parts with 1'-0\" min lap"
    },
    {
      "name": "Reinforcement bar",
      "tag": "351",
      "shape": "straight bar, 1'-0\" length shown in schedule",
      "material": "reinforcing steel",
      "count": null,
      "note": "Shown only in reinforcement schedule, not visibly called out in sections"
    },
    {
      "name": "Reinforcement bar",
      "tag": "450",
      "shape": "L-shaped/hooked bar, 1'-1\" leg shown in schedule",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Called out as '2-450' at top of Section at End"
    },
    {
      "name": "Reinforcement bar",
      "tag": "451",
      "shape": "straight bar, 6'-0\" length shown in schedule",
      "material": "reinforcing steel",
      "count": 8,
      "note": "Called out as '8-451' at top of Section at End; note to slope/shift to avoid strand conflict"
    },
    {
      "name": "Reinforcement bar",
      "tag": "452",
      "shape": "rectangular closed tie/stirrup, 1'-6\" x 8\" per schedule",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Called out as '2-452' in both Section at Midpoint and Section at End bottom flange; place with open ends away from beam ends"
    },
    {
      "name": "Reinforcement bar",
      "tag": "550",
      "shape": "vertical bar with 90° bend at top, 5'-8\" long, 11\" leg per schedule",
      "material": "reinforcing steel",
      "count": null,
      "note": "Shown at top of Section at Midpoint web; field/shop bent 90° so horizontal leg extends between top and bottom slab mats"
    },
    {
      "name": "Reinforcement bar",
      "tag": "650",
      "shape": "vertical bar with 90° bend at top, 5'-8\" long, 8\" leg per schedule",
      "material": "reinforcing steel",
      "count": null,
      "note": "Shown at top of Section at End web; note '2-650 AT EACH LOCATION' on partial left-edge detail"
    }
  ],
  "measurements": [
    {
      "label": "Width at top of beam",
      "value": "1'-4\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Bar 550 spacing at top",
      "value": "7\"",
      "unit": "",
      "appliesTo": "550"
    },
    {
      "label": "Clear cover top",
      "value": "2 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Web dimension",
      "value": "7\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Vertical spacing",
      "value": "4 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Vertical spacing",
      "value": "1'-7\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Overall height (partial)",
      "value": "3'-9\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Vertical dimension",
      "value": "7\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Vertical spacing",
      "value": "4 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Vertical dimension",
      "value": "7 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Vertical dimension",
      "value": "7\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Clear cover",
      "value": "1 5/8\"",
      "unit": "CL",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Spacing",
      "value": "7 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Spaces count/spacing",
      "value": "3 SPACES AT 2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Bottom flange offset",
      "value": "3\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Edge distance",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Spaces count/spacing",
      "value": "9 SPACES AT 2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Edge distance",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Bottom flange width",
      "value": "1'-10\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Top width",
      "value": "650",
      "unit": "",
      "appliesTo": "Section at End (bar tag placeholder for dimension line)"
    },
    {
      "label": "Clear cover top",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Section at End"
    },
    {
      "label": "Number of bars",
      "value": "8",
      "unit": "",
      "appliesTo": "451"
    },
    {
      "label": "Number of bars",
      "value": "2",
      "unit": "",
      "appliesTo": "450"
    },
    {
      "label": "Clear cover",
      "value": "1 1/2\"",
      "unit": "CL",
      "appliesTo": "Section at End"
    },
    {
      "label": "Overall height (partial)",
      "value": "2'-7\"",
      "unit": "",
      "appliesTo": "Section at End"
    },
    {
      "label": "Bottom clear cover",
      "value": "2\"",
      "unit": "CL",
      "appliesTo": "Section at End"
    },
    {
      "label": "Number of bars",
      "value": "2",
      "unit": "",
      "appliesTo": "452"
    },
    {
      "label": "Edge distance",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Left partial detail"
    },
    {
      "label": "Number of bars per location",
      "value": "2",
      "unit": "",
      "appliesTo": "650"
    },
    {
      "label": "Dimension",
      "value": "2 5/8\"",
      "unit": "",
      "appliesTo": "Left partial detail"
    },
    {
      "label": "Number of bars",
      "value": "2",
      "unit": "",
      "appliesTo": "452 (left detail)"
    },
    {
      "label": "Dimension",
      "value": "8\"",
      "unit": "",
      "appliesTo": "Left partial detail"
    },
    {
      "label": "Dimension",
      "value": "6 3/16\"",
      "unit": "",
      "appliesTo": "Left partial detail"
    },
    {
      "label": "Dimension",
      "value": "1'-2 3/16\"",
      "unit": "",
      "appliesTo": "Left partial detail"
    },
    {
      "label": "Angled leg length",
      "value": "1'-3\"",
      "unit": "",
      "appliesTo": "350"
    },
    {
      "label": "Bend angle",
      "value": "45°",
      "unit": "",
      "appliesTo": "350"
    },
    {
      "label": "Leg length",
      "value": "4\"",
      "unit": "",
      "appliesTo": "350"
    },
    {
      "label": "Overall length",
      "value": "1'-7\"",
      "unit": "",
      "appliesTo": "350"
    },
    {
      "label": "Length",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "351"
    },
    {
      "label": "Length",
      "value": "6'-0\"",
      "unit": "",
      "appliesTo": "451"
    },
    {
      "label": "Leg length",
      "value": "8\"",
      "unit": "",
      "appliesTo": "452"
    },
    {
      "label": "Length",
      "value": "1'-1\"",
      "unit": "",
      "appliesTo": "450"
    },
    {
      "label": "Length",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "452"
    },
    {
      "label": "Height",
      "value": "5'-8\"",
      "unit": "",
      "appliesTo": "550"
    },
    {
      "label": "Leg length",
      "value": "11\"",
      "unit": "",
      "appliesTo": "550"
    },
    {
      "label": "Height",
      "value": "5'-8\"",
      "unit": "",
      "appliesTo": "650"
    },
    {
      "label": "Leg length",
      "value": "8\"",
      "unit": "",
      "appliesTo": "650"
    }
  ],
  "notes": [
    "MAINTAIN 1\" MINIMUM CLEARANCE UNLESS OTHERWISE SHOWN.",
    "INDICATES 1/2\" DIAMETER PRESTRESSED STRANDS.",
    "ALL DIMENSIONS ARE ALONG â„¢ BEAM (transcribed as printed: 'ALL DIMENSIONS ARE ALONG C BEAM')",
    "ALL BAR DIMENSIONS ARE OUT TO OUT.",
    "AT THE TOP OF THE BEAM, BARS 550 AND 650 SHALL BE FIELD BENT OR SHOP BENT 90°, SUCH THAT THE HORIZONTAL LEG EXTENDS BETWEEN TOP AND BOTTOM MATS OF SLAB REINFORCEMENT.",
    "SLIGHTLY SHIFT OR SLOPE BARS 451 TO AVOID CONFLICT WITH STRANDS.",
    "BARS 350 MAY BE FABRICATED IN TWO PARTS BY LAPPING HORIZONTAL SECTION BY 1'-0\" MINIMUM.",
    "PLACE BARS 452 WITH OPEN ENDS AWAY FROM BEAM ENDS.",
    "2-650 AT EACH LOCATION (partial left-edge note)"
  ],
  "labels": [
    "SECTION AT MIDPOINT",
    "SECTION AT END",
    "REINFORCEMENT",
    "GDOT",
    "P.I. NO.",
    "0019181",
    "â„¢ BENT 3 (partial left-edge label, transcribed as 'C BENT 3')",
    "BAR (partial, cut off at left edge)"
  ],
  "description": "This crop shows two cross sections of a precast prestressed concrete beam ('Section at Midpoint' and 'Section at End'), detailing overall dimensions, strand placement, and reinforcement bar callouts (450, 451, 452, 550, 650, 350). Below is a reinforcement bar schedule/detail block listing individual bar shapes and out-to-out dimensions for bars 350, 351, 451, 450, 452, 550, and 650, along with general reinforcement notes on bending, lapping, and placement. A partial detail at the far left edge shows additional spacing dimensions and bar callouts near Bent 3, but is cropped and incomplete."
}

p11_r02 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r02_title_block

Detail9 objects · 47 measurements · 9 notes · 8 labels

This crop shows two cross sections of a precast prestressed concrete beam ('Section at Midpoint' and 'Section at End'), detailing overall dimensions, strand placement, and reinforcement bar callouts (450, 451, 452, 550, 650, 350). Below is a reinforcement bar schedule/detail block listing individual bar shapes and out-to-out dimensions for bars 350, 351, 451, 450, 452, 550, and 650, along with general reinforcement notes on bending, lapping, and placement. A partial detail at the far left edge shows additional spacing dimensions and bar callouts near Bent 3, but is cropped and incomplete.

Objects · 9

MarkObjectNo.ShapeMaterialNote
PSC beam (girder)1bulb-tee, tapered web widening to bottom flangeprecast prestressed concreteShown in two cross sections: 'Section at Midpoint' and 'Section at End'; centerline of Bent 3 referenced at far left edge
Prestressing strandcircular (dots in section)prestressed steel strandIndicated by dot symbol; noted as 1/2" diameter prestressed strands
350Reinforcement bar2bent bar, 45° angled legs (V-shape) per schedule detailreinforcing steelCalled out at bottom flange in Section at End; may be fabricated in two parts with 1'-0" min lap
351Reinforcement barstraight bar, 1'-0" length shown in schedulereinforcing steelShown only in reinforcement schedule, not visibly called out in sections
450Reinforcement bar2L-shaped/hooked bar, 1'-1" leg shown in schedulereinforcing steelCalled out as '2-450' at top of Section at End
451Reinforcement bar8straight bar, 6'-0" length shown in schedulereinforcing steelCalled out as '8-451' at top of Section at End; note to slope/shift to avoid strand conflict
452Reinforcement bar2rectangular closed tie/stirrup, 1'-6" x 8" per schedulereinforcing steelCalled out as '2-452' in both Section at Midpoint and Section at End bottom flange; place with open ends away from beam ends
550Reinforcement barvertical bar with 90° bend at top, 5'-8" long, 11" leg per schedulereinforcing steelShown at top of Section at Midpoint web; field/shop bent 90° so horizontal leg extends between top and bottom slab mats
650Reinforcement barvertical bar with 90° bend at top, 5'-8" long, 8" leg per schedulereinforcing steelShown at top of Section at End web; note '2-650 AT EACH LOCATION' on partial left-edge detail

Measurements · 47

MeasurementValueUnitApplies to
Width at top of beam1'-4"Section at Midpoint
Bar 550 spacing at top7"550
Clear cover top2 1/2"Section at Midpoint
Web dimension7"Section at Midpoint
Vertical spacing4 1/2"Section at Midpoint
Vertical spacing1'-7"Section at Midpoint
Overall height (partial)3'-9"Section at Midpoint
Vertical dimension7"Section at Midpoint
Vertical spacing4 1/2"Section at Midpoint
Vertical dimension7 1/2"Section at Midpoint
Vertical dimension7"Section at Midpoint
Clear cover1 5/8"CLSection at Midpoint
Spacing7 1/2"Section at Midpoint
Spaces count/spacing3 SPACES AT 2"Section at Midpoint
Bottom flange offset3"Section at Midpoint
Edge distance2"Section at Midpoint
Spaces count/spacing9 SPACES AT 2"Section at Midpoint
Edge distance2"Section at Midpoint
Bottom flange width1'-10"Section at Midpoint
Top width650Section at End (bar tag placeholder for dimension line)
Clear cover top2"Section at End
Number of bars8451
Number of bars2450
Clear cover1 1/2"CLSection at End
Overall height (partial)2'-7"Section at End
Bottom clear cover2"CLSection at End
Number of bars2452
Edge distance2"Left partial detail
Number of bars per location2650
Dimension2 5/8"Left partial detail
Number of bars2452 (left detail)
Dimension8"Left partial detail
Dimension6 3/16"Left partial detail
Dimension1'-2 3/16"Left partial detail
Angled leg length1'-3"350
Bend angle45°350
Leg length4"350
Overall length1'-7"350
Length1'-0"351
Length6'-0"451
Leg length8"452
Length1'-1"450
Length1'-6"452
Height5'-8"550
Leg length11"550
Height5'-8"650
Leg length8"650

Labels

SECTION AT MIDPOINTSECTION AT ENDREINFORCEMENTGDOTP.I. NO.0019181â„¢ BENT 3 (partial left-edge label, transcribed as 'C BENT 3')BAR (partial, cut off at left edge)

Notes

  • MAINTAIN 1" MINIMUM CLEARANCE UNLESS OTHERWISE SHOWN.
  • INDICATES 1/2" DIAMETER PRESTRESSED STRANDS.
  • ALL DIMENSIONS ARE ALONG â„¢ BEAM (transcribed as printed: 'ALL DIMENSIONS ARE ALONG C BEAM')
  • ALL BAR DIMENSIONS ARE OUT TO OUT.
  • AT THE TOP OF THE BEAM, BARS 550 AND 650 SHALL BE FIELD BENT OR SHOP BENT 90°, SUCH THAT THE HORIZONTAL LEG EXTENDS BETWEEN TOP AND BOTTOM MATS OF SLAB REINFORCEMENT.
  • SLIGHTLY SHIFT OR SLOPE BARS 451 TO AVOID CONFLICT WITH STRANDS.
  • BARS 350 MAY BE FABRICATED IN TWO PARTS BY LAPPING HORIZONTAL SECTION BY 1'-0" MINIMUM.
  • PLACE BARS 452 WITH OPEN ENDS AWAY FROM BEAM ENDS.
  • 2-650 AT EACH LOCATION (partial left-edge note)

anthropic/claude-sonnet-5 · 11278 tokens · 57.2s

crop · 1371 × 1222

p11_r03 recess detail for diaphragm bar ends

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r03_recess_detail_for_diaphragm_bar_ends
Original
p11_r03 recess detail for diaphragm bar ends
{
  "view": "Detail",
  "objects": [
    {
      "name": "Diaphragm bar",
      "tag": "",
      "shape": "circular (round bar, threaded ends)",
      "material": "steel, ASTM A709 Grade 36",
      "count": 1,
      "note": "1\" diameter plain bar, threaded 5\" on each end, shown passing through beam web with washer and hex nut in recess"
    },
    {
      "name": "Recess (pocket for diaphragm bar end)",
      "tag": "",
      "shape": "circular",
      "material": "concrete (beam), later filled with epoxy grout",
      "count": 1,
      "note": "5\" diameter recess at beam face housing washer/nut"
    },
    {
      "name": "2\" diameter hole",
      "tag": "",
      "shape": "circular",
      "material": "",
      "count": 1,
      "note": "hole through beam web for diaphragm bar"
    },
    {
      "name": "Reinforcement bar",
      "tag": "351",
      "shape": "straight bar",
      "material": "reinforcing steel",
      "count": 4,
      "note": "4-351 bars at 4\" each way, shown near hole location"
    },
    {
      "name": "Washer",
      "tag": "",
      "shape": "circular, 3-1/2\" diameter",
      "material": "steel",
      "count": 1,
      "note": "1/4\" thick washer on threaded bar end"
    },
    {
      "name": "Hex nut",
      "tag": "",
      "shape": "hexagonal",
      "material": "steel",
      "count": 1,
      "note": "nut on threaded diaphragm bar end within recess"
    },
    {
      "name": "Beam (PSC beam, partial)",
      "tag": "",
      "shape": "rectangular section (partial, web shown)",
      "material": "precast concrete",
      "count": 1,
      "note": "only the web/end portion near diaphragm connection is shown"
    }
  ],
  "measurements": [
    {
      "label": "Clear distance",
      "value": "1",
      "unit": "in (CL.)",
      "appliesTo": "beam web to hole"
    },
    {
      "label": "Width dimension",
      "value": "3",
      "unit": "in",
      "appliesTo": "recess width at beam face"
    },
    {
      "label": "Hole diameter",
      "value": "2",
      "unit": "in",
      "appliesTo": "hole through beam web"
    },
    {
      "label": "Recess diameter",
      "value": "5",
      "unit": "in (DIA.)",
      "appliesTo": "recess for diaphragm bar end"
    },
    {
      "label": "Bar spacing",
      "value": "4",
      "unit": "in",
      "appliesTo": "351 reinforcement bars, each way"
    },
    {
      "label": "Bar count",
      "value": "4",
      "unit": "",
      "appliesTo": "351 reinforcement bars"
    },
    {
      "label": "Diaphragm bar diameter",
      "value": "1",
      "unit": "in",
      "appliesTo": "diaphragm bar"
    },
    {
      "label": "Threaded length",
      "value": "5",
      "unit": "in",
      "appliesTo": "diaphragm bar end thread"
    },
    {
      "label": "Washer thickness",
      "value": "1/4",
      "unit": "in",
      "appliesTo": "washer"
    },
    {
      "label": "Washer diameter",
      "value": "3 1/2",
      "unit": "in",
      "appliesTo": "washer"
    },
    {
      "label": "Cut-off distance",
      "value": "1",
      "unit": "in",
      "appliesTo": "excess diaphragm bar from beam face"
    }
  ],
  "notes": [
    "DIAPHRAGM BAR SHALL BE A 1\" DIAMETER PLAIN BAR, THREADED 5\" ON EACH END, WITH 1/4\" X 3 1/2\" DIAMETER WASHERS AND HEX NUTS (ASTM A 709 GRADE 36).",
    "TIGHTEN DIAPHRAGM BAR AS PER SUB-SECTION 507.3.05.C OF THE GEORGIA DOT SPECIFICATIONS.",
    "AFTER EXCESS DIAPHRAGM BAR HAS BEEN CUT OFF, PAINT DIAPHRAGM BAR, WASHER, AND NUT EXPOSED IN RECESS WITH SPECIAL PROTECTIVE COATING NO. 2 P AS PER SECTION 535 OF THE GEORGIA DOT SPECIFICATIONS. AFTER PAINTING, FILL THE RECESS WITH AN APPROVED EPOXY GROUT.",
    "GALVANIZING OF THE DIAPHRAGM BAR AS PER SUB-SECTION 865.2.01.B.12 OF THE GEORGIA DOT SPECIFICATIONS IS NOT REQUIRED.",
    "CUT OFF EXCESS DIAPHRAGM BAR 1\" FROM BEAM FACE."
  ],
  "labels": [
    "RECESS DETAIL FOR DIAPHRAGM BAR ENDS",
    "1\" CL.",
    "3\"",
    "2\" DIAMETER HOLE",
    "4-351 AT 4\" EACH WAY",
    "5\" DIA."
  ],
  "description": "This crop is a detail drawing showing the recess at a precast concrete beam end where a diaphragm tie bar passes through, including the hole, washer, nut, and grout-filled recess, along with accompanying construction notes specifying bar material, tightening procedure, painting, and galvanizing requirements per Georgia DOT specifications. It documents the diaphragm bar connection detail rather than the full beam or diaphragm assembly."
}

p11_r03 recess detail for diaphragm bar ends

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r03_recess_detail_for_diaphragm_bar_ends

Detail7 objects · 11 measurements · 5 notes · 6 labels

This crop is a detail drawing showing the recess at a precast concrete beam end where a diaphragm tie bar passes through, including the hole, washer, nut, and grout-filled recess, along with accompanying construction notes specifying bar material, tightening procedure, painting, and galvanizing requirements per Georgia DOT specifications. It documents the diaphragm bar connection detail rather than the full beam or diaphragm assembly.

Objects · 7

MarkObjectNo.ShapeMaterialNote
Diaphragm bar1circular (round bar, threaded ends)steel, ASTM A709 Grade 361" diameter plain bar, threaded 5" on each end, shown passing through beam web with washer and hex nut in recess
Recess (pocket for diaphragm bar end)1circularconcrete (beam), later filled with epoxy grout5" diameter recess at beam face housing washer/nut
2" diameter hole1circularhole through beam web for diaphragm bar
351Reinforcement bar4straight barreinforcing steel4-351 bars at 4" each way, shown near hole location
Washer1circular, 3-1/2" diametersteel1/4" thick washer on threaded bar end
Hex nut1hexagonalsteelnut on threaded diaphragm bar end within recess
Beam (PSC beam, partial)1rectangular section (partial, web shown)precast concreteonly the web/end portion near diaphragm connection is shown

Measurements · 11

MeasurementValueUnitApplies to
Clear distance1in (CL.)beam web to hole
Width dimension3inrecess width at beam face
Hole diameter2inhole through beam web
Recess diameter5in (DIA.)recess for diaphragm bar end
Bar spacing4in351 reinforcement bars, each way
Bar count4351 reinforcement bars
Diaphragm bar diameter1indiaphragm bar
Threaded length5indiaphragm bar end thread
Washer thickness1/4inwasher
Washer diameter3 1/2inwasher
Cut-off distance1inexcess diaphragm bar from beam face

Labels

RECESS DETAIL FOR DIAPHRAGM BAR ENDS1" CL.3"2" DIAMETER HOLE4-351 AT 4" EACH WAY5" DIA.

Notes

  • DIAPHRAGM BAR SHALL BE A 1" DIAMETER PLAIN BAR, THREADED 5" ON EACH END, WITH 1/4" X 3 1/2" DIAMETER WASHERS AND HEX NUTS (ASTM A 709 GRADE 36).
  • TIGHTEN DIAPHRAGM BAR AS PER SUB-SECTION 507.3.05.C OF THE GEORGIA DOT SPECIFICATIONS.
  • AFTER EXCESS DIAPHRAGM BAR HAS BEEN CUT OFF, PAINT DIAPHRAGM BAR, WASHER, AND NUT EXPOSED IN RECESS WITH SPECIAL PROTECTIVE COATING NO. 2 P AS PER SECTION 535 OF THE GEORGIA DOT SPECIFICATIONS. AFTER PAINTING, FILL THE RECESS WITH AN APPROVED EPOXY GROUT.
  • GALVANIZING OF THE DIAPHRAGM BAR AS PER SUB-SECTION 865.2.01.B.12 OF THE GEORGIA DOT SPECIFICATIONS IS NOT REQUIRED.
  • CUT OFF EXCESS DIAPHRAGM BAR 1" FROM BEAM FACE.

anthropic/claude-sonnet-5 · 5312 tokens · 22.9s

crop · 1787 × 189

p11_r04 the beam pick ups shall be embedded to w

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r04_the_beam_pick_ups_shall_be_embedded_to_w
Original
p11_r04 the beam pick ups shall be embedded to w
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "distance from ends for pick-up",
      "value": "5'-6\"",
      "unit": "ft-in",
      "appliesTo": "beam"
    },
    {
      "label": "embedment depth from bottom of beam",
      "value": "4\"",
      "unit": "in",
      "appliesTo": "beam"
    }
  ],
  "notes": [
    "1. BEAMS SHALL BE MAINTAINED IN AN UPRIGHT POSITION AT ALL TIMES AND SHALL BE PICKED UP WITHIN 5'-6\" FROM THEIR ENDS. DISREGARDING THIS REQUIREMENT COULD LEAD TO COLLAPSE OF THE BEAM. PICK-UPS SHALL BE EMBEDDED TO WITHIN 4\" OF THE BOTTOM OF THE BEAM. DETAILS OF PICK-UPS SHALL BE INCLUDED IN THE SHOP DRAWINGS."
  ],
  "labels": [],
  "description": "This crop contains a single numbered general note regarding beam handling and pick-up requirements during erection. It specifies the maximum distance from beam ends for pick-up points, embedment depth limits, and a requirement for pick-up details to be shown in shop drawings. No graphical elements, dimensions on a drawing view, or objects are depicted—only printed text."
}

p11_r04 the beam pick ups shall be embedded to w

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r04_the_beam_pick_ups_shall_be_embedded_to_w

Notes2 measurements · 1 note

This crop contains a single numbered general note regarding beam handling and pick-up requirements during erection. It specifies the maximum distance from beam ends for pick-up points, embedment depth limits, and a requirement for pick-up details to be shown in shop drawings. No graphical elements, dimensions on a drawing view, or objects are depicted—only printed text.

Objects · 0

No objects read. Edit to add one.

Measurements · 2

MeasurementValueUnitApplies to
distance from ends for pick-up5'-6"ft-inbeam
embedment depth from bottom of beam4"inbeam

Notes

  • 1. BEAMS SHALL BE MAINTAINED IN AN UPRIGHT POSITION AT ALL TIMES AND SHALL BE PICKED UP WITHIN 5'-6" FROM THEIR ENDS. DISREGARDING THIS REQUIREMENT COULD LEAD TO COLLAPSE OF THE BEAM. PICK-UPS SHALL BE EMBEDDED TO WITHIN 4" OF THE BOTTOM OF THE BEAM. DETAILS OF PICK-UPS SHALL BE INCLUDED IN THE SHOP DRAWINGS.

anthropic/claude-sonnet-5 · 2241 tokens · 9.5s

crop · 872 × 1232

p11_r05 typ

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r05_typ
Original
p11_r05 typ
{
  "view": "Detail",
  "objects": [
    {
      "name": "reinforcement bar",
      "tag": "350",
      "shape": "bent bar with 45° angled ends",
      "material": "reinforced concrete (rebar)",
      "count": 1,
      "note": "Shows overall dimension 1'-7\" with a 1'-3\" typ. diagonal leg and 45° typ. bend angle"
    },
    {
      "name": "reinforcement bar",
      "tag": "351",
      "shape": "straight/rectangular bar",
      "material": "reinforced concrete (rebar)",
      "count": 1,
      "note": "Dimension shown as 1'-0\""
    },
    {
      "name": "reinforcement bar",
      "tag": "450",
      "shape": "straight/rectangular bar",
      "material": "reinforced concrete (rebar)",
      "count": 1,
      "note": "Dimension shown as 1'-1\""
    }
  ],
  "measurements": [
    {
      "label": "diagonal leg length",
      "value": "1'-3\"",
      "unit": "ft-in",
      "appliesTo": "350"
    },
    {
      "label": "bend angle",
      "value": "45",
      "unit": "degrees",
      "appliesTo": "350"
    },
    {
      "label": "overall width",
      "value": "1'-7\"",
      "unit": "ft-in",
      "appliesTo": "350"
    },
    {
      "label": "width",
      "value": "1'-0\"",
      "unit": "ft-in",
      "appliesTo": "351"
    },
    {
      "label": "width",
      "value": "1'-1\"",
      "unit": "ft-in",
      "appliesTo": "450"
    }
  ],
  "notes": [
    "45°, TYP.",
    "1'-3\" TYP."
  ],
  "labels": [
    "GM BAR",
    "350",
    "351",
    "450"
  ],
  "description": "This crop shows a portion of a bar bending schedule/detail sheet listing individual reinforcement bar shapes identified by mark numbers 350, 351, and 450, each with their bend geometry and dimensions annotated (e.g., 45° typical bend, 1'-3\" typical leg, and overall widths of 1'-7\", 1'-0\", and 1'-1\"). A partial text label 'GM BAR' appears at the left edge, likely part of a cut-off heading such as 'DIAGRAM BAR'. No other structural elements are shown in this fragment."
}

p11_r05 typ

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r05_typ

Detail3 objects · 5 measurements · 2 notes · 4 labels

This crop shows a portion of a bar bending schedule/detail sheet listing individual reinforcement bar shapes identified by mark numbers 350, 351, and 450, each with their bend geometry and dimensions annotated (e.g., 45° typical bend, 1'-3" typical leg, and overall widths of 1'-7", 1'-0", and 1'-1"). A partial text label 'GM BAR' appears at the left edge, likely part of a cut-off heading such as 'DIAGRAM BAR'. No other structural elements are shown in this fragment.

Objects · 3

MarkObjectNo.ShapeMaterialNote
350reinforcement bar1bent bar with 45° angled endsreinforced concrete (rebar)Shows overall dimension 1'-7" with a 1'-3" typ. diagonal leg and 45° typ. bend angle
351reinforcement bar1straight/rectangular barreinforced concrete (rebar)Dimension shown as 1'-0"
450reinforcement bar1straight/rectangular barreinforced concrete (rebar)Dimension shown as 1'-1"

Measurements · 5

MeasurementValueUnitApplies to
diagonal leg length1'-3"ft-in350
bend angle45degrees350
overall width1'-7"ft-in350
width1'-0"ft-in351
width1'-1"ft-in450

Labels

GM BAR350351450

Notes

  • 45°, TYP.
  • 1'-3" TYP.

anthropic/claude-sonnet-5 · 3795 tokens · 16.0s

crop · 1907 × 1124

p11_r06 elevation sheet for location of fixed an

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r06_elevation_sheet_for_location_of_fixed_an
Original
p11_r06 elevation sheet for location of fixed an
{
  "view": "Notes",
  "objects": [
    {
      "name": "Beam",
      "tag": "",
      "shape": "",
      "material": "precast concrete",
      "count": null,
      "note": "Referred to throughout notes 2-9; likely PSC beam per general note content (chamfer, strands, dead load deflection)."
    }
  ],
  "measurements": [
    {
      "label": "Chamfer",
      "value": "1/2\" OR 3/4\"",
      "unit": "in",
      "appliesTo": "Beam edges"
    },
    {
      "label": "Epoxy mortar thickness",
      "value": "1/8\"",
      "unit": "in",
      "appliesTo": "Beam end joint"
    },
    {
      "label": "Hole diameter at fixed ends",
      "value": "1 3/4\"",
      "unit": "in",
      "appliesTo": "Beam bearing hole"
    },
    {
      "label": "Hole depth at fixed ends",
      "value": "7\"",
      "unit": "in",
      "appliesTo": "Beam bearing hole"
    },
    {
      "label": "Slot dimensions at expansion ends",
      "value": "4\" X 1 3/4\" X 7\"",
      "unit": "in",
      "appliesTo": "Beam bearing slot"
    },
    {
      "label": "Dowel diameter",
      "value": "1 1/2\"",
      "unit": "in",
      "appliesTo": "Smooth dowel"
    },
    {
      "label": "Roughened surface amplitude",
      "value": "1/4\"",
      "unit": "in",
      "appliesTo": "Top of beam surface"
    },
    {
      "label": "ASTM strand grade",
      "value": "A 416 GRADE 270",
      "unit": "",
      "appliesTo": "Strands"
    },
    {
      "label": "Georgia Standard Specification (epoxy resin adhesive)",
      "value": "886",
      "unit": "",
      "appliesTo": "Hole filling material"
    },
    {
      "label": "Georgia Standard Specification (patching material)",
      "value": "934",
      "unit": "",
      "appliesTo": "Hole filling material"
    }
  ],
  "notes": [
    "2. CHAMFER EDGES OF BEAMS 1/2\" OR 3/4\".",
    "3. HORIZONTAL DIMENSIONS ARE IN PLACE DIMENSIONS. THE BEAM LENGTH INCLUDES THE 1/8\" EPOXY MORTAR AT EACH END. SHOP DRAWINGS SHALL ADJUST HORIZONTAL DIMENSIONS FOR GRADE AND FABRICATION EFFECTS SUCH AS SHRINKAGE AND ELASTIC SHORTENING.",
    "4. AT C BEARING, FORM A 1 3/4\" DIAMETER X 7\" DEEP HOLE AT THE FIXED ENDS AND A 4\" X 1 3/4\" X 7\" DEEP SLOT AT THE EXPANSION ENDS FOR A 1 1/2\" DIAMETER SMOOTH DOWEL. SEE PLAN AND ELEVATION SHEET FOR LOCATION OF FIXED AND EXPANSION ENDS.",
    "5. TOPS OF BEAMS SHALL BE ROUGH FLOATED AT APPROXIMATELY THE TIME OF INITIAL SET. ENTIRE TOP SHALL BE SCRUBBED TRANSVERSELY WITH A COARSE BRUSH TO REMOVE ALL LAITANCE AND TO PRODUCE A ROUGHENED SURFACE FOR BONDING TO THE SLAB. ROUGHENED SURFACE SHALL HAVE AN AMPLITUDE OF APPROXIMATELY 1/4\". CONCRETE FINS OR PROJECTIONS SHALL BE REMOVED TO PRODUCE A VERTICAL FACE AT THE EDGE OF THE BEAM.",
    "6. ALL HOLES FORMED INTO THE BEAMS TO FACILITATE TRANSPORT SHALL BE FILLED AND GIVEN A TYPE I FINISH, PRIOR TO ACCEPTANCE OF THE BEAM. REMOVE PVC OR SIMILAR FORMING MATERIALS FROM EACH HOLE, EXPOSING THE CONCRETE SURFACE. COAT INTERIOR OF HOLE WITH A TYPE II EPOXY RESIN ADHESIVE IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 886 AND FILL WITH A RAPID SETTING PATCHING MATERIAL IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 934.",
    "7. NON-COMPOSITE DEAD LOAD DEFLECTION (ΔNC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF THE SLAB AND COPING.",
    "8. COMPOSITE DEAD LOAD DEFLECTION (ΔC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF BARRIER.",
    "9. STRANDS SHALL MEET ALL REQUIREMENTS OF ASTM A 416 GRADE 270."
  ],
  "labels": [],
  "description": "This crop is a block of general notes (numbered 2 through 9) pertaining to precast/prestressed concrete beam fabrication and detailing, covering chamfering, horizontal dimension tolerances, bearing hole/slot details for dowels, surface finishing requirements for slab bonding, filling of transport holes, dead load deflection definitions, and strand material specification. No plan, elevation, or schedule graphics are present, only text notes referencing beams, slab, coping, and barrier without showing them."
}

p11_r06 elevation sheet for location of fixed an

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r06_elevation_sheet_for_location_of_fixed_an

Notes1 object · 10 measurements · 8 notes

This crop is a block of general notes (numbered 2 through 9) pertaining to precast/prestressed concrete beam fabrication and detailing, covering chamfering, horizontal dimension tolerances, bearing hole/slot details for dowels, surface finishing requirements for slab bonding, filling of transport holes, dead load deflection definitions, and strand material specification. No plan, elevation, or schedule graphics are present, only text notes referencing beams, slab, coping, and barrier without showing them.

Objects · 1

ObjectMaterialNote
Beamprecast concreteReferred to throughout notes 2-9; likely PSC beam per general note content (chamfer, strands, dead load deflection).

Measurements · 10

MeasurementValueUnitApplies to
Chamfer1/2" OR 3/4"inBeam edges
Epoxy mortar thickness1/8"inBeam end joint
Hole diameter at fixed ends1 3/4"inBeam bearing hole
Hole depth at fixed ends7"inBeam bearing hole
Slot dimensions at expansion ends4" X 1 3/4" X 7"inBeam bearing slot
Dowel diameter1 1/2"inSmooth dowel
Roughened surface amplitude1/4"inTop of beam surface
ASTM strand gradeA 416 GRADE 270Strands
Georgia Standard Specification (epoxy resin adhesive)886Hole filling material
Georgia Standard Specification (patching material)934Hole filling material

Notes

  • 2. CHAMFER EDGES OF BEAMS 1/2" OR 3/4".
  • 3. HORIZONTAL DIMENSIONS ARE IN PLACE DIMENSIONS. THE BEAM LENGTH INCLUDES THE 1/8" EPOXY MORTAR AT EACH END. SHOP DRAWINGS SHALL ADJUST HORIZONTAL DIMENSIONS FOR GRADE AND FABRICATION EFFECTS SUCH AS SHRINKAGE AND ELASTIC SHORTENING.
  • 4. AT C BEARING, FORM A 1 3/4" DIAMETER X 7" DEEP HOLE AT THE FIXED ENDS AND A 4" X 1 3/4" X 7" DEEP SLOT AT THE EXPANSION ENDS FOR A 1 1/2" DIAMETER SMOOTH DOWEL. SEE PLAN AND ELEVATION SHEET FOR LOCATION OF FIXED AND EXPANSION ENDS.
  • 5. TOPS OF BEAMS SHALL BE ROUGH FLOATED AT APPROXIMATELY THE TIME OF INITIAL SET. ENTIRE TOP SHALL BE SCRUBBED TRANSVERSELY WITH A COARSE BRUSH TO REMOVE ALL LAITANCE AND TO PRODUCE A ROUGHENED SURFACE FOR BONDING TO THE SLAB. ROUGHENED SURFACE SHALL HAVE AN AMPLITUDE OF APPROXIMATELY 1/4". CONCRETE FINS OR PROJECTIONS SHALL BE REMOVED TO PRODUCE A VERTICAL FACE AT THE EDGE OF THE BEAM.
  • 6. ALL HOLES FORMED INTO THE BEAMS TO FACILITATE TRANSPORT SHALL BE FILLED AND GIVEN A TYPE I FINISH, PRIOR TO ACCEPTANCE OF THE BEAM. REMOVE PVC OR SIMILAR FORMING MATERIALS FROM EACH HOLE, EXPOSING THE CONCRETE SURFACE. COAT INTERIOR OF HOLE WITH A TYPE II EPOXY RESIN ADHESIVE IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 886 AND FILL WITH A RAPID SETTING PATCHING MATERIAL IN ACCORDANCE WITH GEORGIA STANDARD SPECIFICATION 934.
  • 7. NON-COMPOSITE DEAD LOAD DEFLECTION (ΔNC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF THE SLAB AND COPING.
  • 8. COMPOSITE DEAD LOAD DEFLECTION (ΔC) AT THE MIDPOINT IS DUE TO THE WEIGHT OF BARRIER.
  • 9. STRANDS SHALL MEET ALL REQUIREMENTS OF ASTM A 416 GRADE 270.

anthropic/claude-sonnet-5 · 6084 tokens · 22.6s

crop · 1943 × 1026

p11_r07 title block

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r07_title_block
Original
p11_r07 title block
{
  "view": "Title Block",
  "objects": [],
  "measurements": [],
  "notes": [
    "NO SCALE",
    "1 INCH WHEN PRINTED FULL SIZE"
  ],
  "labels": [
    "BRIDGE NO. 1 LT. AND RT.",
    "S&A Atlanta",
    "SASTRY & ASSOCIATES, INC.",
    "11030 JONES BRIDGE ROAD, SUITE 201",
    "ALPHARETTA, GA 30022",
    "PHONE: 678-366-9375  FAX: 770-442-0761",
    "GEORGIA",
    "DEPARTMENT OF TRANSPORTATION",
    "ENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURES",
    "TYPE III PSC BEAM - INTERMEDIATE SPAN",
    "SR 21 @ NS #620272Y",
    "JENKINS COUNTY",
    "0019181",
    "DRAWING NO. 35-0011",
    "BRIDGE SHEET 11 OF 21",
    "DATE",
    "REVISIONS",
    "BY",
    "DESIGNED  UP",
    "DRAWN  EPR",
    "CHECKED  AS",
    "DESIGN GROUP  JBK",
    "REVIEWED  DLC/SKG",
    "APPROVED  DPD",
    "NO SCALE",
    "APRIL 2025",
    "0019181_0011.dgn",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371",
    "ARUNA SASTRY"
  ],
  "description": "This crop shows the standard title block for a Georgia Department of Transportation bridge drawing sheet, including the engineering firm information (Sastry & Associates, Inc.), professional engineer seal for Aruna Sastry, project identification (SR 21 @ NS #620272Y, Jenkins County, Bridge No. 1 LT. and RT.), sheet title 'TYPE III PSC BEAM - INTERMEDIATE SPAN', drawing number, sheet number (11 of 21), scale note, date, and sign-off fields for design, drawing, checking, and approval. No structural or constructional elements are depicted in this crop; it is purely administrative/title block content."
}

p11_r07 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r07_title_block

Title Block2 notes · 29 labels

This crop shows the standard title block for a Georgia Department of Transportation bridge drawing sheet, including the engineering firm information (Sastry & Associates, Inc.), professional engineer seal for Aruna Sastry, project identification (SR 21 @ NS #620272Y, Jenkins County, Bridge No. 1 LT. and RT.), sheet title 'TYPE III PSC BEAM - INTERMEDIATE SPAN', drawing number, sheet number (11 of 21), scale note, date, and sign-off fields for design, drawing, checking, and approval. No structural or constructional elements are depicted in this crop; it is purely administrative/title block content.

Objects · 0

No objects read. Edit to add one.

Measurements · 0

No measurements read. Edit to add one.

Labels

BRIDGE NO. 1 LT. AND RT.S&A AtlantaSASTRY & ASSOCIATES, INC.11030 JONES BRIDGE ROAD, SUITE 201ALPHARETTA, GA 30022PHONE: 678-366-9375 FAX: 770-442-0761GEORGIADEPARTMENT OF TRANSPORTATIONENGINEERING DIVISION-OFFICE OF BRIDGES AND STRUCTURESTYPE III PSC BEAM - INTERMEDIATE SPANSR 21 @ NS #620272YJENKINS COUNTY0019181DRAWING NO. 35-0011BRIDGE SHEET 11 OF 21DATEREVISIONSBYDESIGNED UPDRAWN EPRCHECKED ASDESIGN GROUP JBKREVIEWED DLC/SKGAPPROVED DPDNO SCALEAPRIL 20250019181_0011.dgnGEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371ARUNA SASTRY

Notes

  • NO SCALE
  • 1 INCH WHEN PRINTED FULL SIZE

anthropic/claude-sonnet-5 · 4712 tokens · 14.5s

crop · 1645 × 915

p11_r08 title block

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r08_title_block
Original
p11_r08 title block
{
  "view": "Detail",
  "objects": [
    {
      "name": "beam (girder end)",
      "tag": "",
      "shape": "rectangular with beveled top flange",
      "material": "structural steel (implied by flange/bevel terminology)",
      "count": 1,
      "note": "End elevation showing beveled top flange cut parallel to bent centerline; hatching shown mid-depth possibly indicating break/section"
    }
  ],
  "measurements": [],
  "notes": [
    "BEVEL TOP FLANGE PARALLEL TO Ç BENT"
  ],
  "labels": [
    "Ç BENT",
    "Ç BEAM",
    "BEVEL DETAILS",
    "DRAWING NO. 35-0011",
    "BRIDGE SHEET 11 OF 21",
    "GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY"
  ],
  "description": "This crop shows a small detail titled 'BEVEL DETAILS' illustrating the end of a beam where the top flange is beveled parallel to the bent centerline, with centerlines labeled for the bent and beam. The right side of the crop contains the title block area with a Georgia professional engineer's seal (Aruna Sastry, No. 19371), drawing number 35-0011, and sheet identification 'BRIDGE SHEET 11 OF 21'. No dimensional values or quantities are printed in this crop."
}

p11_r08 title block

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r08_title_block

Detail1 object · 1 note · 6 labels

This crop shows a small detail titled 'BEVEL DETAILS' illustrating the end of a beam where the top flange is beveled parallel to the bent centerline, with centerlines labeled for the bent and beam. The right side of the crop contains the title block area with a Georgia professional engineer's seal (Aruna Sastry, No. 19371), drawing number 35-0011, and sheet identification 'BRIDGE SHEET 11 OF 21'. No dimensional values or quantities are printed in this crop.

Objects · 1

ObjectNo.ShapeMaterialNote
beam (girder end)1rectangular with beveled top flangestructural steel (implied by flange/bevel terminology)End elevation showing beveled top flange cut parallel to bent centerline; hatching shown mid-depth possibly indicating break/section

Measurements · 0

No measurements read. Edit to add one.

Labels

Ç BENTÇ BEAMBEVEL DETAILSDRAWING NO. 35-0011BRIDGE SHEET 11 OF 21GEORGIA REGISTERED PROFESSIONAL ENGINEER No.19371 ARUNA SASTRY

Notes

  • BEVEL TOP FLANGE PARALLEL TO Ç BENT

anthropic/claude-sonnet-5 · 3740 tokens · 11.8s

crop · 1687 × 111

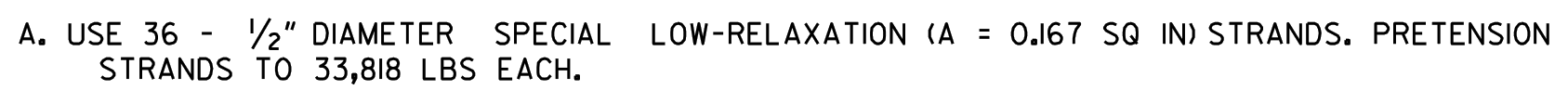

p11_r09 notes

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r09_notes
Original
p11_r09 notes
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "Strand diameter",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "prestressing strands"
    },
    {
      "label": "Number of strands",
      "value": "36",
      "unit": "",
      "appliesTo": "prestressing strands"
    },
    {
      "label": "Strand area",
      "value": "0.167",
      "unit": "SQ IN",
      "appliesTo": "prestressing strands"
    },
    {
      "label": "Pretension force per strand",
      "value": "33,818",
      "unit": "LBS",
      "appliesTo": "prestressing strands"
    }
  ],
  "notes": [
    "A. USE 36 - 1/2\" DIAMETER SPECIAL LOW-RELAXATION (A = 0.167 SQ IN) STRANDS. PRETENSION STRANDS TO 33,818 LBS EACH."
  ],
  "labels": [],
  "description": "This crop contains a single lettered general note (Note A) specifying the strand type, quantity, size, cross-sectional area, and required pretensioning force for prestressing strands, presumably for a precast/prestressed concrete girder or beam element referenced elsewhere on the sheet. No graphical elements, views, or object drawings are present in this crop."
}

p11_r09 notes

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r09_notes

Notes4 measurements · 1 note

This crop contains a single lettered general note (Note A) specifying the strand type, quantity, size, cross-sectional area, and required pretensioning force for prestressing strands, presumably for a precast/prestressed concrete girder or beam element referenced elsewhere on the sheet. No graphical elements, views, or object drawings are present in this crop.

Objects · 0

No objects read. Edit to add one.

Measurements · 4

MeasurementValueUnitApplies to
Strand diameter1/2inprestressing strands
Number of strands36prestressing strands
Strand area0.167SQ INprestressing strands
Pretension force per strand33,818LBSprestressing strands

Notes

  • A. USE 36 - 1/2" DIAMETER SPECIAL LOW-RELAXATION (A = 0.167 SQ IN) STRANDS. PRETENSION STRANDS TO 33,818 LBS EACH.

anthropic/claude-sonnet-5 · 1970 tokens · 9.6s

crop · 1715 × 363

p11_r10 1 217 430 lbs

page 11 · gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r10_1_217_430_lbs
Original
p11_r10 1 217 430 lbs
{
  "view": "Notes",
  "objects": [],
  "measurements": [
    {
      "label": "Minimum concrete strength at release (f'ci)",
      "value": "5,200",
      "unit": "PSI",
      "appliesTo": "pretensioned strands"
    },
    {
      "label": "Total jacking force of pretensioning (including top strands)",
      "value": "1,217,430",
      "unit": "LBS",
      "appliesTo": "pretensioned strands"
    },
    {
      "label": "Net prestressing force after all losses (including top strands)",
      "value": "930,145",
      "unit": "LBS",
      "appliesTo": "pretensioned strands"
    }
  ],
  "notes": [
    "B. PRETENSIONED STRANDS SHALL BE RELEASED AFTER THE CONCRETE HAS REACHED A MINIMUM STRENGTH (f'ci) OF 5,200 PSI.",
    "C. INCLUDING THE TOP STRANDS, THE TOTAL JACKING FORCE OF PRETENSIONING IS 1,217,430 LBS.",
    "D. INCLUDING THE TOP STRANDS, THE NET PRESTRESSING FORCE OF THE STRANDS AFTER ALL LOSSES IS 930,145 LBS."
  ],
  "labels": [],
  "description": "This crop shows a portion of a general notes list (items B, C, and D) related to pretensioning of a precast concrete member, likely a PSC girder or beam. It specifies the minimum release strength for concrete, the total jacking force including top strands, and the net prestressing force after losses. No graphical elements or objects are depicted; this is purely textual specification content."
}

p11_r10 1 217 430 lbs

done

gdot_plan_649084f395824aaebf1f5ed48132696f_p11_r10_1_217_430_lbs

Notes3 measurements · 3 notes

This crop shows a portion of a general notes list (items B, C, and D) related to pretensioning of a precast concrete member, likely a PSC girder or beam. It specifies the minimum release strength for concrete, the total jacking force including top strands, and the net prestressing force after losses. No graphical elements or objects are depicted; this is purely textual specification content.

Objects · 0

No objects read. Edit to add one.

Measurements · 3

MeasurementValueUnitApplies to
Minimum concrete strength at release (f'ci)5,200PSIpretensioned strands
Total jacking force of pretensioning (including top strands)1,217,430LBSpretensioned strands
Net prestressing force after all losses (including top strands)930,145LBSpretensioned strands

Notes

  • B. PRETENSIONED STRANDS SHALL BE RELEASED AFTER THE CONCRETE HAS REACHED A MINIMUM STRENGTH (f'ci) OF 5,200 PSI.
  • C. INCLUDING THE TOP STRANDS, THE TOTAL JACKING FORCE OF PRETENSIONING IS 1,217,430 LBS.
  • D. INCLUDING THE TOP STRANDS, THE NET PRESTRESSING FORCE OF THE STRANDS AFTER ALL LOSSES IS 930,145 LBS.

anthropic/claude-sonnet-5 · 2657 tokens · 10.4s

item · 4544 × 1506

Other P11 R01

page 11 · other_p11_r01
Original
Other P11 R01
{
  "view": "Elevation",
  "objects": [
    {
      "name": "PSC beam",
      "tag": "",
      "shape": "I-girder",
      "material": "precast concrete",
      "count": 1,
      "note": "Elevation view of a precast pretensioned girder spanning between Bent 2 and Bent 3; shown with strand pattern and diaphragm/hold-down details"
    },
    {
      "name": "strand (pretensioning)",
      "tag": "2-550",
      "shape": "straight, at bottom flange",
      "material": "steel (low-relaxation strand)",
      "count": 2,
      "note": "2 strands at each end location, labeled 2-550"
    },
    {
      "name": "strand (pretensioning)",
      "tag": "2-450",
      "shape": "draped/inclined",
      "material": "steel (low-relaxation strand)",
      "count": 2,
      "note": "part of draped strand group"
    },
    {
      "name": "strand (pretensioning)",
      "tag": "8-451",
      "shape": "draped, inclined group",
      "material": "steel (low-relaxation strand)",
      "count": 8,
      "note": "labeled '8-DRAPED STRANDS' and '8-451'"
    },
    {
      "name": "strand (pretensioning)",
      "tag": "13-350",
      "shape": "straight, at bottom flange",
      "material": "steel (low-relaxation strand)",
      "count": 13,
      "note": "13 strands at 6\" spacing"
    },
    {
      "name": "strand (pretensioning)",
      "tag": "2-452",
      "shape": "straight",
      "material": "steel (low-relaxation strand)",
      "count": 2,
      "note": ""
    },
    {
      "name": "strand (pretensioning)",
      "tag": "2-650",
      "shape": "straight",
      "material": "steel (low-relaxation strand)",
      "count": 2,
      "note": "located at each end location"
    },
    {
      "name": "diaphragm bar hole",
      "tag": "",
      "shape": "circular, 2\" diameter",
      "material": "",
      "count": 2,
      "note": "omitted at beams 6 and 12, and at beams 1 and 7 per notes"
    },
    {
      "name": "bearing",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 2,
      "note": "centerline bearing locations shown near each bent"
    },
    {
      "name": "low friction type hold down",
      "tag": "",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "located at midpoint of beam"
    },
    {
      "name": "bent",
      "tag": "BENT 2",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "reference centerline only, not detailed in this crop"
    },
    {
      "name": "bent",
      "tag": "BENT 3",
      "shape": "",
      "material": "",
      "count": 1,
      "note": "reference centerline only, not detailed in this crop"
    }
  ],
  "measurements": [
    {
      "label": "Span Length",
      "value": "82'-0\"",
      "unit": "ft-in",
      "appliesTo": "beam span between Bent 2 and Bent 3"
    },
    {
      "label": "Beam Length",
      "value": "80'-11 5/8\"",
      "unit": "ft-in",
      "appliesTo": "PSC beam"
    },
    {
      "label": "Midpoint dimension",
      "value": "40'-5 13/16\"",
      "unit": "ft-in",
      "appliesTo": "beam midpoint reference"
    },
    {
      "label": "Dimension to first spacing group",
      "value": "11 3/16\"",
      "unit": "in",
      "appliesTo": "beam"
    },
    {
      "label": "Spacing",
      "value": "9 SPACES AT 24\"",
      "unit": "in",
      "appliesTo": "strand/hole spacing along beam"
    },
    {
      "label": "Spacing",
      "value": "19 SPACES AT 12\"",
      "unit": "in",
      "appliesTo": "strand/hole spacing along beam"
    },
    {
      "label": "Dimension",
      "value": "4\"",
      "unit": "in",
      "appliesTo": "spacing gap"
    },
    {
      "label": "Spacing",
      "value": "6 SPACES AT 4\"",
      "unit": "in",
      "appliesTo": "strand/hole spacing along beam"
    },
    {
      "label": "Dimension",
      "value": "2\"",
      "unit": "in",
      "appliesTo": "end spacing"
    },
    {
      "label": "Depth dimension",
      "value": "2'-3\"",
      "unit": "ft-in",
      "appliesTo": "beam end depth"
    },
    {
      "label": "Camber (non-composite)",
      "value": "1 1/4\"",
      "unit": "in",
      "appliesTo": "ΔNC beam camber"
    },
    {
      "label": "Camber (composite)",
      "value": "1/8\"",
      "unit": "in",
      "appliesTo": "ΔC beam camber"
    },
    {
      "label": "Dimension",
      "value": "6 7/8\"",
      "unit": "in",
      "appliesTo": "hole spacing near diaphragm bar hole"
    },
    {
      "label": "Strand group",
      "value": "2-550",
      "unit": "",
      "appliesTo": "strand count/mark, at each end location"
    },
    {
      "label": "Strand group",
      "value": "2-450",
      "unit": "",
      "appliesTo": "strand count/mark"
    },
    {
      "label": "Strand group",
      "value": "8-451",
      "unit": "",
      "appliesTo": "draped strand group"
    },
    {
      "label": "Strand group",
      "value": "13-350 AT 6\"",
      "unit": "in",
      "appliesTo": "strand spacing group"
    },
    {
      "label": "Dimension",
      "value": "2 5/8\"",
      "unit": "in",
      "appliesTo": "end region dimension"
    },
    {
      "label": "Strand group",
      "value": "2-452",
      "unit": "",
      "appliesTo": "strand count/mark"
    },
    {
      "label": "Dimension",
      "value": "6 3/16\"",
      "unit": "in",
      "appliesTo": "end bearing offset"
    },
    {
      "label": "Dimension",
      "value": "8\"",
      "unit": "in",
      "appliesTo": "bearing offset dimension"
    },
    {
      "label": "Dimension",
      "value": "1'-2 3/16\"",
      "unit": "ft-in",
      "appliesTo": "end dimension to bearing"
    },
    {
      "label": "Bearing to Bearing",
      "value": "79'-7 5/8\"",
      "unit": "ft-in",
      "appliesTo": "centerline bearing to centerline bearing"
    }
  ],
  "notes": [
    "MIDPOINT, DETAILS SYMMETRICAL ABOUT MIDPOINT UNLESS NOTED",
    "OMIT HOLE AT BEAMS 6 AND 12",
    "OMIT HOLE AT BEAMS 1 AND 7",
    "ALL DIMENSIONS ARE ALONG C BEAM"
  ],
  "labels": [
    "NOTES",
    "ELEVATION",
    "C BENT 2",
    "C BENT 3",
    "C BEARING",
    "C LOW FRICTION TYPE HOLD DOWN",
    "C 2\" DIAMETER HOLE FOR DIAPHRAGM BAR",
    "8 - DRAPED STRANDS"
  ],
  "description": "This crop shows an elevation view of a single precast, pretensioned concrete I-girder (PSC beam) spanning between Bent 2 and Bent 3, with overall span, beam length, and bearing-to-bearing dimensions given. It details the strand layout including straight bottom strands (grouped as 2-550, 13-350, 2-452, 2-650) and draped strands (2-450, 8-451), diaphragm bar hole locations (omitted at specific beam numbers), camber values, and bearing/hold-down centerline locations, documenting the beam's prestressing and geometric layout for fabrication."
}

Other P11 R01

done

other_p11_r01

Elevation12 objects · 23 measurements · 4 notes · 8 labels

This crop shows an elevation view of a single precast, pretensioned concrete I-girder (PSC beam) spanning between Bent 2 and Bent 3, with overall span, beam length, and bearing-to-bearing dimensions given. It details the strand layout including straight bottom strands (grouped as 2-550, 13-350, 2-452, 2-650) and draped strands (2-450, 8-451), diaphragm bar hole locations (omitted at specific beam numbers), camber values, and bearing/hold-down centerline locations, documenting the beam's prestressing and geometric layout for fabrication.

Objects · 12

MarkObjectNo.ShapeMaterialNote
PSC beam1I-girderprecast concreteElevation view of a precast pretensioned girder spanning between Bent 2 and Bent 3; shown with strand pattern and diaphragm/hold-down details
2-550strand (pretensioning)2straight, at bottom flangesteel (low-relaxation strand)2 strands at each end location, labeled 2-550
2-450strand (pretensioning)2draped/inclinedsteel (low-relaxation strand)part of draped strand group
8-451strand (pretensioning)8draped, inclined groupsteel (low-relaxation strand)labeled '8-DRAPED STRANDS' and '8-451'
13-350strand (pretensioning)13straight, at bottom flangesteel (low-relaxation strand)13 strands at 6" spacing
2-452strand (pretensioning)2straightsteel (low-relaxation strand)
2-650strand (pretensioning)2straightsteel (low-relaxation strand)located at each end location
diaphragm bar hole2circular, 2" diameteromitted at beams 6 and 12, and at beams 1 and 7 per notes
bearing2centerline bearing locations shown near each bent
low friction type hold down1located at midpoint of beam
BENT 2bent1reference centerline only, not detailed in this crop
BENT 3bent1reference centerline only, not detailed in this crop

Measurements · 23

MeasurementValueUnitApplies to
Span Length82'-0"ft-inbeam span between Bent 2 and Bent 3
Beam Length80'-11 5/8"ft-inPSC beam
Midpoint dimension40'-5 13/16"ft-inbeam midpoint reference
Dimension to first spacing group11 3/16"inbeam
Spacing9 SPACES AT 24"instrand/hole spacing along beam
Spacing19 SPACES AT 12"instrand/hole spacing along beam
Dimension4"inspacing gap
Spacing6 SPACES AT 4"instrand/hole spacing along beam
Dimension2"inend spacing
Depth dimension2'-3"ft-inbeam end depth
Camber (non-composite)1 1/4"inΔNC beam camber
Camber (composite)1/8"inΔC beam camber
Dimension6 7/8"inhole spacing near diaphragm bar hole
Strand group2-550strand count/mark, at each end location
Strand group2-450strand count/mark
Strand group8-451draped strand group
Strand group13-350 AT 6"instrand spacing group
Dimension2 5/8"inend region dimension
Strand group2-452strand count/mark
Dimension6 3/16"inend bearing offset
Dimension8"inbearing offset dimension
Dimension1'-2 3/16"ft-inend dimension to bearing
Bearing to Bearing79'-7 5/8"ft-incenterline bearing to centerline bearing

Labels

NOTESELEVATIONC BENT 2C BENT 3C BEARINGC LOW FRICTION TYPE HOLD DOWNC 2" DIAMETER HOLE FOR DIAPHRAGM BAR8 - DRAPED STRANDS

Notes

  • MIDPOINT, DETAILS SYMMETRICAL ABOUT MIDPOINT UNLESS NOTED
  • OMIT HOLE AT BEAMS 6 AND 12
  • OMIT HOLE AT BEAMS 1 AND 7
  • ALL DIMENSIONS ARE ALONG C BEAM

anthropic/claude-sonnet-5 · 5874 tokens · 27.0s

item · 2234 × 2796

Other P11 R02

page 11 · other_p11_r02
Original
Other P11 R02
{
  "view": "Section",
  "objects": [
    {
      "name": "PSC beam (bulb-tee/I-girder)",
      "tag": "",
      "shape": "I-section with tapered web, bulb bottom flange",
      "material": "precast prestressed concrete",
      "count": 2,
      "note": "Shown as 'SECTION AT MIDPOINT' and 'SECTION AT END' cross-sections of the same beam"
    },
    {
      "name": "Prestressed strand",
      "tag": "",
      "shape": "circular, 1/2\" diameter",
      "material": "steel strand",
      "count": null,
      "note": "Indicated by dots (•) in bottom flange of both sections; count of dots not individually tallied"
    },
    {
      "name": "Reinforcement bar",
      "tag": "350",
      "shape": "bent bar, angled ~45° with 1'-7\" and 1'-3\" legs",
      "material": "reinforcing steel",
      "count": null,
      "note": "Shown in section at end and detailed in bar shape schedule"
    },
    {
      "name": "Reinforcement bar",
      "tag": "351",
      "shape": "straight/bent bar, 1'-0\" dimension",
      "material": "reinforcing steel",
      "count": null,
      "note": "Bar shape schedule only"
    },
    {
      "name": "Reinforcement bar",
      "tag": "450",
      "shape": "L-shaped/bent bar, 1'-1\" x 8\"",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Called out as '2-450' at top of end section"
    },
    {
      "name": "Reinforcement bar",
      "tag": "451",
      "shape": "bent bar, 6'-0\" leg",
      "material": "reinforcing steel",
      "count": 8,
      "note": "Called out as '8-451' at top of end section, slightly shifted to avoid strand conflict"
    },
    {
      "name": "Reinforcement bar",
      "tag": "452",
      "shape": "open-ended bent bar, 1'-6\"",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Called out as '2-452' near bottom of both sections; placed with open ends away from beam ends"
    },
    {
      "name": "Reinforcement bar",
      "tag": "550",
      "shape": "bar with 90° bend, 5'-8\" x 11\"",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Field/shop bent 90° at top of beam so horizontal leg extends between slab reinforcement mats"
    },
    {
      "name": "Reinforcement bar",
      "tag": "650",
      "shape": "bar with 90° bend, 5'-8\" x 8\"",
      "material": "reinforcing steel",
      "count": 2,
      "note": "Same bending requirement as bar 550"
    }
  ],
  "measurements": [
    {
      "label": "Beam top width",
      "value": "1'-4\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Bar 550 spacing/position",
      "value": "550",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Flange width",
      "value": "7\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Clear cover",
      "value": "2 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Flange dimension",
      "value": "7\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Web dimension",
      "value": "4 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Web dimension",
      "value": "4 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Height segment",
      "value": "1'-7\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Overall beam height",
      "value": "3'-9\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Flange dimension",
      "value": "7 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Flange dimension",
      "value": "7 1/2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Clear cover",
      "value": "1 5/8\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Bottom flange spacing",
      "value": "3 SPACES AT 2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Edge dimension",
      "value": "3\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Edge dimension",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Strand spacing",
      "value": "9 SPACES AT 2\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Bottom flange width",
      "value": "1'-10\"",
      "unit": "",
      "appliesTo": "Section at Midpoint"
    },
    {
      "label": "Bar 650 position",
      "value": "650",
      "unit": "",
      "appliesTo": "Section at End"
    },
    {
      "label": "Top clear dimension",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Section at End"
    },
    {
      "label": "Bar count/tag",
      "value": "8-451",
      "unit": "",
      "appliesTo": "Section at End, bar 451"
    },
    {
      "label": "Bar count/tag",
      "value": "2-450",
      "unit": "",
      "appliesTo": "Section at End, bar 450"
    },
    {
      "label": "Clear cover",
      "value": "1 1/2\"",
      "unit": "",
      "appliesTo": "Section at End"
    },
    {
      "label": "Bar tag callout",
      "value": "350",
      "unit": "",
      "appliesTo": "Section at End, bar 350"
    },
    {
      "label": "Overall web height",
      "value": "2'-7\"",
      "unit": "",
      "appliesTo": "Section at End"
    },
    {
      "label": "Clear cover",
      "value": "2\" CL.",
      "unit": "",
      "appliesTo": "Section at End"
    },
    {
      "label": "Bar count/tag",
      "value": "2-452",
      "unit": "",
      "appliesTo": "Section at End, bar 452"
    },
    {
      "label": "Minimum clearance",
      "value": "1",
      "unit": "in (implied)",
      "appliesTo": "General note"
    },
    {
      "label": "Strand diameter",
      "value": "1/2",
      "unit": "in",
      "appliesTo": "Prestressed strands"
    },
    {
      "label": "Bar 350 leg dimension",
      "value": "1'-3\"",
      "unit": "",
      "appliesTo": "Bar 350 shape detail"
    },
    {
      "label": "Bar 350 bend angle",
      "value": "45°",
      "unit": "",
      "appliesTo": "Bar 350 shape detail"
    },
    {
      "label": "Bar 350 leg dimension",
      "value": "4\"",
      "unit": "",
      "appliesTo": "Bar 350 shape detail"
    },
    {
      "label": "Bar 350 overall dimension",
      "value": "1'-7\"",
      "unit": "",
      "appliesTo": "Bar 350 shape detail"
    },
    {
      "label": "Lap length minimum",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "Bar 350 fabrication note"
    },
    {
      "label": "Bar 351 dimension",
      "value": "1'-0\"",
      "unit": "",
      "appliesTo": "Bar 351 shape"
    },
    {
      "label": "Bar 451 dimension",
      "value": "6'-0\"",
      "unit": "",
      "appliesTo": "Bar 451 shape"
    },
    {
      "label": "Bar 450 dimension",
      "value": "1'-1\"",
      "unit": "",
      "appliesTo": "Bar 450 shape"
    },
    {
      "label": "Bar 450 dimension",
      "value": "8\"",
      "unit": "",
      "appliesTo": "Bar 450 shape"
    },
    {
      "label": "Bar 452 dimension",
      "value": "1'-6\"",
      "unit": "",
      "appliesTo": "Bar 452 shape"
    },
    {
      "label": "Bar 550 dimension",
      "value": "5'-8\"",
      "unit": "",
      "appliesTo": "Bar 550 shape"
    },
    {
      "label": "Bar 550 dimension",
      "value": "11\"",
      "unit": "",
      "appliesTo": "Bar 550 shape"
    },
    {
      "label": "Bar 650 dimension",
      "value": "5'-8\"",
      "unit": "",
      "appliesTo": "Bar 650 shape"
    },
    {
      "label": "Bar 650 dimension",
      "value": "8\"",
      "unit": "",
      "appliesTo": "Bar 650 shape"
    },
    {
      "label": "Fragment dimension",
      "value": "2\"",
      "unit": "",
      "appliesTo": "Left edge fragment (cut off)"
    },
    {
      "label": "Fragment dimension",
      "value": "2 5/8\"",
      "unit": "",
      "appliesTo": "Left edge fragment (cut off)"
    },
    {
      "label": "Fragment dimension",
      "value": "8\"",
      "unit": "",
      "appliesTo": "Left edge fragment (cut off)"
    },
    {
      "label": "Fragment dimension",
      "value": "6 3/16\"",
      "unit": "",
      "appliesTo": "Left edge fragment (cut off)"
    },
    {
      "label": "Fragment dimension",
      "value": "1'-2 3/16\"",
      "unit": "",
      "appliesTo": "Left edge fragment (cut off)"
    },
    {
      "label": "Bar count/tag",
      "value": "2-650 AT EACH LOCATION",
      "unit": "",
      "appliesTo": "Left edge fragment (cut off)"
    },
    {
      "label": "Bar count/tag",
      "value": "2-452",
      "unit": "",
      "appliesTo": "Left edge fragment (cut off)"
    },
    {
      "label": "P.I. Number",
      "value": "0019181",
      "unit": "",
      "appliesTo": "Title block"
    }
  ],
  "notes": [
    "MAINTAIN 1\" MINIMUM CLEARANCE UNLESS OTHERWISE SHOWN.",
    "• INDICATES 1/2\" DIAMETER PRESTRESSED STRANDS.",
    "ALL DIMENSIONS ARE ALONG ¢ BEAM",
    "ALL BAR DIMENSIONS ARE OUT TO OUT.",
    "AT THE TOP OF THE BEAM, BARS 550 AND 650 SHALL BE FIELD BENT OR SHOP BENT 90°, SUCH THAT THE HORIZONTAL LEG EXTENDS BETWEEN TOP AND BOTTOM MATS OF SLAB REINFORCEMENT.",
    "SLIGHTLY SHIFT OR SLOPE BARS 451 TO AVOID CONFLICT WITH STRANDS.",
    "BARS 350 MAY BE FABRICATED IN TWO PARTS BY LAPPING HORIZONTAL SECTION BY 1'-0\" MINIMUM.",
    "PLACE BARS 452 WITH OPEN ENDS AWAY FROM BEAM ENDS."
  ],
  "labels": [
    "SECTION AT MIDPOINT",
    "SECTION AT END",
    "REINFORCEMENT",
    "GDOT",
    "P.I. NO.",
    "¢ BENT 3",
    "350",
    "351",
    "450",
    "451",
    "452",
    "550",
    "650",
    "TYP.",
    "8-451",
    "2-450",
    "2-452"
  ],
  "description": "This crop shows two cross-sections of a precast, prestressed concrete beam (bulb-tee/I-girder type) — one taken at the beam midpoint and one at the beam end — with dimensions for flange widths, web thicknesses, overall depth, strand pattern (1/2\" diameter prestressed strands), and reinforcing bar cover/clearances. Below the sections is a 'REINFORCEMENT' detail box containing bar-bending notes and individual bar shape diagrams with dimensions for bars 350, 351, 450, 451, 452, 550, and 650. A partial fragment at the left edge (dimensions and bar callouts near '¢ BENT 3') indicates this crop is cut off from an adjacent portion of the same beam/bent detail sheet; the GDOT title block with P.I. NO. 0019181 appears at top right."
}

Other P11 R02

done

other_p11_r02

Section9 objects · 50 measurements · 8 notes · 17 labels

This crop shows two cross-sections of a precast, prestressed concrete beam (bulb-tee/I-girder type) — one taken at the beam midpoint and one at the beam end — with dimensions for flange widths, web thicknesses, overall depth, strand pattern (1/2" diameter prestressed strands), and reinforcing bar cover/clearances. Below the sections is a 'REINFORCEMENT' detail box containing bar-bending notes and individual bar shape diagrams with dimensions for bars 350, 351, 450, 451, 452, 550, and 650. A partial fragment at the left edge (dimensions and bar callouts near '¢ BENT 3') indicates this crop is cut off from an adjacent portion of the same beam/bent detail sheet; the GDOT title block with P.I. NO. 0019181 appears at top right.

Objects · 9

MarkObjectNo.ShapeMaterialNote
PSC beam (bulb-tee/I-girder)2I-section with tapered web, bulb bottom flangeprecast prestressed concreteShown as 'SECTION AT MIDPOINT' and 'SECTION AT END' cross-sections of the same beam
Prestressed strandcircular, 1/2" diametersteel strandIndicated by dots (•) in bottom flange of both sections; count of dots not individually tallied
350Reinforcement barbent bar, angled ~45° with 1'-7" and 1'-3" legsreinforcing steelShown in section at end and detailed in bar shape schedule
351Reinforcement barstraight/bent bar, 1'-0" dimensionreinforcing steelBar shape schedule only
450Reinforcement bar2L-shaped/bent bar, 1'-1" x 8"reinforcing steelCalled out as '2-450' at top of end section
451Reinforcement bar8bent bar, 6'-0" legreinforcing steelCalled out as '8-451' at top of end section, slightly shifted to avoid strand conflict
452Reinforcement bar2open-ended bent bar, 1'-6"reinforcing steelCalled out as '2-452' near bottom of both sections; placed with open ends away from beam ends
550Reinforcement bar2bar with 90° bend, 5'-8" x 11"reinforcing steelField/shop bent 90° at top of beam so horizontal leg extends between slab reinforcement mats
650Reinforcement bar2bar with 90° bend, 5'-8" x 8"reinforcing steelSame bending requirement as bar 550

Measurements · 50

MeasurementValueUnitApplies to
Beam top width1'-4"Section at Midpoint
Bar 550 spacing/position550Section at Midpoint
Flange width7"Section at Midpoint
Clear cover2 1/2"Section at Midpoint
Flange dimension7"Section at Midpoint
Web dimension4 1/2"Section at Midpoint
Web dimension4 1/2"Section at Midpoint
Height segment1'-7"Section at Midpoint
Overall beam height3'-9"Section at Midpoint
Flange dimension7 1/2"Section at Midpoint
Flange dimension7 1/2"Section at Midpoint
Clear cover1 5/8"Section at Midpoint
Bottom flange spacing3 SPACES AT 2"Section at Midpoint
Edge dimension3"Section at Midpoint
Edge dimension2"Section at Midpoint
Strand spacing9 SPACES AT 2"Section at Midpoint
Bottom flange width1'-10"Section at Midpoint
Bar 650 position650Section at End
Top clear dimension2"Section at End
Bar count/tag8-451Section at End, bar 451
Bar count/tag2-450Section at End, bar 450
Clear cover1 1/2"Section at End
Bar tag callout350Section at End, bar 350
Overall web height2'-7"Section at End
Clear cover2" CL.Section at End
Bar count/tag2-452Section at End, bar 452
Minimum clearance1in (implied)General note
Strand diameter1/2inPrestressed strands
Bar 350 leg dimension1'-3"Bar 350 shape detail
Bar 350 bend angle45°Bar 350 shape detail
Bar 350 leg dimension4"Bar 350 shape detail
Bar 350 overall dimension1'-7"Bar 350 shape detail
Lap length minimum1'-0"Bar 350 fabrication note
Bar 351 dimension1'-0"Bar 351 shape
Bar 451 dimension6'-0"Bar 451 shape
Bar 450 dimension1'-1"Bar 450 shape
Bar 450 dimension8"Bar 450 shape
Bar 452 dimension1'-6"Bar 452 shape
Bar 550 dimension5'-8"Bar 550 shape
Bar 550 dimension11"Bar 550 shape
Bar 650 dimension5'-8"Bar 650 shape
Bar 650 dimension8"Bar 650 shape
Fragment dimension2"Left edge fragment (cut off)
Fragment dimension2 5/8"Left edge fragment (cut off)
Fragment dimension8"Left edge fragment (cut off)
Fragment dimension6 3/16"Left edge fragment (cut off)
Fragment dimension1'-2 3/16"Left edge fragment (cut off)
Bar count/tag2-650 AT EACH LOCATIONLeft edge fragment (cut off)
Bar count/tag2-452Left edge fragment (cut off)
P.I. Number0019181Title block

Labels

SECTION AT MIDPOINTSECTION AT ENDREINFORCEMENTGDOTP.I. NO.¢ BENT 3350351450451452550650TYP.8-4512-4502-452

Notes

  • MAINTAIN 1" MINIMUM CLEARANCE UNLESS OTHERWISE SHOWN.
  • • INDICATES 1/2" DIAMETER PRESTRESSED STRANDS.
  • ALL DIMENSIONS ARE ALONG ¢ BEAM
  • ALL BAR DIMENSIONS ARE OUT TO OUT.
  • AT THE TOP OF THE BEAM, BARS 550 AND 650 SHALL BE FIELD BENT OR SHOP BENT 90°, SUCH THAT THE HORIZONTAL LEG EXTENDS BETWEEN TOP AND BOTTOM MATS OF SLAB REINFORCEMENT.
  • SLIGHTLY SHIFT OR SLOPE BARS 451 TO AVOID CONFLICT WITH STRANDS.
  • BARS 350 MAY BE FABRICATED IN TWO PARTS BY LAPPING HORIZONTAL SECTION BY 1'-0" MINIMUM.
  • PLACE BARS 452 WITH OPEN ENDS AWAY FROM BEAM ENDS.

anthropic/claude-sonnet-5 · 11196 tokens · 51.8s

2Map the items87 items · 1146 readings · 45 on more than one pageconfigured openai/gpt-5.6-terra-pro · about 12¢ at the last run’s size · default

One set of distinct items across every page. The same bent read as “BENT”, “Interior bent” and “Bent No. 2” is one item here, carrying every page and crop it was seen in. One model call over all of step 1’s readings; the page mapping is resolved from its grouping rather than retyped by it.

87 items from 1146 readings · 2 the model left out, matched by name · 87 new.

87items1146readings45on 2+ pages50,082tokens in11,065tokens out
Reinforcement Barmaterial×3257 · bar · reinforcing steelp2, p4, p5, p6, p7, p8, p9, p10, p11, p13, p14, p16, p17, p19, p2171 crops
Reinforcement Bar

also calledSuperstructure reinforcement steelBar reinforcement steelMain slab reinforcement barMain slab reinforcement barsSkew adjustment barReinforcement bar groupReinforcement bar markFence post anchorage/rebarReinforcement bar (stirrup/tie)Slab reinforcementLongitudinal reinforcement barHorizontal/tie reinforcement barVertical reinforcement barreinforcement bar groupReinforcement barsReinforcement bar - straightReinforcement bar - top bent barReinforcement bar - closed/rectangularReinforcement bar - diagonal/bentReinforcement bar - straight tie+53 more

marksBAR REINF STEELBR NO-1 LT / RT511-3000511-100012-502A12-502B12-502C400A12-502D12-502E400B400C500B600400502D502E500A501502+114 more

PSC Beamsuperstructure×230 · I-girder · precast prestressed concretep2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p1554 crops
PSC Beam

also calledPSC beam spanBeambeamGirder/BeamSupport Stem/Web (beam bottom flange support)Beam (unlabeled additional)GirderPSC beam (unlabeled)beam/deck edge elementbeam / girderPSC beam (I-girder) cross section at endPSC beam (I-girder) cross section at midpointBeam (girder)PSC beam cross sectionbeam web/end blockPSC beam (end bevel detail)beam end cross-section detailPSC beam (girder)Beam (PSC beam, partial)beam (girder end)+3 more

marksAASHTO Type II, BR NO-1AASHTO Type III, BR NO-1507-9002507-9003BEAM 1-6 (Westbound span)BEAM 7-12 (Eastbound span)BEAM 1–BEAM 12BEAM 1BEAM 2BEAM 3BEAM 4BEAM 5BEAM 6BEAM 7BEAM 8BEAM 9BEAM 10BEAM 11BEAM 12BEAM 1 through BEAM 12+8 more

Bentsubstructure×64 · rectangular · reinforced concretep1, p2, p3, p4, p5, p6, p7, p11, p13, p14, p15, p16, p1830 crops
Bent

also calledintermediate bentBent (Substructure)Bridge BentIntermediate bent (pier)

marksBENT 1 (B.F.P.R. BENT 1L/1R)BENT 2 (BENT 2L/2R)BENT 3 (BENT 3L/3R)BENT 4 (B.F.P.R. BENT 4L/4R)BENT 1BENT 2BENT 3BENT 41 (B.F.P.R. BENT 1)2 (BENT 2L/2R)3 (BENT 3L/3R)4 (B.F.P.R. BENT 4)BENT 1 (Left Bridge)BENT 2 (Left Bridge)BENT 3 (Left Bridge)BENT 4 (Left Bridge)BENT 1 (Right Bridge)BENT 2 (Right Bridge)BENT 3 (Right Bridge)BENT 4 (Right Bridge)+16 more

Bearingsuperstructure×41 · rectangular · not stated (likely elastomeric or steel bearing)p1, p8, p10, p11, p13, p14, p15, p1715 crops
Bearing

also calledbearing pointBearing deviceBearing pointBearing pad location

marksEXPFIXBRG.C BEARINGCL BEARINGBEARING

Steel H-pilefoundation×297 · H-section · structural steelp1, p2, p13, p14, p16, p17, p1838 crops
Steel H-pile

also calledPilepileLoad test pile

marksHP 12 X 53520-1125520-4125HP12X53H-PILE1234567,8,9,10,11,12Bent 1 Left / 1 RightBent 2 Left, Footing 1 & 2Bent 2 Right, Footing 3 & 4Bent 3 Left, Footing 1 & 21-12 (Bent 3 Left/Right)1-12 (Bent 4 Left/Right)78+6 more

Bent Capsubstructure×40 · rectangular · reinforced concretep2, p13, p14, p15, p16, p17, p1829 crops
Bent Cap

also calledbent cap / pedestal footingCap beam / bent capPile cap / bent cap beambent cap / pile cap beamBent cap / pile capBent cap / pier capBent cap / column sectionBent cap (with corbel/notch at bearing)Bent cap/columnCap beam / Bent capCap/Beam section (rectangular concrete member)

marksBENT 1BENT 1 RIGHTBENT 1 LEFTBENT 2 LEFTBENT 2 RIGHTBENT 2BENTSECTION B-BBENT 4 LEFTBENT 4 RIGHT

Deck Slabdeck×23 · rectangular/trapezoidal · grooved concretep1, p2, p4, p5, p7, p8, p921 crops
Deck Slab

also calleddeck/superstructureDeck/SuperstructureBridge deckBridge deck (beam bay)

marksLEFT BRIDGE / RIGHT BRIDGESPAN 12-800SLAB

Diaphragmsuperstructure×45 · rectangular transverse strip · concretep2, p4, p5, p6, p7, p9, p1016 crops
Diaphragm

also calledConcrete diaphragmconcrete diaphragmBeam / diaphragm concrete section

marks400A

Concrete Barrierrailing×21 · tapered · reinforced concretep2, p4, p5, p7, p8, p917 crops
Concrete Barrier

also calledBarrierBarrier (parapet) transitionBarrier (transition segment)Barrier (traffic/parapet)Parapet/BarrierEdge parapet/barrier upstandBarrier/ParapetBarrier (bridge parapet/traffic barrier)Traffic barrier (parapet)edge beam / barrier curbparapet/fence post support

marks500-2100

Columnsubstructure×52 · rectangular · reinforced concretep13, p14, p16, p17, p1828 crops
Column

also calledColumn/Pier (end)Column/pedestal (end, left)Column/pedestal (end, right)Reinforced concrete member (rectangular section, possibly pier/column cap)end column/pierColumn/pedestalPile or columncolumn/pier stemconcrete column/pedestal (rectangular capital)Column/Pier elementConcrete member (pile/column section)Reinforced concrete member (section)column or pier cross sectionPile/column section detailReinforced concrete member (section B-B)Reinforced concrete member (section C-C)Concrete member (wall/pier section)Column/pier cross-sectionColumn/PierPile/Column (intermediate)+8 more

marksCOLUMN 1COLUMN 2DETAIL 1 / SECTION A-ADETAIL 3 / SECTION D-DSECTION B-BSECTION C-CSECTION E-ESECTION F-FDetail 1 / Section A-ADetail 3 / Section D-D

Footingfoundation×44 · rectangular/square · reinforced concretep2, p14, p16, p17, p1821 crops
Footing

also calledpedestal footingpile cap/footingConcrete cap/footing sectionPile cap / footingBent cap/Footing

marksFOOTING PLAN - BENT 3BENT 2Bent 3FOOTING 1FOOTING 2FOOTING 3FOOTING 4BENT 4 LEFTBENT 4 RIGHTFooting 1Footing 2Footing 3Footing 4Bent 4 LeftBent 4 Right

Chain Link Fencerailing×8 · linear · zinc coated steelp1, p2, p7, p8, p917 crops
Chain Link Fence

also calledchain link wire fenceChain link wire fencefenceFence (not shown)FenceChain link fence fabric

marks643-1152

Edge Beamdeck×21 · linear strip · concretep4, p5, p6, p7, p911 crops
Edge Beam

also calledEdgebeam

marks2-800

Preformed Joint Fillermaterial×12 · rectangular strip · preformed filler materialp4, p5, p8, p9, p1210 crops
Preformed Joint Filler

also calledFiller materialJoint fillerPreformed foam joint filler

marks*

Dowel Holeother×5 · circular · concrete (formed hole)p12, p13, p14, p15, p179 crops
Dowel Hole

also calledDowel bar hole

End Postrailing×17 · vertical pipe · zinc coated steelp2, p4, p6, p810 crops
End Post

also calledend post and guardrail attachmentEnd post (fence)

marksEND POST

Endwallsubstructure×22 · linear/rectangular · concretep4, p6, p8, p128 crops
Endwall

marks3'-0" ENDWALL1'-6" ENDWALL

Fence Postrailing×11 · vertical pipe · zinc coated steelp4, p5, p6, p88 crops
Fence Post

also calledFence post spacing (fence line)Fence post spacing markersFence post (typical vertical)Pull post (fence)

marks12-502A / 12-502B / 12-502C*

Construction Jointdeck×8 · linearp5, p7, p8, p98 crops
Construction Joint

also calledConstruction joint / B.F.P.R. lineConstruction/expansion joint (B.F.P.R.)

Bearing Padsuperstructure×20 · rectangular · elastomericp7, p9, p1217 crops
Bearing Pad

also calledbearing pad (not shown)Bearing pad / beveled shim plate assemblySecond bearing pad (partial)

marksBent 1Bent 2 BackBent 2 AheadBent 3 BackBent 3 AheadBent 4BENT 1BENT 2 BACKBENT 2 AHEADBENT 3 BACKBENT 3 AHEADBENT 4

Wingwallsubstructure×12 · rectangular · reinforced concretep1, p13, p176 crops
Wingwall

also calledwingwall/wallWingwall/Retaining WallWingwall/wallWingwall / retaining wallWall (retaining/wingwall)

marksWALL 1WALL 2

Joint Sealermaterial×7 · linear bead · silicone sealantp4, p5, p96 crops
Joint Sealer

also calledExpansion joint seal assemblyExpansion joint sealSilicone adhesiveLow modulus silicone sealant (Type A)Silicone sealantJoint sealer detail

marksDetail A

Drip Beaddeck×7 · triangular · unspecified (likely sealant/concrete)p7, p8, p96 crops
Drip Bead
Section Cut Lineother×8 · linep12, p13, p174 crops
Section Cut Line

also calledSection cut markerSection cut markers

marksA-AABB-B

Filletdeck×16 · linear strip · concretep4, p5, p65 crops
Fillet
Prestressing Strandsuperstructure×89 · strand · low-relaxation steelp10, p1110 crops
Prestressing Strand

also calleddraped strandsPrestressed stranddraped strand groupstrand (pretensioning)

marks2-5502-4508-45113-3502-4522-650

Existing Railroad Trackancillary×23 · linear · steelp1, p38 crops
Existing Railroad Track

also calledrailroad trackRail trackRailroad Track (Existing)Railroad track (existing)

marksCENTRAL OF GEORGIA RAILROAD COMPANY EXISTING TRACKEXIST. TRACK

Plain Barmaterial×4 · circular · plain steelp7, p97 crops
Plain Bar

also calledPlain bar (tie rod)

Diaphragm Barsuperstructure×4 · bar · structural steelp10, p116 crops
Diaphragm Bar

marks

Diaphragm Bar Holesuperstructure×10 · circular · void/opening in concretep10, p116 crops
Diaphragm Bar Hole

also calledRecess (pocket for diaphragm bar end)Recess hole

Dowel Barmaterial×2 · circular rod · steelp2, p126 crops
Dowel Bar

also calledSmooth Dowel BarSmooth doweldowel

Endfillearthwork×4 · sloped embankment · earth fillp1, p24 crops
Endfill

also calledEndfill control pointEndfill slope / embankmentEndfill slopefill detail at end of bridge

Future Trackancillary×21 · linear · steel railp1, p36 crops
Future Track

also calledRailroad track (future)Railroad Track (Future)

marksFUTURE TRACK

Paving Restpavement×10 · ledge · concretep4, p66 crops
Paving Rest
Bridgeother×4 · rectangularp3, p183 crops
Bridge

also calledBridge (Left)Bridge (Right)Bridge (left)Bridge (right)

marksLEFT BRIDGERIGHT BRIDGESR 21 @ NS #620272Y

Cap Beamsubstructure×4 · rectangular · reinforced concretep13, p174 crops
Cap Beam

also calledCoping

End Bentsubstructure×6 · H-section piles · structural steel piles / MSE wallp2, p84 crops
End Bent

also calledEnd bent cap/section

marksEND BENT 1END BENT 1 / END BENT 4

Expansion Jointdeck×2 · linear · preformed joint filler / silicone sealantp2, p54 crops
Expansion Joint

also calledExpansion joint (barrier)Expansion joint (in barrier)

Hex Nutmaterial×6 · hexagonal · steelp10, p114 crops
Hex Nut
Hold Down Devicesuperstructure×4p10, p114 crops
Hold Down Device

also calledlow friction type hold downlow friction hold down

Washermaterial×6 · circular · steelp10, p114 crops
Washer
Beam Centerlineother×36 · linear centerline · n/ap13, p173 crops
Beam Centerline

also calledBeam centerline markerBeam centerline referenceBeam centerline marks

marksBEAM 1 - BEAM 12BEAM 1-12

Future Access Roadpavement×3 · linearp1, p33 crops
Future Access Road

also calledAccess Road (Future)

marksFUTURE ACCESS ROAD

Holeother×2 · circularp11, p122 crops
Hole

also called2" diameter holeHole (in beveled shim plate)

Professional Engineer Sealother×2 · circularp11, p182 crops
Professional Engineer Seal

marksNo.19371

Beveled Shim Platesuperstructure×15 · tapered rectangular plate · structural steelp1210 crops
Beveled Shim Plate

also calledShim plateshim plate

marksBent 1Bent 2 BackBent 2 AheadBent 3 BackBent 3 AheadBent 4BENT 1BENT 4

Bearing Platesuperstructure×3 · rectangular · steelp124 crops
Bearing Plate

also calledBearing plate/base plate (plan view)Internal platesinternal plateInternal plate

Railroad Right-of-Way Boundaryother×29 · linear boundaryp34 crops
Railroad Right-of-Way Boundary

also calledRailroad Right-of-WayExisting railroad right-of-way boundaryRailroad right-of-way lineExisting RR right-of-way boundary

marksRR R/WEXIST. RR ROW

Load Platesuperstructure×4 · rectangular · steelp123 crops
Load Plate
Sealing ribmatched by name×5 · rectangular · steelp123 crops
Sealing rib
Abutmentsubstructure×2 · tapered · reinforced concretep72 crops
Abutment

also calledAbutment/backwallabutment/end support

Access Roadpavement×17 · linearp32 crops
Access Road

marksACCESS RD.

Approach Slabdeckp22 crops
Approach Slab
Concrete Nosingdeck×4 · rounded edge · concretep42 crops
Concrete Nosing

also calledConcrete edge/nosingJoint recess/nosing

Cross-section Detailother×2 · unclear, croppedp102 crops
Cross-section Detail

also calledpartial section detailcross-section detail (partial)

marksSECTION A

  • p10p10_r01 notespartial section detail · SECTION A · ×1p10_r01cross-section detail (partial) · ×1
Fence Tension Barrailing×1 · pipe · zinc coated steelp82 crops
Fence Tension Bar

also calledTension bar

Fence Truss Bracingrailing×1 · diagonal pipe · zinc coated steelp82 crops
Fence Truss Bracing

also calledTruss bracing

High Railancillary×2 · point/calloutp12 crops
High Rail

also calledtop of high rail

Mechanical Couplermaterialp142 crops
Mechanical Coupler
Pipe Sleeveancillary×2 · circular · galvanized steelp82 crops
Pipe Sleeve
Profile Grade Lineother×2 · linear alignmentp31 crop
Profile Grade Line

also calledPGL profile grade line

marksPGL WESTBOUNDPGL EASTBOUND

  • p3p03_r01PGL profile grade line · PGL WESTBOUND · ×1p03_r01PGL profile grade line · PGL EASTBOUND · ×1
Reference Lineother×2 · linear reference linep161 crop
Reference Line

also calledReference line BReference line C

marksBC

  • p16p16_r03Reference line B · B · ×1p16_r03Reference line C · C · ×1
Reinforcement Bar Bending Detailotherreinforcing steelp22 crops
Reinforcement Bar Bending Detail

also calledbar bending detail referencereinforcing bar bending detail

Roadway Centerlineother×2 · linear alignmentp32 crops
Roadway Centerline

also calledRoadway Centerline SR 21

marksC SR 21SR 21

Superstructure Concretematerialconcrete, Class Dp22 crops
Superstructure Concrete

also calledSuperstructure (general)

marks500-1011

Sway Bracingsuperstructurep22 crops
Sway Bracing

also calledswaybracing

Temporary Shoringancillary×1 · linearp12 crops
Temporary Shoring
Track centerlinematched by name×2 · linear (centerline)p12 crops
Track centerline

marksC TRACK

Bearing Lineother×2 · linearp141 crop
Bearing Line

marks℄ BEARING

  • p14p14_r01Bearing line · ℄ BEARING · ×2
Bent Number And Pile Tip Elevation Tableother×1 · tabularp21 crop
Bent Number And Pile Tip Elevation Table

also calledBent Number / Pile Tip Elevation Table

Bridge Begin Reference Pointother×2 · point marker · n/ap131 crop
Bridge Begin Reference Point

also calledBridge begin/reference point (B.F.P.R.)

Bridge Centerlineother×1 · linearp51 crop
Bridge Centerline

marksC BRIDGE

Bridge Excavationearthworkearth/soilp21 crop
Bridge Excavation

marks211-0200

  • p2p02_r05Bridge excavation · 211-0200
Chamferdeck×1 · linear edge chamfer · concretep51 crop
Chamfer
Class AA Concretematerialconcretep21 crop
Class AA Concrete

marks500-3002

  • p2p02_r05Class AA concrete · 500-3002
Clearance Envelopeother×1 · rectangularp11 crop
Clearance Envelope
Dynamic Pile Testfoundationp21 crop
Dynamic Pile Test

marks523-1100

  • p2p02_r05Dynamic pile test · 523-1100
Elevation Data Tableother×1 · tabularp31 crop
Elevation Data Table

marksSURVEYED TOP OF RAIL ELEVATIONS

  • p3p03_r01Elevation data table · SURVEYED TOP OF RAIL ELEVATIONS · ×1
Existing Grade Lineother×9 · irregular profile linep31 crop
Existing Grade Line

also calledGround/existing grade line

Foundation Backfillearthworkgranular backfillp21 crop
Foundation Backfill

also calledFoundation backfill material

marks207-0203

  • p2p02_r05Foundation backfill material · 207-0203
Grooved Concrete Surfacedeckconcretep21 crop
Grooved Concrete Surface

marks500-0100

  • p2p02_r05Grooved concrete surface · 500-0100
Mechanically Stabilized Earth Wallsubstructurep21 crop
Mechanically Stabilized Earth Wall
  • p2p02_r06mechanically stabilized earth wall
Pile Bent Supportfoundation×2 · pile group/footing · reinforced concretep11 crop
Pile Bent Support
Pile Connection Detailfoundation×1 · H-section pile connection · structural steel / reinforcing steelp141 crop
Pile Connection Detail
Substructure Concretematerialreinforced concrete, Class AAp21 crop
Substructure Concrete

also calledSubstructure (general)

Title Blockother×1p211 crop
Title Block
Waterproofingmaterialper Section 530 Georgia DOT Specificationsp81 crop
Waterproofing
3Match the ontology36 of 87 matched · 7 to check · 51 unmatchedconfigured openai/gpt-5.6-terra-pro · about $2.42 for a full pass · default

Every item from step 2 compared against the project’s engineering ontology, and then, for each one that lands in a class, a take-off of what that class asks for. The class list goes up as a closed vocabulary, so regional wording resolves without a synonym table — BENT to a pier system, PSC BEAM to a prestressed girder. Any class id that is not in the ontology is rejected rather than stored. The take-off reads every crop behind an item, derives what the drawings imply, shows its arithmetic, and says plainly when a number is not there. Matching against bridge v1.0.0, 133 classes.

23 items could not be worked out. Open one to see why, and work it out again from its own page.

29matched7to check51unmatched41% covered30values8gaps2,058,391tokens in60,862tokens out

51 items the bridge ontology has no class forAdd a class

  • Chain Link Fencep1, p2, p7, p8, p9 · 17 crops · ×8The ontology would need a chain-link fence class.
  • Edge Beamp4, p5, p6, p7, p9 · 11 crops · ×21The ontology would need a bridge edge beam class.
  • Preformed Joint Fillerp4, p5, p8, p9, p12 · 10 crops · ×12The ontology would need a preformed joint filler material class.
  • Dowel Holep12, p13, p14, p15, p17 · 9 crops · ×5The ontology would need a dowel-hole or formed-opening class.
  • End Postp2, p4, p6, p8 · 10 crops · ×17The ontology would need a fence end-post class.
  • Construction Jointp5, p7, p8, p9 · 8 crops · ×8The ontology would need a construction-joint class.
  • Endwallp4, p6, p8, p12 · 8 crops · ×22The ontology would need an endwall class.
  • Fence Postp4, p5, p6, p8 · 8 crops · ×11The ontology would need a fence-post class.
  • Drip Beadp7, p8, p9 · 6 crops · ×7The ontology would need a drip-bead class.
  • Joint Sealerp4, p5, p9 · 6 crops · ×7The ontology would need a joint sealant material class.
  • Filletp4, p5, p6 · 5 crops · ×16The ontology would need a concrete fillet class.
  • Section Cut Linep12, p13, p17 · 4 crops · ×8The ontology would need a drawing section-cut reference class.
  • Plain Barp7, p9 · 7 crops · ×4The ontology would need a plain steel tie-bar class.
  • Diaphragm Barp10, p11 · 6 crops · ×4The ontology would need a diaphragm-bar connection class.
  • Diaphragm Bar Holep10, p11 · 6 crops · ×10The ontology would need a diaphragm-bar recess or opening class.
  • Dowel Barp2, p12 · 6 crops · ×2The ontology would need a smooth dowel-bar class.
  • Paving Restp4, p6 · 6 crops · ×10The ontology would need a paving-rest ledge class.
  • Hex Nutp10, p11 · 4 crops · ×6The ontology would need a structural nut class.
  • Hold Down Devicep10, p11 · 4 crops · ×4The ontology would need a bridge hold-down device class.
  • Washerp10, p11 · 4 crops · ×6The ontology would need a structural washer class.
  • Beam Centerlinep13, p17 · 3 crops · ×36The ontology would need a beam-centerline reference class.
  • Future Access Roadp1, p3 · 3 crops · ×3The ontology would need an approach access-road class.
  • Holep11, p12 · 2 crops · ×2The ontology would need a generic formed-hole class.
  • Professional Engineer Sealp11, p18 · 2 crops · ×2The professional engineer seal is a drawing administrative mark, not a bridge work item.
  • Beveled Shim Platep12 · 10 crops · ×15The ontology would need a bearing shim-plate class.
  • Bearing Platep12 · 4 crops · ×3The ontology would need a bearing plate or base-plate class.
  • Railroad Right-of-Way Boundaryp3 · 4 crops · ×29The railroad right-of-way boundary is a land reference, not a listed bridge component.
  • Load Platep12 · 3 crops · ×4The ontology would need a bearing load-plate class.
  • Sealing ribp12 · 3 crops · ×5The ontology would need a sealing-rib component class.
  • Access Roadp3 · 2 crops · ×17The ontology would need an approach access-road class.
  • Concrete Nosingp4 · 2 crops · ×4The ontology would need a concrete nosing class.
  • Cross-section Detailp10 · 2 crops · ×2The item is a drawing detail rather than a permanent bridge component.
  • Fence Tension Barp8 · 2 crops · ×1The ontology would need a fence tension-bar class.
  • Fence Truss Bracingp8 · 2 crops · ×1The ontology would need a fence bracing class.
  • Mechanical Couplerp14 · 2 cropsThe ontology would need a reinforcing-bar mechanical coupler class.
  • Pipe Sleevep8 · 2 crops · ×2The ontology would need a pipe-sleeve class.
  • Reinforcement Bar Bending Detailp2 · 2 cropsThe item is a reinforcement detailing reference rather than a built reinforcing-bar item.
  • Superstructure Concretep2 · 2 cropsThe ontology would need a structural concrete material class.
  • Bearing Linep14 · 1 crop · ×2The ontology would need a bearing-line reference class.
  • Bent Number And Pile Tip Elevation Tablep2 · 1 crop · ×1The item is a drawing data table rather than a bridge component.
  • Bridge Begin Reference Pointp13 · 1 crop · ×2The ontology would need a bridge-begin reference-point class.
  • Chamferp5 · 1 crop · ×1The ontology would need a concrete chamfer class.
  • Class AA Concretep2 · 1 cropThe ontology would need a Class AA concrete material class.
  • Clearance Envelopep1 · 1 crop · ×1The clearance envelope is a design reference, not a listed bridge component.
  • Dynamic Pile Testp2 · 1 cropDynamic pile testing is a construction testing activity, not a permanent bridge component.
  • Elevation Data Tablep3 · 1 crop · ×1The item is a surveyed elevation data table rather than a bridge component.
  • Grooved Concrete Surfacep2 · 1 cropThe ontology would need a grooved concrete surface treatment class.
  • Pile Connection Detailp14 · 1 crop · ×1The item is a pile connection detail rather than a separately listed bridge component.
  • Reference Linep16 · 1 crop · ×2The ontology would need a generic drawing reference-line class.
  • Substructure Concretep2 · 1 cropThe ontology would need a structural concrete material class.
  • Title Blockp21 · 1 crop · ×1The title block is a drawing administrative element, not a bridge work item.

superstructure8

  • PSC BeamPrestressed Concrete Girderbridge.superstructure.main_load_system.psc_girderp2, p4, p5, p6, p7, p8, p9, p10, p11, p12, p13, p14, p15 · 54 crops · ×2302 read · 1 derived · 1 gapon “PSC Beam
  • BearingcheckBridge Bearing Systemgroupingbridge.superstructure.bearing_systemp1, p8, p10, p11, p13, p14, p15, p17 · 15 crops · ×41on “Bearing
  • Deck SlabDeck Slabbridge.superstructure.deck_system.deck_slabp1, p2, p4, p5, p7, p8, p9 · 21 crops · ×233 read · 1 derived · 1 gapon “Deck Slab
  • DiaphragmDiaphragmbridge.superstructure.secondary_member_system.diaphragmp2, p4, p5, p6, p7, p9, p10 · 16 crops · ×451 read · 4 gapson “Diaphragm
  • Bearing PadElastomeric Bearingbridge.superstructure.bearing_system.elastomeric_bearingp7, p9, p12 · 17 crops · ×20take-off failedon “bearing pad
  • Expansion JointcheckExpansion Joint Systemgroupingbridge.superstructure.expansion_joint_systemp2, p5 · 4 crops · ×2on “Expansion joint
  • Sway BracingcheckLateral Bracingbridge.superstructure.secondary_member_system.lateral_bracingp2 · 2 cropstake-off failedon “swaybracing
  • WaterproofingcheckDeck Waterproofingbridge.superstructure.deck_system.waterproofingp8 · 1 croptake-off failedon “Waterproofing

alignment system7

substructure7

  • BentPier Systemgroupingbridge.substructure.pier_systemp1, p2, p3, p4, p5, p6, p7, p11, p13, p14, p15, p16, p18 · 30 crops · ×64on “BENT
  • Bent CapPier Capbridge.substructure.pier_system.pier_capp2, p13, p14, p15, p16, p17, p18 · 29 crops · ×404 read · 1 derivedon “Bent Cap
  • ColumnRectangular Pier Shaftbridge.substructure.pier_system.pier_shaft.rectangularp13, p14, p16, p17, p18 · 28 crops · ×524 read · 1 gapon “Column/pier shaft
  • WingwallWing Wallbridge.substructure.abutment_system.wing_wallp1, p13, p17 · 6 crops · ×12take-off failedon “Wingwall
  • Cap BeamPier Capbridge.substructure.pier_system.pier_capp13, p17 · 4 crops · ×4take-off failedon “Cap Beam
  • End BentAbutment Systemgroupingbridge.substructure.abutment_systemp2, p8 · 4 crops · ×6on “End Bent
  • AbutmentAbutment Systemgroupingbridge.substructure.abutment_systemp7 · 2 crops · ×2on “Abutment

approach earthwork system5

ancillary system3

  • Reinforcement BarReinforcing Barbridge.ancillary_system.reinforcement_system.rebarp2, p4, p5, p6, p7, p8, p9, p10, p11, p13, p14, p16, p17, p19, p21 · 71 crops · ×32573 read · 2 derivedon “Reinforcement Bar
  • Concrete BarrierBridge Crash Barrierbridge.ancillary_system.crash_barrierp2, p4, p5, p7, p8, p9 · 17 crops · ×211 read · 3 derivedon “Barrier
  • Prestressing StrandPrestressing Tendonbridge.ancillary_system.prestressing_system.tendonp10, p11 · 10 crops · ×89take-off failedon “Prestressing Strand

foundation system3

  • Steel H-pileSteel H Pilebridge.foundation_system.deep_foundation.pile.steel_hp1, p2, p13, p14, p16, p17, p18 · 38 crops · ×2971 read · 3 derived · 1 gapon “Steel H-pile
  • FootingcheckPile Capbridge.foundation_system.deep_foundation.pile_capp2, p14, p16, p17, p18 · 21 crops · ×44take-off failedon “Pile cap/footing
  • Pile Bent SupportcheckPile Groupbridge.foundation_system.deep_foundation.pile_groupp1 · 1 crop · ×2take-off failedon “Pile Bent Support

asset1

  • BridgeBridge Assetgroupingbridge.assetp3, p18 · 3 crops · ×4take-off failedon “Bridge

construction system1

ground system1

Index for the agent4897 points · 269 crops · 87 itemsopenai/text-embedding-3-small

Everything steps 1 and 2 know, written to the vector store for a chat agent to answer from. Cut fine — a point for each object, each measurement and each note, not one per crop — with the page, the crop and the drawing written into every one, so a retrieved number arrives with enough context to be an answer. The readings as a whole and step 2’s items are indexed too, for the questions that are about a drawing rather than a figure.

Re-runnable at any time: each point is keyed to the record it came from, so re-indexing replaces what changed, adds what is new, and drops what the drawings no longer support. Re-read a crop or correct one by hand, then press this.

4897 points indexed and up to date.

4,897points stored4,897points ready269crops87items388,013tokens embedded

Collection mindmap_vectors, filtered on projectId = gdot_plan-649084f395824aaebf1f5ed48132696f.
